Removal Procedure

When removing the center child tether anchor, or the vehicle is equipped with OnStar, and or digital radio perform the following step:
1. Remove the rear window trim panel from the rear shelf. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
2. Remove the tether anchor bolt (3).
  Digital radio bracket shown, Global Position System (GPS) bracket similar.
3. Remove the for the GSP bracket, and or the digital radio bracket (2) from the tether anchor (1).
4. Remove the tether anchor (1) from the rear shelf (5).
When removing the outer child tether anchor, or the vehicle is not equipped with OnStar, and or digital radio perform the following steps:
1. Remove the tether anchor bezel from the rear window shelf trim.
2. Remove the bolt from the tether anchor.
3. Remove the tether anchor from the rear shelf.

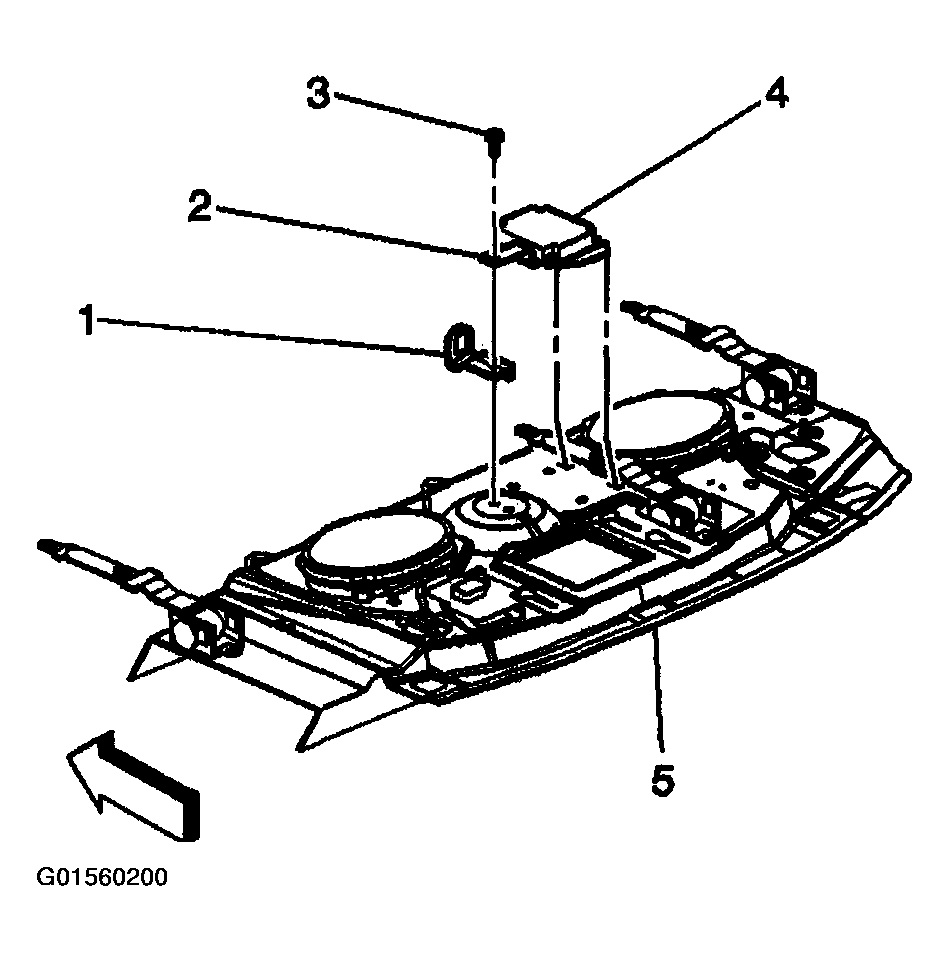

  Fig 1: Removing Center Tether Anchor From Rear Shelf
  Courtesy of GENERAL MOTORS CORP.

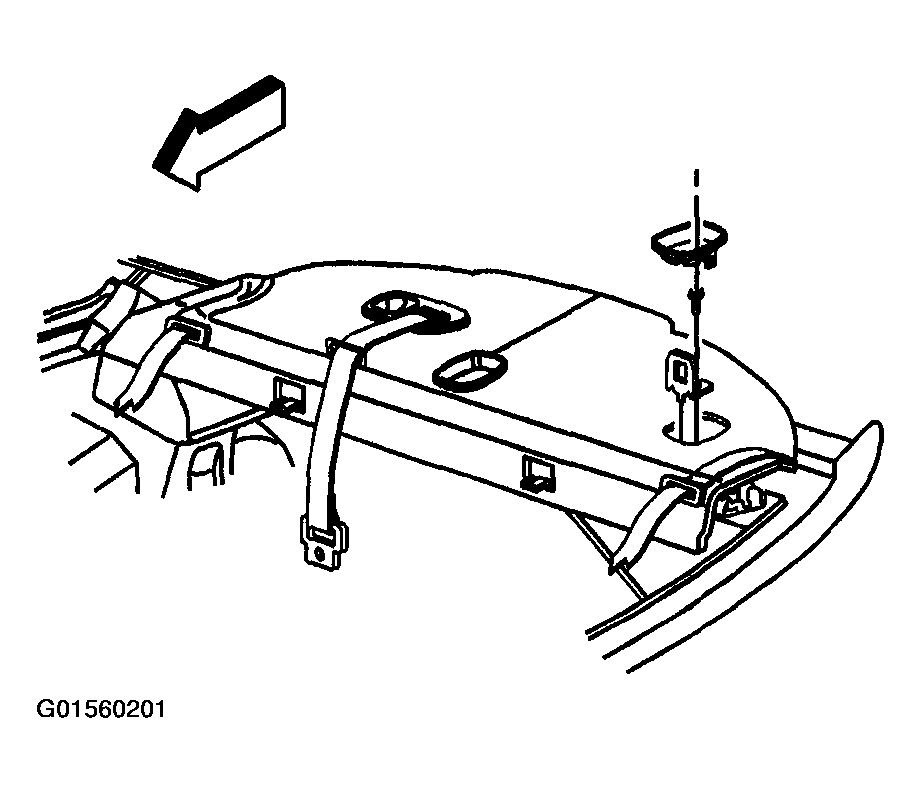

  Fig 2: Removing Outer Tether Anchor From Rear Shelf
  Courtesy of GENERAL MOTORS CORP.
