Installation Procedure

Install the power steering pressure pipe (4) to the vehicle.

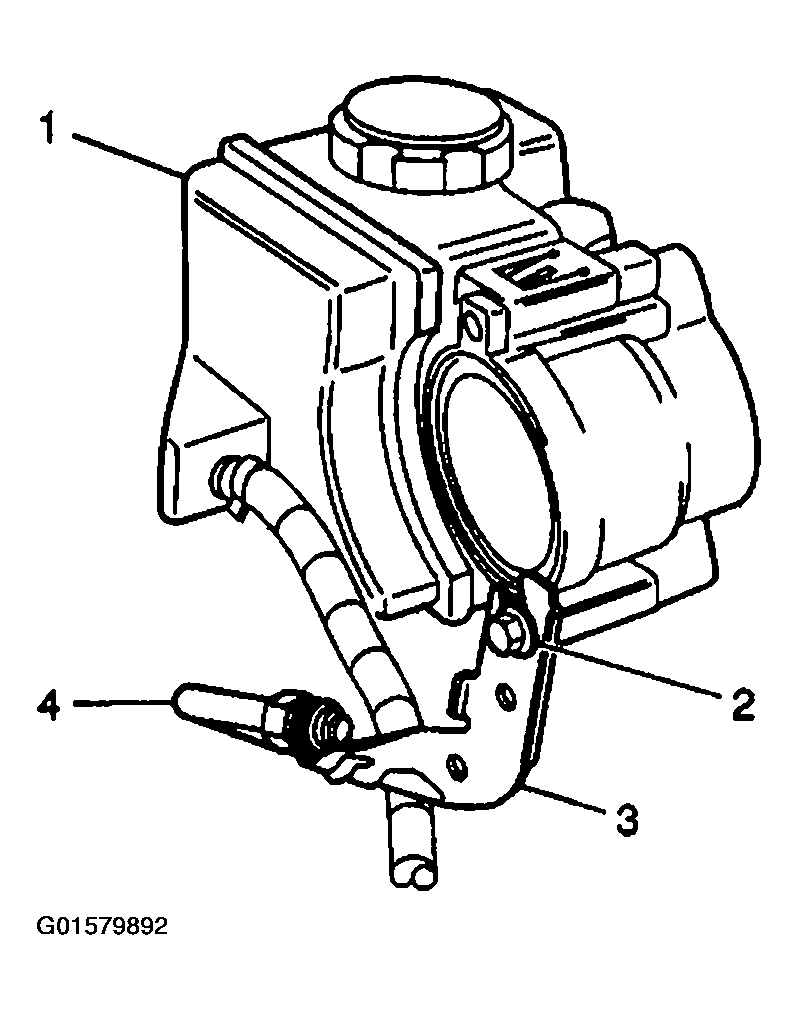

Fig 1: Identifying Power Steering Pressure Pipe & Bracket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the power steering pressure pipe (4) to the power steering pump (1). Tighten the fitting to 27 N.m (20 lb ft).
Install the bolt (2) to the power steering pressure pipe bracket (3). Tighten the bolt to 26 N.m (19 lb ft).
Install the power steering pressure hose (3) to the power steering pressure pipe (4). Refer to Power Steering Pressure Pipe/Hose Replacement (2.2L (L61) and 2.4L (LD9)) . Tighten the fitting to 27 N.m (20 lb ft).

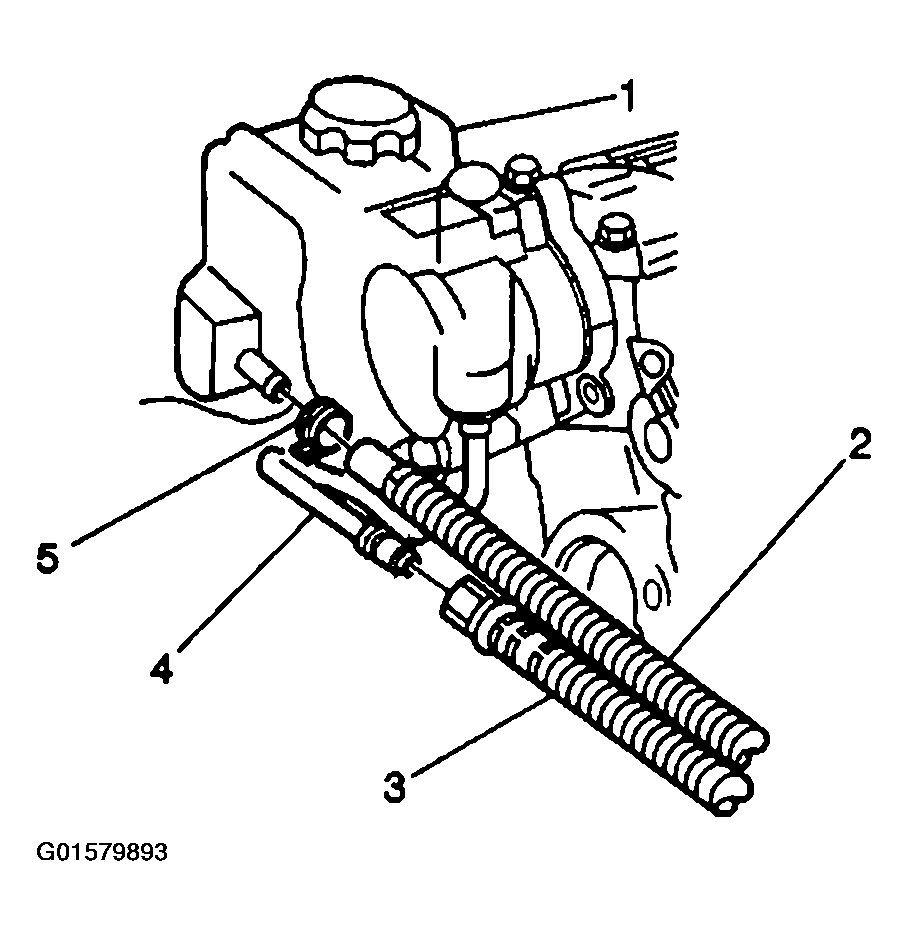

Fig 2: Identifying Power Steering Pressure Hose & Pipe
Courtesy of GENERAL MOTORS CORP.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
