Component Locations

Fig 1: Locating Circuit Opening Relay

Courtesy of GENERAL MOTORS CORP.

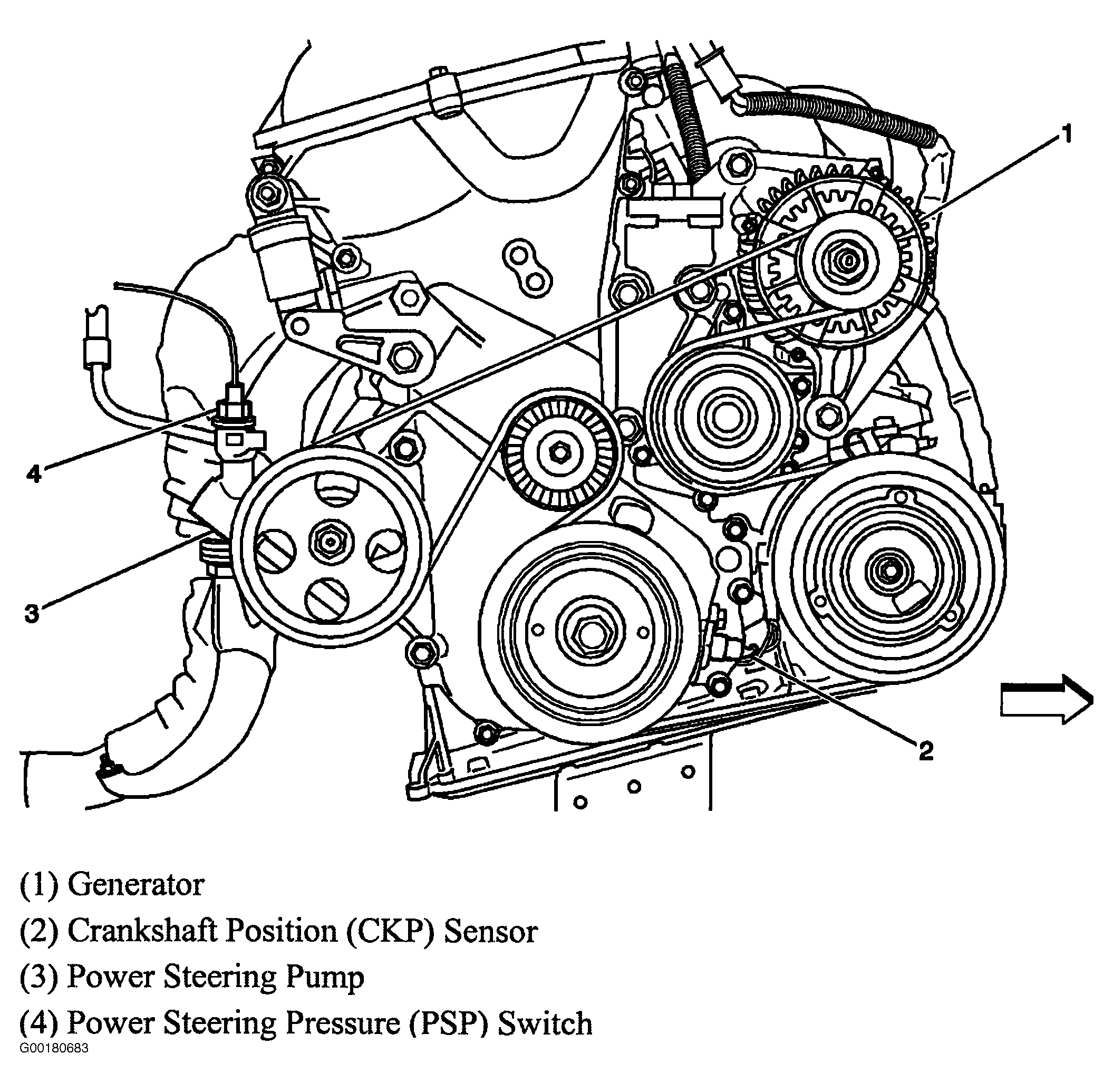

Fig 2: Locating Crankshaft Position Sensor & Power Steering Pressure Switch

Courtesy of GENERAL MOTORS CORP.

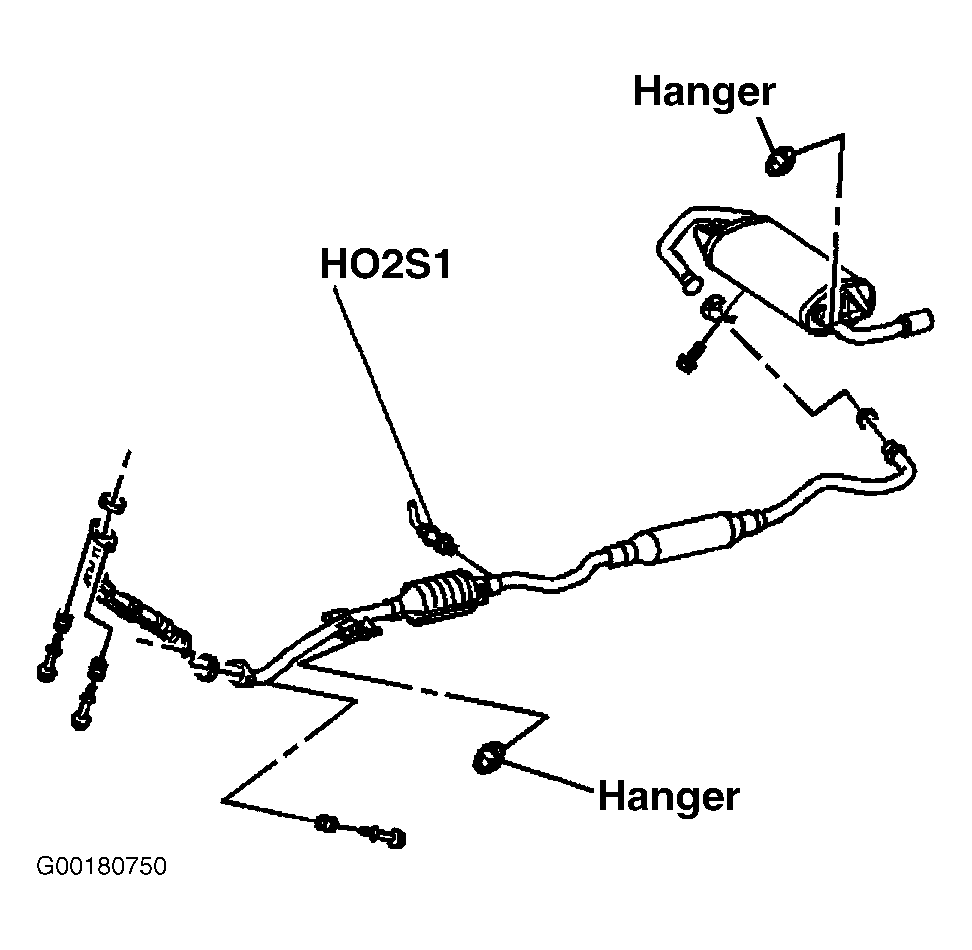

Fig 3: Locating HO2S 1 (AWD)

Courtesy of GENERAL MOTORS CORP.

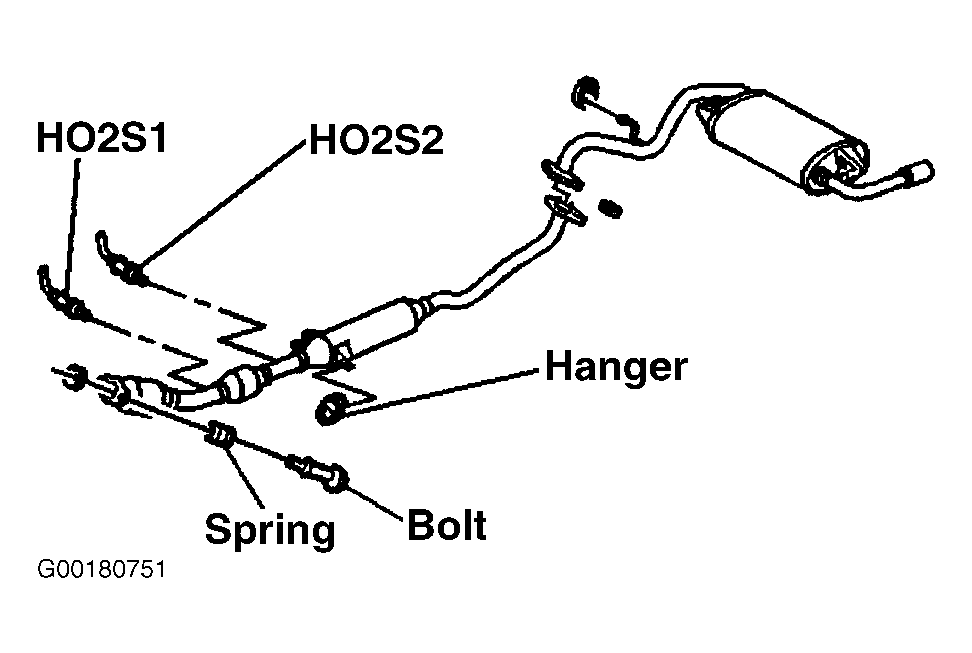

Fig 4: Locating HO2S 1 & HO2S 2 (2WD)

Courtesy of GENERAL MOTORS CORP.

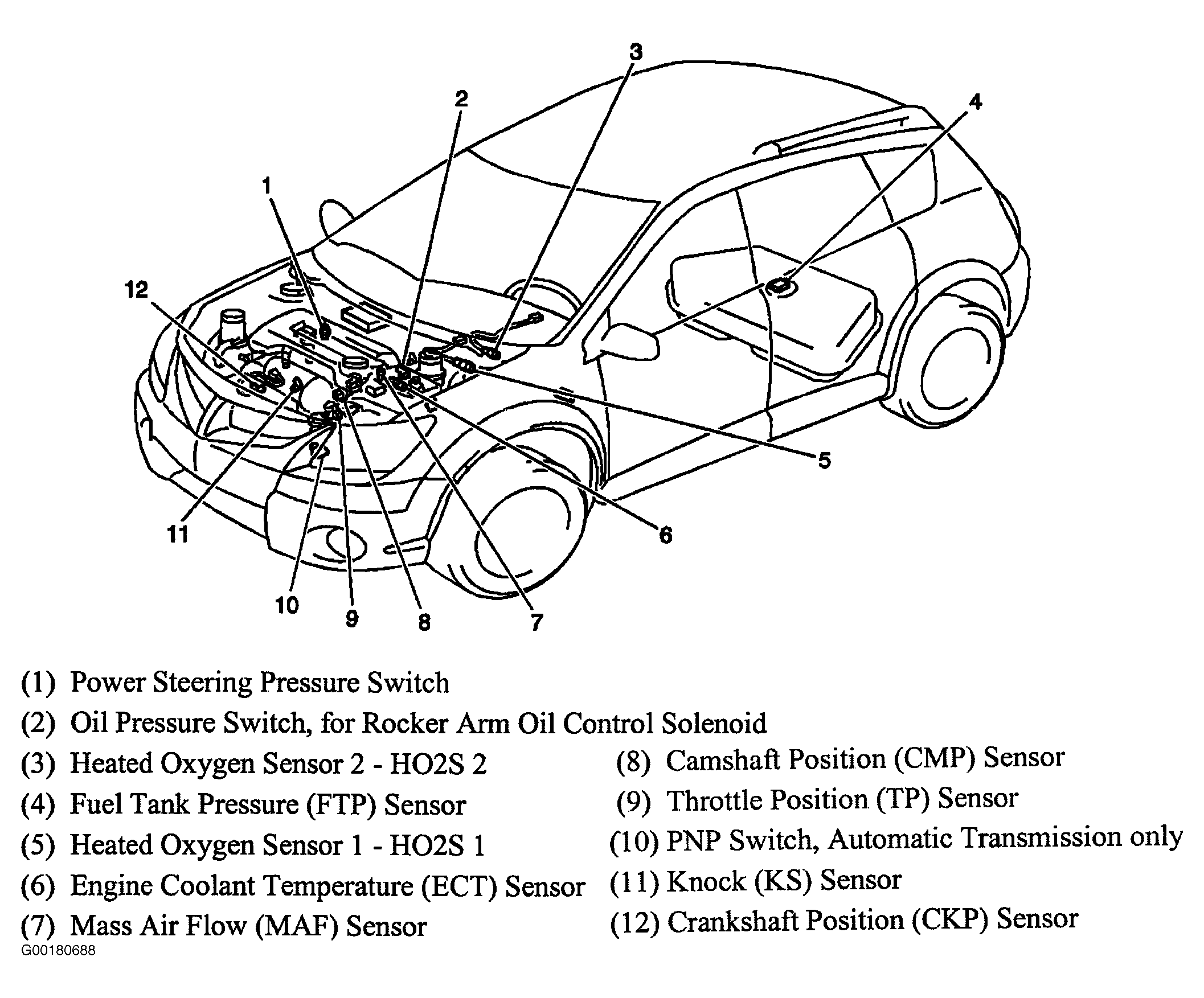

Fig 5: Locating Information Sensors/Input Devices

Courtesy of GENERAL MOTORS CORP.

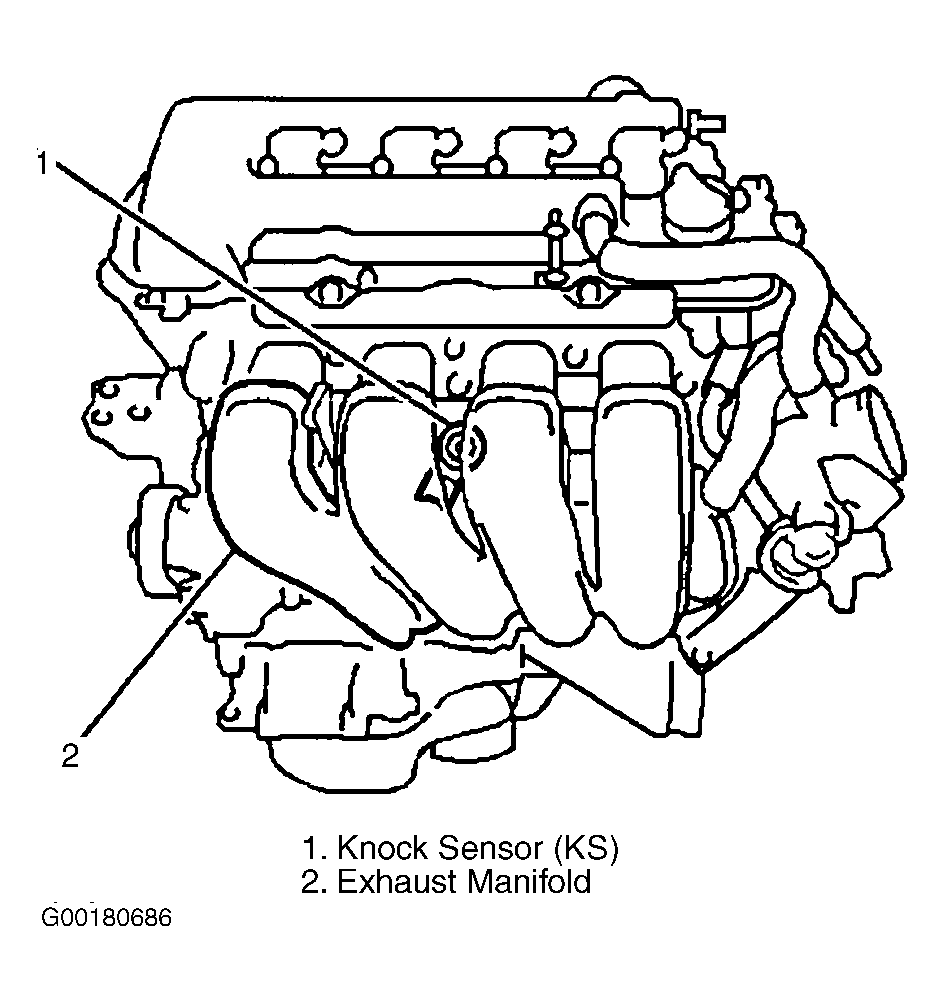

Fig 6: Locating Knock Sensor

Courtesy of GENERAL MOTORS CORP.

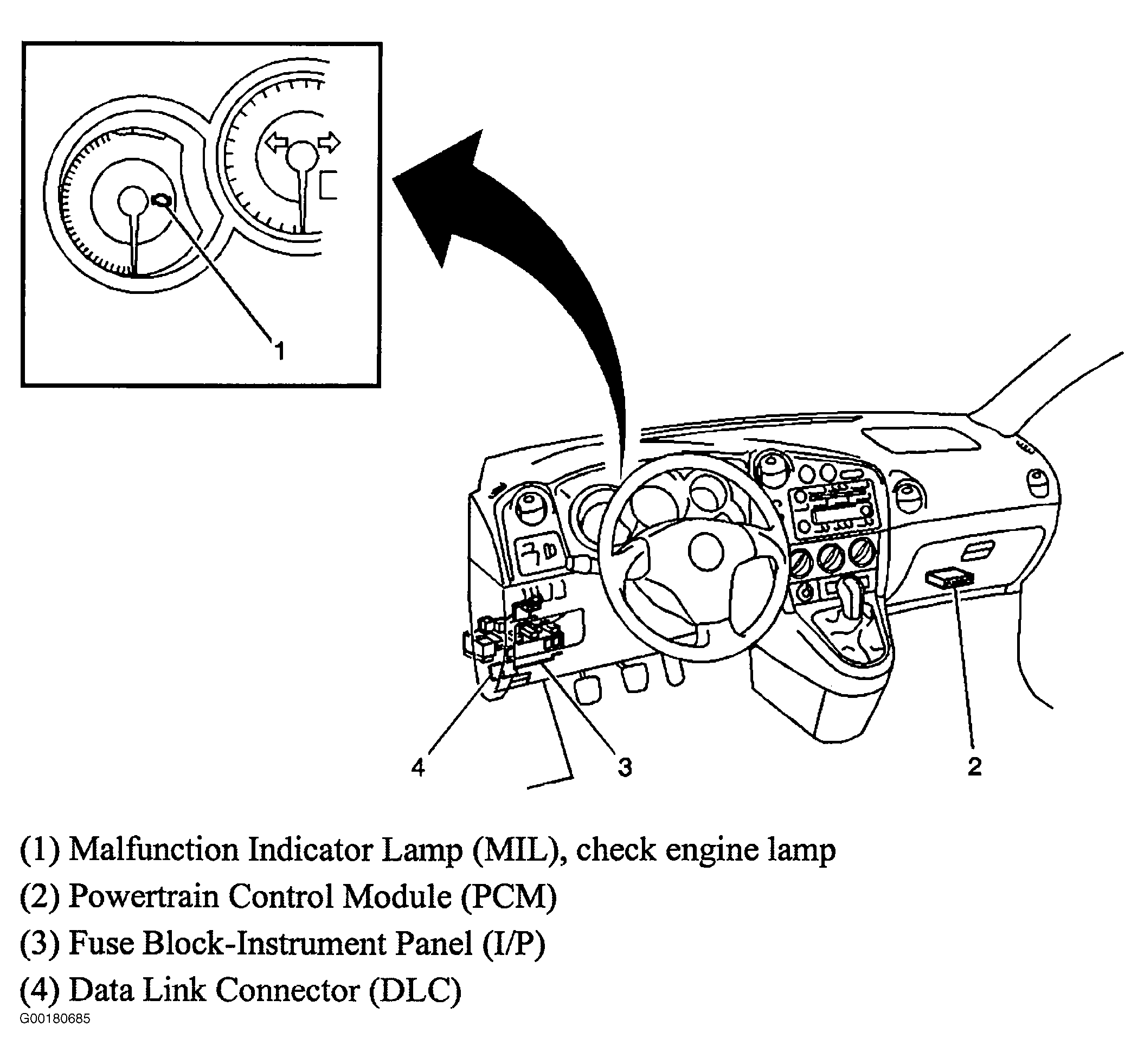

Fig 7: Locating MIL, PCM, I/P Fuse Block & DLC

Courtesy of GENERAL MOTORS CORP.

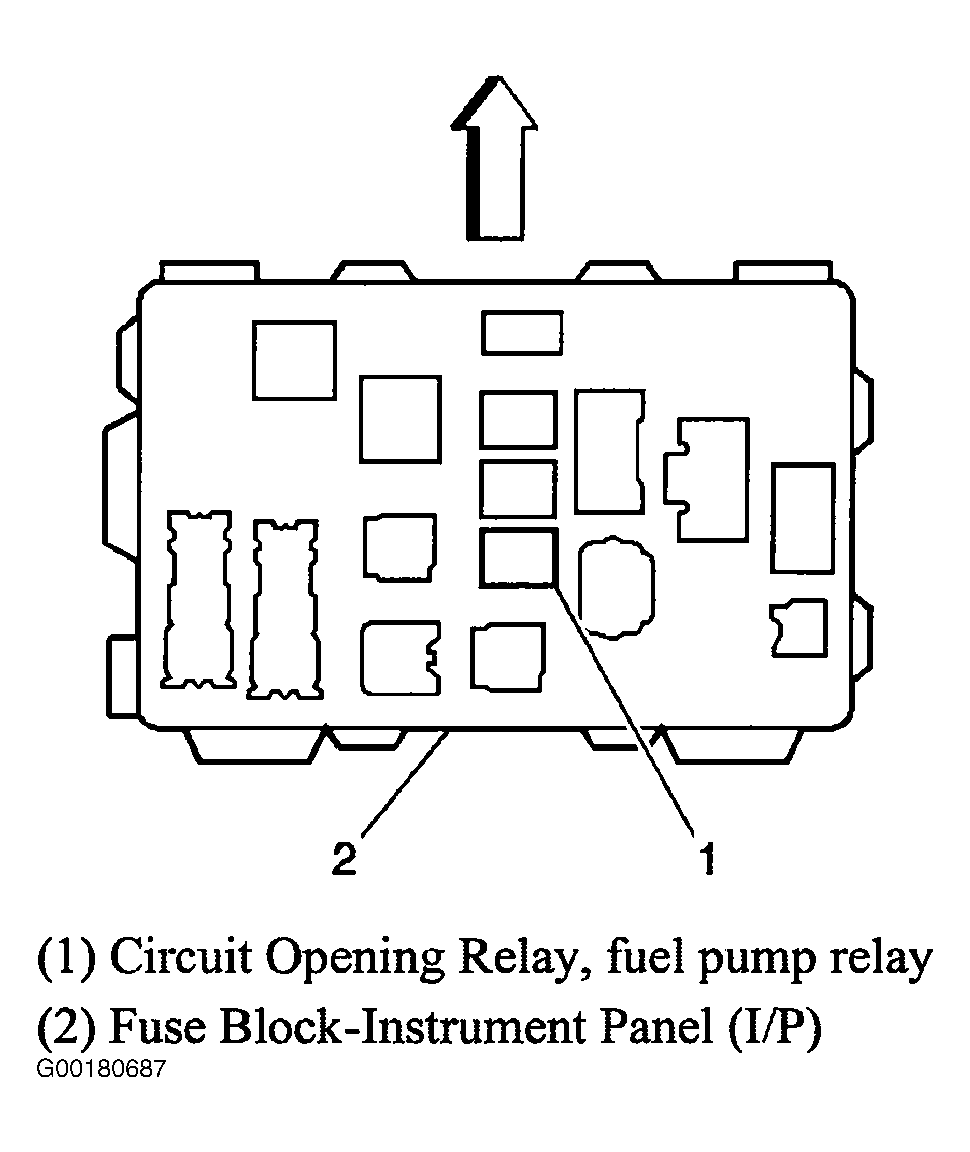

Fig 8: Locating Opening Relay/Fuel Pump Relay

Courtesy of GENERAL MOTORS CORP.

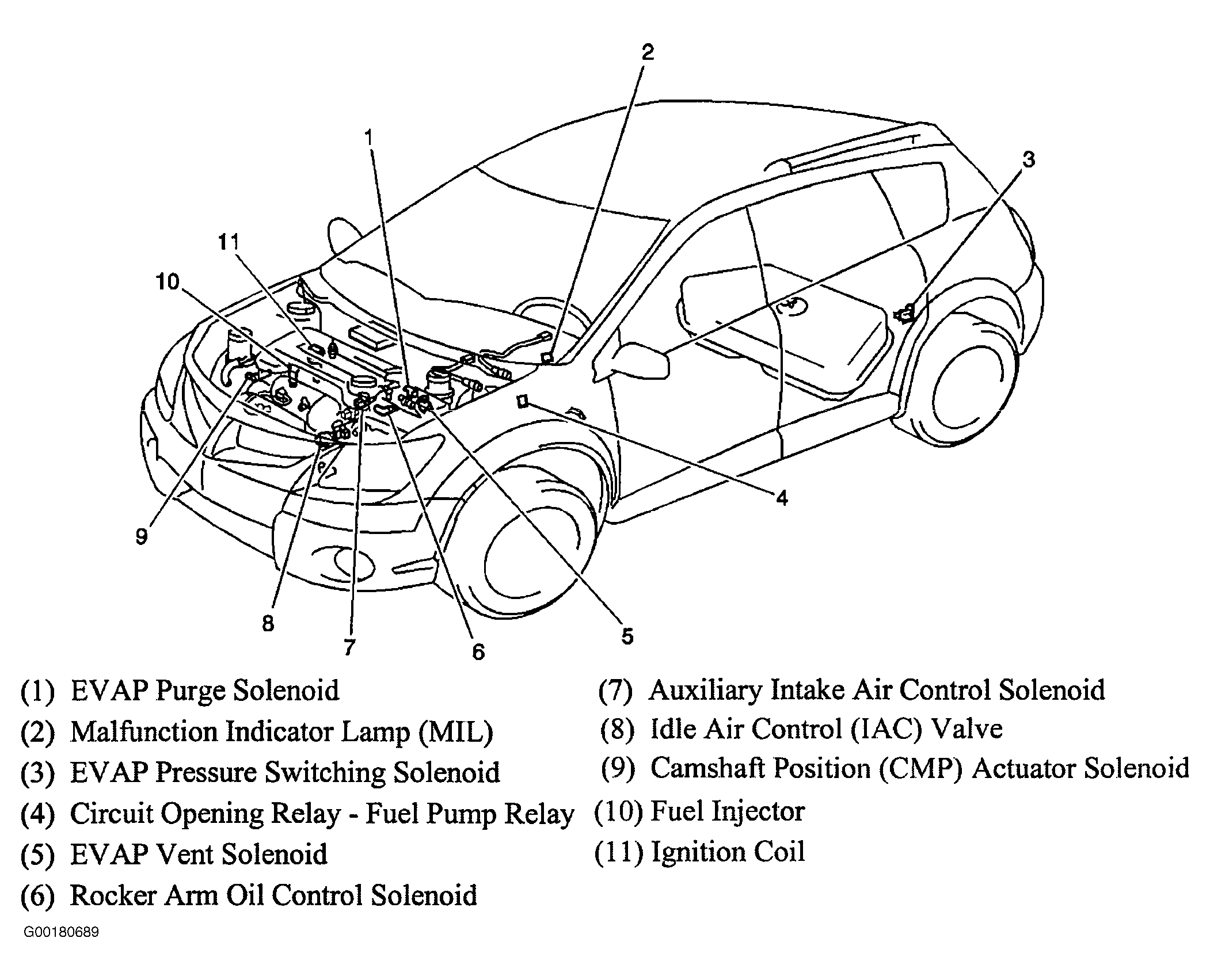

Fig 9: Locating PCM Controlled Devices

Courtesy of GENERAL MOTORS CORP.

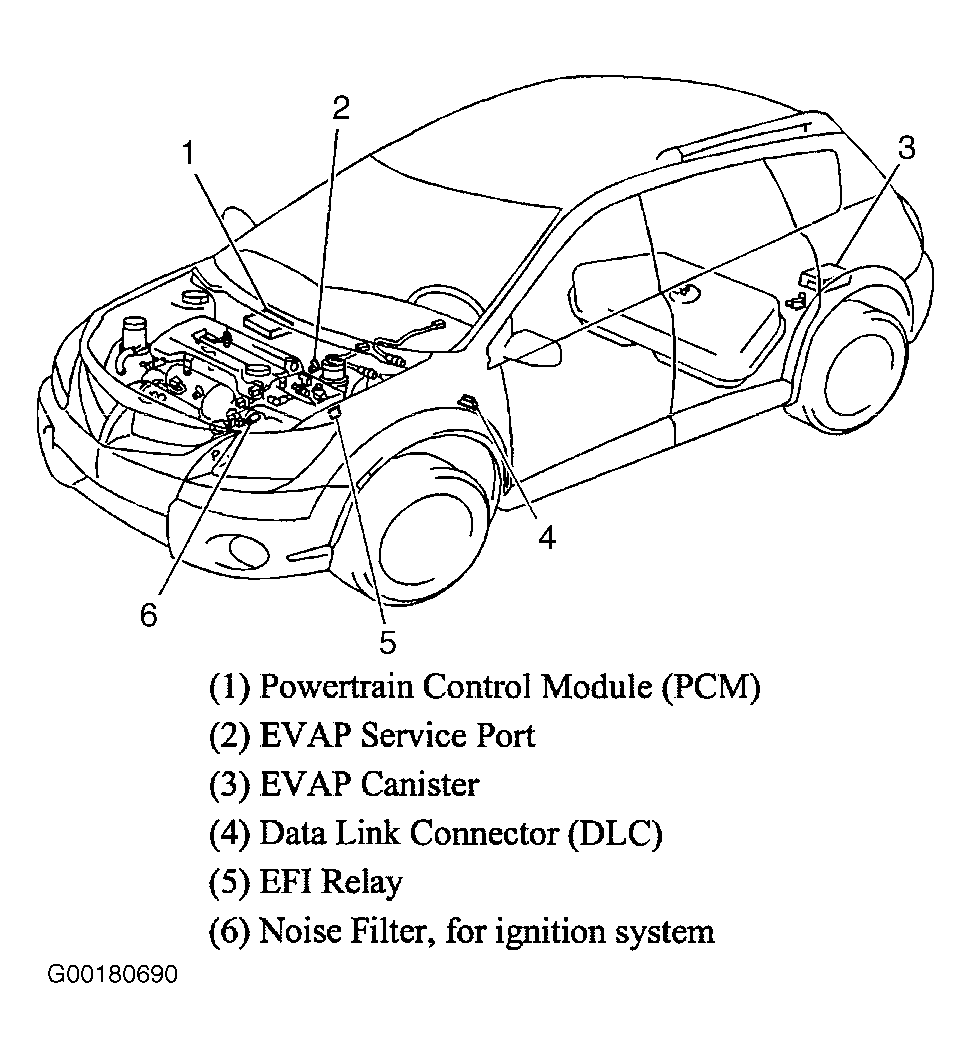

Fig 10: Locating PCM, EVAP Canister & Service Port, DLC, EFI Relay & Ignition System Noise Filter

Courtesy of GENERAL MOTORS CORP.

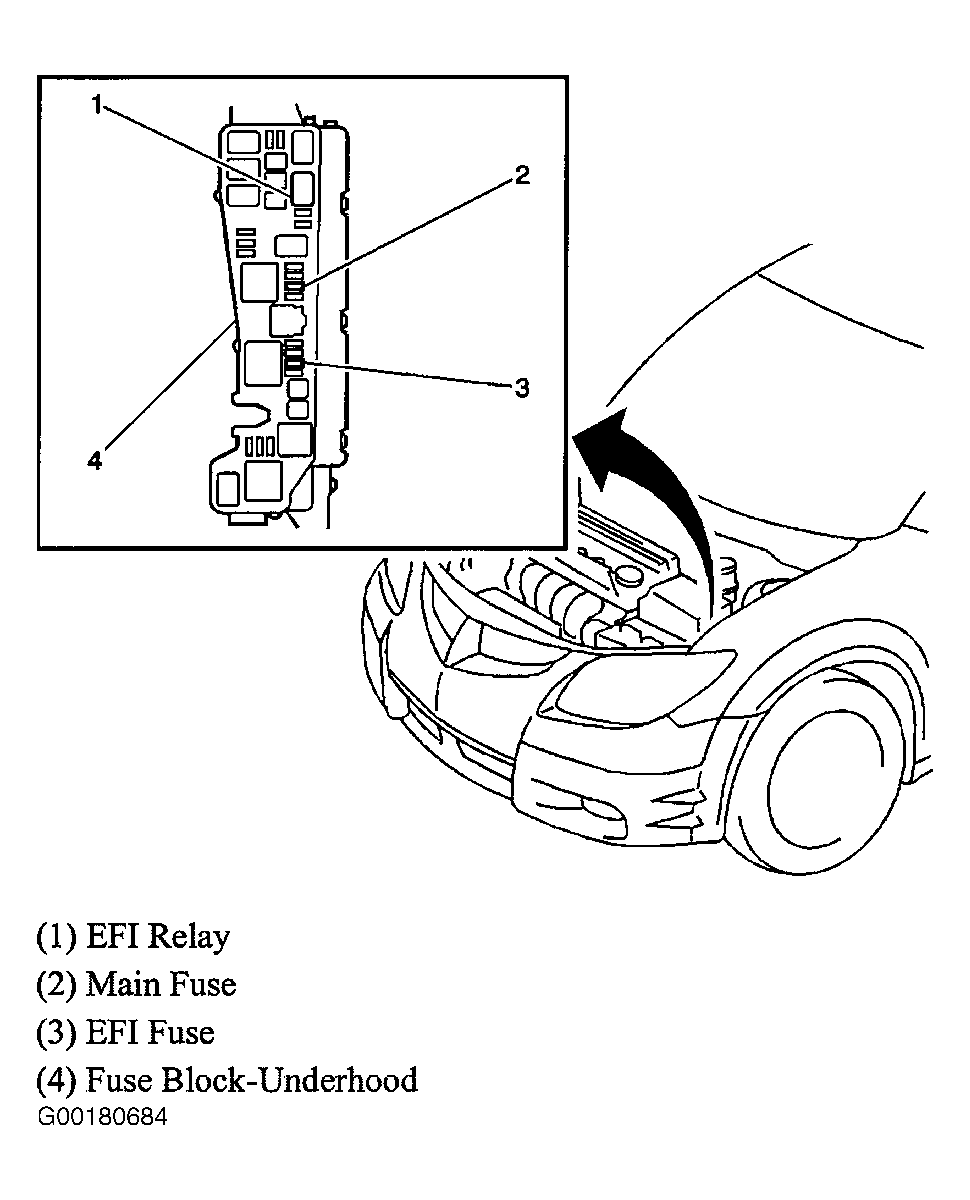

Fig 11: Locating Underhood Fuse Block, EFI Relay, Main Fuse & EFI Fuse

Courtesy of GENERAL MOTORS CORP.

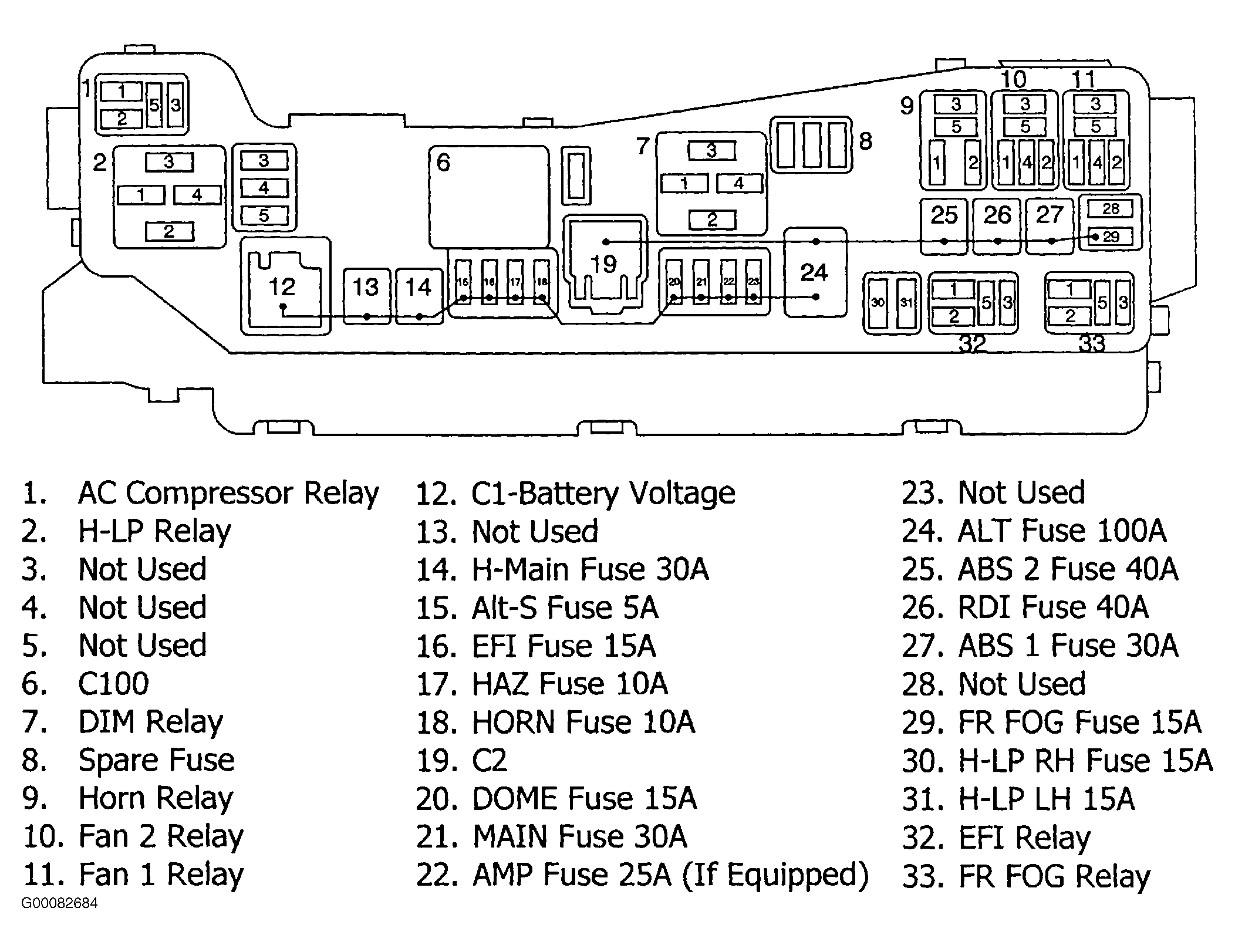

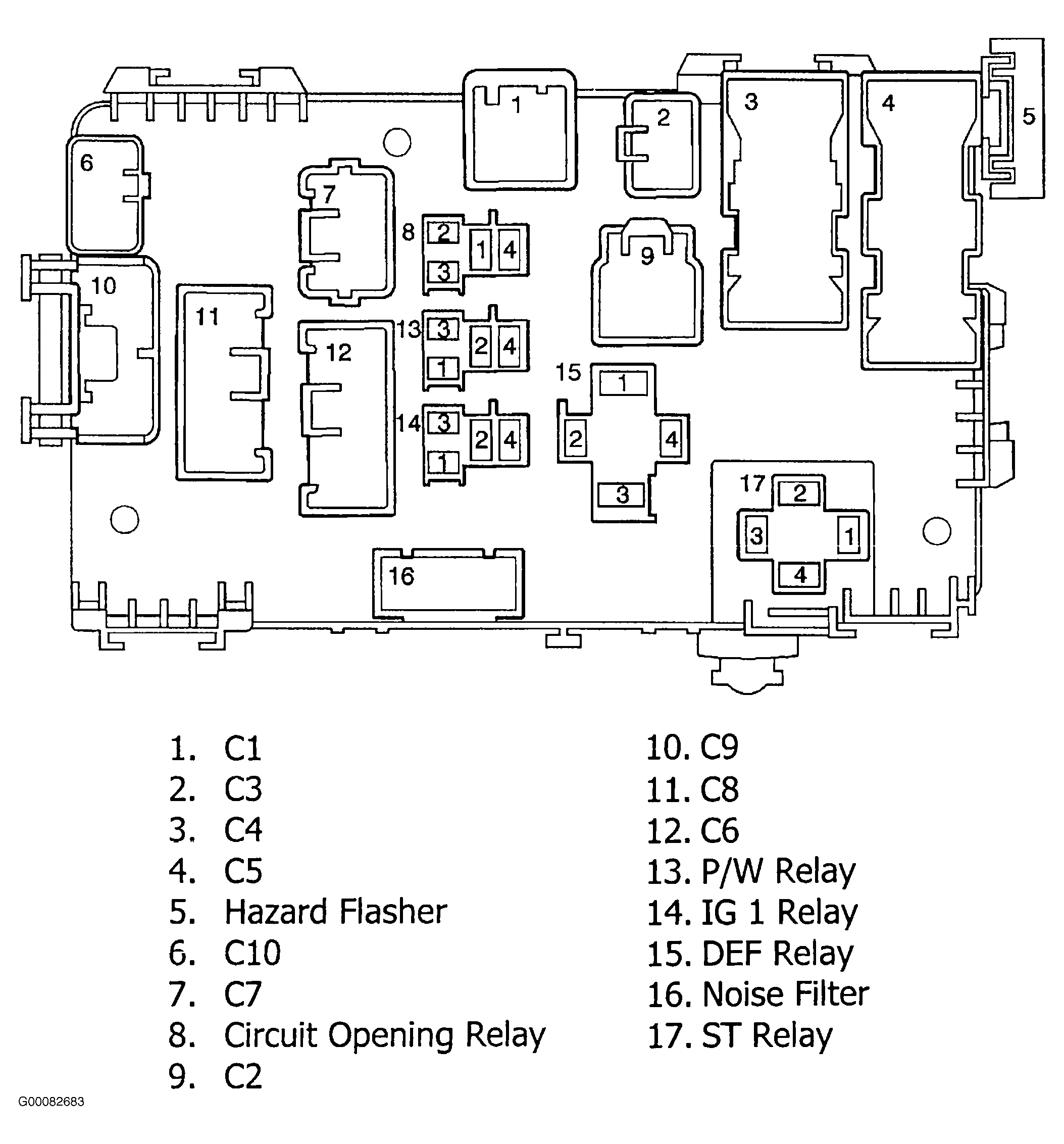

Fig 12: Location Underhood Fuse Block Fuses & Relays

Courtesy of GENERAL MOTORS CORP.
