Connector Identification

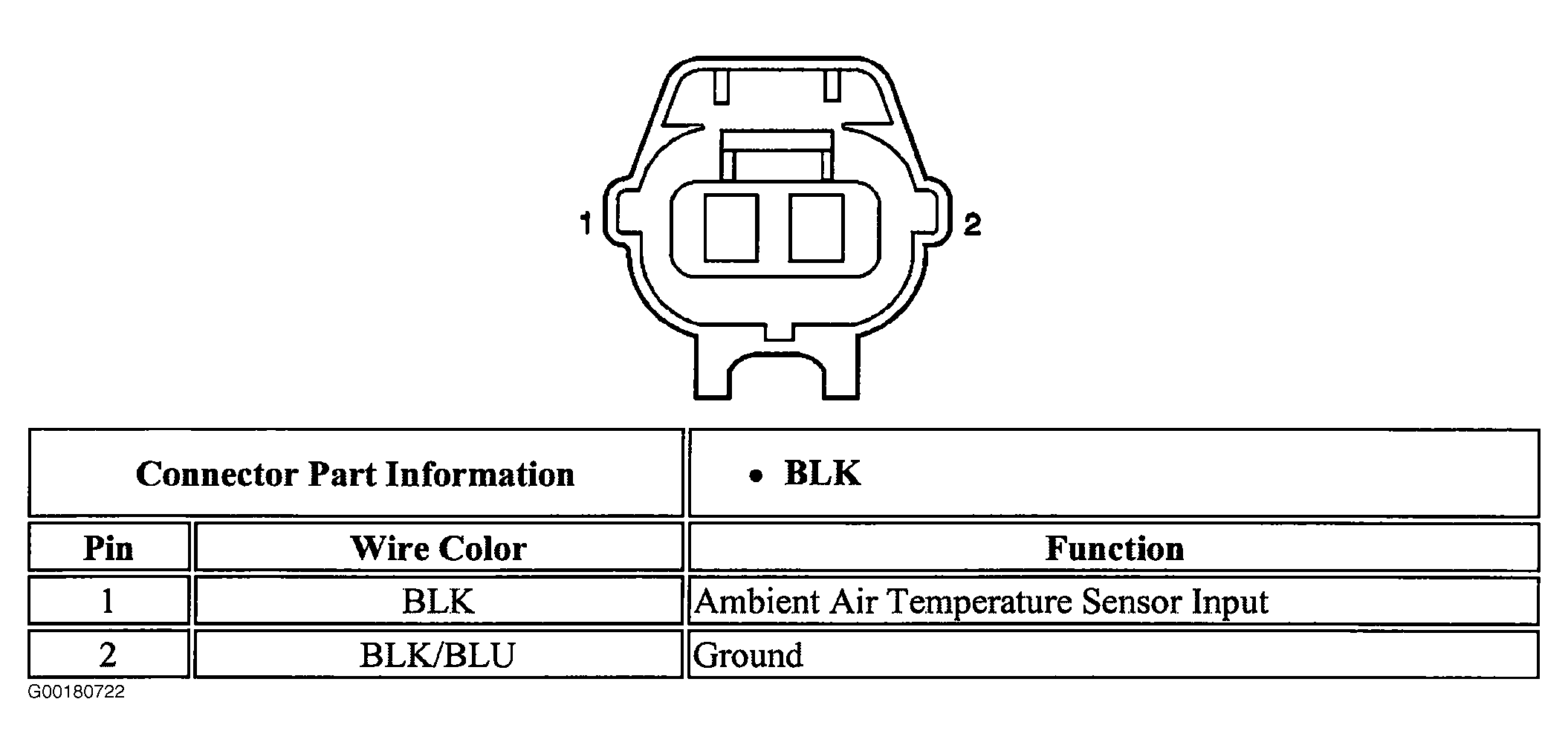

Fig 1: Identifying Ambient Air Temperature Sensor Connector Terminals
G00180722Courtesy of GENERAL MOTORS CORP.

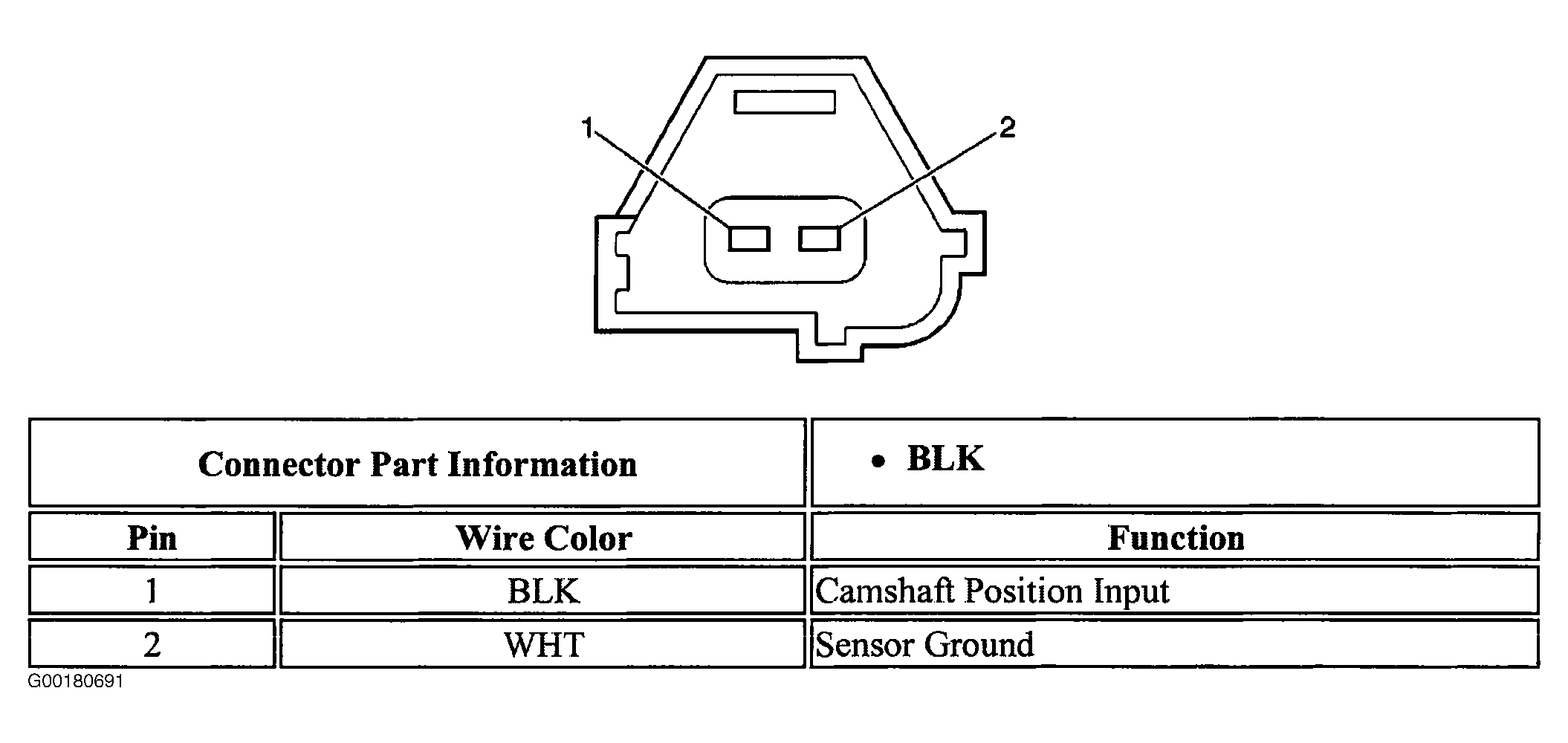

Fig 2: Identifying Camshaft Position Sensor Connector Terminals
G00180691Courtesy of GENERAL MOTORS CORP.

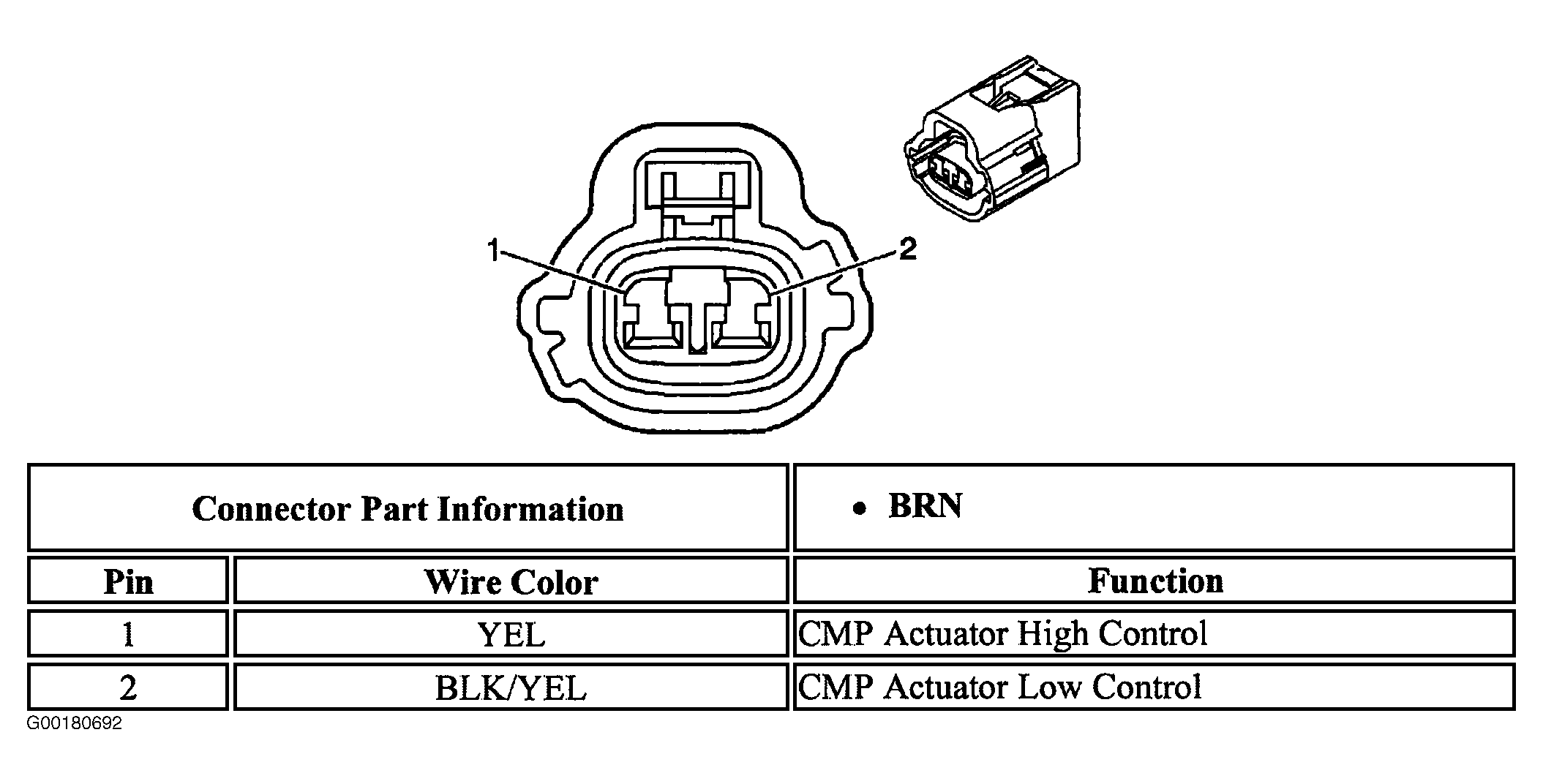

Fig 3: Identifying Camshaft Actuator Solenoid Valve Connector Terminals
G00180692Courtesy of GENERAL MOTORS CORP.

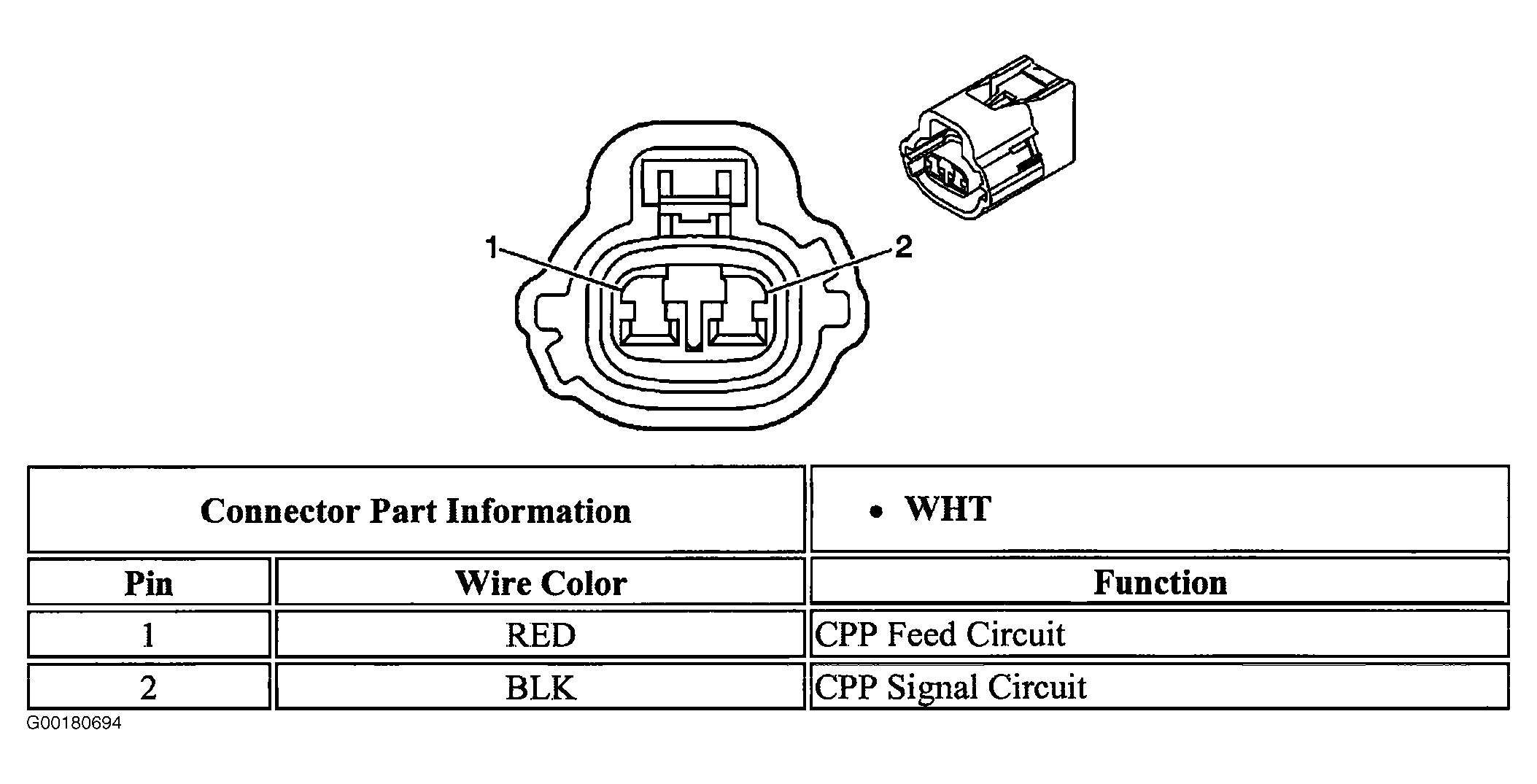

Fig 4: Identifying Crankshaft Position Sensor Connector Terminals
G00180694Courtesy of GENERAL MOTORS CORP.

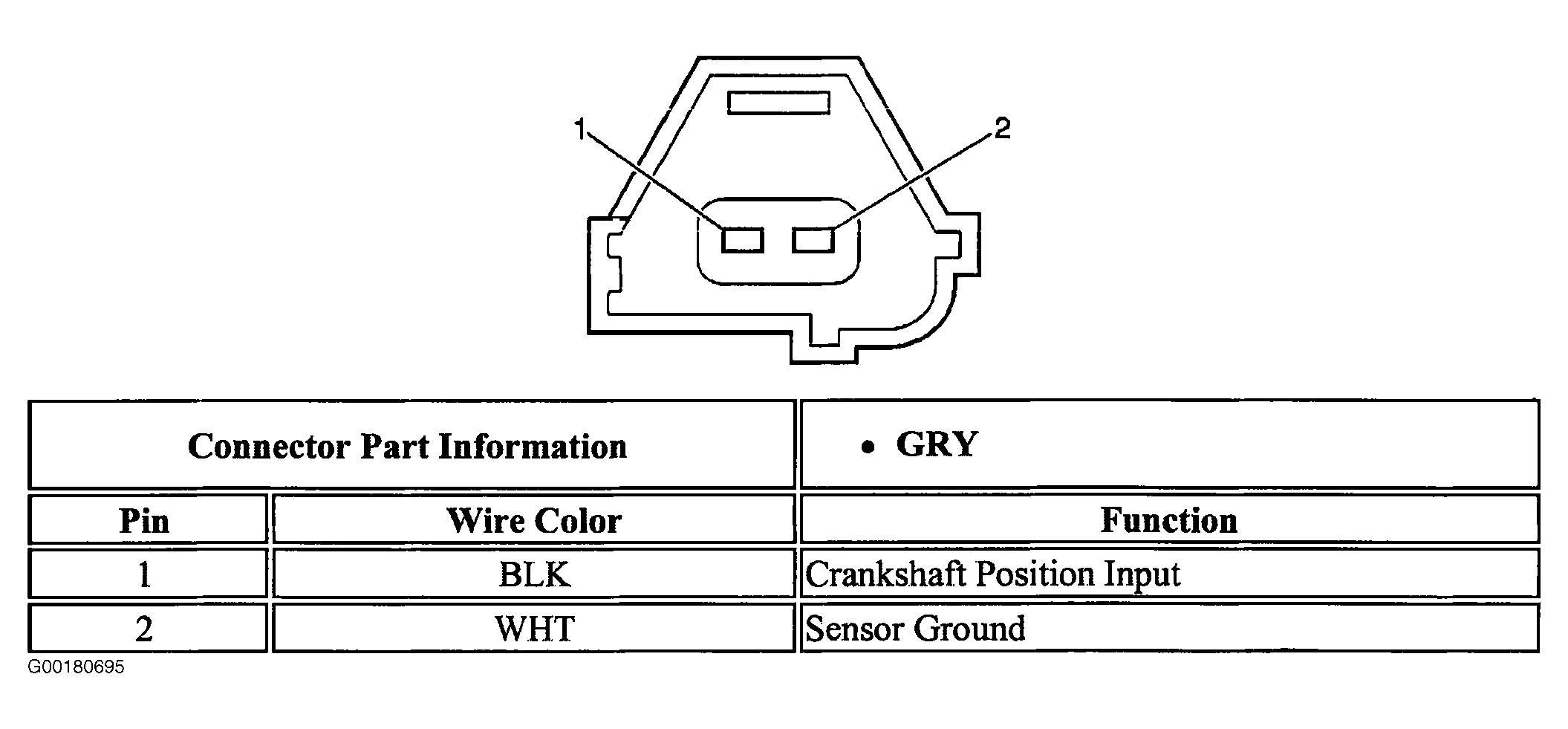

Fig 5: Identifying Crankshaft Position Sensor Connector Terminals
G00180695Courtesy of GENERAL MOTORS CORP.

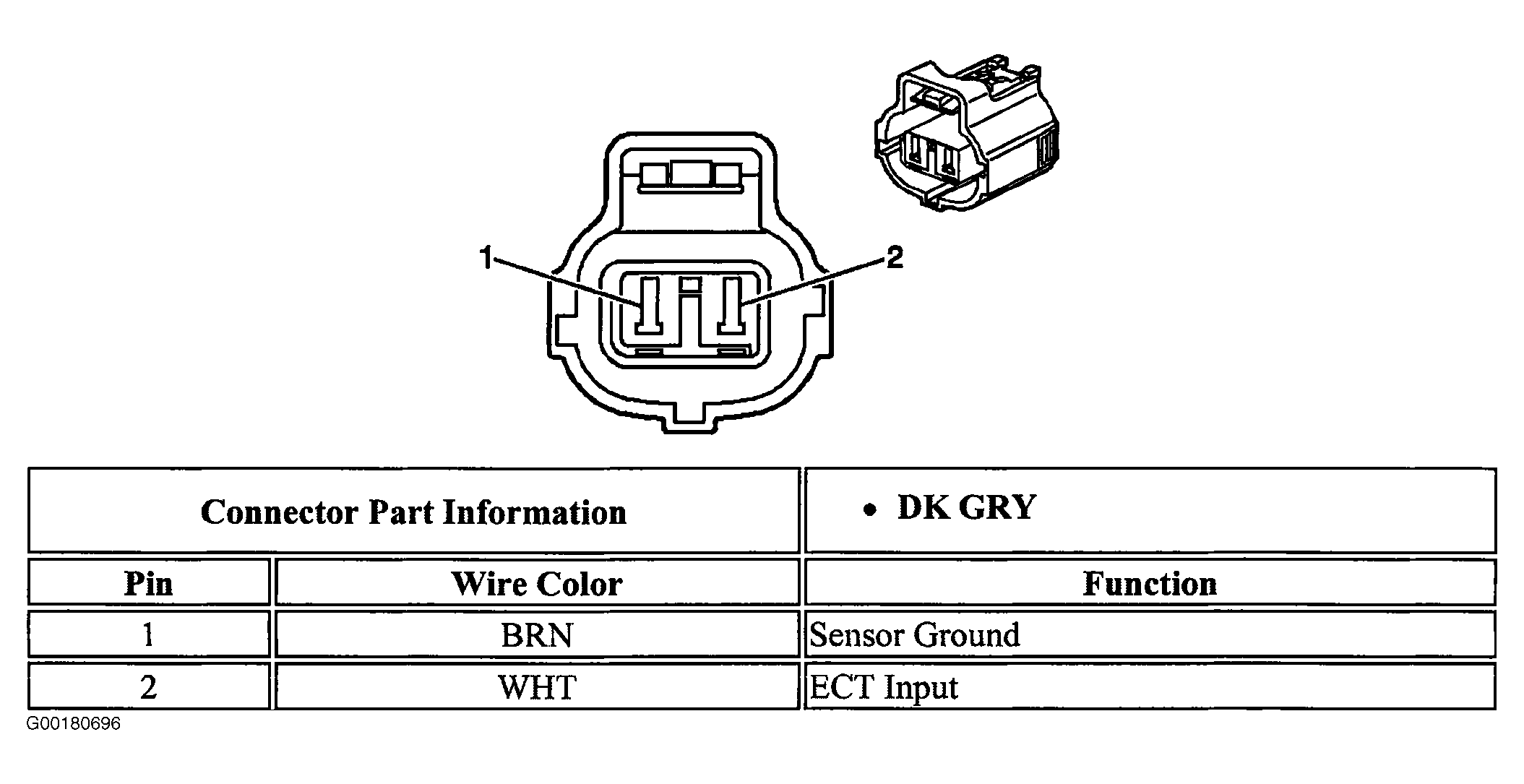

Fig 6: Identifying Engine Coolant Temperature Sensor Connector Terminals
G00180696Courtesy of GENERAL MOTORS CORP.

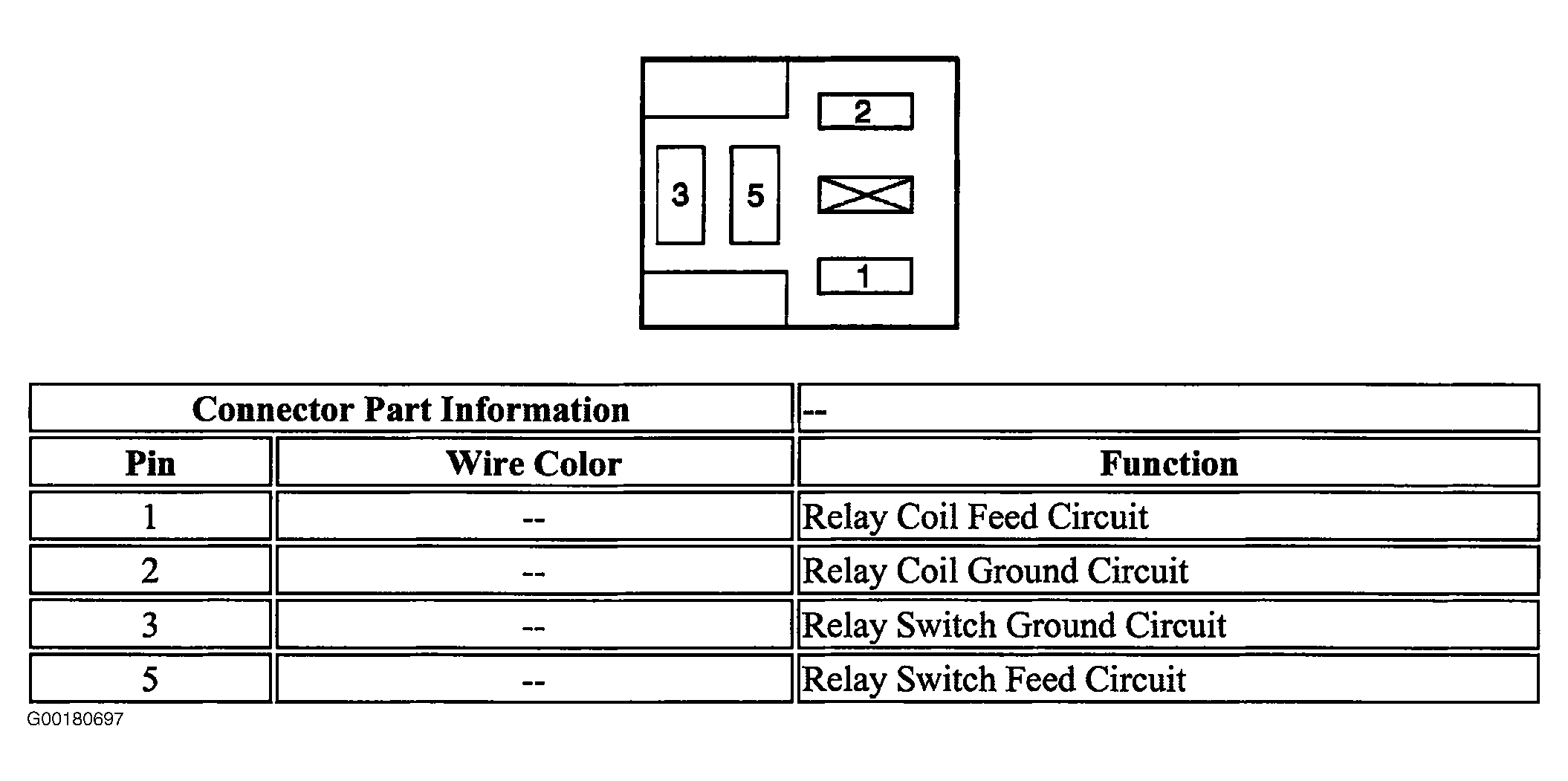

Fig 7: Identifying EFI Relay Connector Terminals
G00180697Courtesy of GENERAL MOTORS CORP.

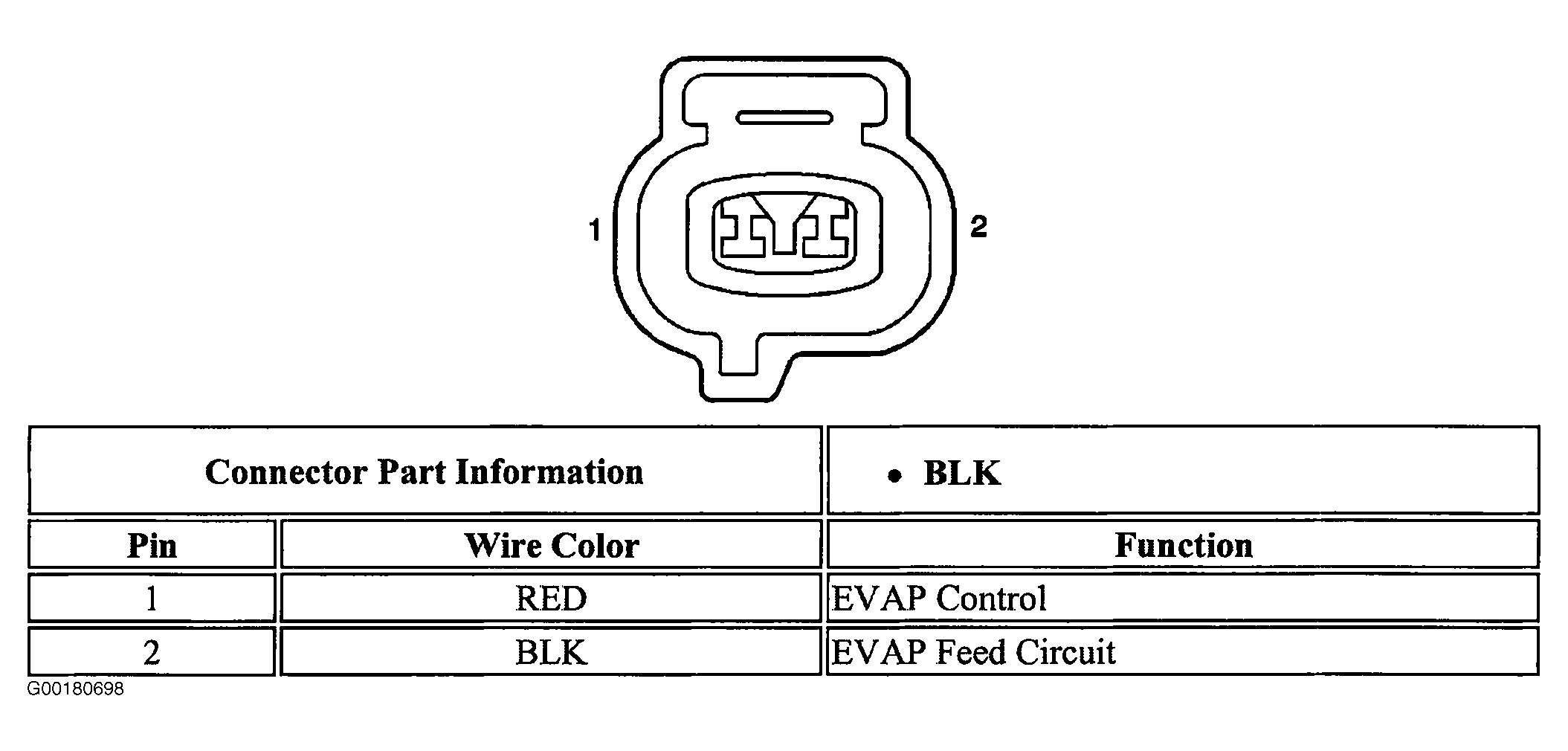

Fig 8: Identifying EVAP Pressure Switching Solenoid Connector Terminals
G00180698Courtesy of GENERAL MOTORS CORP.

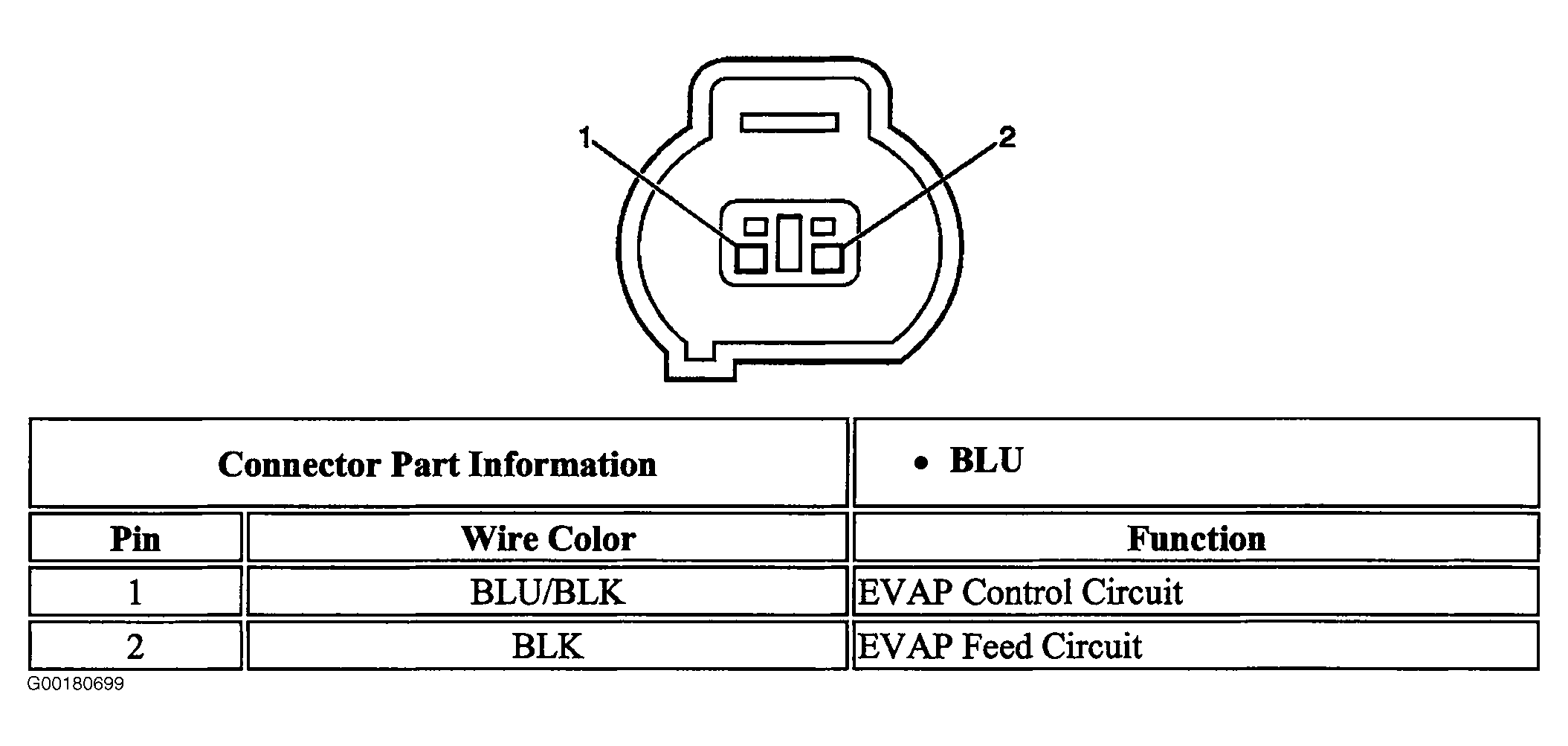

Fig 9: Identifying EVAP Purge Solenoid Valve Connector Terminals
G00180699Courtesy of GENERAL MOTORS CORP.

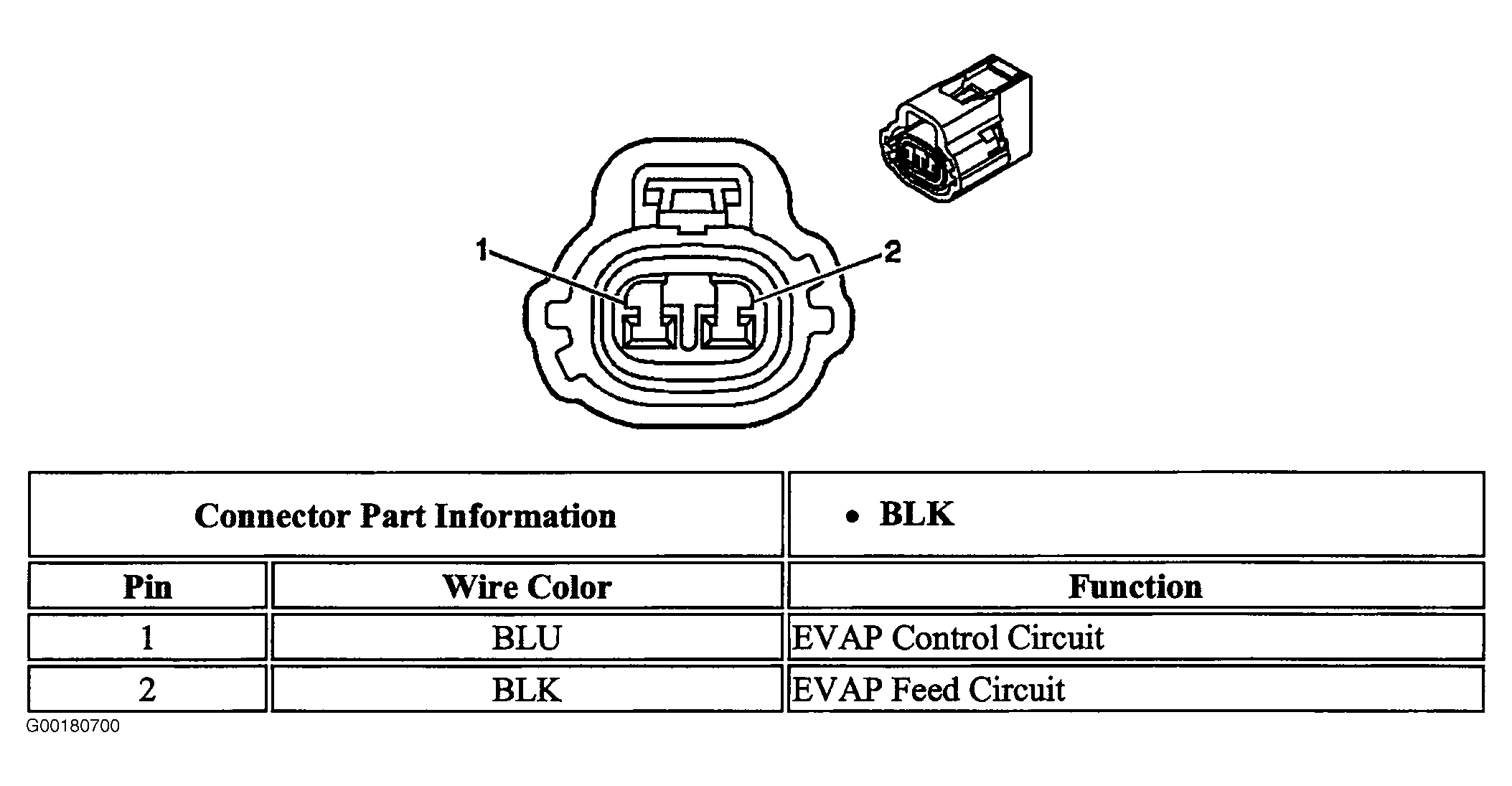

Fig 10: Identifying EVAP Vent Solenoid Valve Connector Terminals
G00180700Courtesy of GENERAL MOTORS CORP.

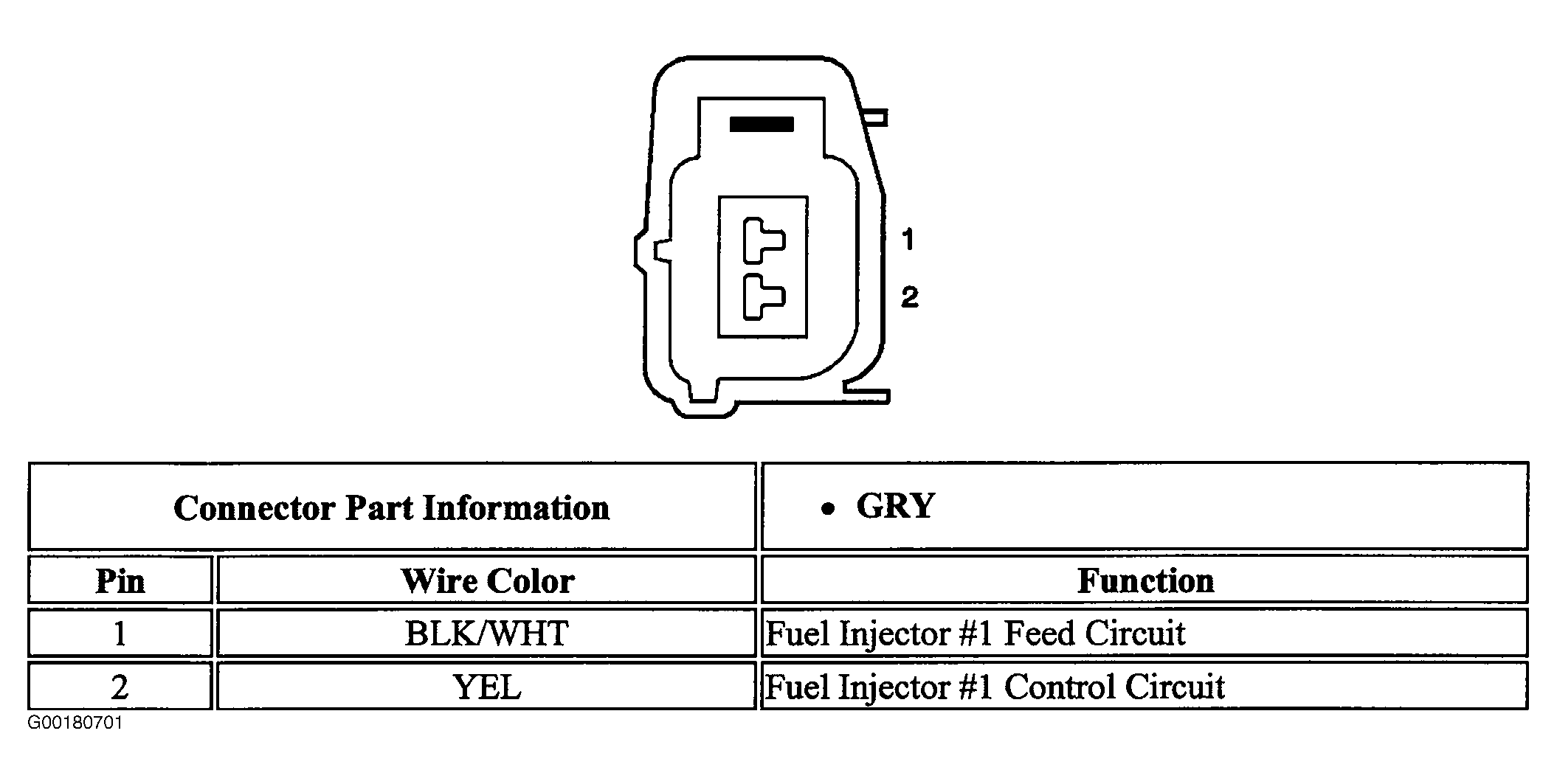

Fig 11: Identifying Fuel Injector No. 1 Connector Terminals
G00180701Courtesy of GENERAL MOTORS CORP.

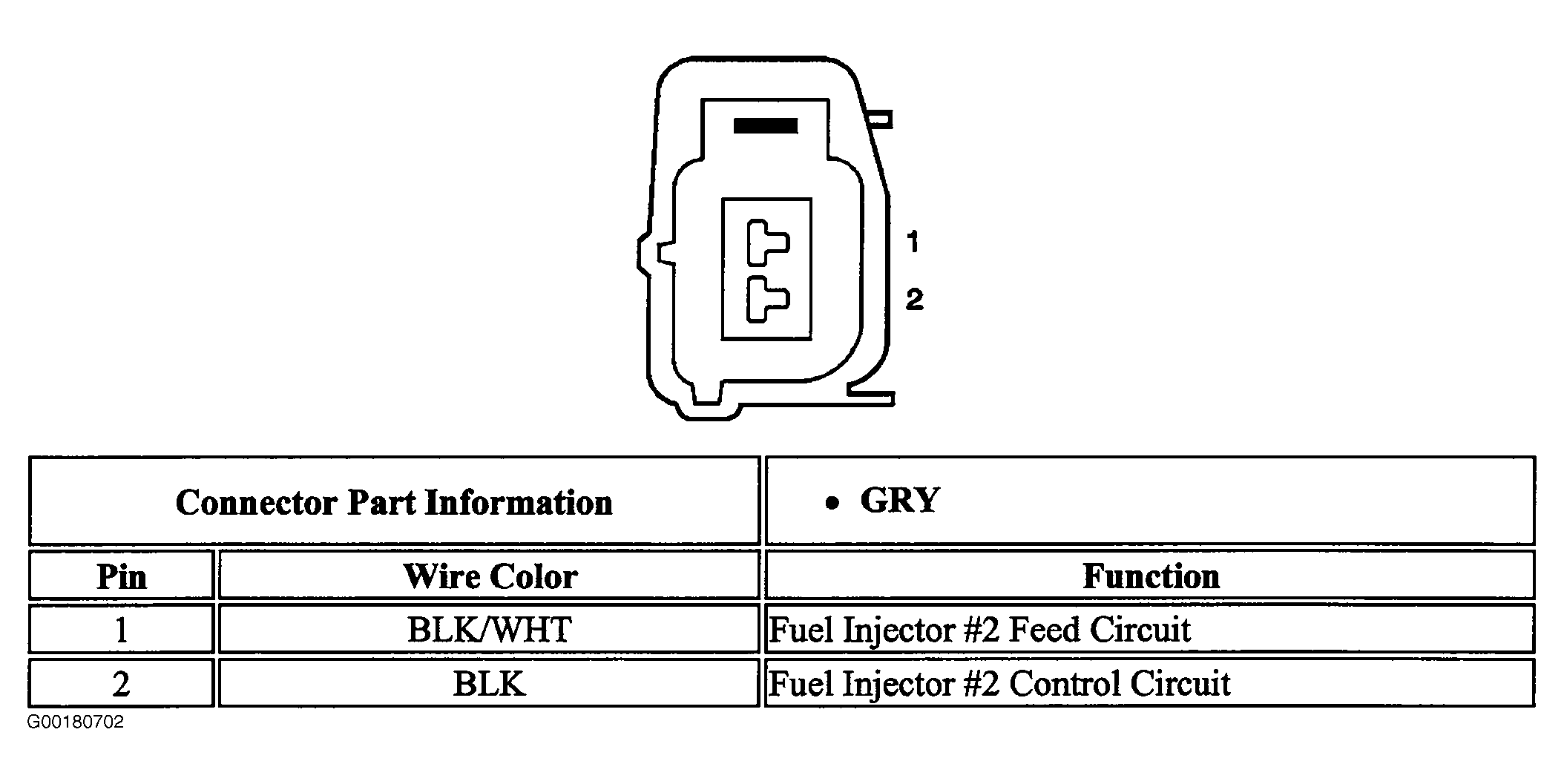

Fig 12: Identifying Fuel Injector No. 2 Connector Terminals
G00180702Courtesy of GENERAL MOTORS CORP.

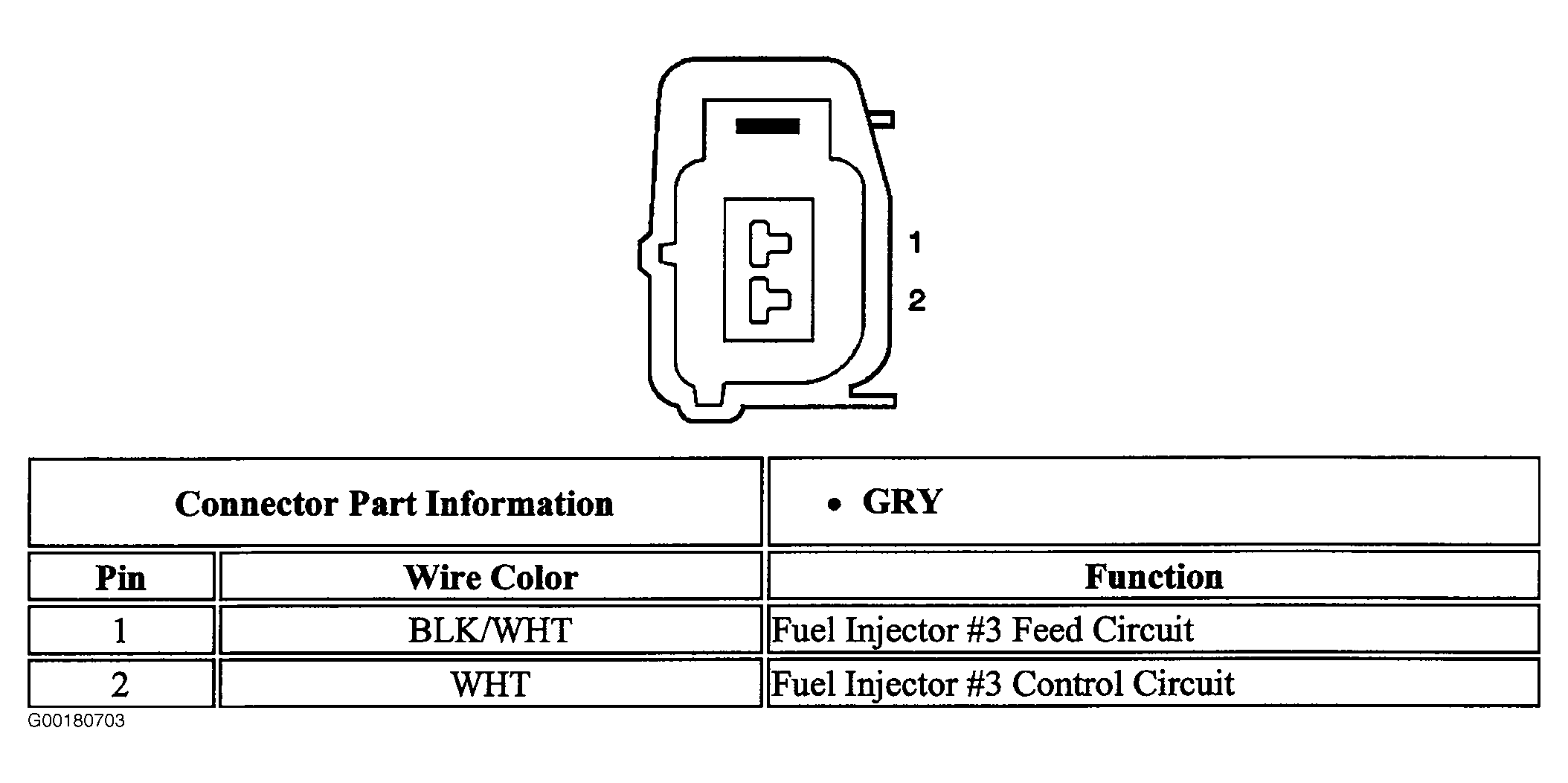

Fig 13: Identifying Fuel Injector No. 3 Connector Terminals
G00180703Courtesy of GENERAL MOTORS CORP.

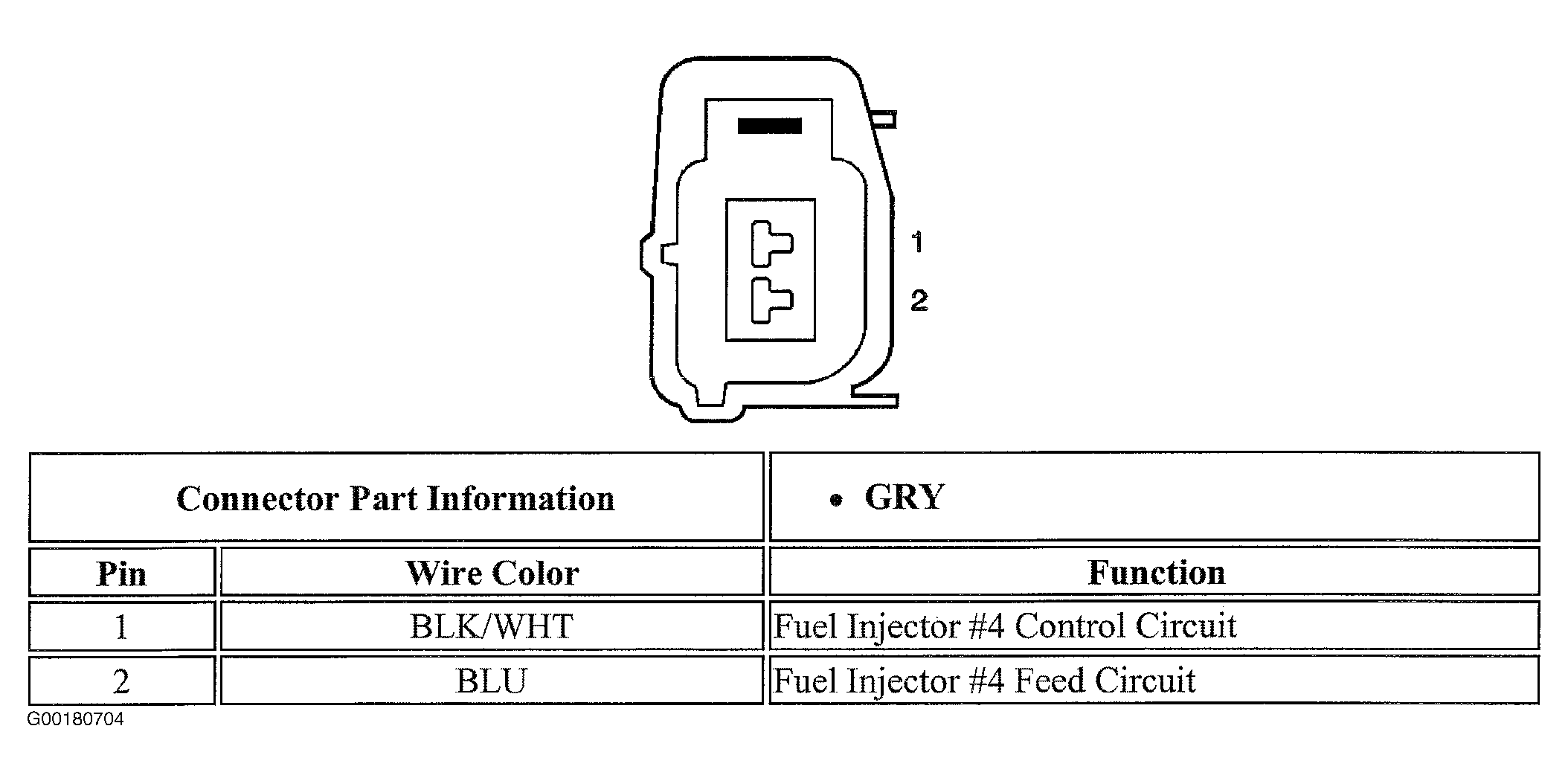

Fig 14: Identifying Fuel Injector No. 4 Connector Terminals
G00180704Courtesy of GENERAL MOTORS CORP.

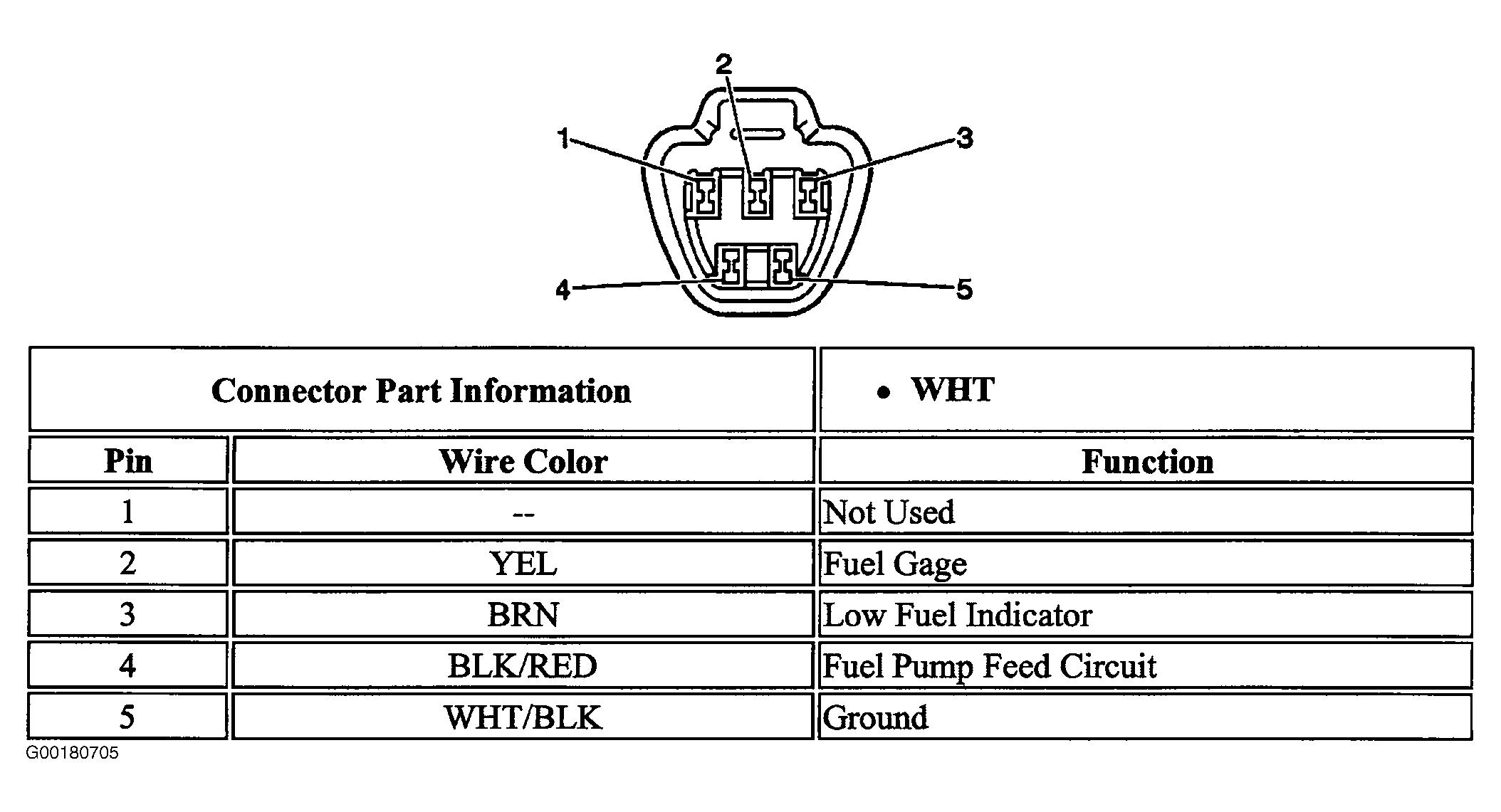

Fig 15: Identifying Fuel Sender Assembly Connector Terminals
G00180705Courtesy of GENERAL MOTORS CORP.

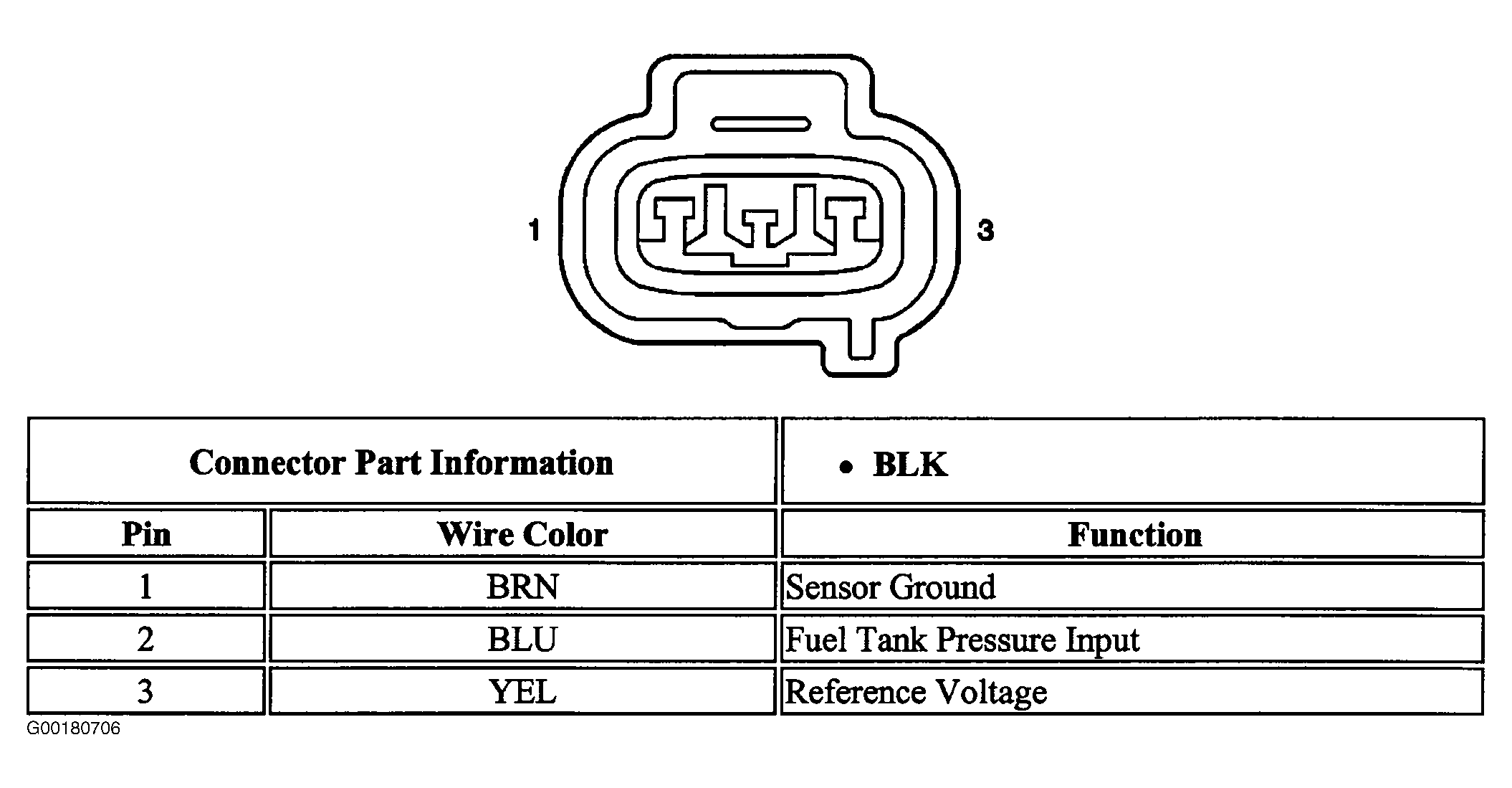

Fig 16: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00180706Courtesy of GENERAL MOTORS CORP.

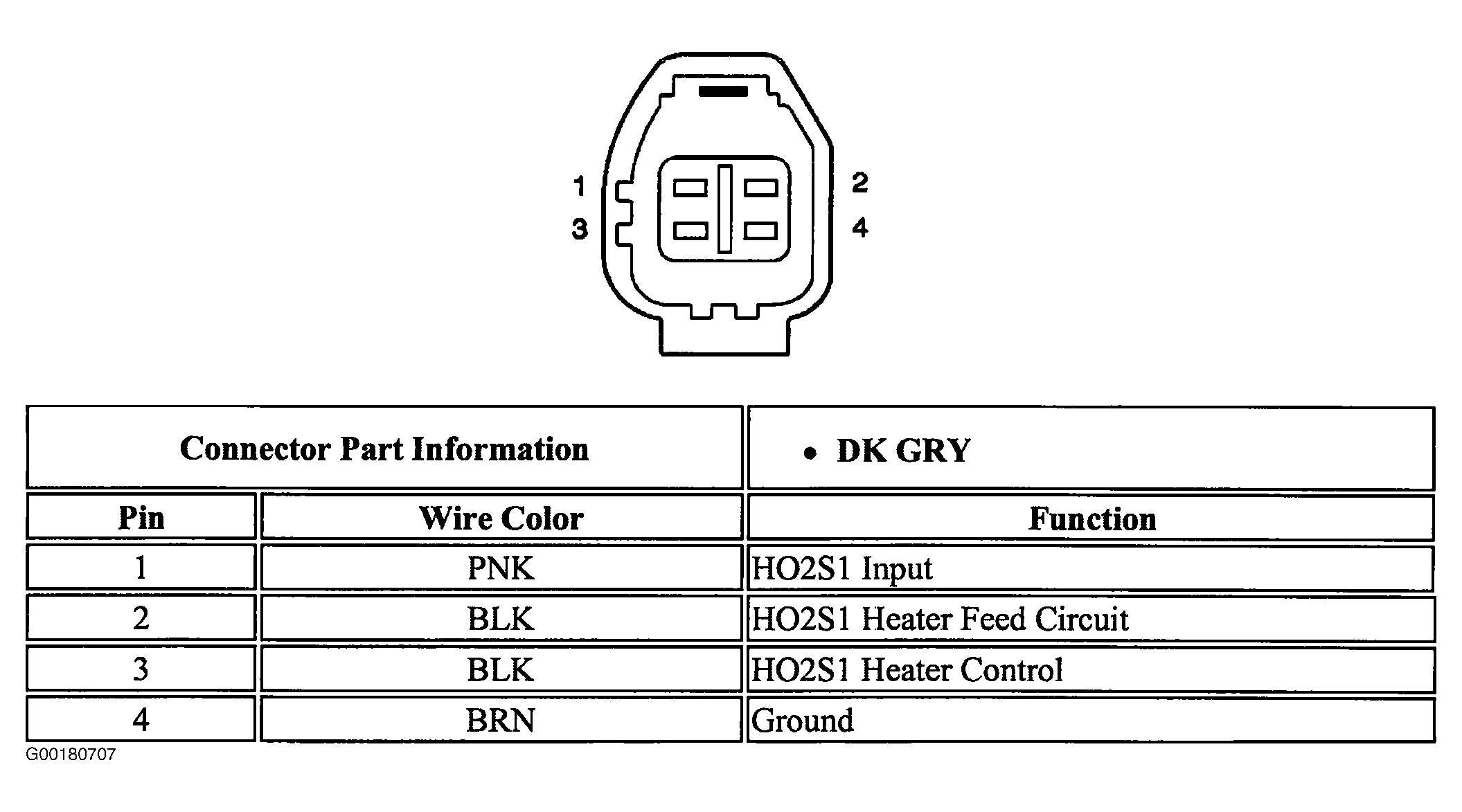

Fig 17: Identifying Heated Oxygen Sensor 1 Connector Terminals
G00180707Courtesy of GENERAL MOTORS CORP.

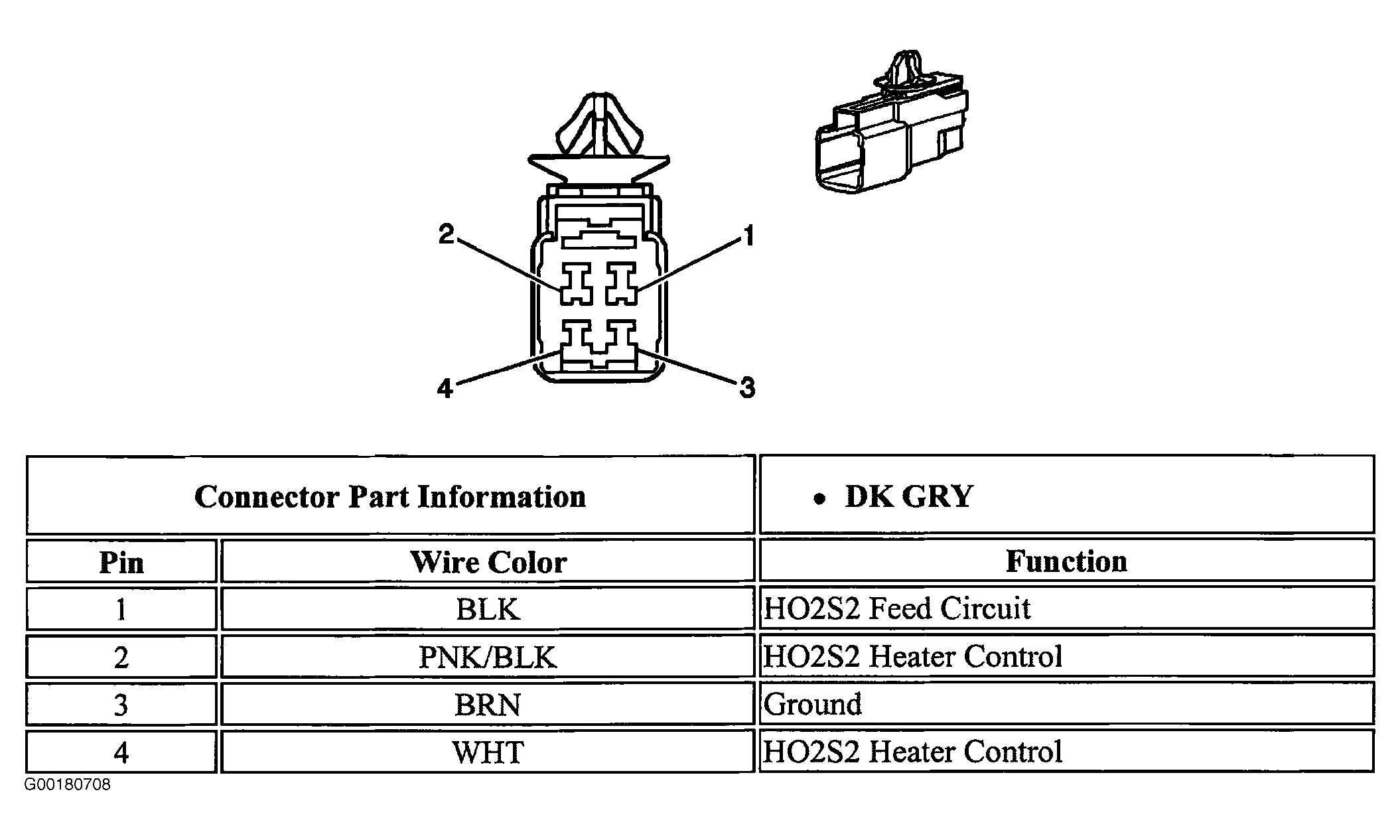

Fig 18: Identifying Heated Oxygen Sensor 2 Connector Terminals
G00180708Courtesy of GENERAL MOTORS CORP.

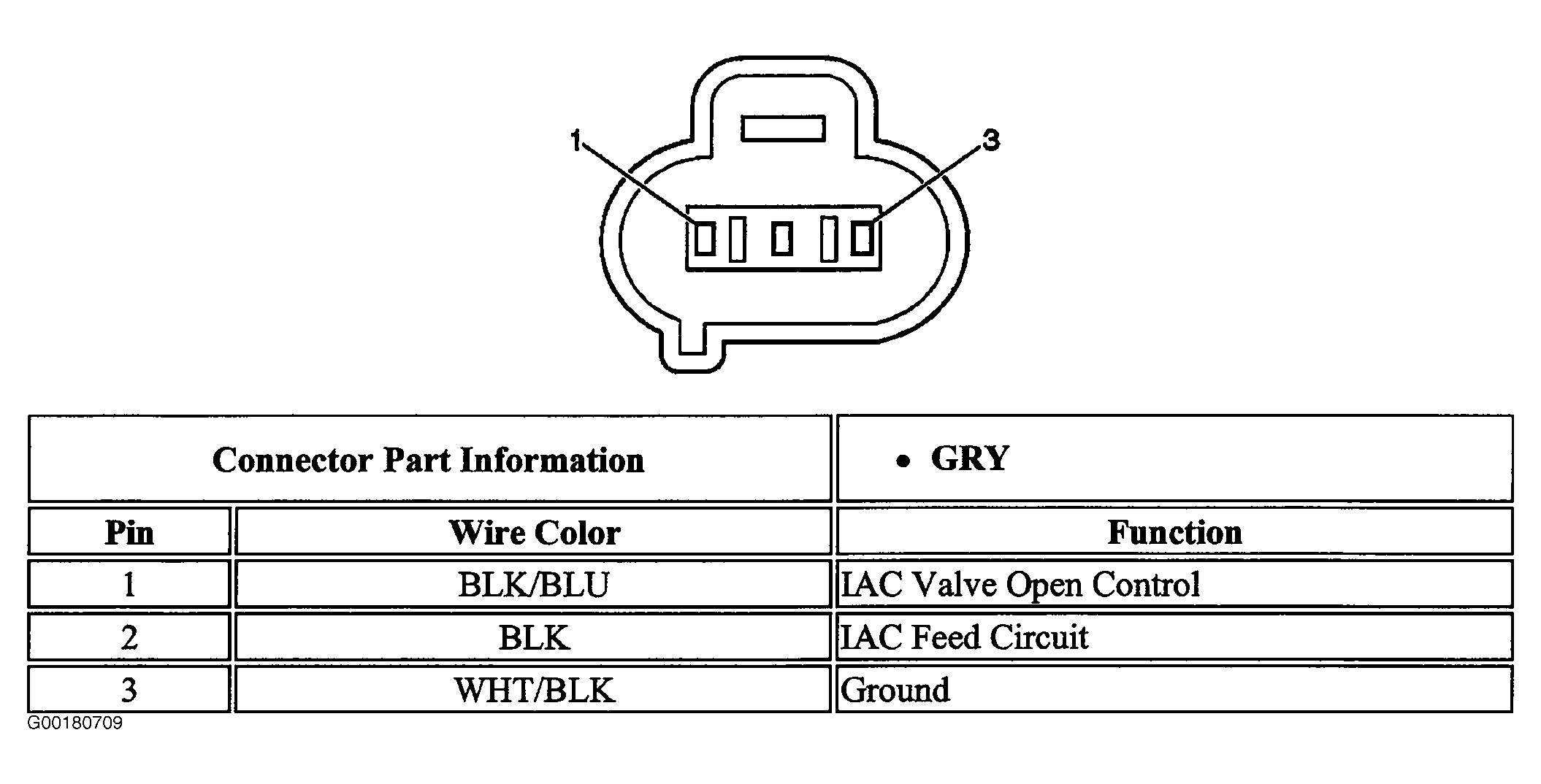

Fig 19: Identifying Idle Air Control Motor Connector Terminals
G00180709Courtesy of GENERAL MOTORS CORP.

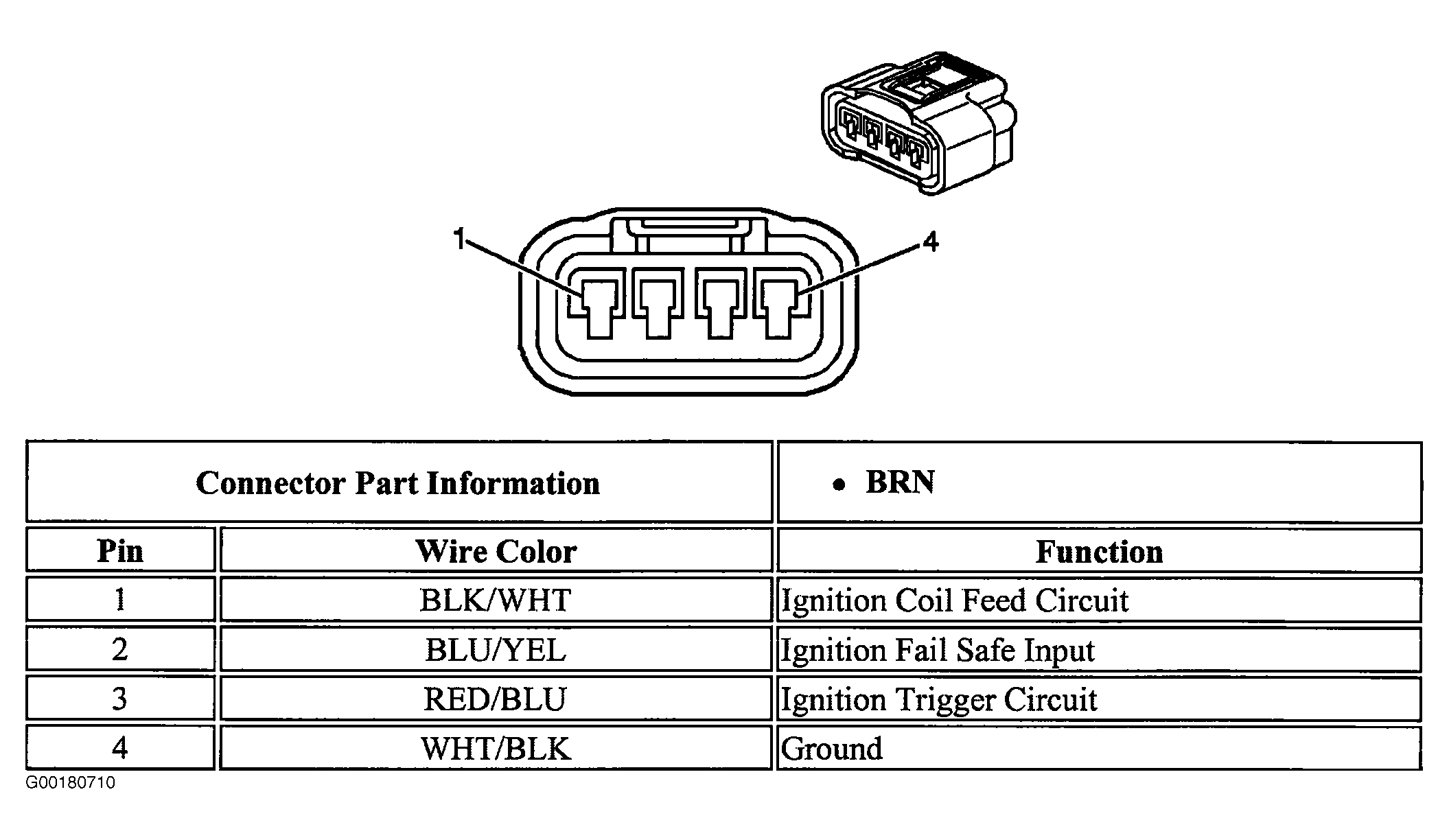

Fig 20: Identifying Ignition Coil 1 Connector Terminals
G00180710Courtesy of GENERAL MOTORS CORP.

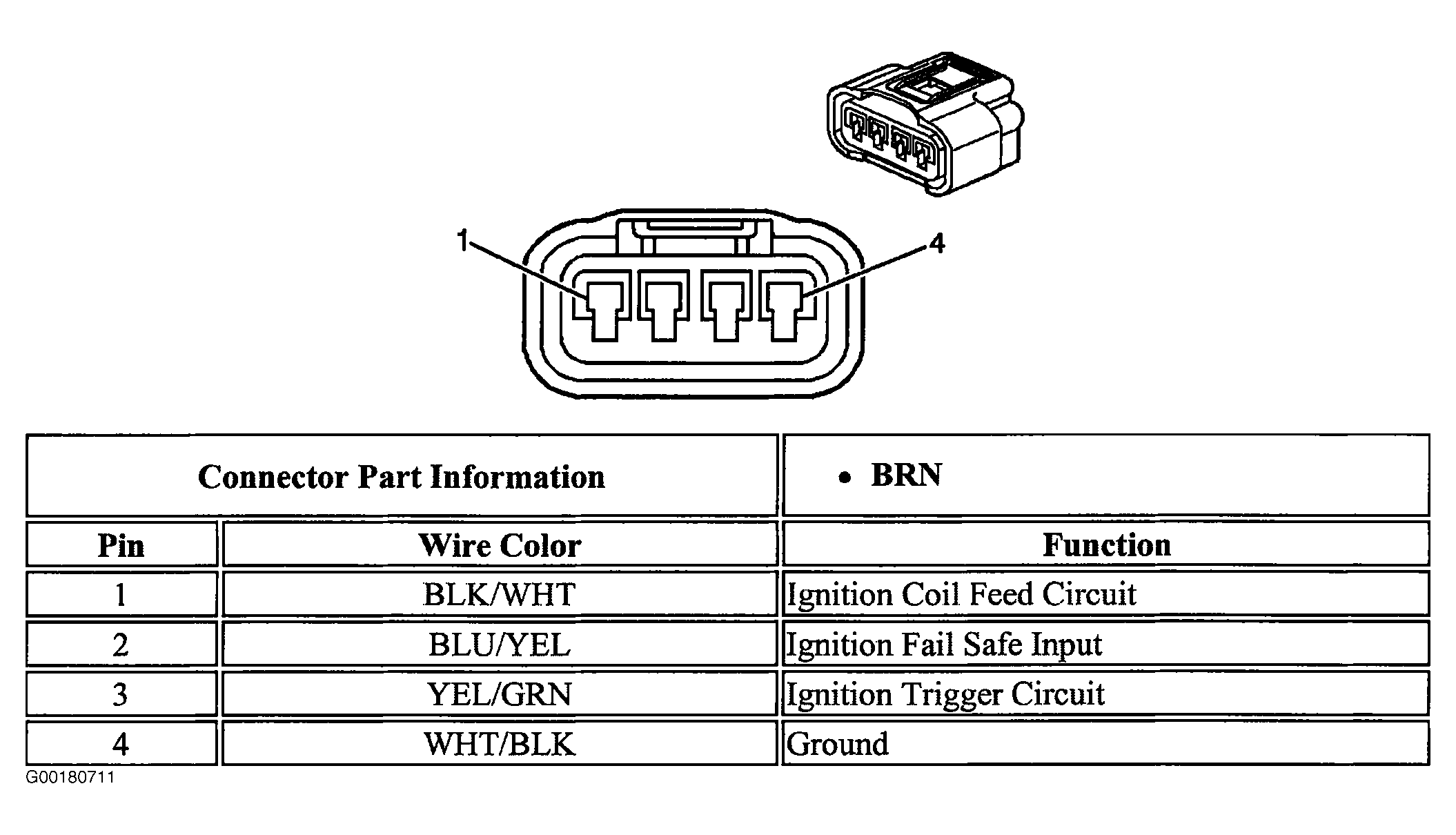

Fig 21: Identifying Ignition Coil 2 Connector Terminals
G00180711Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Ignition Coil 3 Connector Terminals
G00180712Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Ignition Coil 4 Connector Terminals
G00180713Courtesy of GENERAL MOTORS CORP.

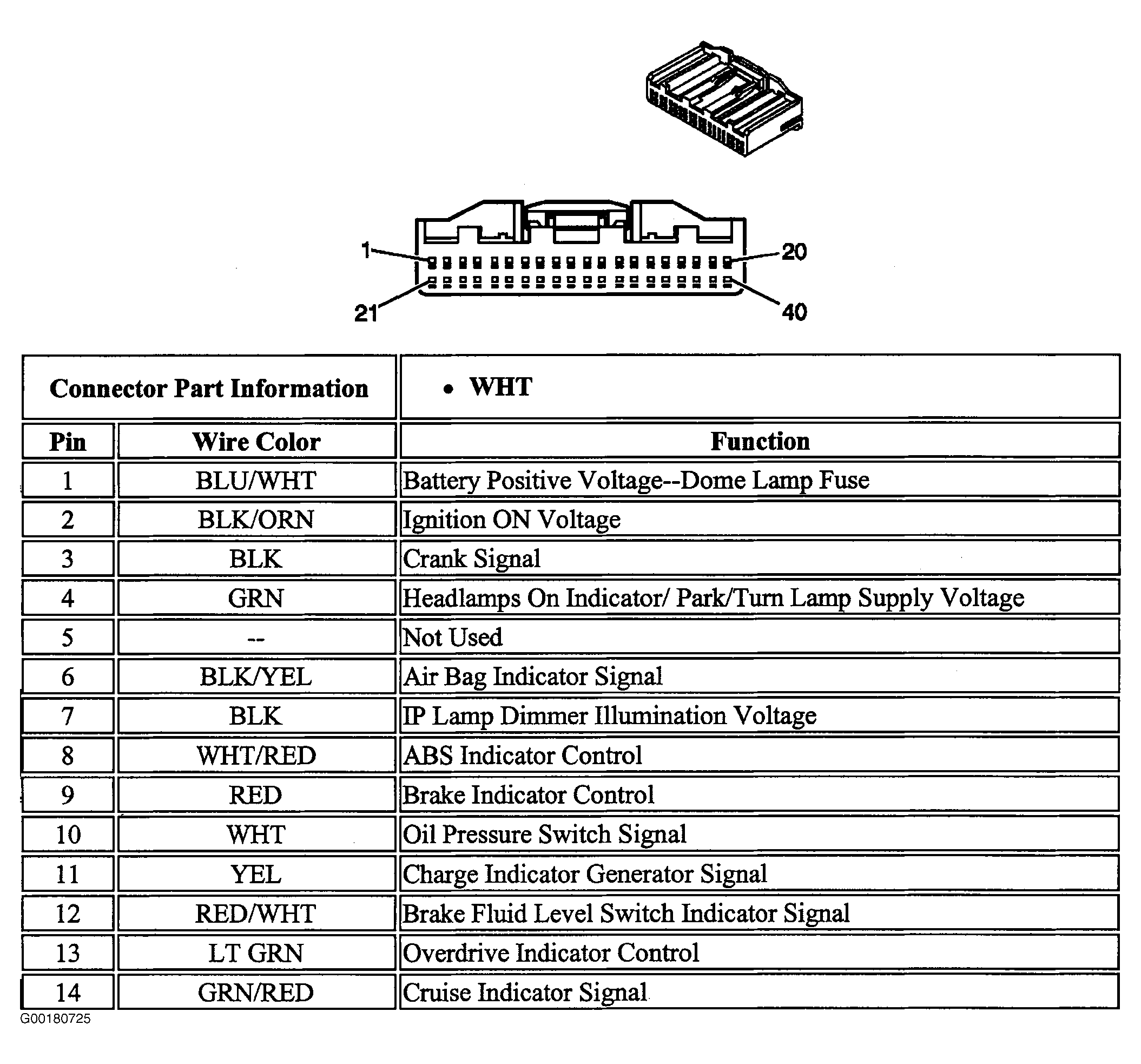

Fig 24: Identifying Instrument Panel Connector Terminals (1 Of 2)
G00180725Courtesy of GENERAL MOTORS CORP.

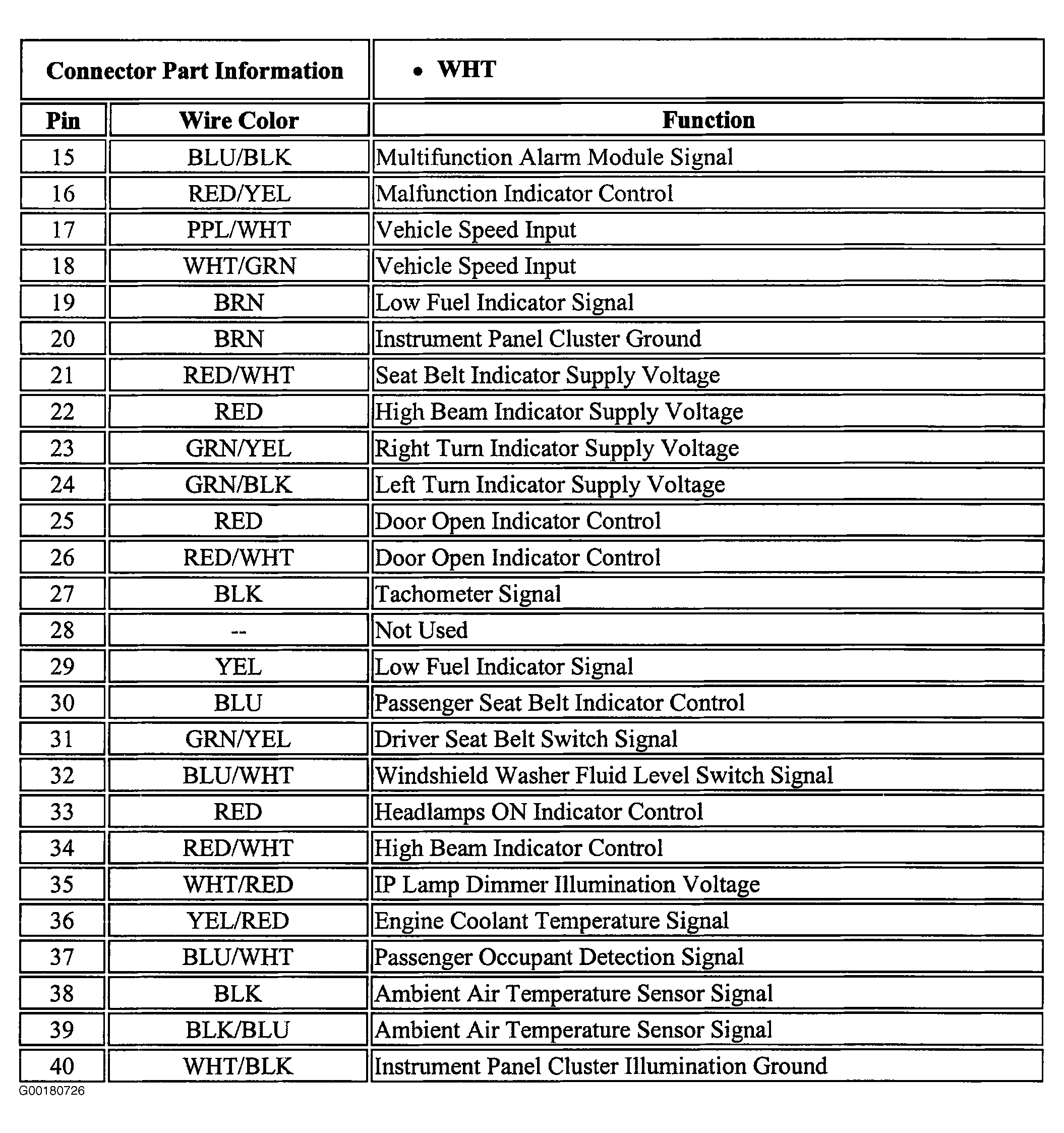

Fig 25: Identifying Instrument Panel Connector Terminals (2 Of 2)
G00180726Courtesy of GENERAL MOTORS CORP.

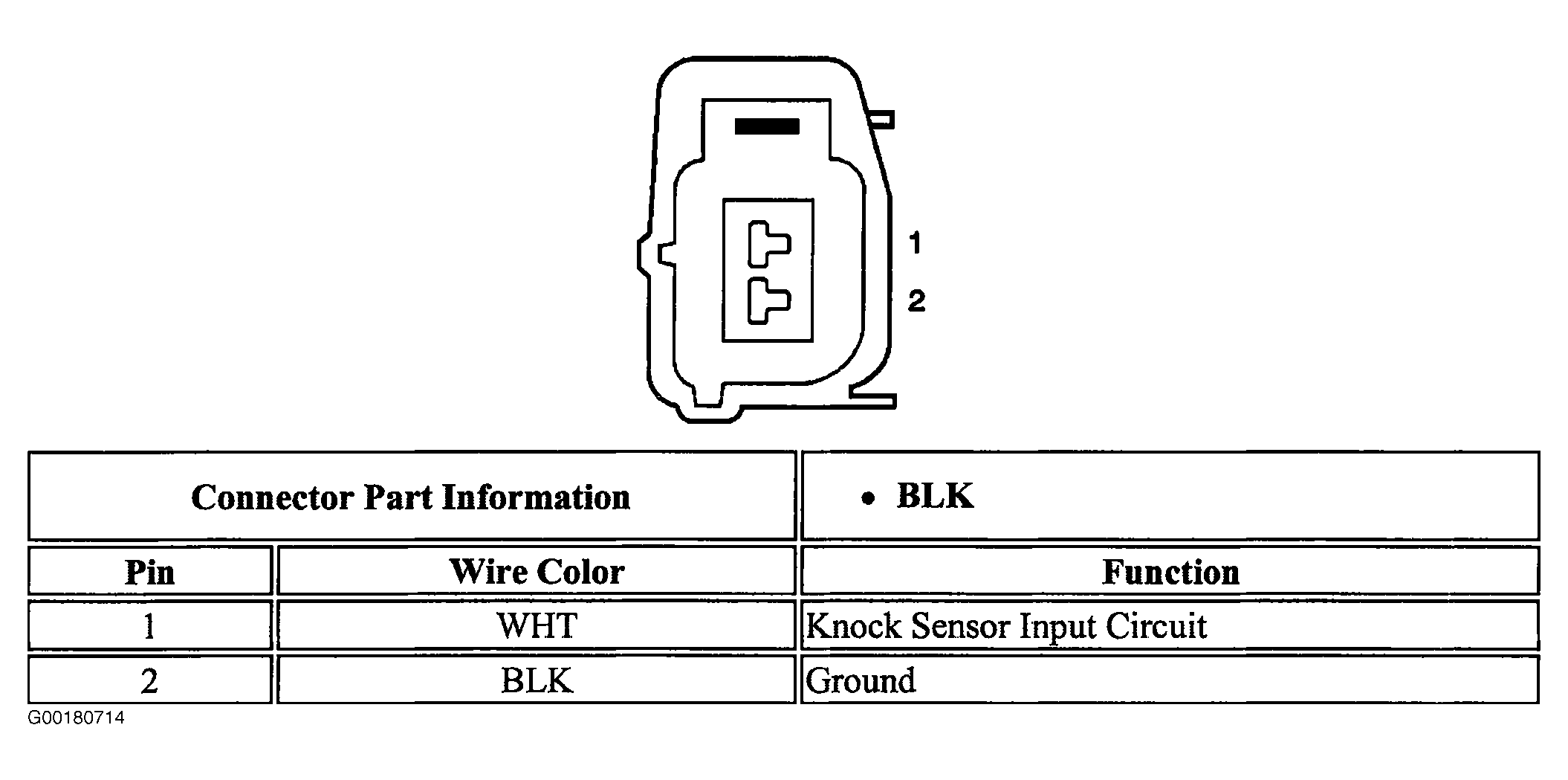

Fig 26: Identifying Knock Sensor Connector Terminals
G00180714Courtesy of GENERAL MOTORS CORP.

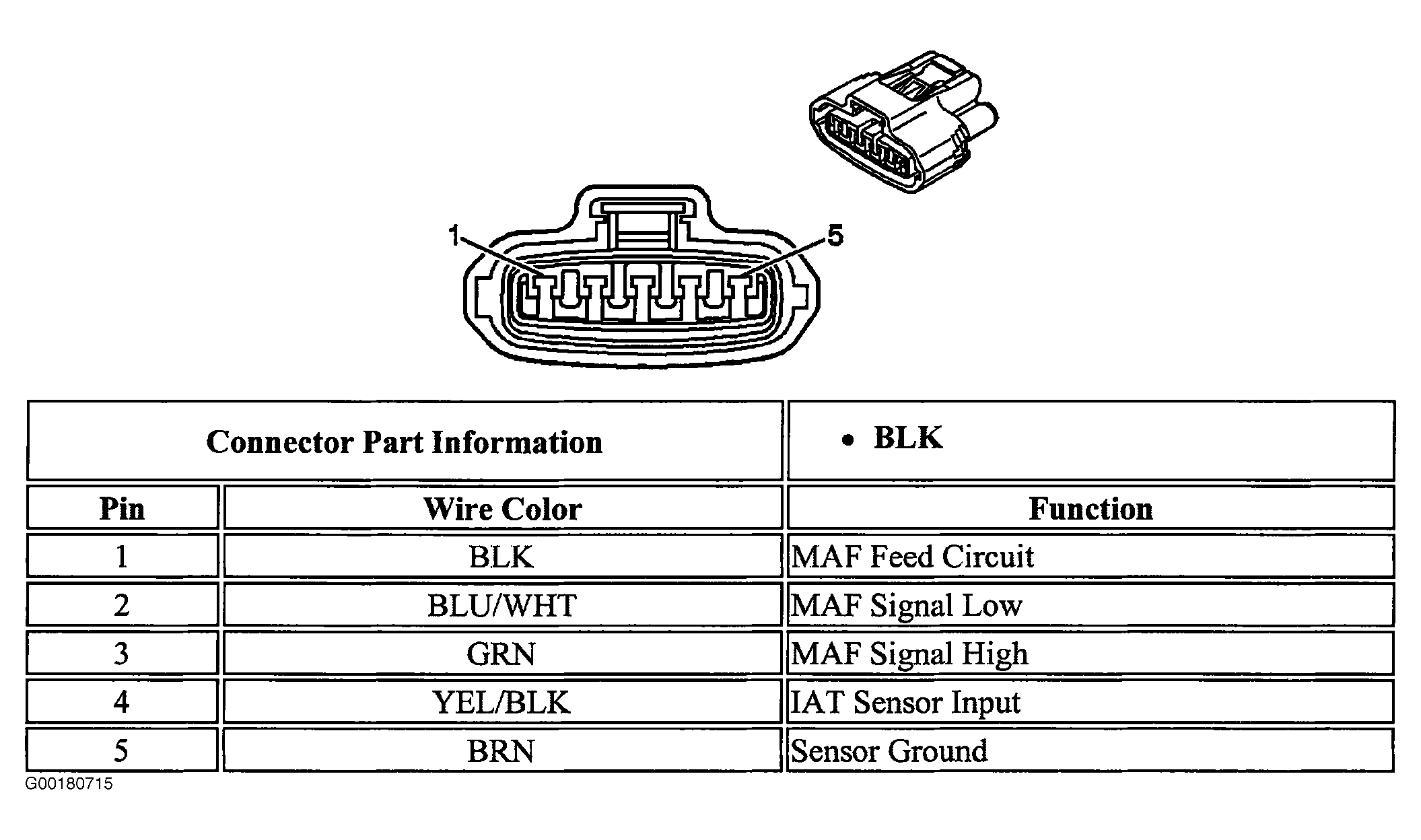

Fig 27: Identifying Mass Air Flow Sensor Connector Terminals
G00180715Courtesy of GENERAL MOTORS CORP.

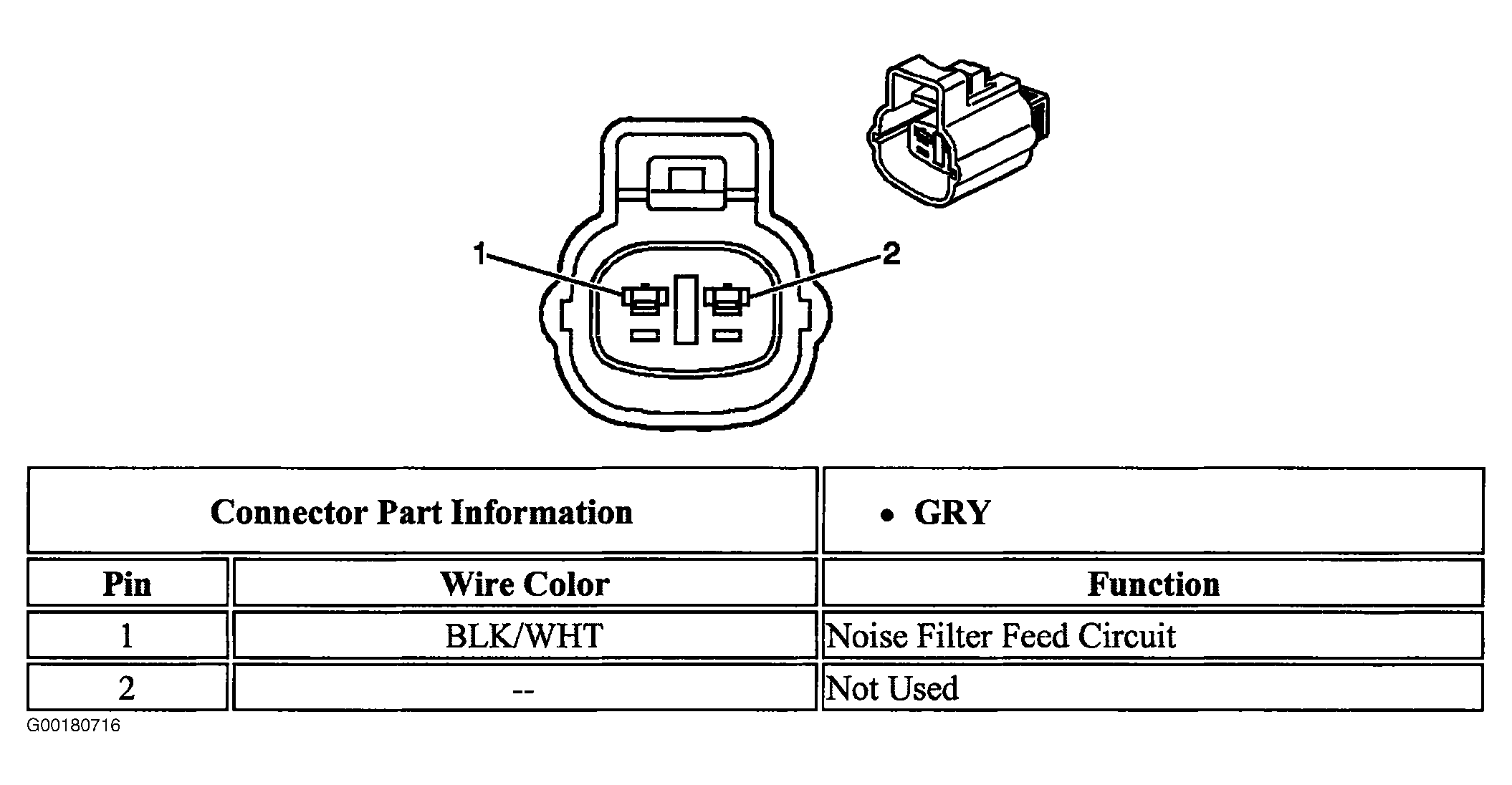

Fig 28: Identifying Noise Filter Connector Terminals
G00180716Courtesy of GENERAL MOTORS CORP.

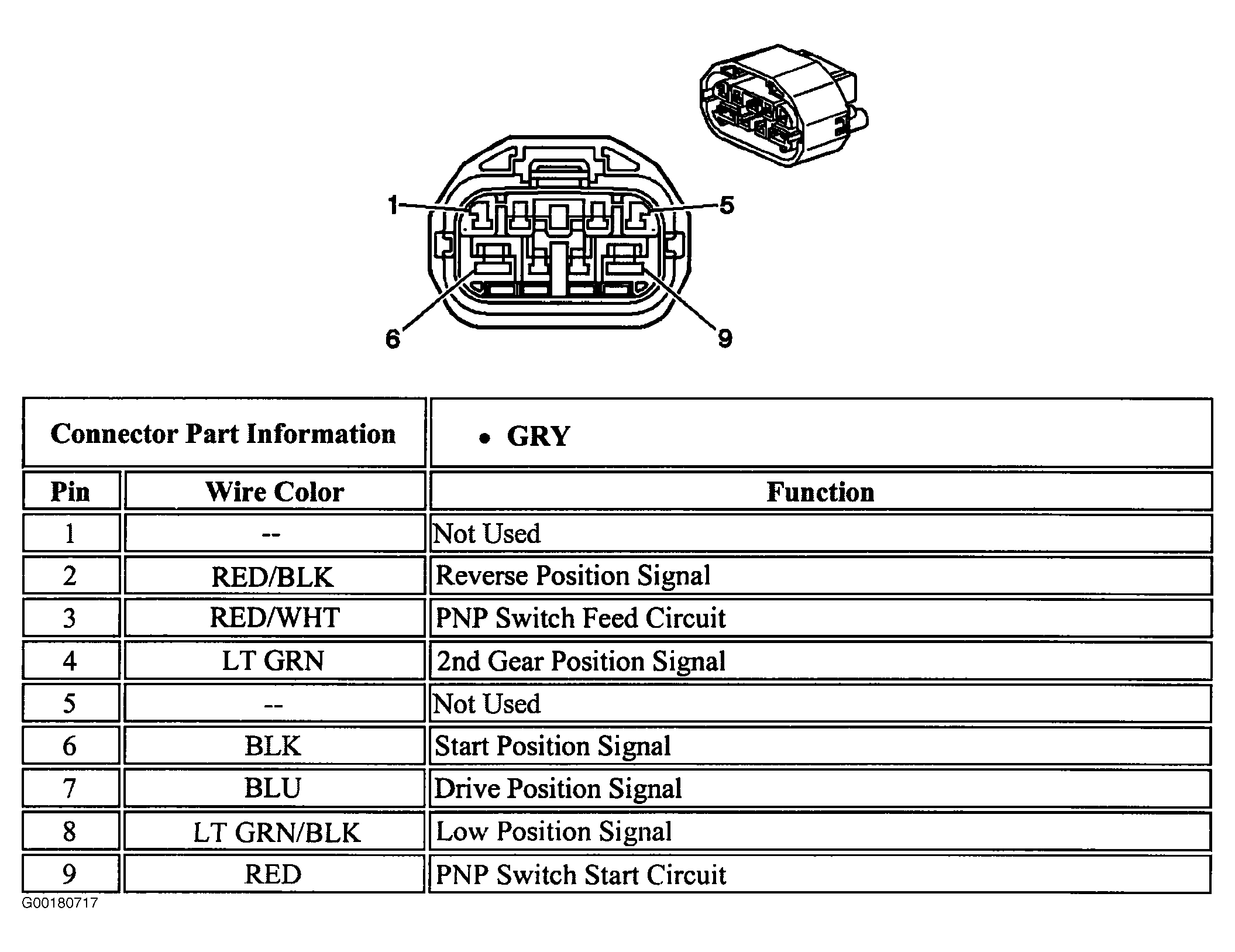

Fig 29: Identifying Park/Neutral Position Switch Connector Terminals
G00180717Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Power Control Module Connector C1 Terminals
G00180679Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Powertrain Control Module Connector C2 Terminals
G00180680Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying Powertrain Control Module Connector C3 Terminals
G00180681Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Powertrain Control Module Connector C4 Terminals
G00180682Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying Rocker Arm Oil Control Valve Connector Terminals
G00180720Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying Throttle Position Sensor Connector Terminals
G00180718Courtesy of GENERAL MOTORS CORP.

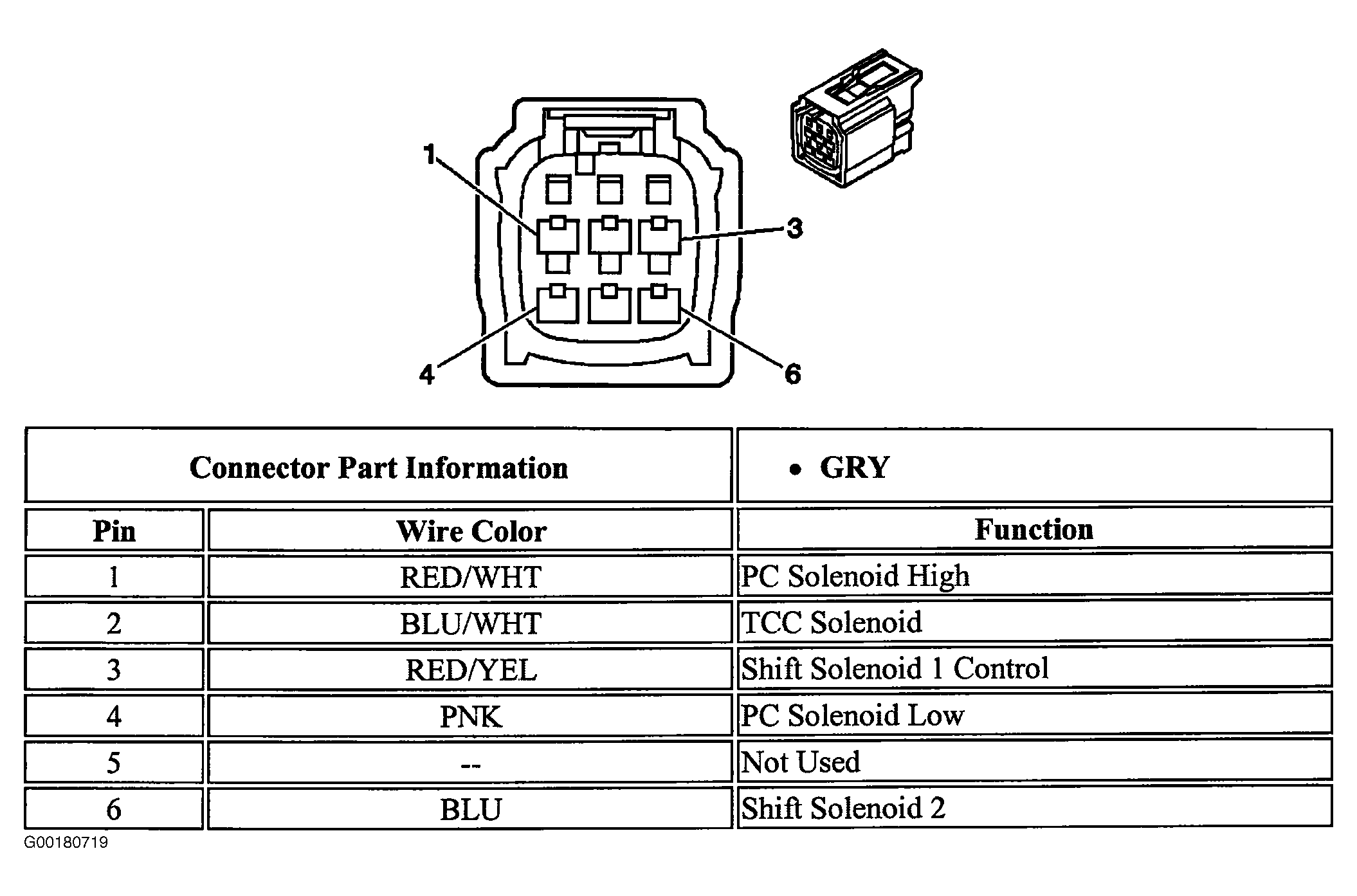

Fig 36: Identifying Transmission Connector Terminals (FWD)
G00180719Courtesy of GENERAL MOTORS CORP.

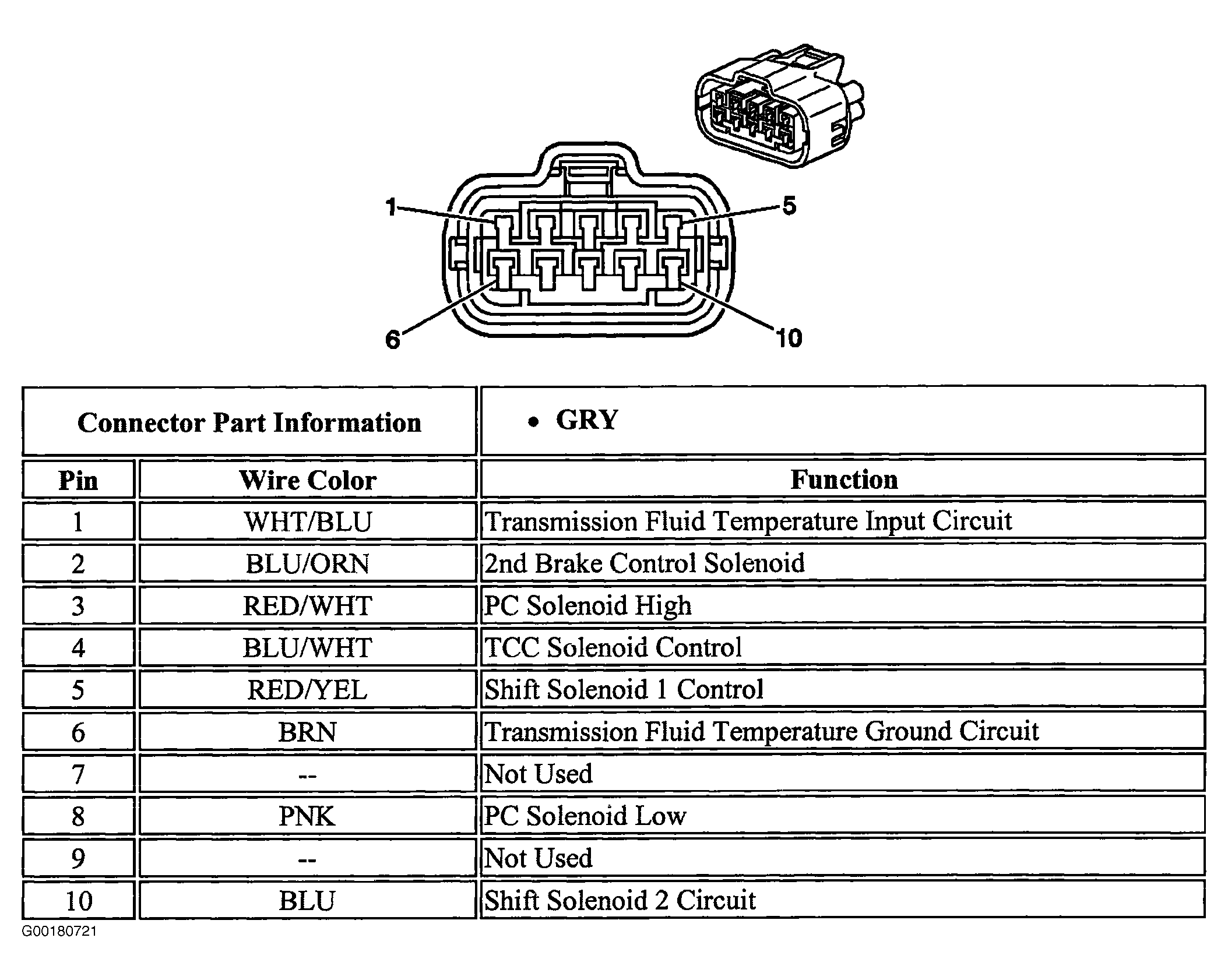

Fig 37: Identifying Transmission Connector Terminals (AWD)
G00180721Courtesy of GENERAL MOTORS CORP.

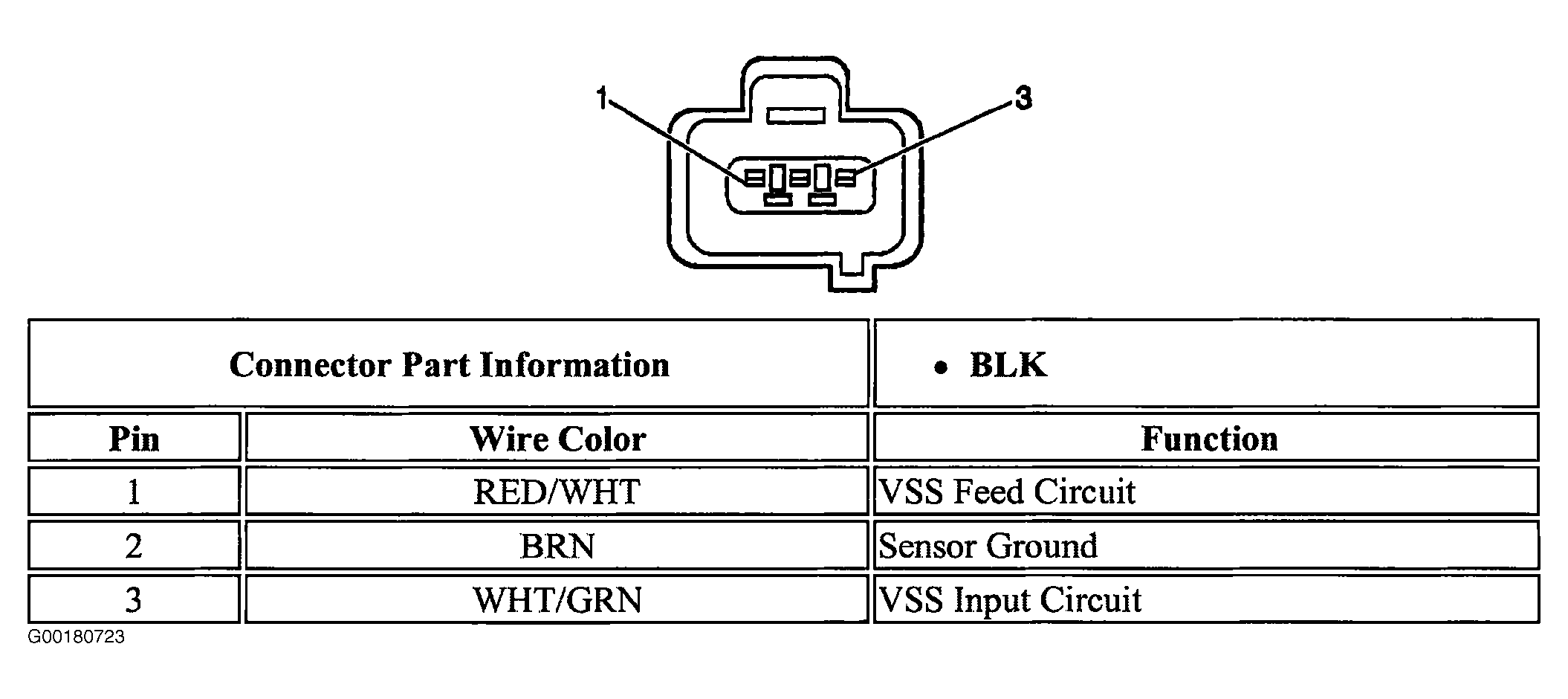

Fig 38: Identifying Vehicle Speed Sensor (FWD W/O ABS)
G00180723Courtesy of GENERAL MOTORS CORP.

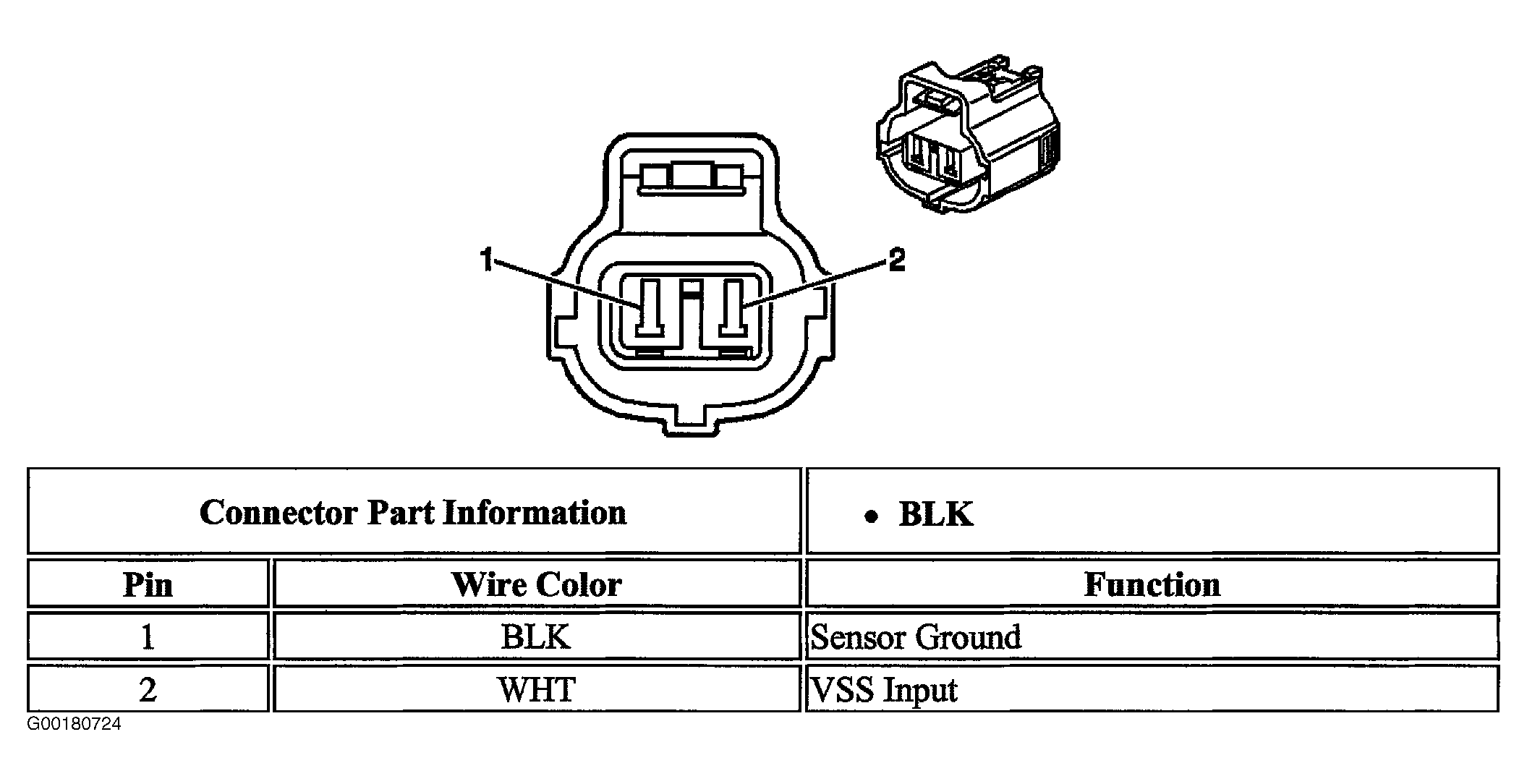

Fig 39: Identifying Vehicle Speed Sensor Connector Terminals (AWD)
G00180724Courtesy of GENERAL MOTORS CORP.
