Component Locations

For component locations, refer to illustrations. See Fig 1 -Fig 13 .

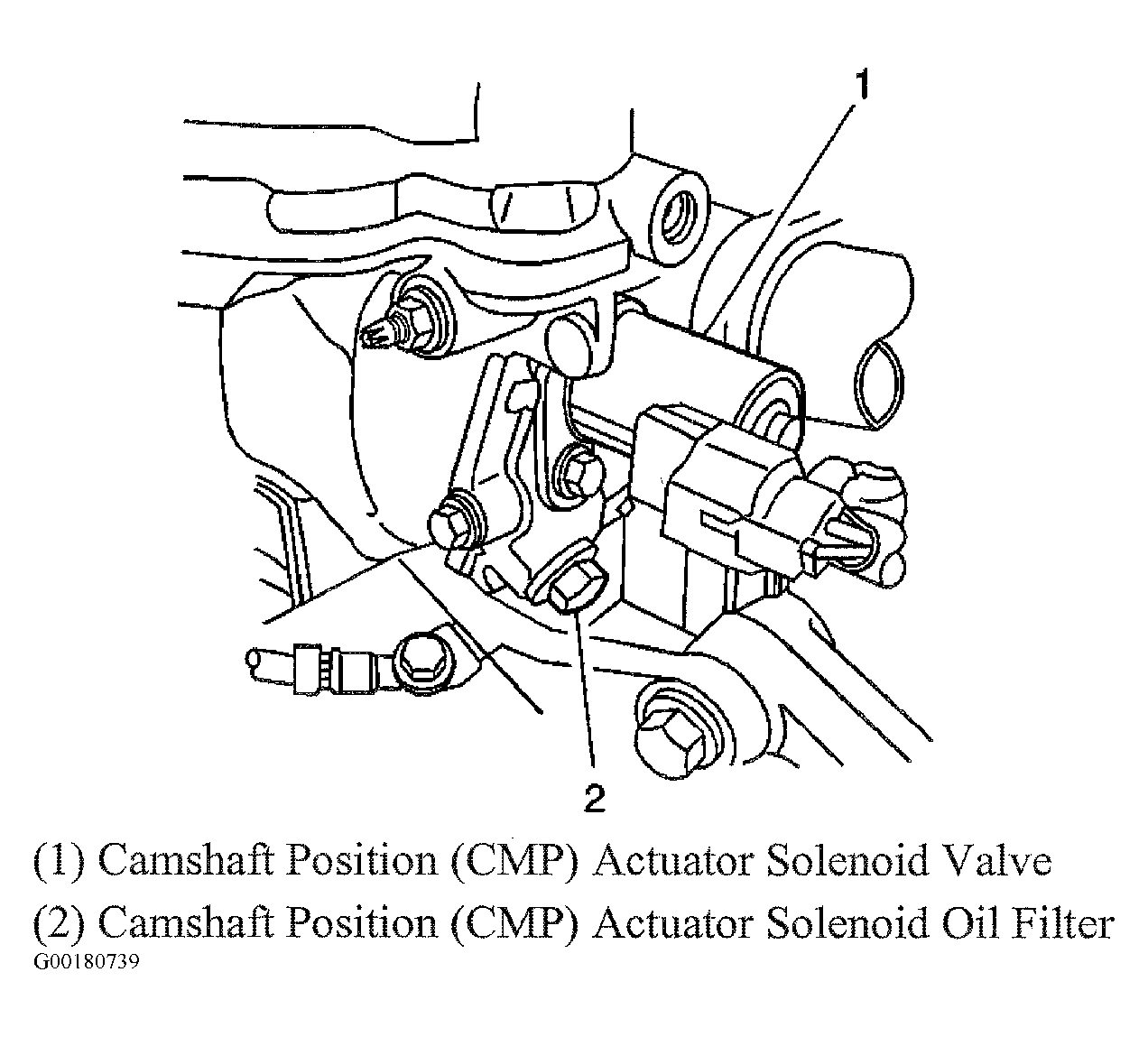

Fig 1: Locating Camshaft Position Actuator Solenoid Valve & Oil Filter (Base Models)

Courtesy of GENERAL MOTORS CORP.

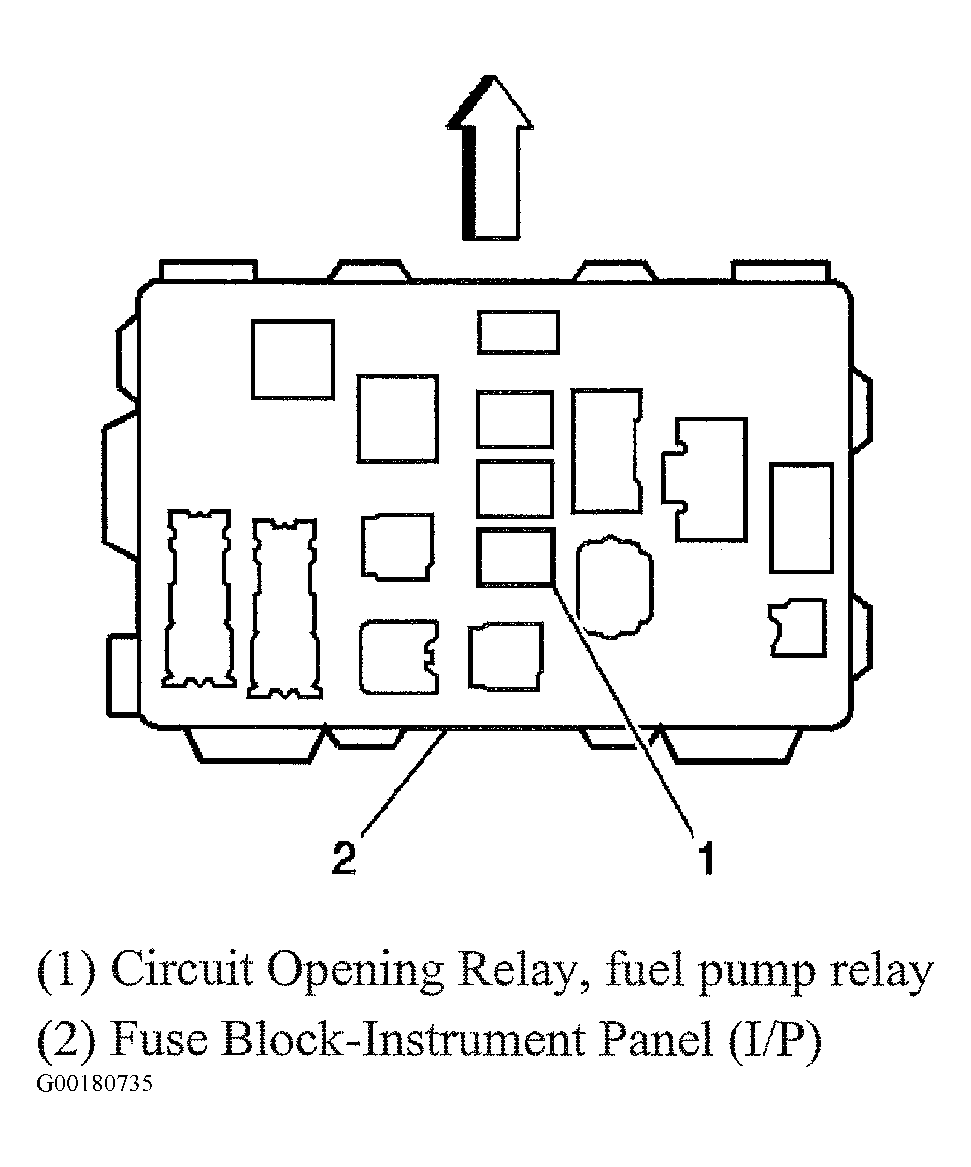

Fig 2: Locating Circuit Opening Relay/Fuel Pump Relay

Courtesy of GENERAL MOTORS CORP.

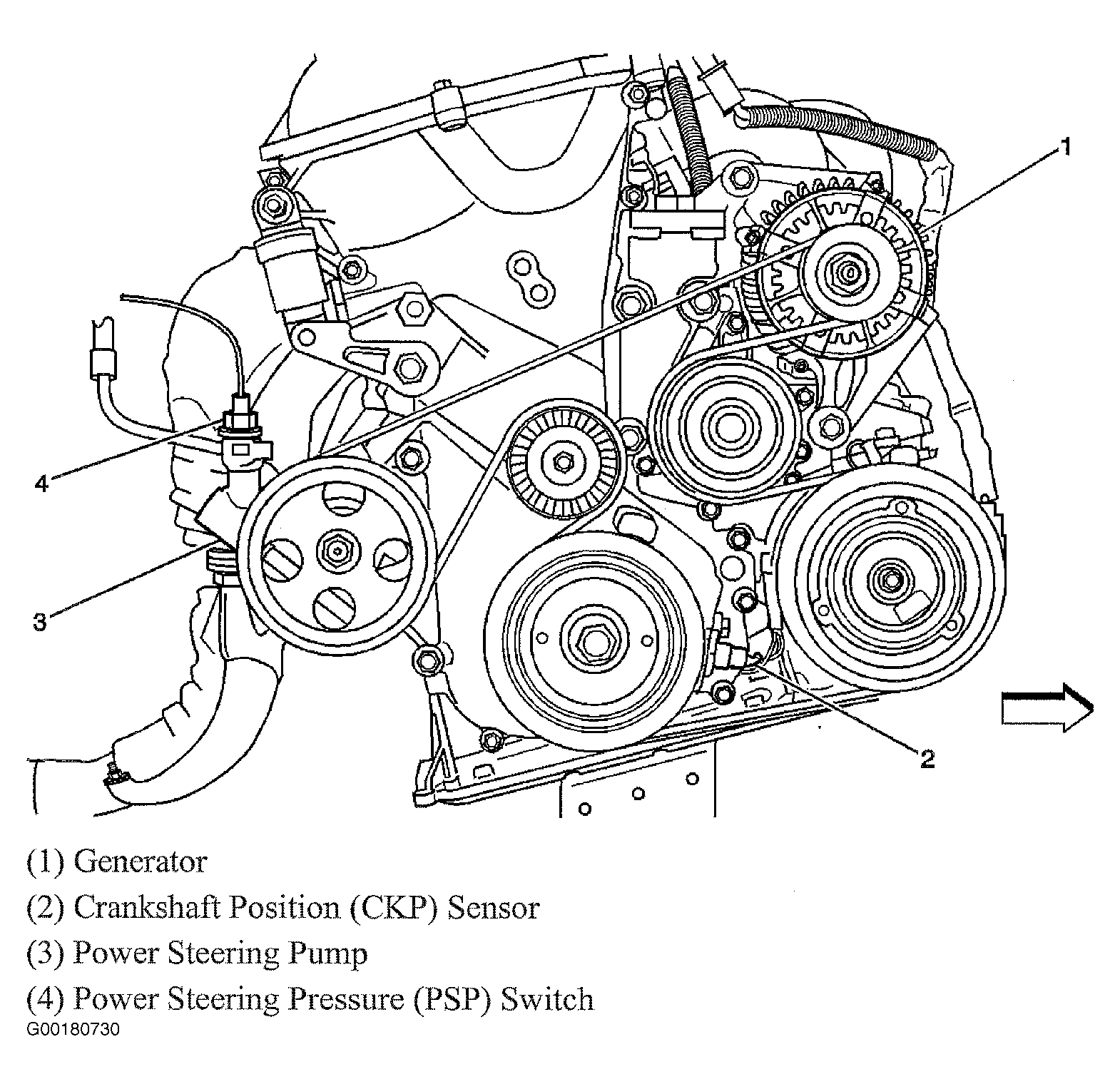

Fig 3: Locating CKP Sensor & PSP Switch

Courtesy of GENERAL MOTORS CORP.

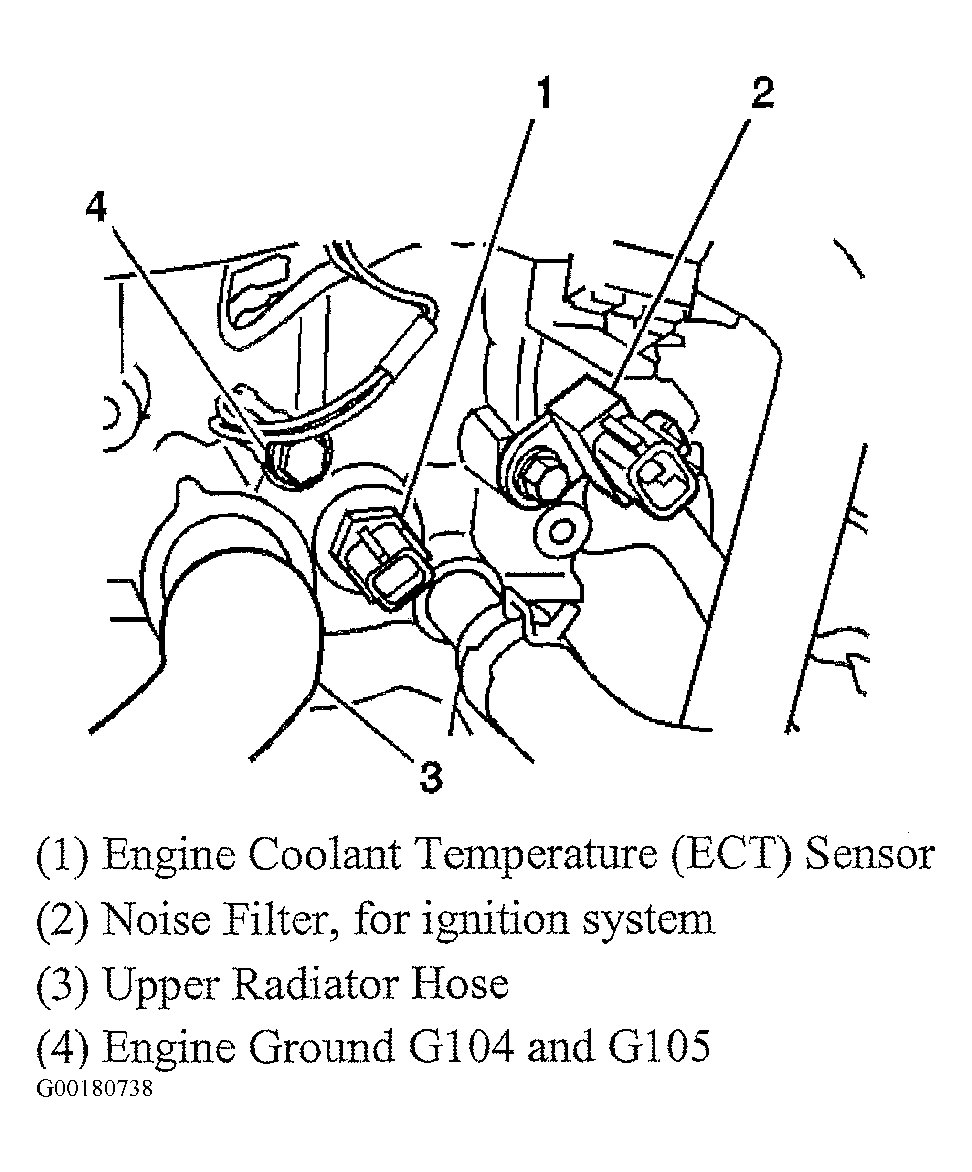

Fig 4: Locating ECT Sensor, Noise Filter & Ground Points G104 & G105 (Base Models)

Courtesy of GENERAL MOTORS CORP.

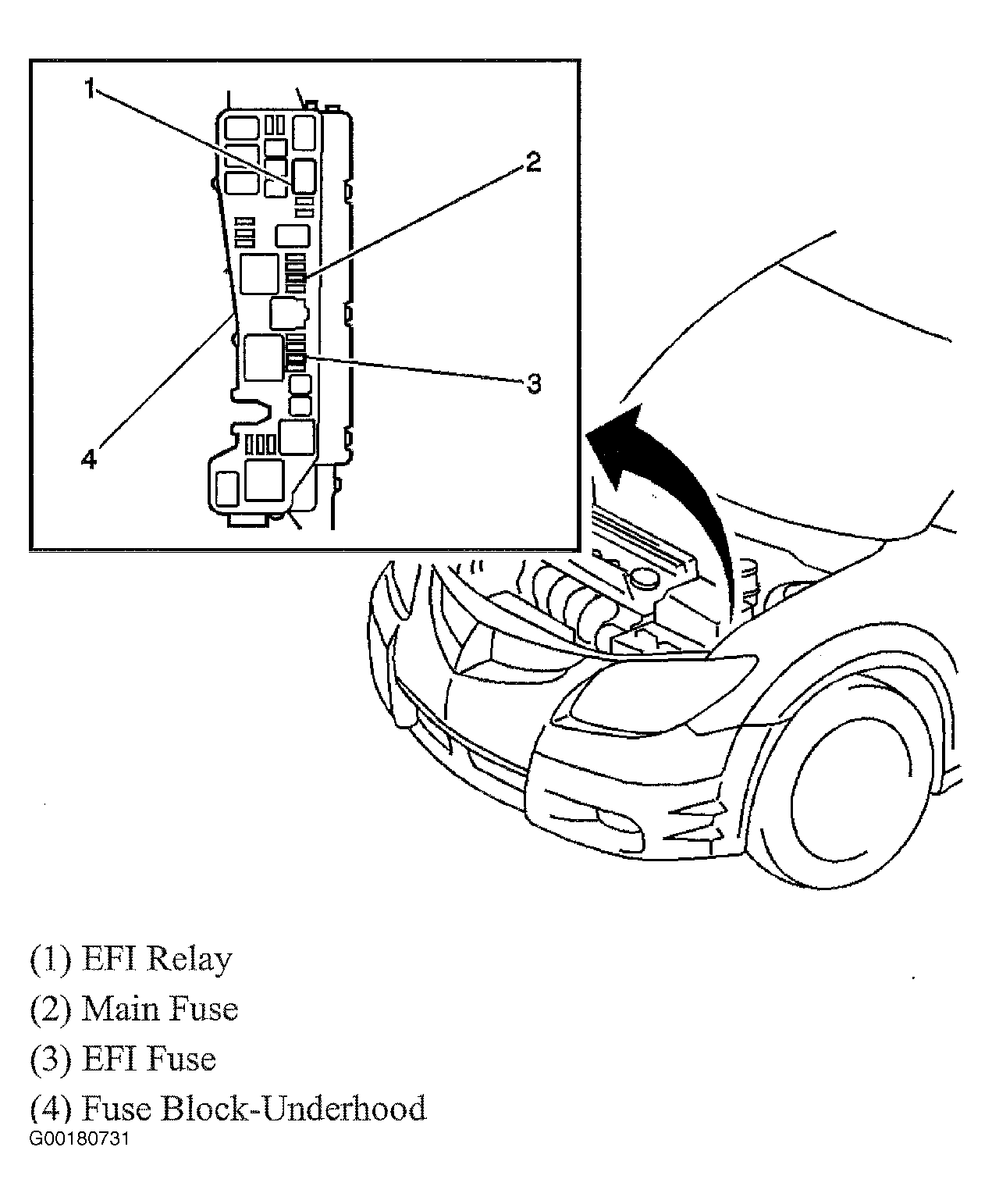

Fig 5: Locating EFI Relay, Main Fuse, EFI Fuse & Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

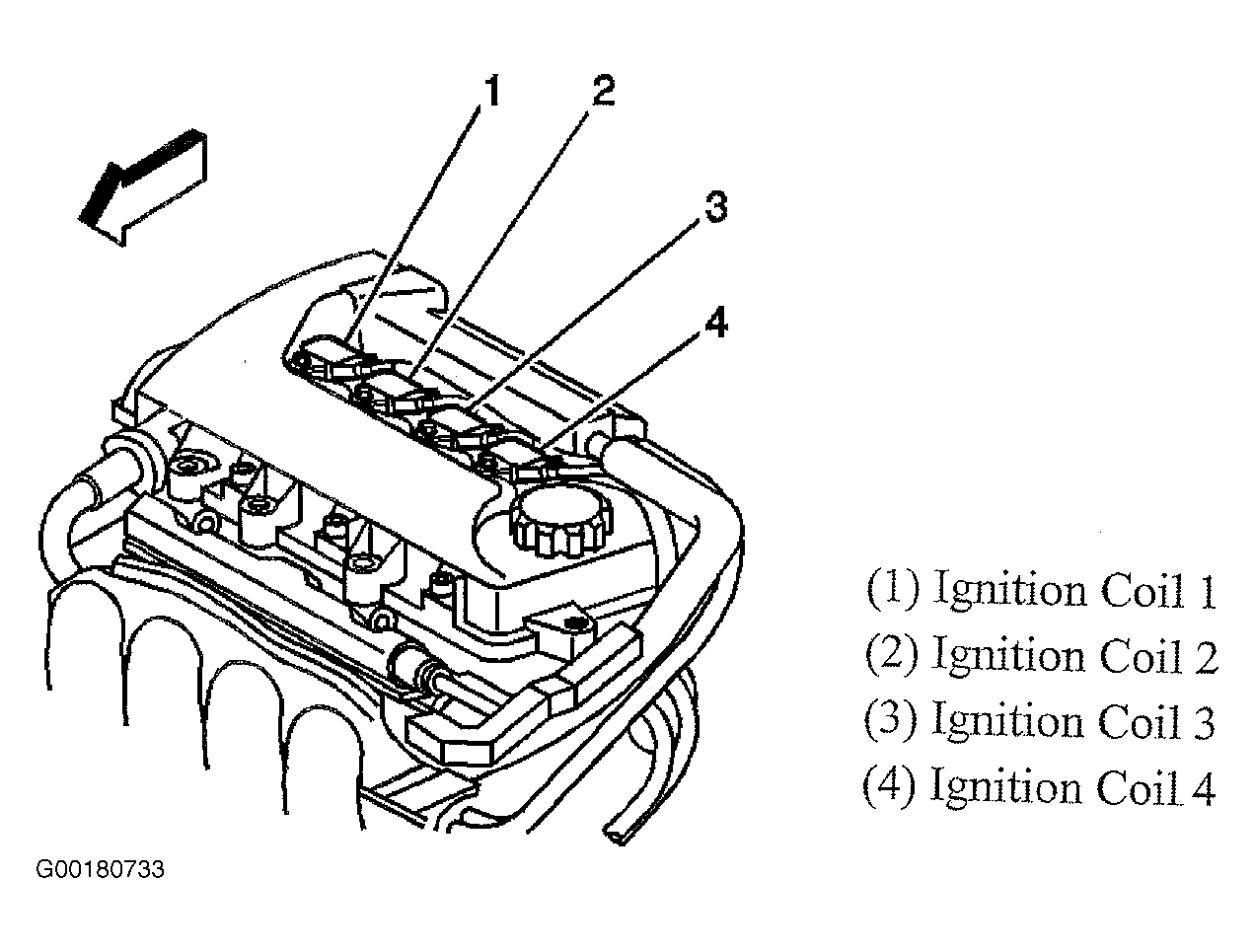

Fig 6: Locating Ignition Coils

Courtesy of GENERAL MOTORS CORP.

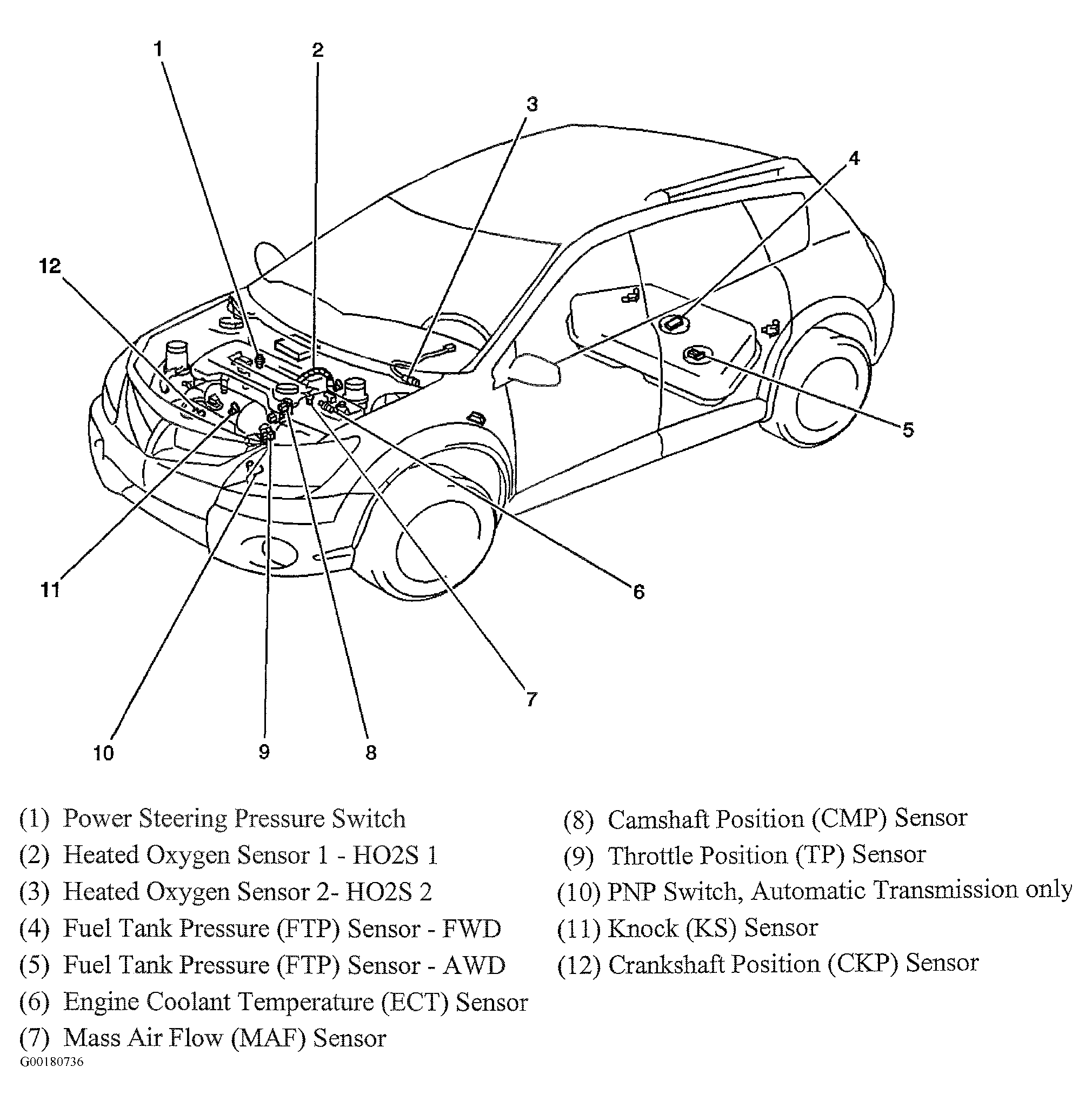

Fig 7: Locating Information Sensors/Input Devices (Base Models)

Courtesy of GENERAL MOTORS CORP.

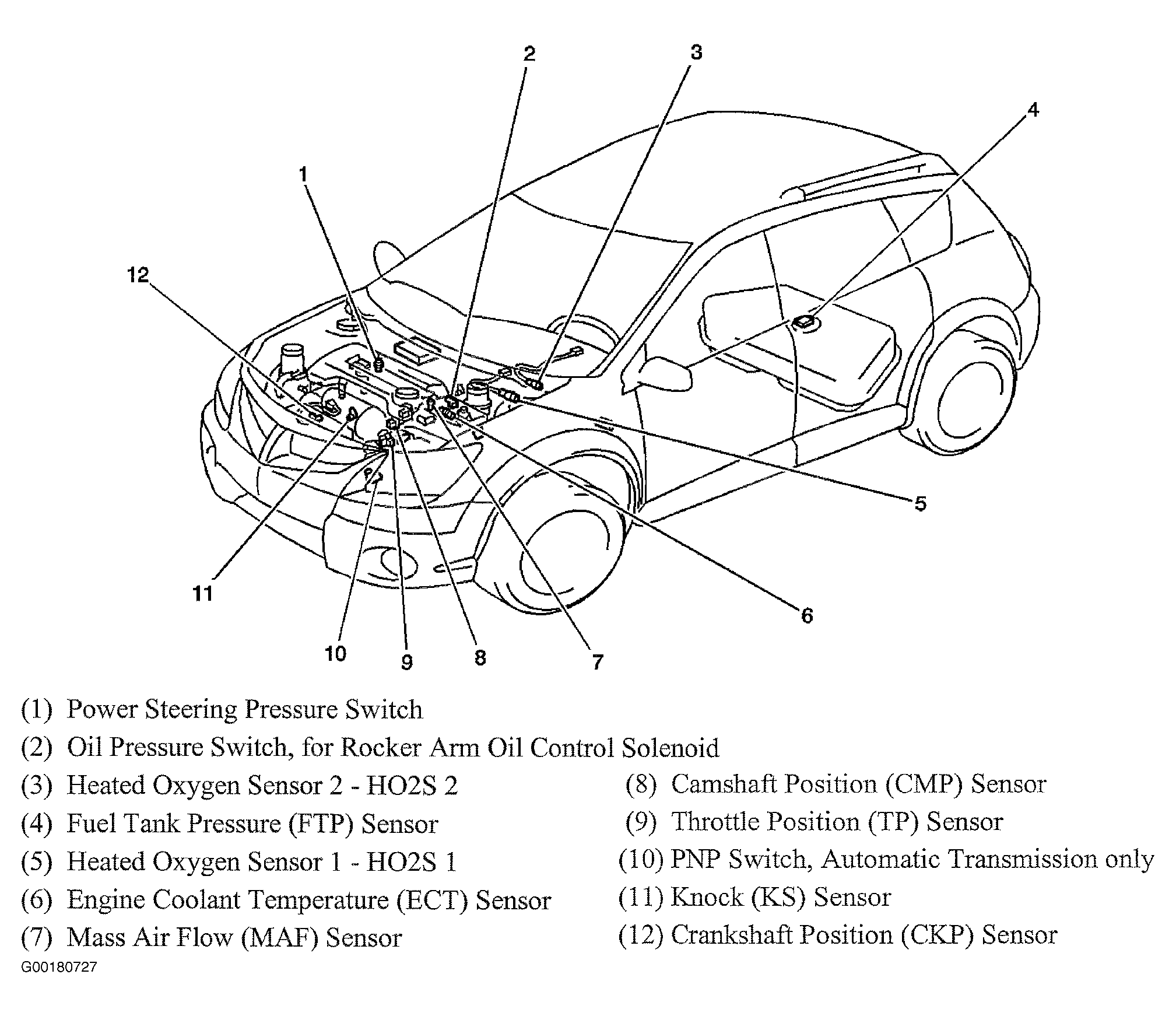

Fig 8: Locating Information Sensors/Input Devices (GT Models)

Courtesy of GENERAL MOTORS CORP.

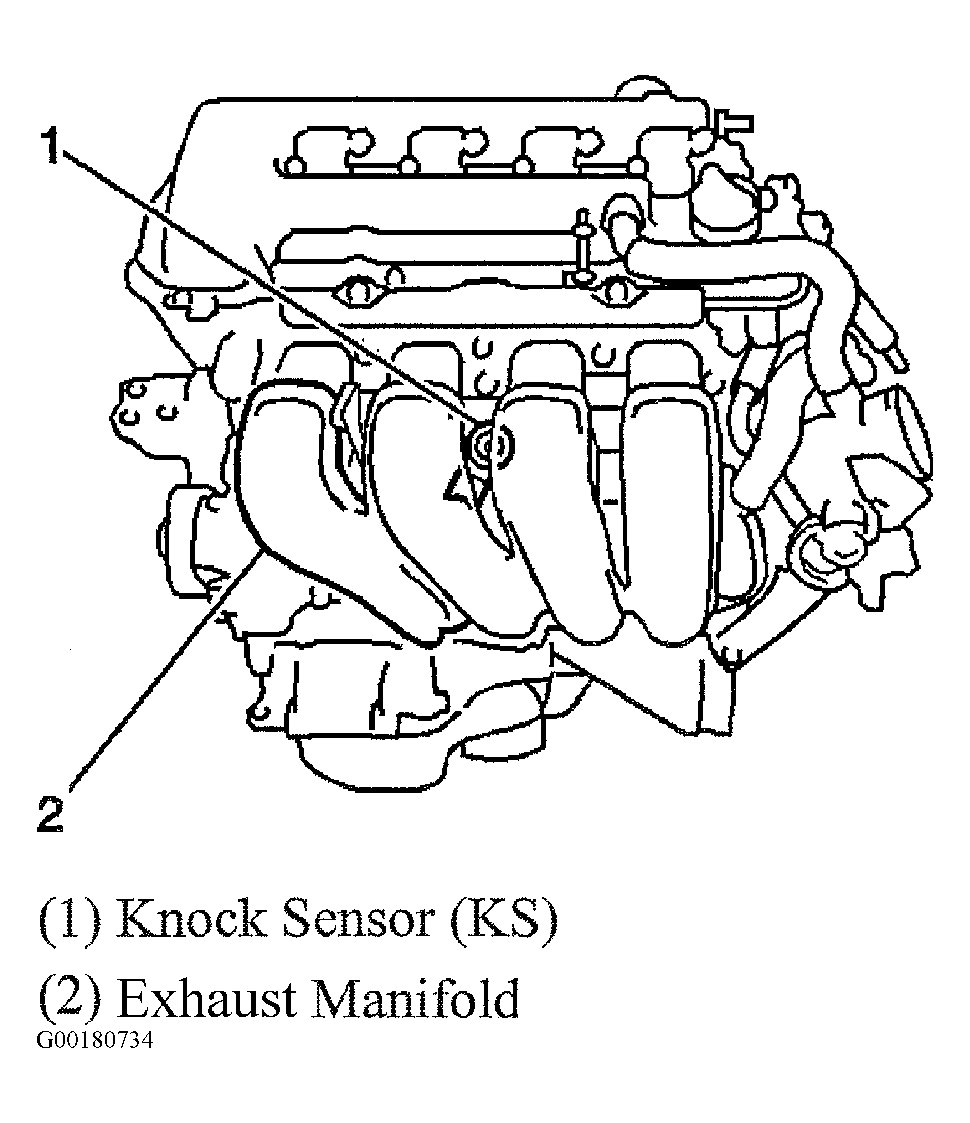

Fig 9: Locating Knock Sensor

Courtesy of GENERAL MOTORS CORP.

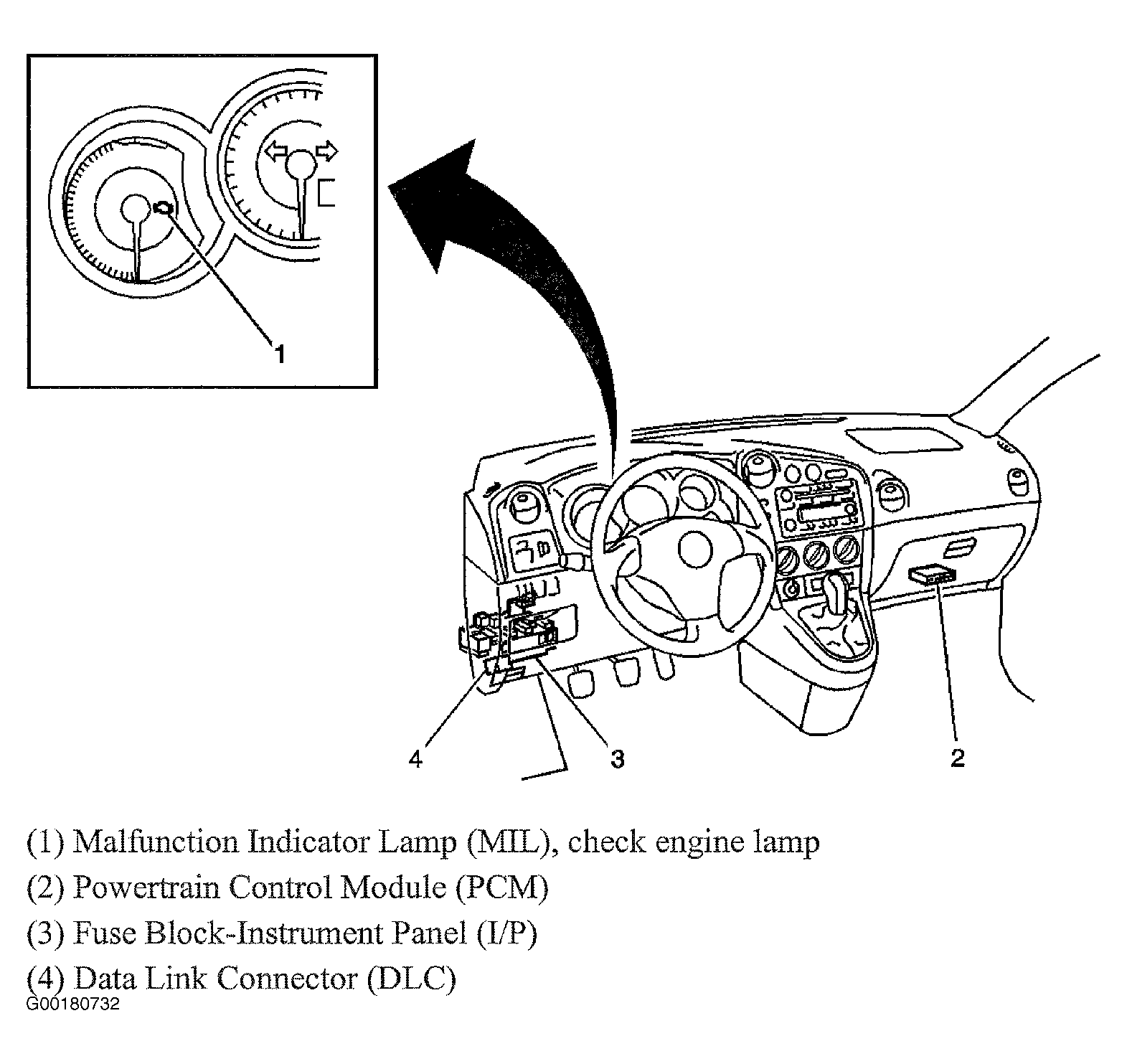

Fig 10: Locating MIL, PCM, IP Fuse Block & DLC

Courtesy of GENERAL MOTORS CORP.

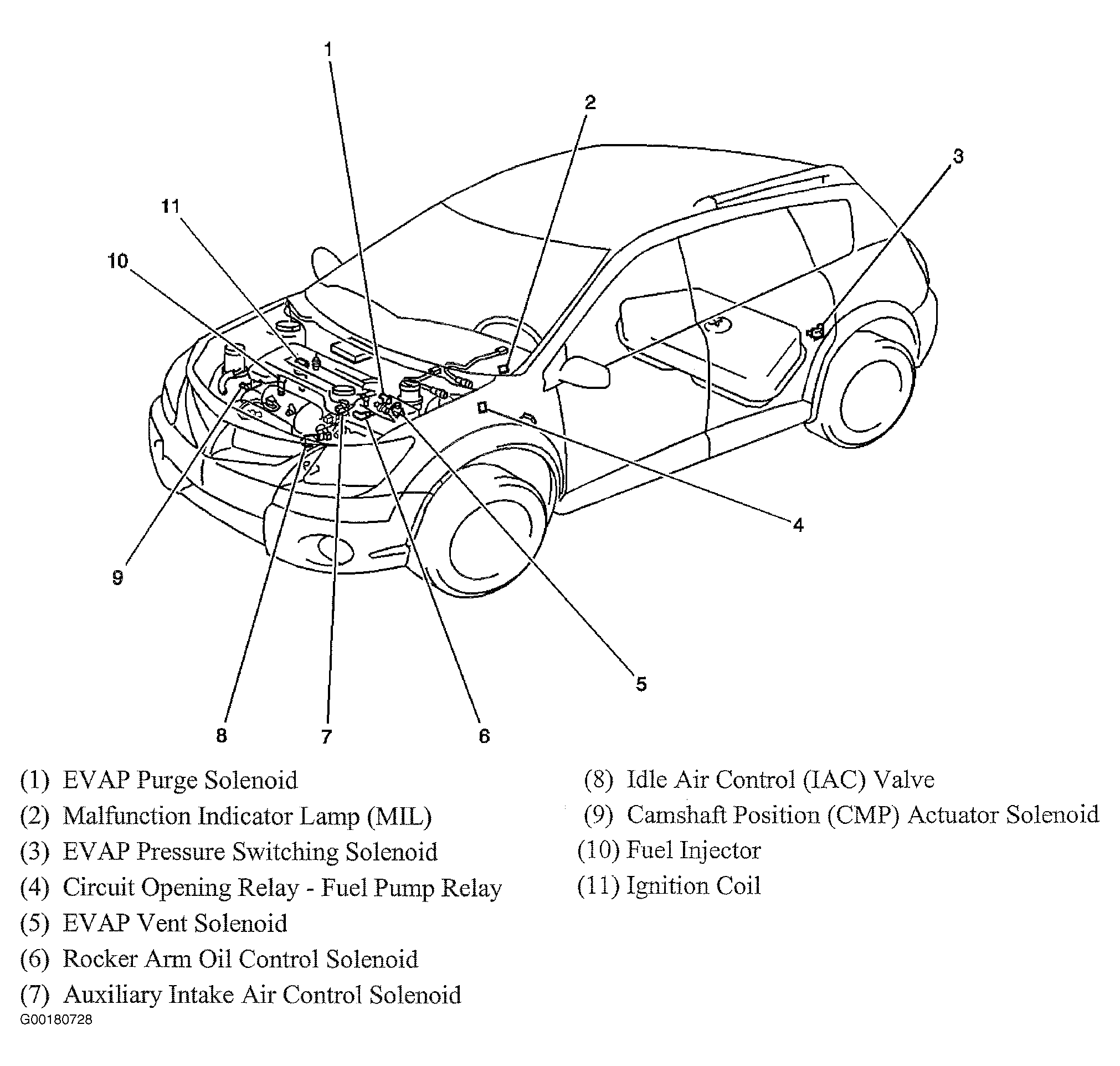

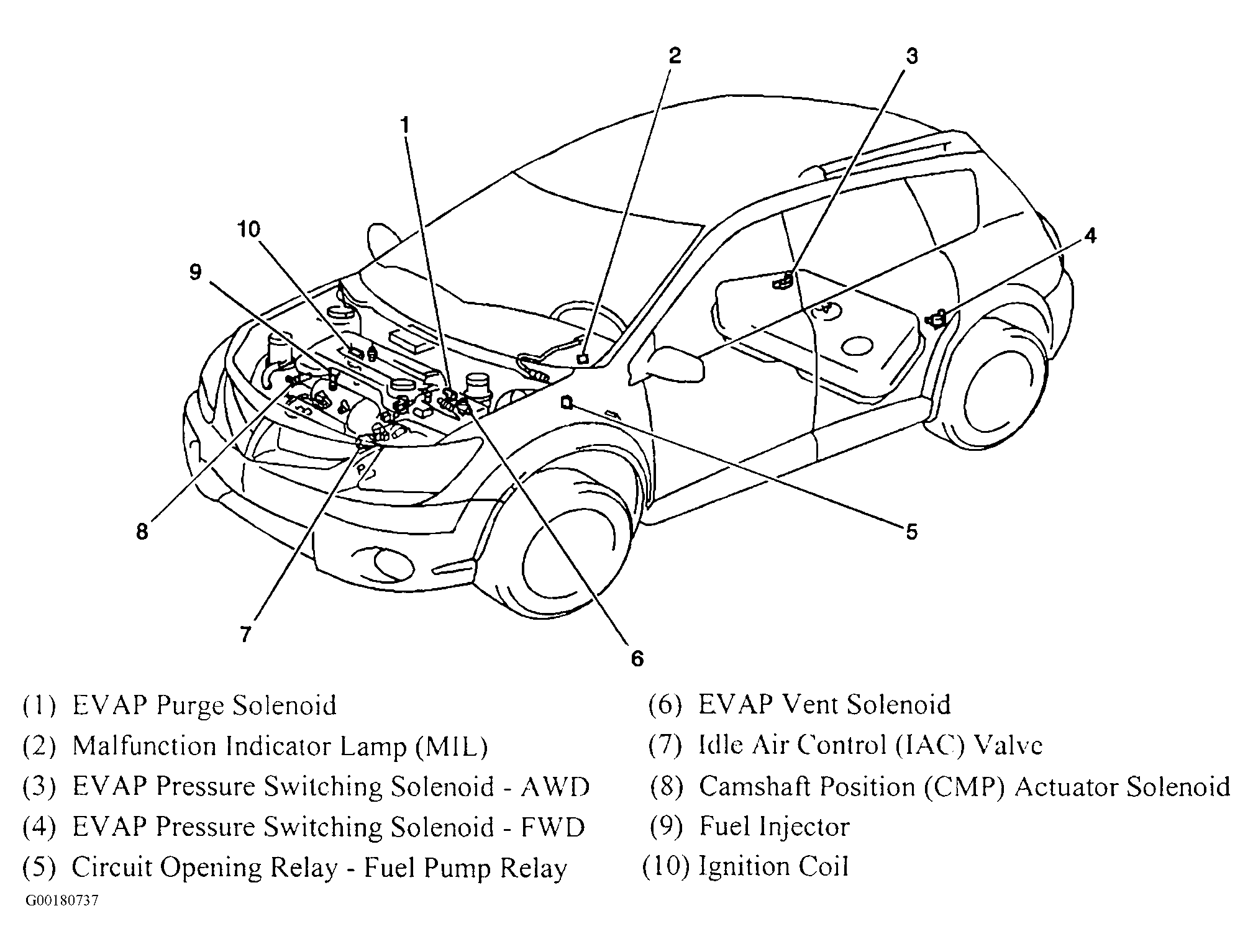

Fig 11: Locating PCM Controlled Devices (Base Models)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Locating PCM Controlled Devices (GT Models)

Courtesy of GENERAL MOTORS CORP.

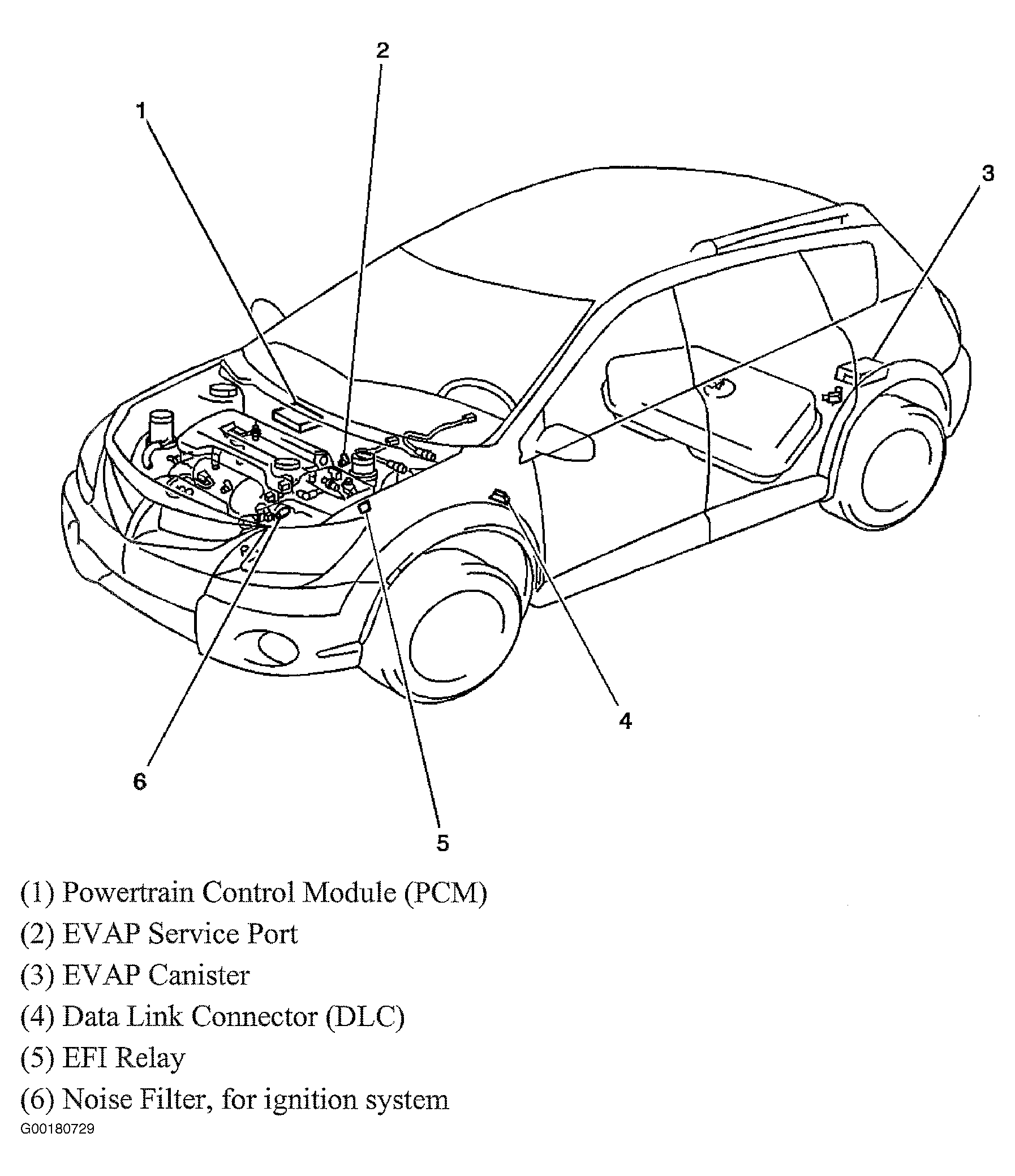

Fig 13: Locating PCM, EVAP Canister/Service Port, DLC, EFI Relay & Noise Filter

Courtesy of GENERAL MOTORS CORP.
