Automatic Transmission Shift Lock Control Schematics

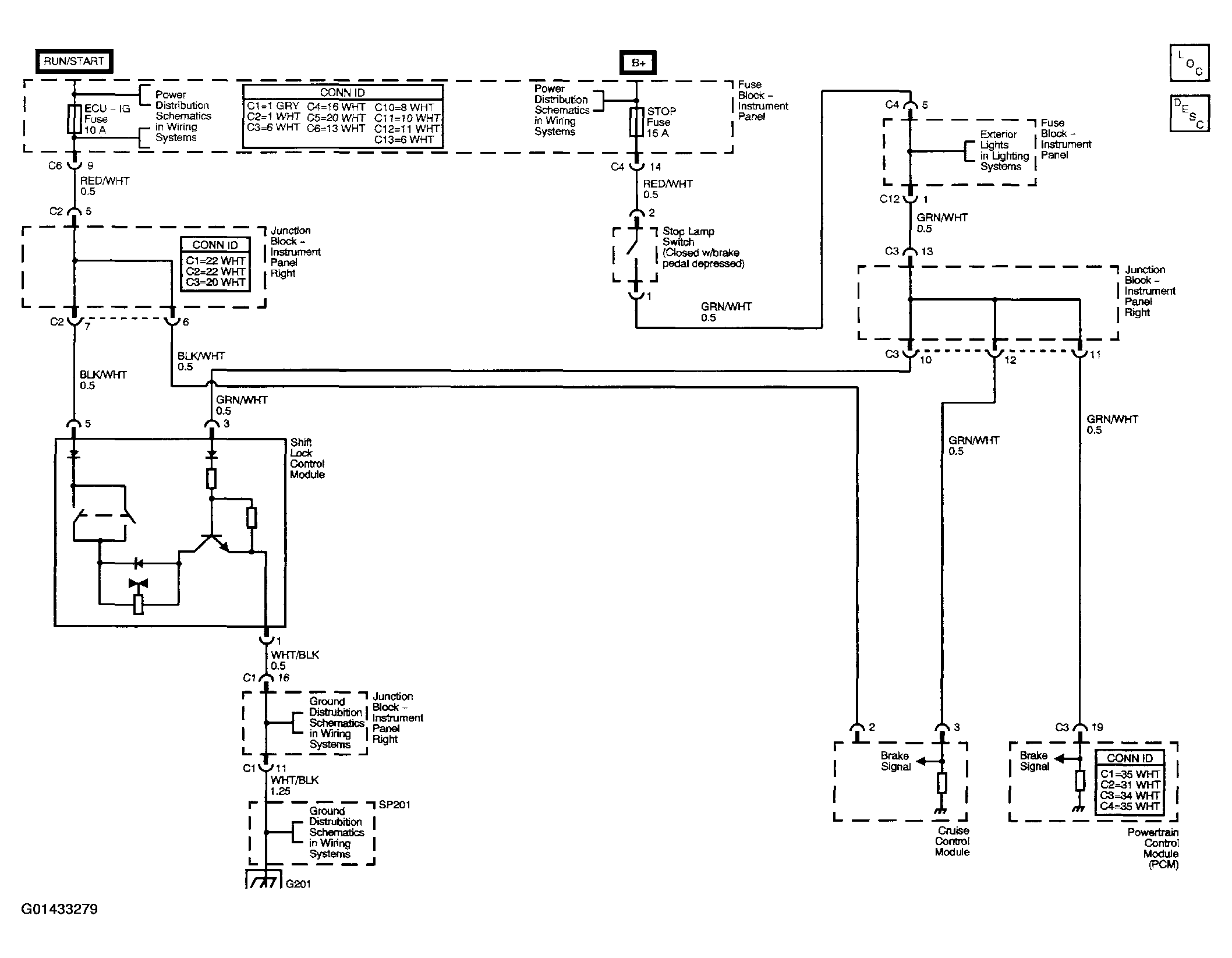

Fig 1: Automatic Transmission Shift Lock Control Schematic
G01433279Courtesy of GENERAL MOTORS CORP.
