Installation Procedure

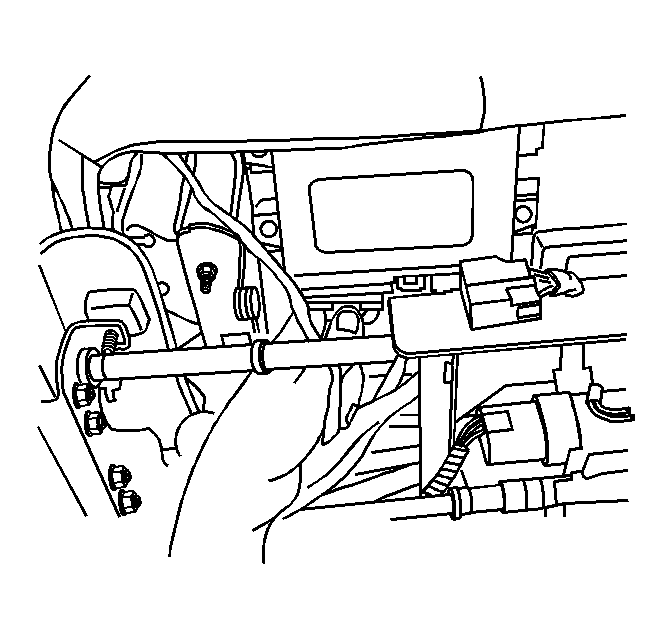

    Fig 1: View Of Memory Seat Module
    GM792019Courtesy of GENERAL MOTORS CORP.
  1. Install the memory seat module to the seat frame.
  2. Press the module into the bracket until the module is firmly seated.
  3. Connect the electrical connector to the memory seat module.

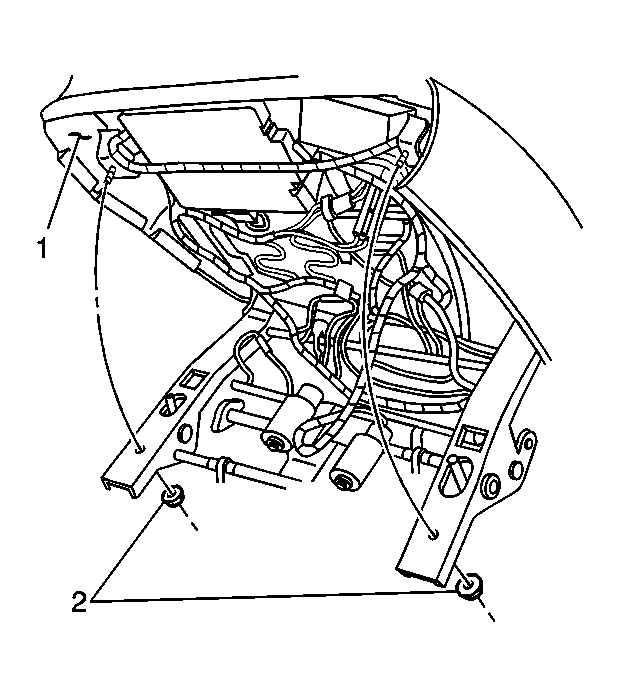

    4. Fig 2: Identifying Front Seat Assembly Front Fasteners
    GM669309Courtesy of GENERAL MOTORS CORP.
  4. Install the seat cushion assembly (1) to the seat riser.
  5. Install the fasteners (2) to the seat cushion assembly (1).

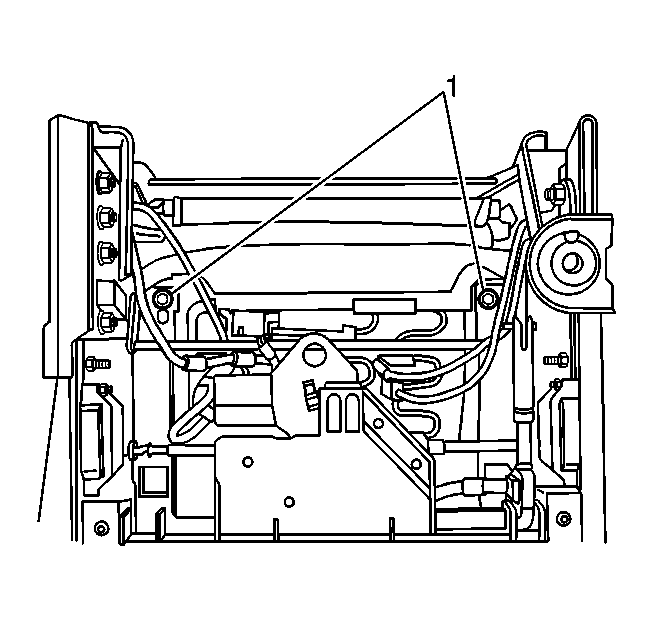

    6. Fig 3: Locating Front Seat Assembly Rear Fasteners
    GM669311Courtesy of GENERAL MOTORS CORP.
  6. Adjust the front seat assembly up and forward in order to access the fasteners (1).
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the fasteners (1) to the seat cushion assembly.

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

  8. Angle the front seat cushion up, in order to access the assembly fasteners.

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

  9. Enable the SIR. Refer to SIR Disabling and Enabling Zone 7 in SIR.
  10. Calibrate the seat. Refer to Memory Seat Calibration Procedure .
