Keyless Entry Schematics

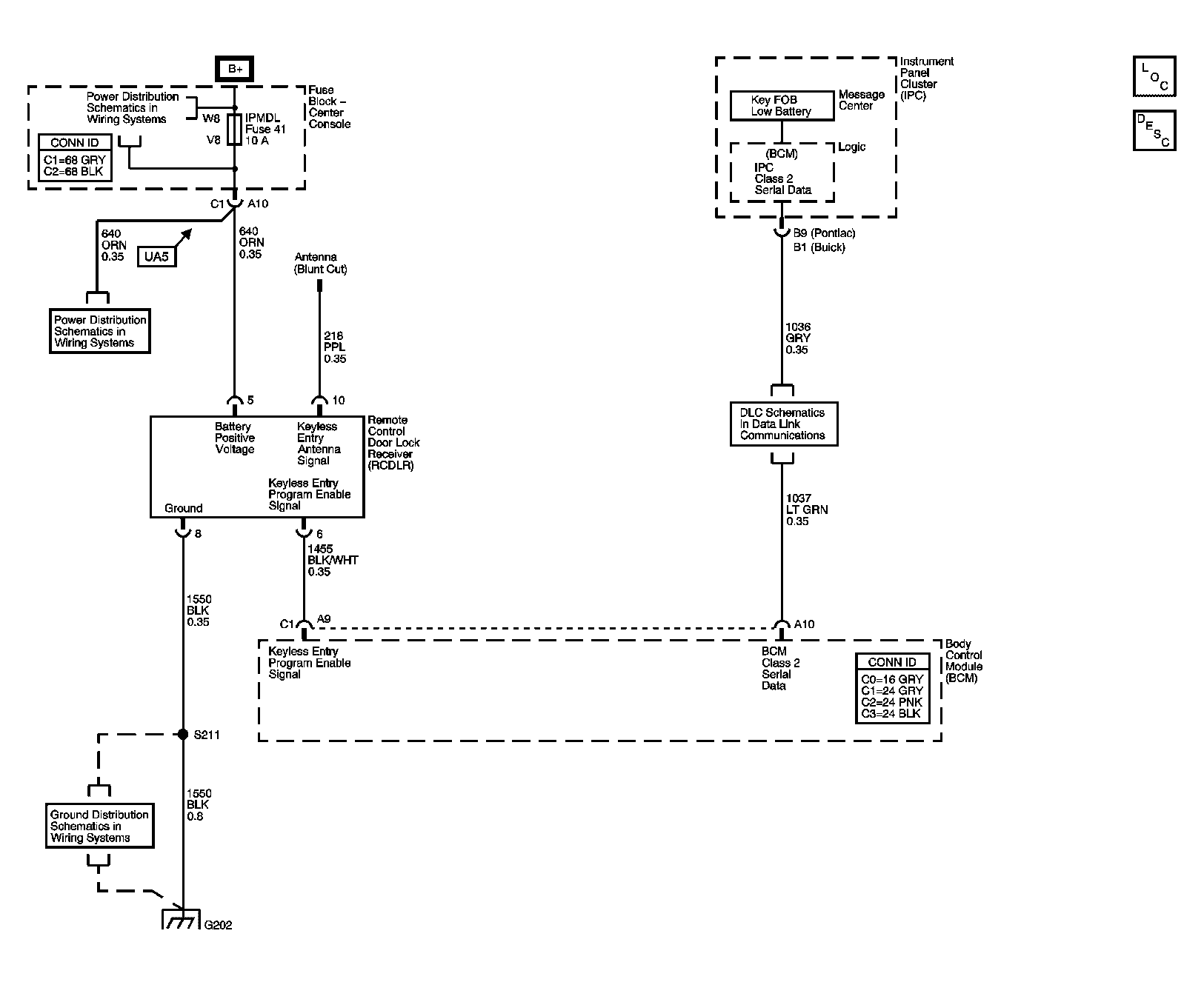

Fig 1: Keyless Entry Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
