Power Door Systems Component Views

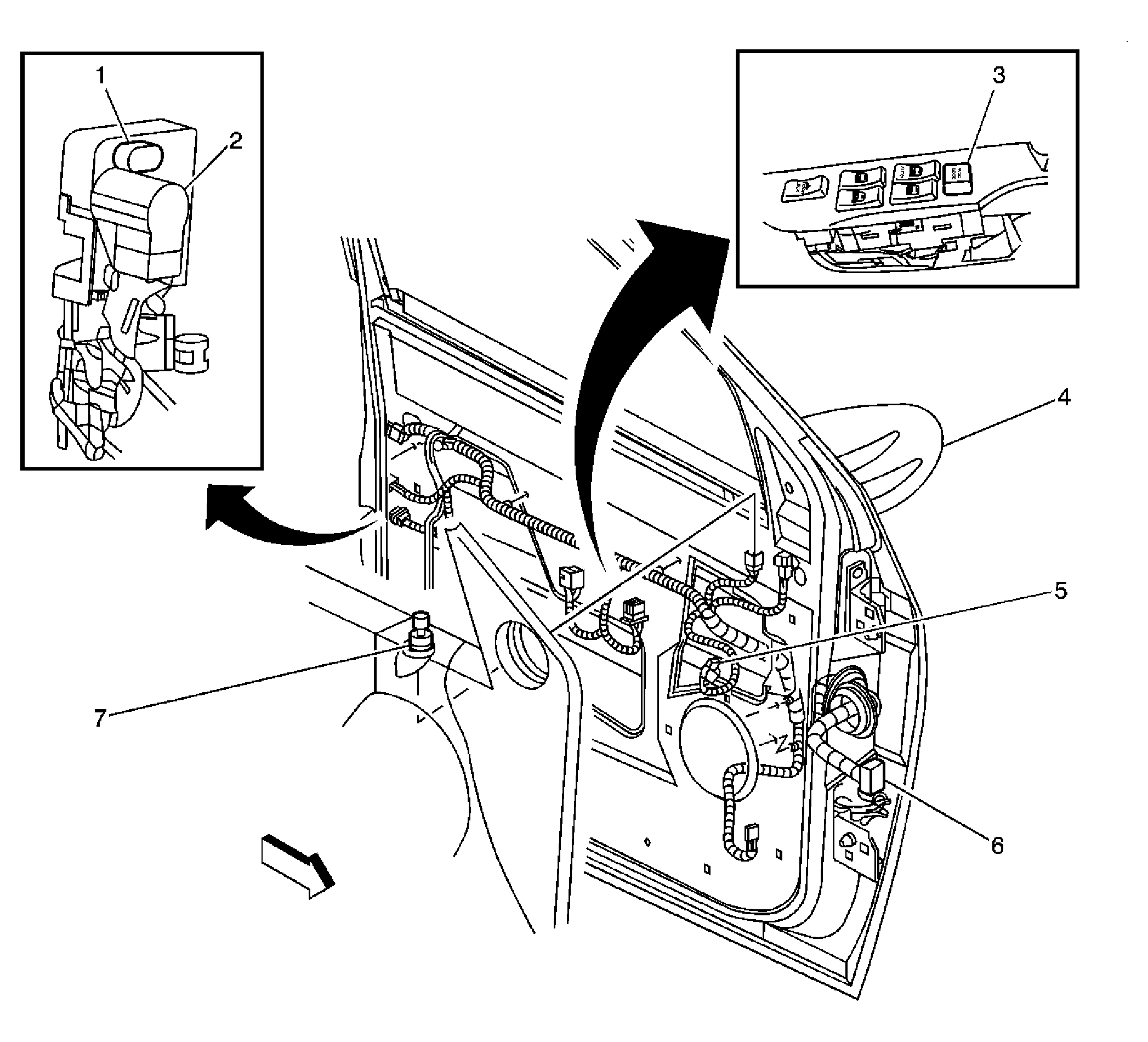

Fig 1: Door Component View - Driver

GM761607

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Driver
2	Door Latch - C1 (Ajar Switch) - Driver
3	Door Lock Switch - Driver and Window Master Switch
4	Outside Rear View Mirror - Driver (Passenger Similar)
5	Window Motor - Driver
6	C301
7	Outside Rearview Mirror Switch

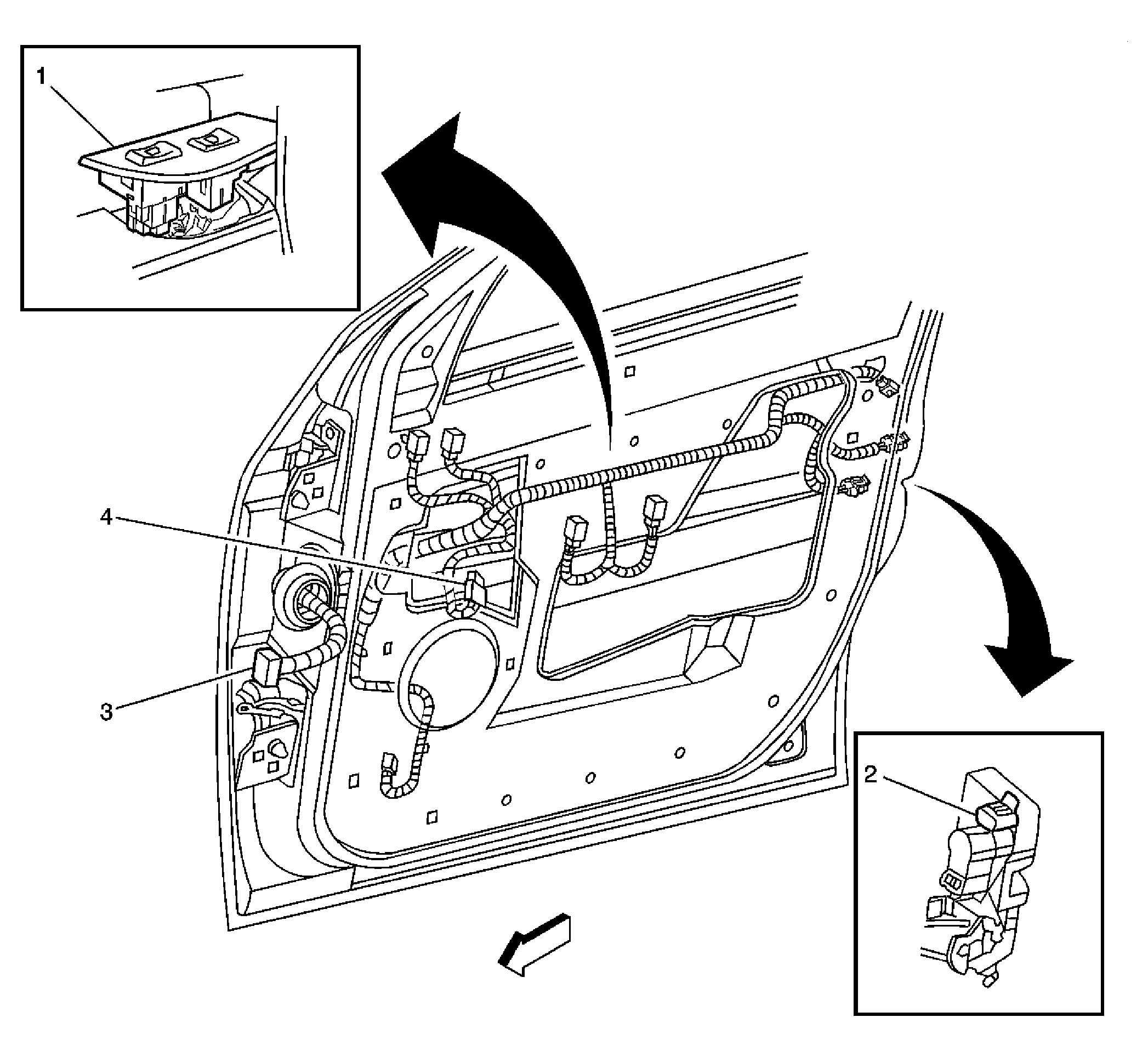

Fig 2: Door Component View - Front Passenger

GM761608

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock and Window Switch - Front Passenger
2	Door Latch - Front Passenger
3	C302
4	Window Motor - Front Passenger

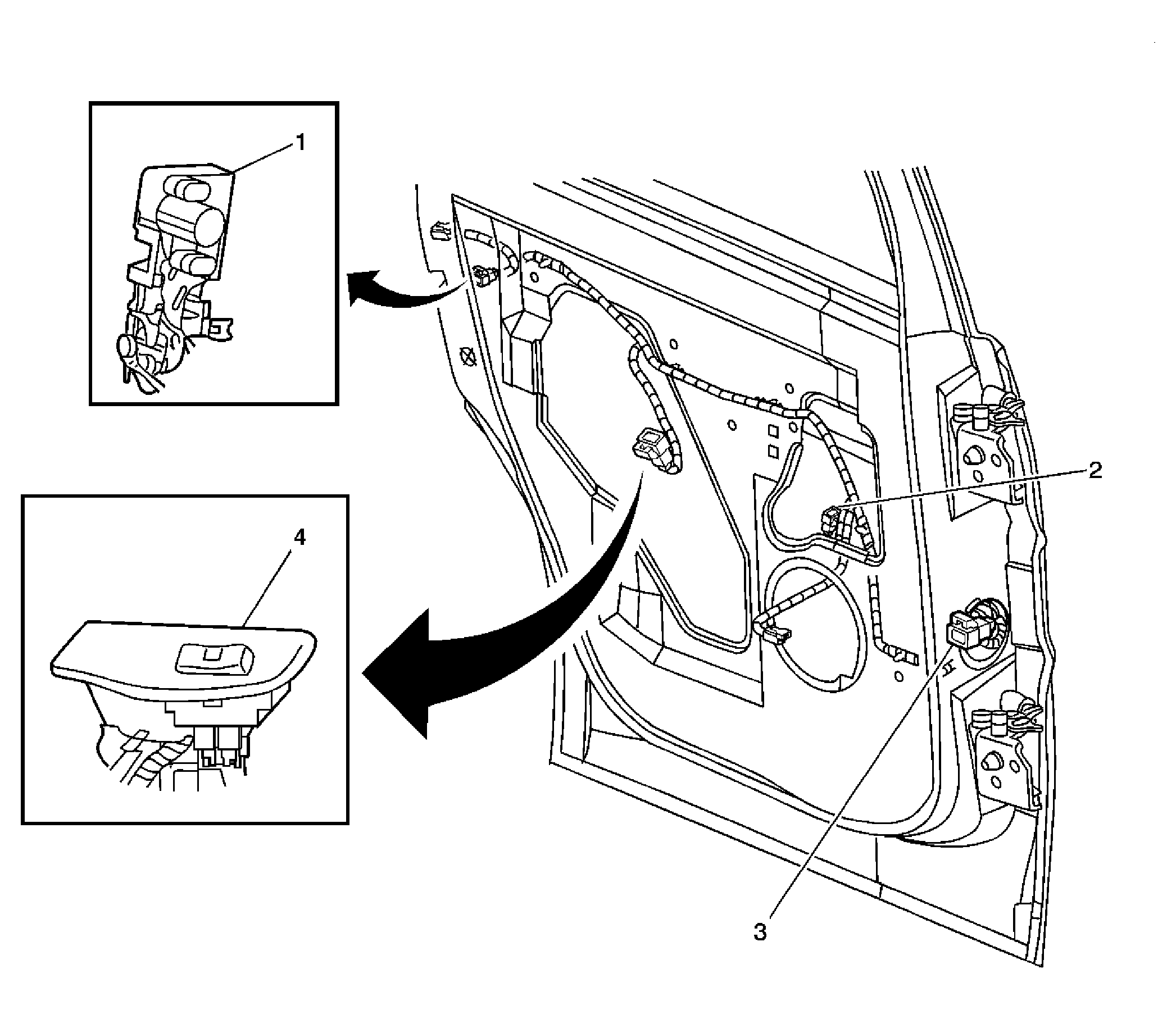

Fig 3: Door Component View - LR

GM861256

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - LR
2	Window Motor - LR
3	C351
4	Window Switch - LR

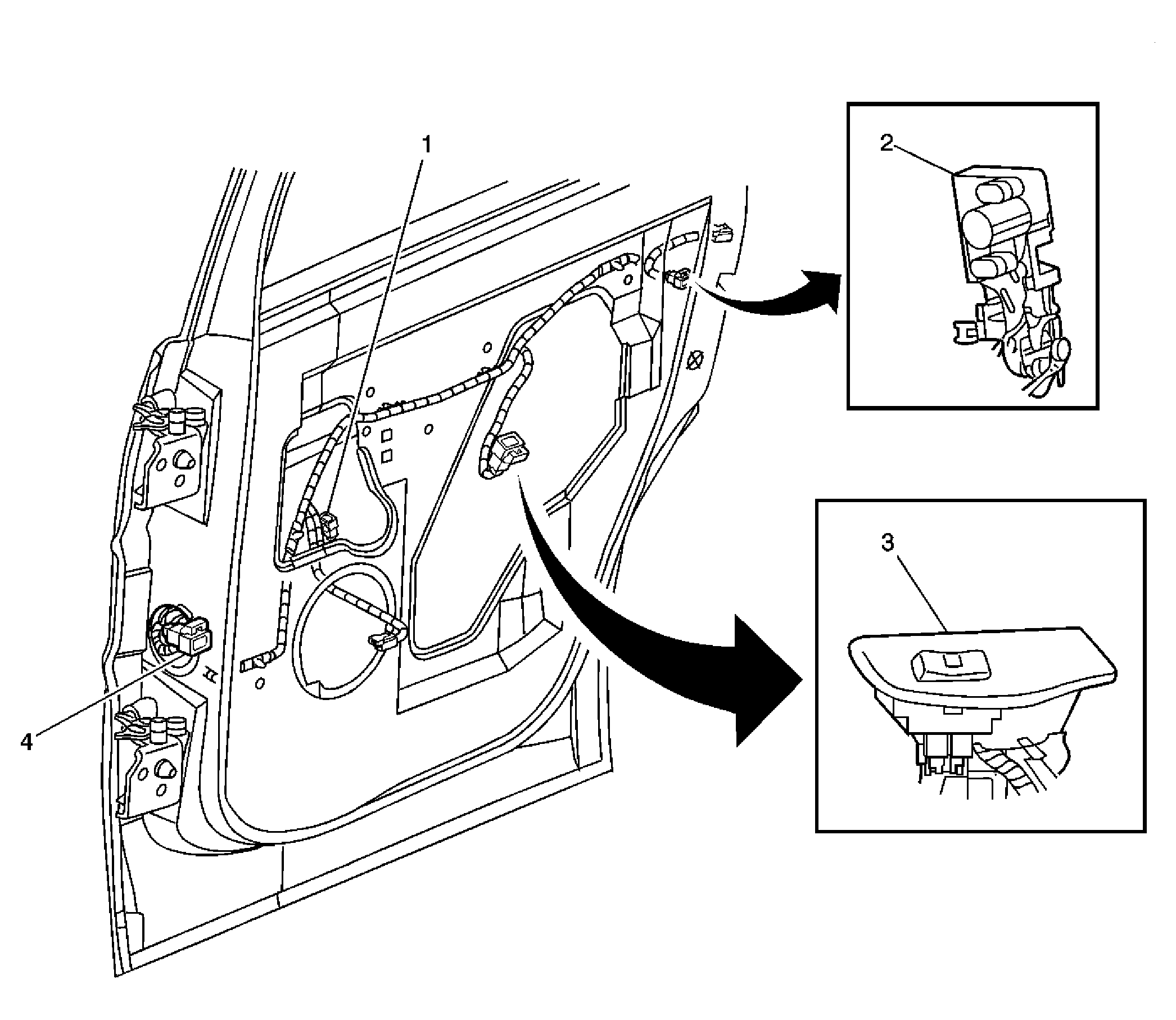

Fig 4: Door Component View - RR

GM761606

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - RR
2	Door Latch - RR
3	Window Switch - RR
4	C352

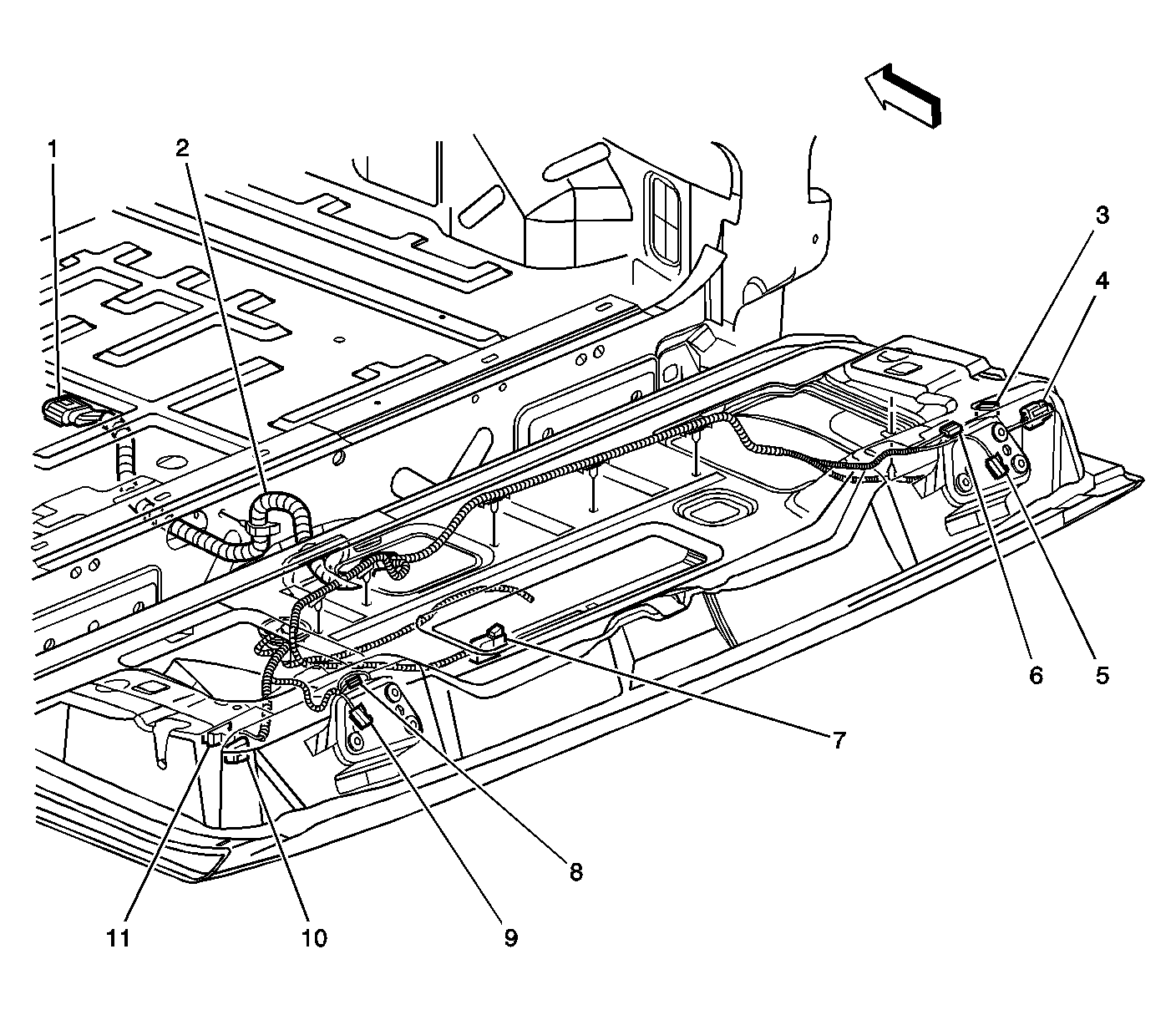

Fig 5: Endgate Component View - Pontiac

GM861277

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C403
2	Endgate Harness
3	Endgate Latch - Right C1
4	Endgate Latch- Right C2
5	Lift Window Release Actuator - Right C1
6	Lift Window Release Actuator - Right C2
7	Lock Cylinder Switch - Endgate
8	Lift Window Release Actuator - Left C2
9	Lift Window Release Actuator - Left C1
10	Endgate Latch - Left C2
11	Endgate Latch - Left C1
