Power Door Systems Connector End Views

Door Latch Connector End View - C1 - Driver

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B DK BLU/WHT 727 Door Ajar Switch Signal
C DK BLU 49 Driver Door Open Switch Signal
D BLK 550 Ground
Door Latch Connector End View - C1 - Front Passenger

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B ORN 54 Front Passenger Door Open Switch Signal
C DK BLU/WHT 727 Door Ajar Switch Signal
D - - Not Used
Door Latch Connector End View - C1 - LR

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B DK BLU/WHT 727 Door Ajar Switch Signal
C PNK 775 Rear Passenger Door Open Switch Signal
D BLK 550 Ground
Door Latch Connector End View - C1 - RR

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B PNK 775 Rear Passenger Door Open Switch Signal
C DK BLU/WHT 727 Door Ajar Switch Signal
D - - Not Used

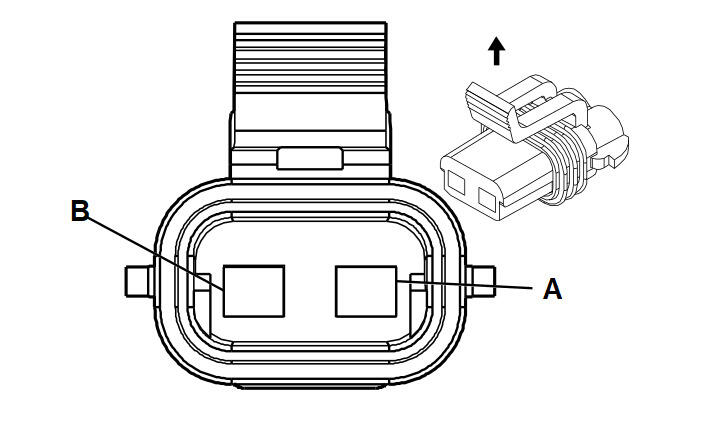

Door Latch Connector End View - C2 - Driver

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 694 Driver Door Lock Motor Unlock
B GRY 295 Door Lock Motor Lock
Door Latch Connector End View - C2 - LR

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Motor Unlock
B GRY 295 Door Lock Motor Lock
Door Latch - C2 - Front Passenger

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Motor Unlock
B GRY 295 Door Lock Motor Lock
Door Latch Connector End View - C2 - RR

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Motor Unlock
B GRY 295 Door Lock Motor Lock
Door Latch Connector End View - C3 - Driver

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series Sealed (LT GRN)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B PPL 1124 Door Lock Key Switch Unlock Signal
Door Lock Switch Connector End View - Driver

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground (Pontiac)
RED/BLK 780 Driver Door Lock Switch Lock Signal (Buick)
B BLK 550 Ground (Pontiac)
- - Not Used (Buick)
C GRY 8 Instrument Panel Lamp Supply Voltage (Pontiac)
- - Not Used (Buick)
D - - Not Used
E - - Not Used (Pontiac)
BLK 550 Ground (Buick)
F - - Not Used (Pontiac)
BLK 550 Ground (Buick)
G RED/BLK 780 Driver Door Lock Switch Lock Signal (Pontiac)
GRY 8 Instrument Panel Lamp Supply Voltage (Buick)
H - - Not Used
Door Lock Switch Connector End View - Front Passenger

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground (Pontiac)
RED/BLK 780 Driver Door Lock Switch Lock Signal (Buick)
B BLK 750 Ground (Pontiac)
- - Not Used
C GRY 8 Instrument Panel Lamp Supply Voltage (Pontiac)
- - Not Used (Buick)
D - - Not Used
E - - Not Used (Pontiac)
BLK 750 Ground (Buick)
F - - Not Used (Pontiac)
BLK 750 Ground (Buick)
G RED/BLK 780 Driver Door Lock Switch Lock Signal (Pontiac)
GRY 8 Instrument Panel Lamp Supply Voltage (Buick)
H - - Not Used
Outside Rearview Mirror Connector End View - Driver (A43)

GM511671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064872
  • 10-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function
A LT GRN 89 Driver Mirror Motor Down Control
B LT BLU 82 Driver Mirror Motor Left Control
C WHT 81 Driver Mirror Motor Right Control
D ORN 267 Heated Mirror Element Supply Voltage (DE5)
E BLK 550 Ground (DE5)
F GRY 786 Driver Mirror Horizontal Position Sensor Signal
G BRN 673 Low Reference
H DK GRN 784 Driver Mirror Vertical Position Sensor Signal
J DK BLU 672 5-Volt Reference
K - - Not Used
Outside Rearview Mirror Connector End View - Driver (w/o A43)

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 88 Driver Mirror Motor Up Control
B LT GRN 1499 Driver Mirror Motor Left/Down Control
C WHT 81 Driver Mirror Motor Right Control
D ORN 267 Heated Mirror Element Supply Voltage (UH9)
E BLK 550 Ground (UH9)
F-H - - Not Used
Outside Rearview Mirror Connector End View - Passenger (A43)

GM511671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064872
  • 10-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function
A PPL/WHT 889 Passenger Mirror Motor Down Control
B GRY 90 Passenger Mirror Motor Left Control
C RED/WHT 881 Passenger Mirror Motor Right Control
D ORN 267 Heated Mirror Element Supply Voltage
E BLK 750 Ground
F LT BLU/WHT 785 Passenger Mirror Horizontal Position Sensor Signal
G LT GRN 675 Low Reference
H BRN 787 Passenger Mirror Vertical Position Sensor Signal
J YEL 674 5-Volt Reference
K - - Not Used
Outside Rearview Mirror Connector End View - Passenger (w/o A43)

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN/WHT 1498 Driver Mirror Motor Up Control
B LT BLU/WHT 1497 Driver Mirror Motor Left/Down Control
C RED/WHT 881 Driver Mirror Motor Right Control
D ORN 267 Heated Mirror Element Supply Voltage (DE5)
E BLK 750 Ground (DE5)
F-H - - Not Used
Outside Rearview Mirror Switch (A43) Connector End View

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage
B BLK 550 Ground
C LT GRN 1514 Driver Mirror Switch Down Signal
D YEL 1496 Mirror Motor Left/Up Control
E - - Not Used
F WHT 1512 Driver Mirror Switch Right Signal
G GRY 915 Mirror Switch Supply Voltage
H - - Not Used
J RED/WHT 1513 Passenger Mirror Switch Right Signal
K PPL/WHT 1515 Passenger Mirror Switch Down Signal
Outside Rearview Mirror Switch (w/o A43) Connector End View

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN/WHT 1498 Right Mirror Motor Up
B RED/WHT 881 Right Mirror Motor Right
C LT BLU/WHT 1497 Mirror Selector Switch Right Signal/Right Mirror Down/Right
D BLK 550 Ground
E ORN 840 Battery Positive Voltage
F WHT 81 Left Mirror Motor Right
G YEL 88 Left Mirror Motor Up
H LT GRN 1499 Mirror Selector Switch Left Signal

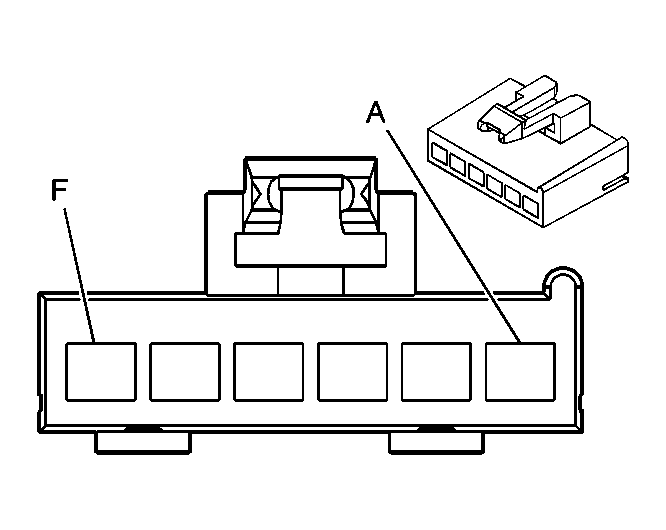

Window Master Switch - C1 Connector End View

GM295507Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084699
  • 6-Way F Metri-Pack 280 Series (BLU)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage - 1
GRY 8 Instrument Panel Lamp Supply Voltage - 1 (Pontiac)
B YEL 143 Accessory Voltage
C - - Not Used
D DK BLU 1307 Window Master Switch Lockout Signal
E BLK 550 Ground
F - - Not Used
Window Master Switch - C2 Connector End View

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F Metri-Pack 280 Series (BRN)
Pin Wire Color Circuit No. Function
A TAN 167 Window Master Switch Front Passenger Down Signal
B LT BLU 166 Window Master Switch Front Passenger Up Signal
C DK BLU 164 Window Motor Driver Up
D BRN 165 Window Motor Driver Down
E DK GRN 168 Power Window Master Switch Left Rear Up Signal
F PPL 169 Window Master Switch Left Rear Down Signal
G LT GRN 170 Window Master Switch Right Rear Up Signal
H PPL 171 Window Master Switch Right Rear Down Signal

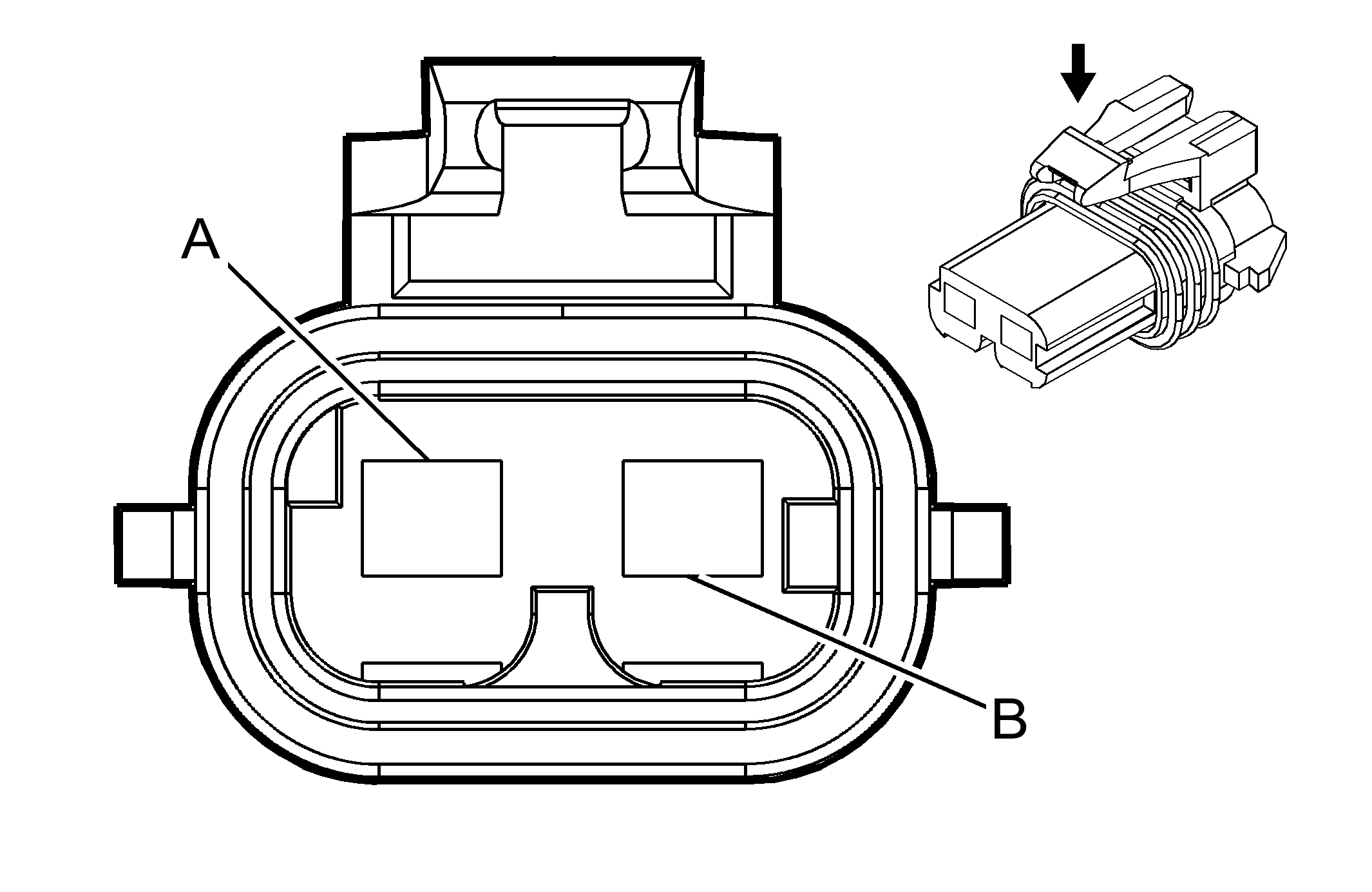

Window Motor Connector End View - Driver

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 165 Window Motor Driver Down
B DK BLU 164 Window Motor Driver Up
Window Motor Connector End View - Front Passenger

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 667 Window Motor Front Passenger Down
B DK BLU 666 Window Motor Front Passenger Up
Window Motor Connector End View - LR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 669 Window Motor Left Rear Down
B DK BLU 668 Window Motor Left Rear Up
Window Motor Connector End View - RR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 671 Window Motor Right Rear Down
B DK BLU 670 Window Motor Right Rear Up
Window Switch Connector End View - Front Passenger

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F Metri-Pack 280 Series (BRN)
Pin Wire Color Circuit No. Function
A YEL 143 Accessory Voltage
B GRY 8 Instrument Panel Lamp Supply Voltage
GRY 8 Instrument Panel Lamp Supply Voltage
C BLK 750 Ground
D LT BLU 166 Window Master Switch Front Passenger Up Signal
E - - Not Used
F DK BLU 666 Window Motor Front Passenger Up
G BRN 667 Window Motor Right Front Down
H TAN 167 Window Master Switch Front Passenger Down Signal
Window Switch Connector End View - LR

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F Metri-Pack 280 Series (BRN)
Pin Wire Color Circuit No. Function
A DK BLU 1307 Window Master Switch Lockout Signal
B-C - - Not Used
D DK GRN 168 Window Master Switch Left Rear Up Signal
E - - Not Used
F DK BLU 668 Window Motor Left Rear Up
G BRN 669 Window Motor Left Rear Down
H PPL 169 Window Master Switch Left Rear Down Signal
Window Switch Connector End View - RR

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F Metri-Pack 280 Series (BRN)
Pin Wire Color Circuit No. Function
A DK BLU 1307 Window Master Switch Lockout Signal
B-C - - Not Used
D LT GRN 170 Window Master Switch Right Rear Up Signal
E - - Not Used
F DK BLU 670 Window Motor Right Rear Up
G BRN 671 Window Motor Right Rear Down
H PPL 171 Window Master Switch Right Rear Down Signal
scientia non olet · About LEMON Manuals
