Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  2. Remove the nuts from the outside rearview mirror.

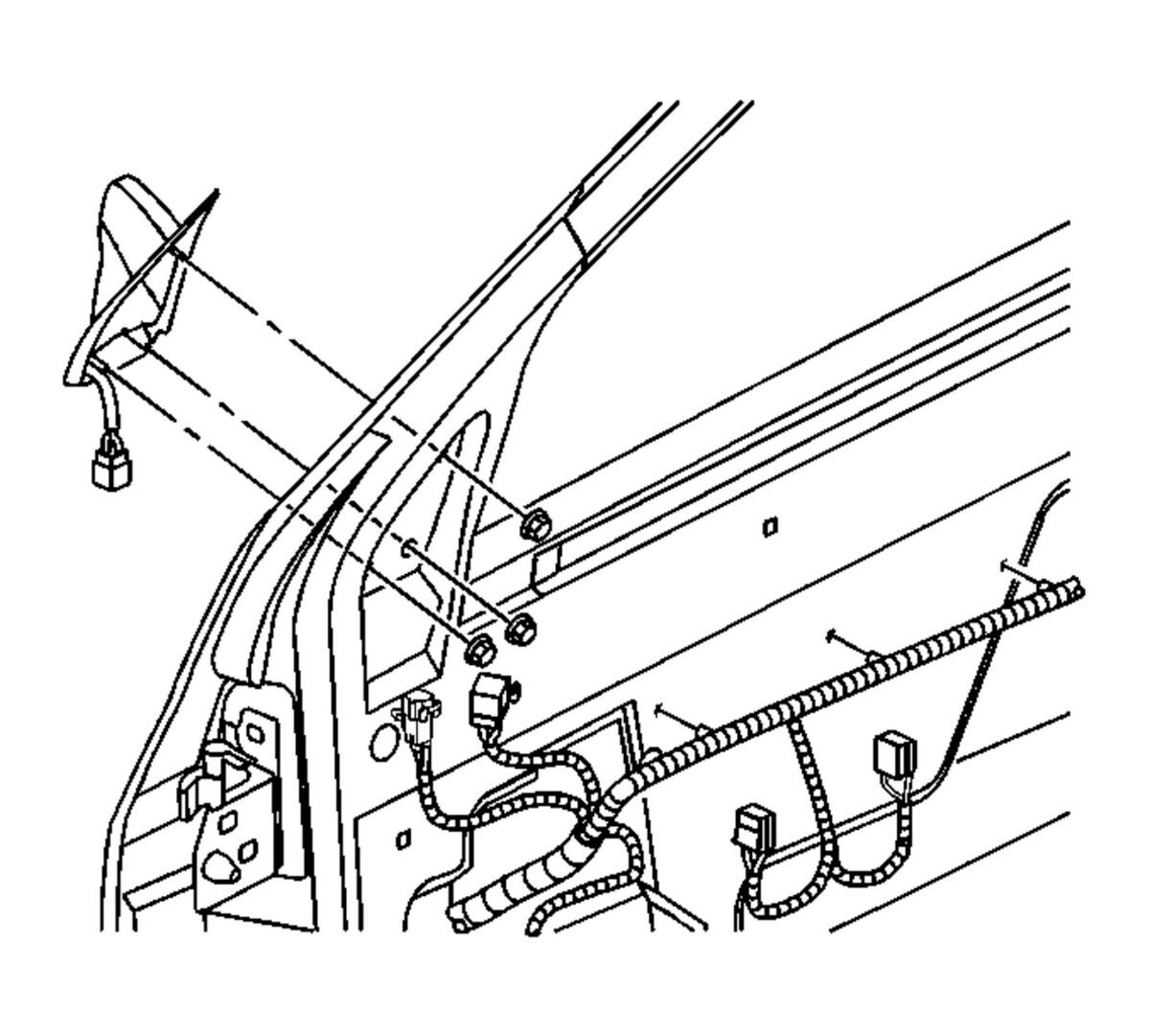

    Fig 1: Identifying Power Mirror
    GM621571Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the outside rearview mirror.
  4. Remove the outside rearview mirror from the front door.
