Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  2. Disconnect the electrical connector from the power mirror switch.

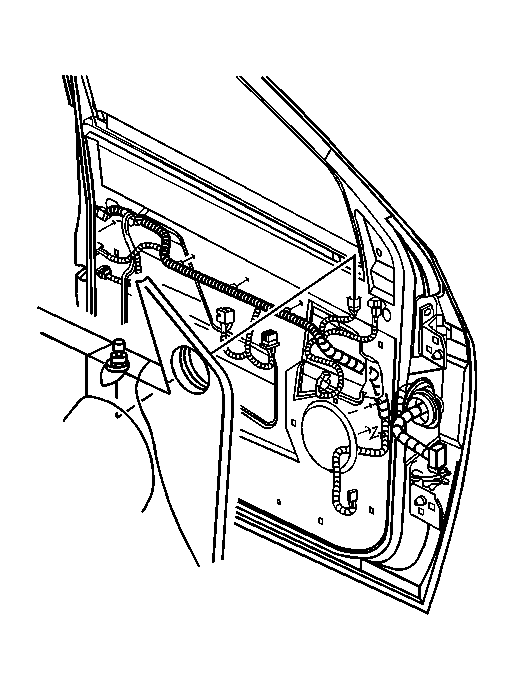

    Fig 1: Identifying Power Mirror Switch Electrical Connector (Aztek)
    GM621788Courtesy of GENERAL MOTORS CORP.
  3. Remove the power mirror switch from the front door inner trim panel.

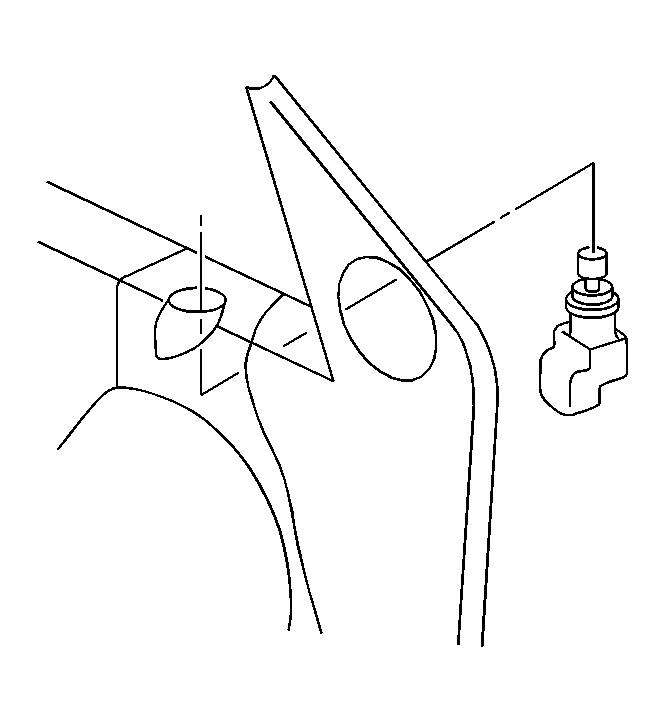

    Fig 2: Locating Power Mirror Switch
    GM621572Courtesy of GENERAL MOTORS CORP.
