Installation Procedure

  1. Install the front door window control switch (1) into the front door window switch plate pressing into place until fully seated.

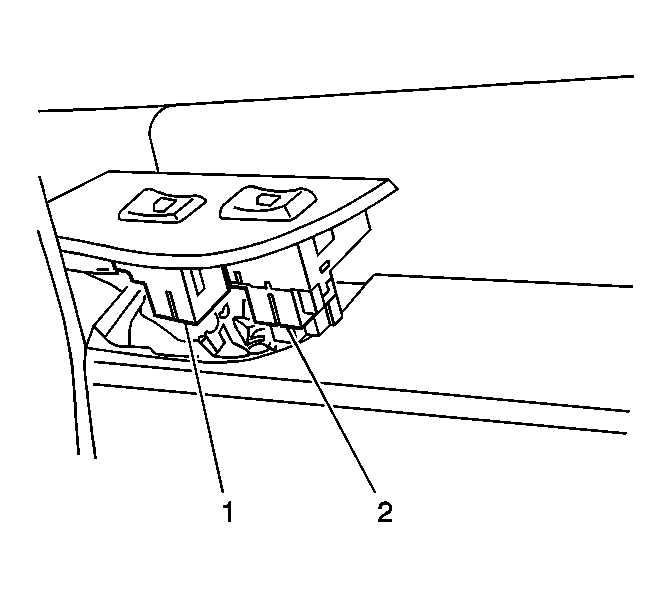

    Fig 1: Locating RF Power Window Switch (Aztek)
    GM709385Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the front door window control switch.
  3. Install the front door window control switch plate to the front door panel pressing into place until fully seated.
