Removal Procedure

  1. Open the door.
  2. Remove the power window switch assembly. Refer to Power Window Switch Replacement - Left Front (Aztek)  or Power Window Switch Replacement - Left Front (Rendezvous)  or Power Window Switch Replacement - Right Front (Aztek)  or Power Window Switch Replacement - Right Front (Rendezvous) .
  3. Remove the screws from the front door trim panel
    Fig 1: View Of Front Door Trim Panel Screws (Aztek)
    GM621726Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door trim panel using the J 38778  .
  5. Remove the power mirror switch. Refer to Power Mirror Switch Replacement (Aztek)  or Power Mirror Switch Replacement (Rendezvous)  if equipped.
  6. Reposition the electrical harness connectors.

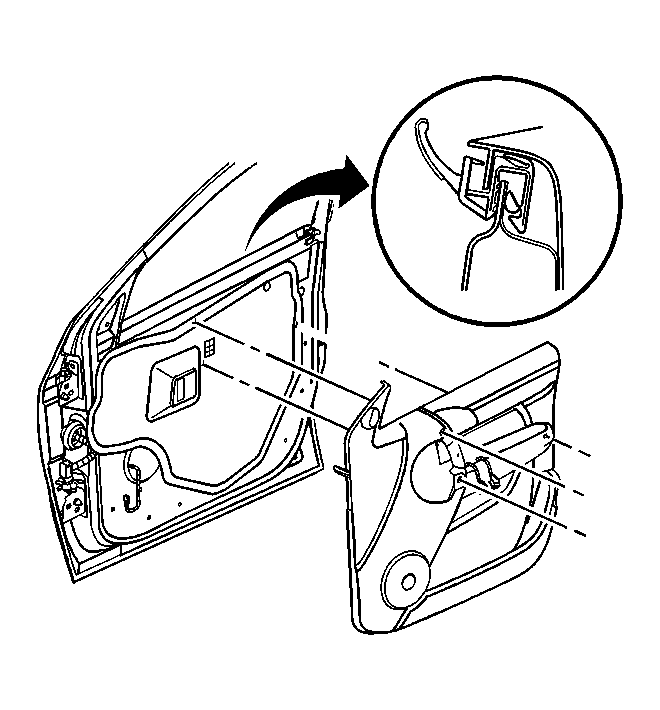

    Fig 2: View Of Inner Door (Aztek)
    GM621722Courtesy of GENERAL MOTORS CORP.
  7. Remove the front door trim panel from the vehicle.
