Installation Procedure

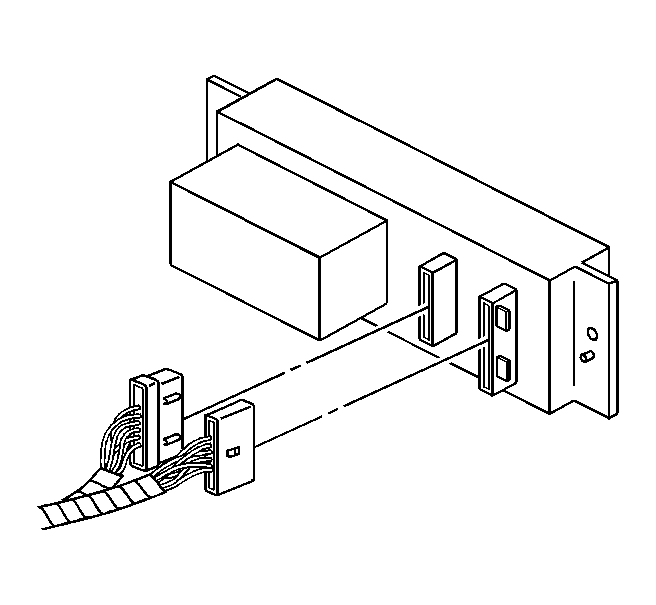

Fig 1: Identifying Traction Control Switch Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

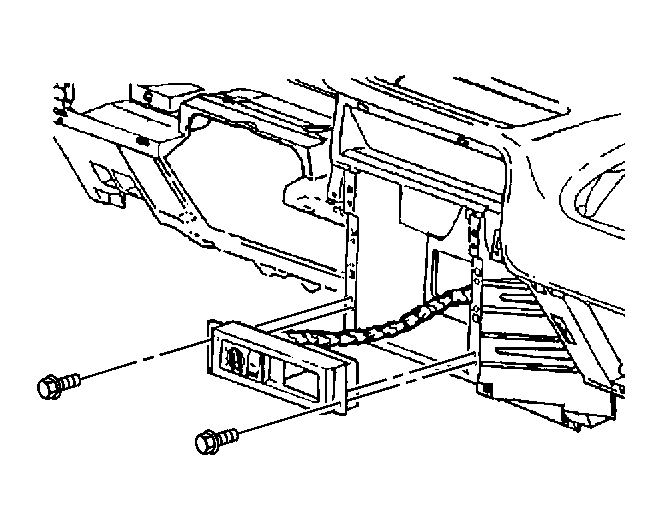

Fig 2: Removing/Installing Traction Control Switch Bolts/Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolts/screws to the switch bank to instrument panel.
Tighten: Tighten the bolts/screws to 2.5 N.m (22 lb in).

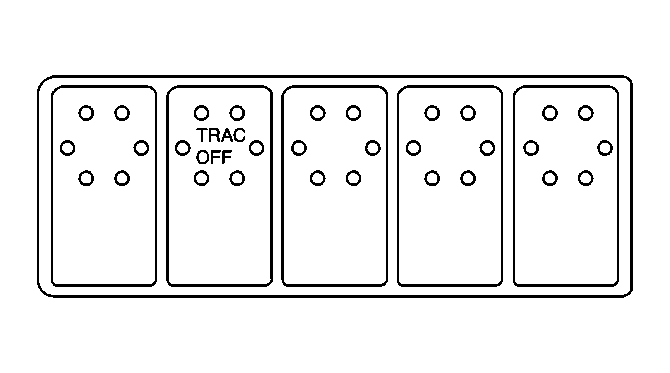

Fig 3: View Of Instrument Panel Accessory Trim Plate

Courtesy of GENERAL MOTORS CORP.

Install the instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Aztek) in Instrument Panel, Gages and Console.
