Engine Electrical Component Views

Fig 1: Lower Front Of Engine Component View (LA1)
GM1390334Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Position (CKP) Sensor A Connector and Bracket
2 Knock Sensor (KS) Connector
3 Engine Oil Pressure (EOP) Switch Connector
4 Starter Solenoid
5 Starter Motor
6 Fusible Links (Starter)
7 A/C Compressor Clutch Diode
Fig 2: LH Side of Engine Component View (LA1)
GM760722Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Ignition Control Module (ICM)
3 Heated Oxygen Sensor (HO2S) 1
4 Ignition Coils

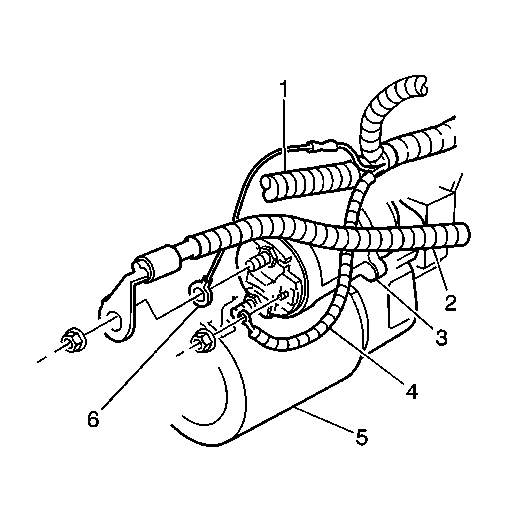

Fig 3: Starter Component View
GM179692Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 To A/C Compressor Clutch
2 Positive Battery Cable
3 Starter Solenoid
4 Starter Solenoid Ground
5 Starter
6 Battery Positive
