Installation Procedure

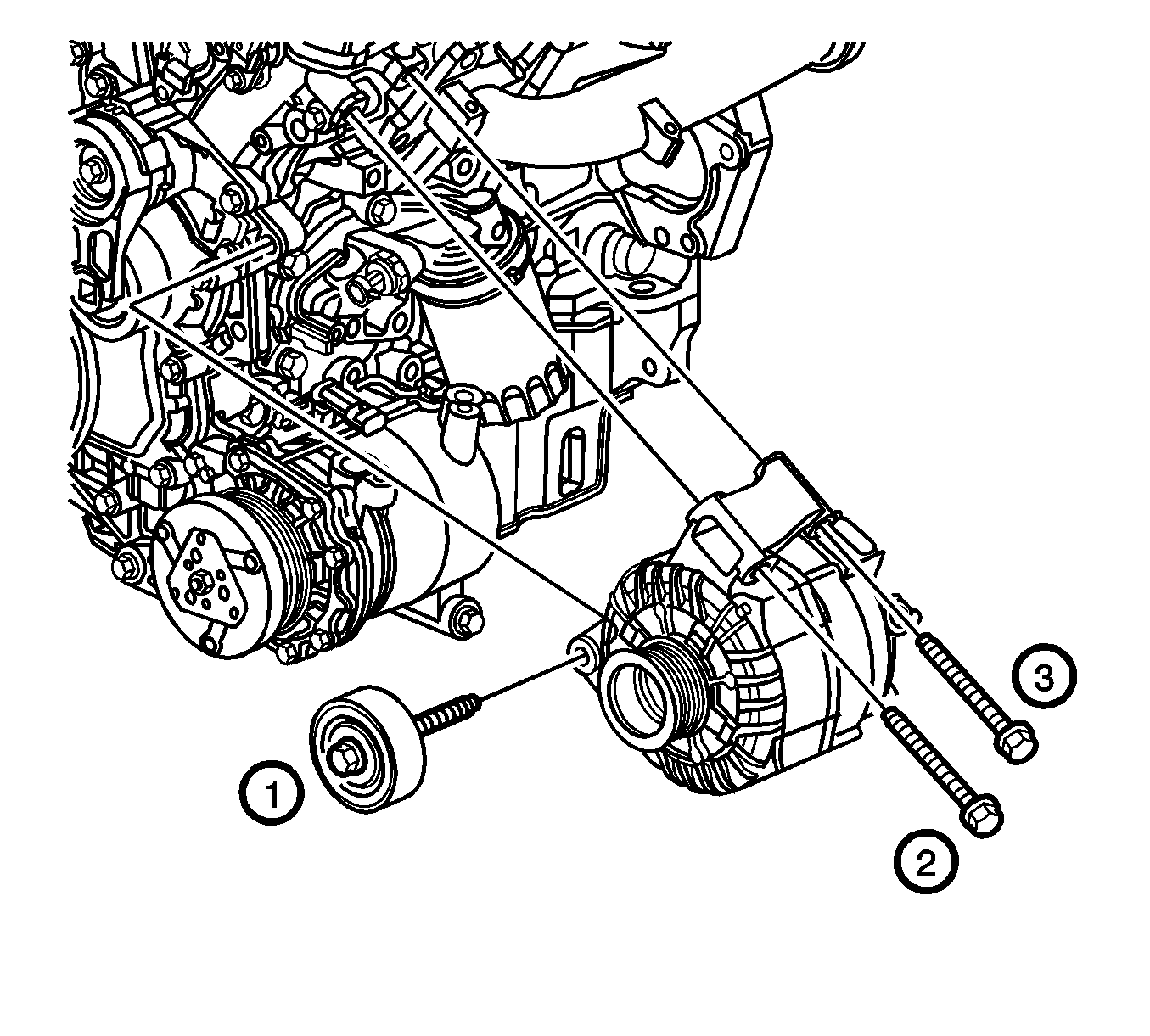

    Fig 1: View Of Generator Bolts
    GM1394079Courtesy of GENERAL MOTORS CORP.
  1. Install the generator to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the generator bolts.

    Tighten:  Tighten the generator bolts to 50 N.m (37 lb ft).

  3. Install the idler pulley. Refer to Drive Belt Idler Pulley Replacement in Engine Mechanical - 3.6L (LY7).
  4. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 3.6L (LY7).

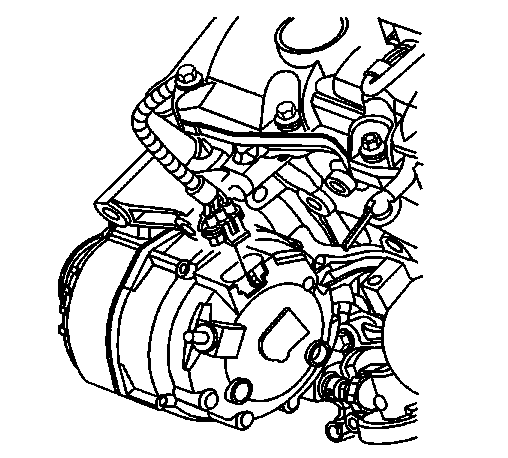

    5. Fig 2: Locating Generator Electrical Connector
    GM1394065Courtesy of GENERAL MOTORS CORP.
  5. Connect the generator electrical connector.

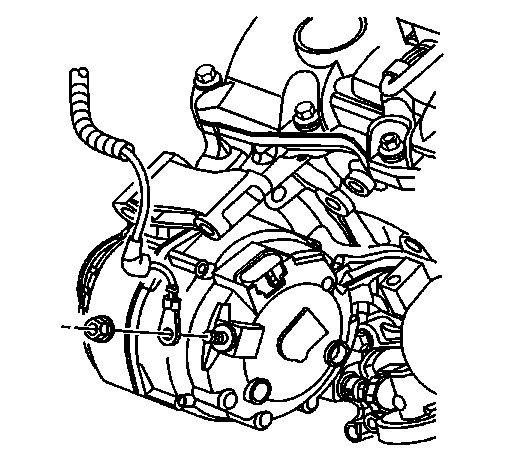

    6. Fig 3: Identifying Battery Positive Cable Nut And Cable At The Generator
    GM1394044Courtesy of GENERAL MOTORS CORP.
  6. Install the battery cable and the generator B+ terminal nut to the generator.

    Tighten:  Tighten the generator B+ terminal nut 20 N.m (15 lb ft).

  7. Install the torque struts. Refer to and in Engine Mechanical - 3.6L (LY7).
  8. Connect the battery ground (negative) cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure (LA1)  or Battery Negative Cable Disconnect/Connect Procedure (LY7) .
