Starting and Charging Schematics

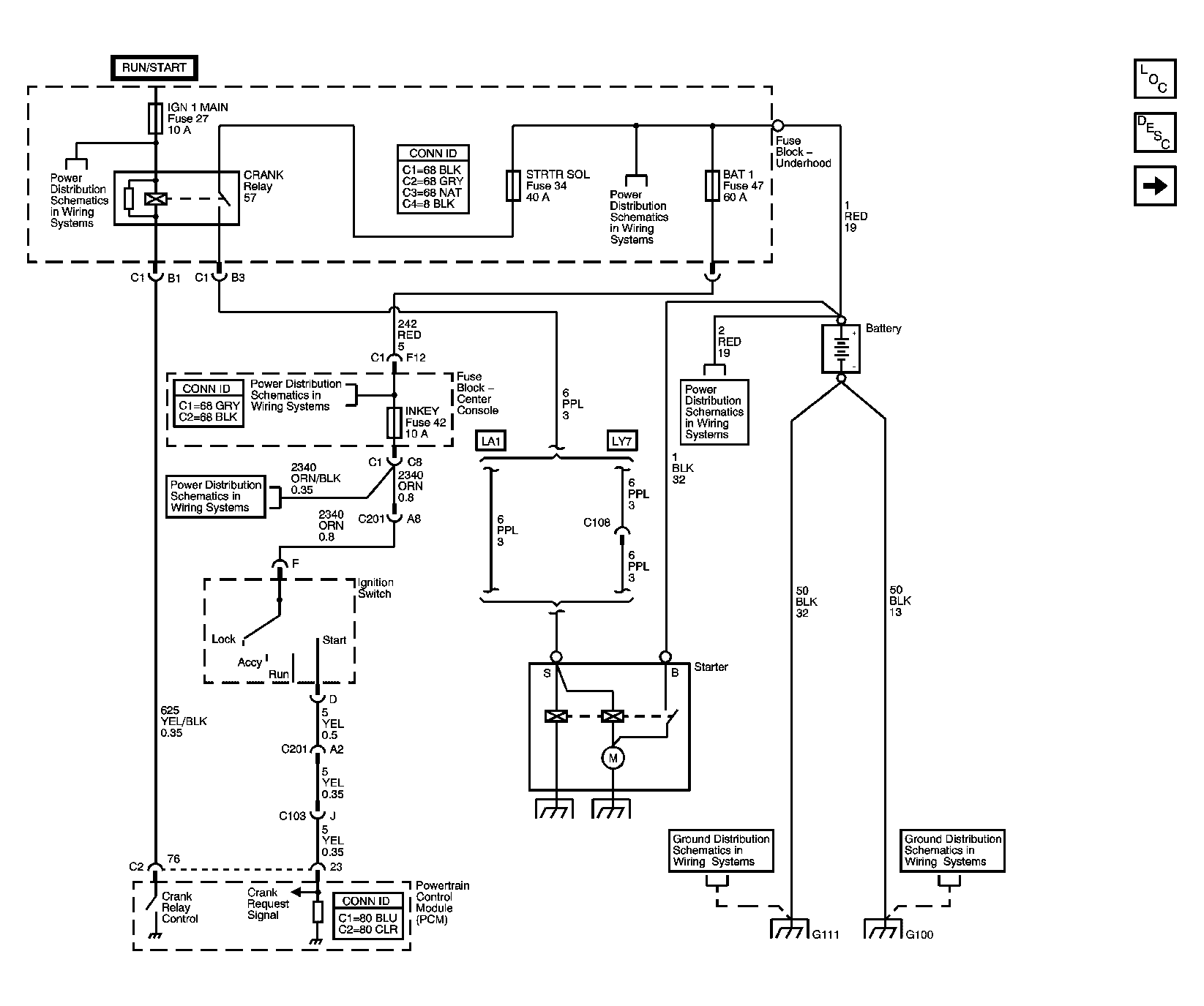

Fig 1: Engine Cranking Schematic
GM1406931Courtesy of GENERAL MOTORS CORP.

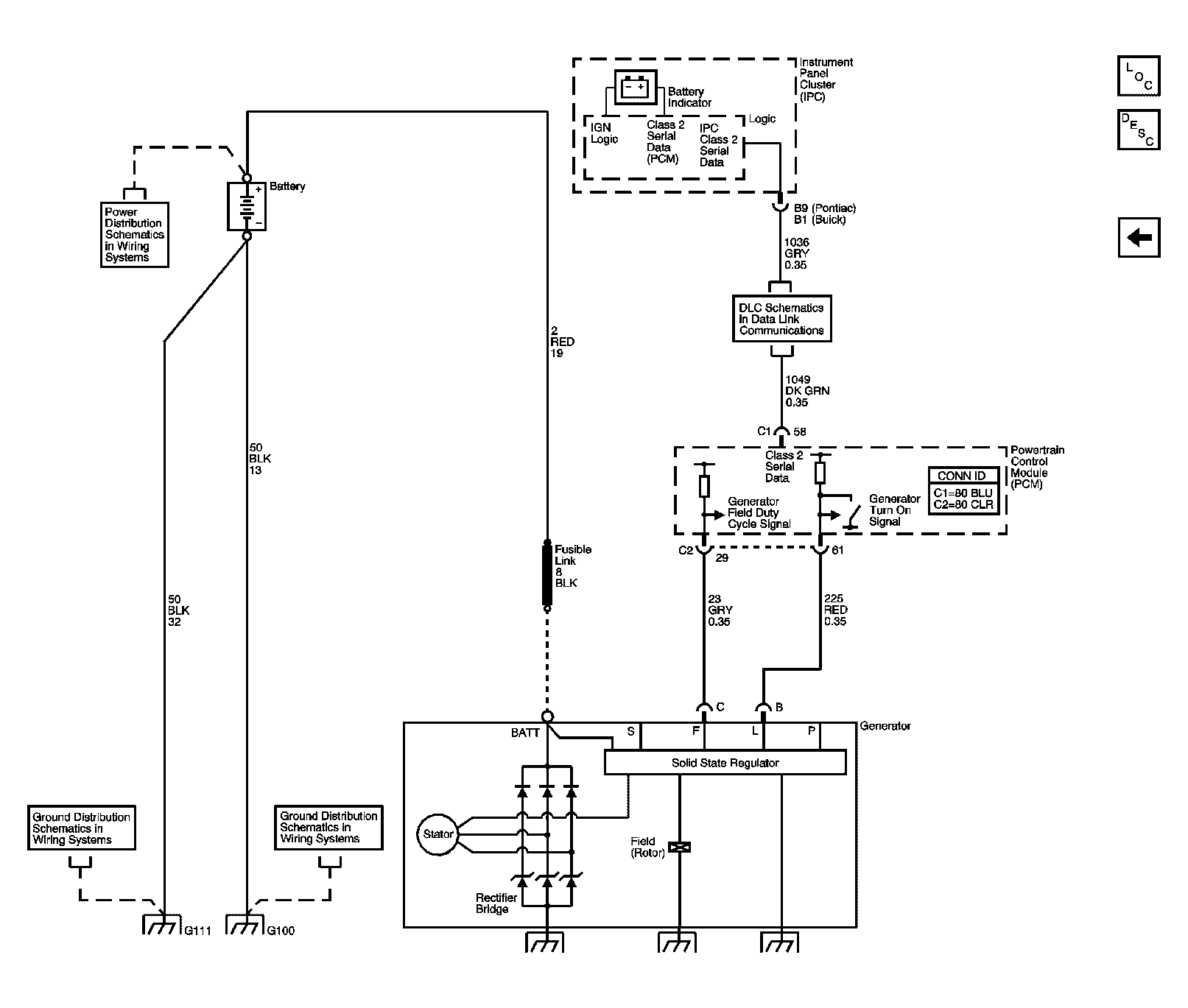

Fig 2: Charging Control, Indicator Schematic
GM626028Courtesy of GENERAL MOTORS CORP.
