Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | On A/C compressor clutch. See Figure. |
| Automatic Level Control (ALC) Compressor Relay | Under center of vehicle chassis. See Figure. |

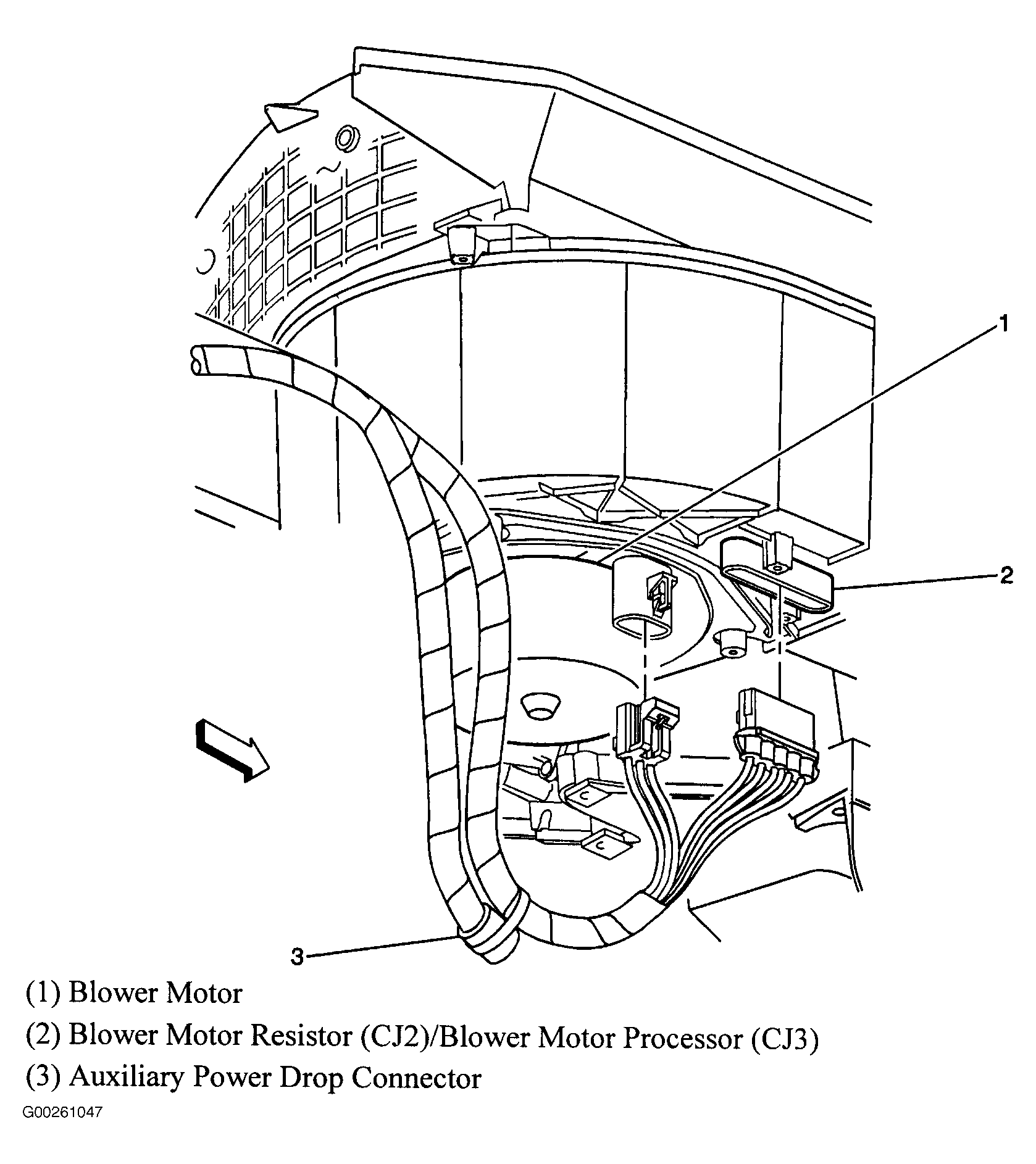

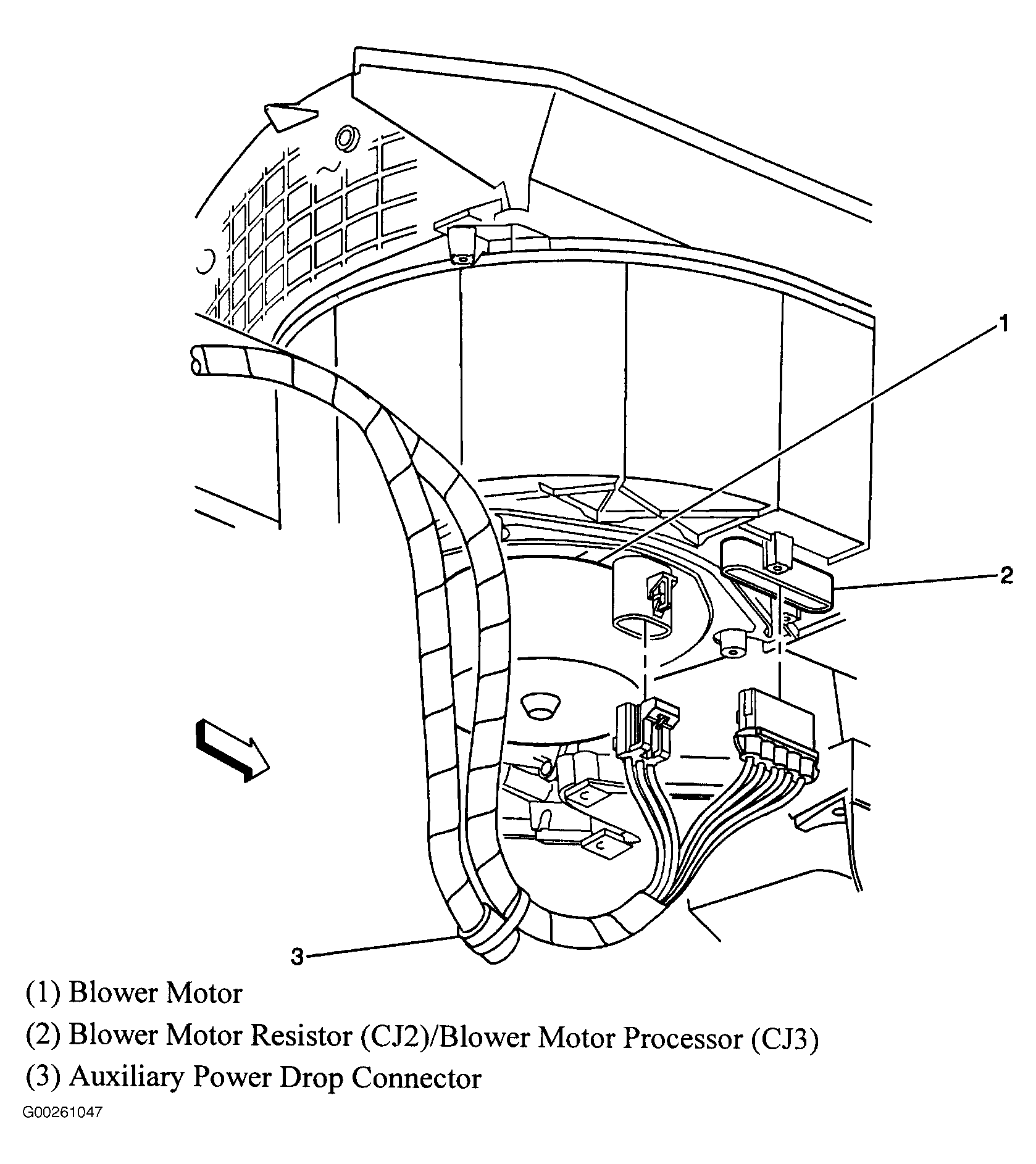

| Blower Motor Resistor/Blower Motor Processor | Under right side of dash. See Figure. |

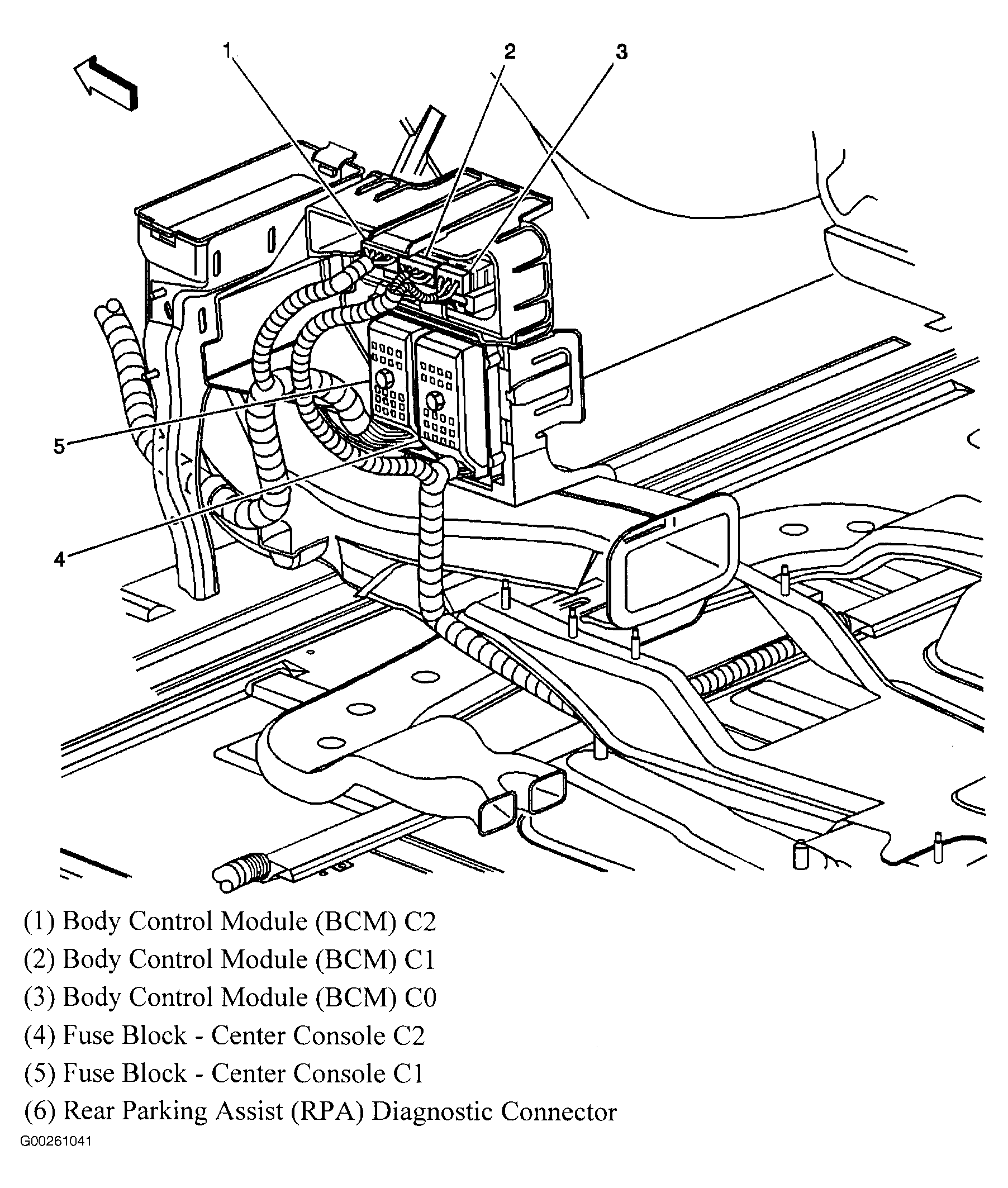

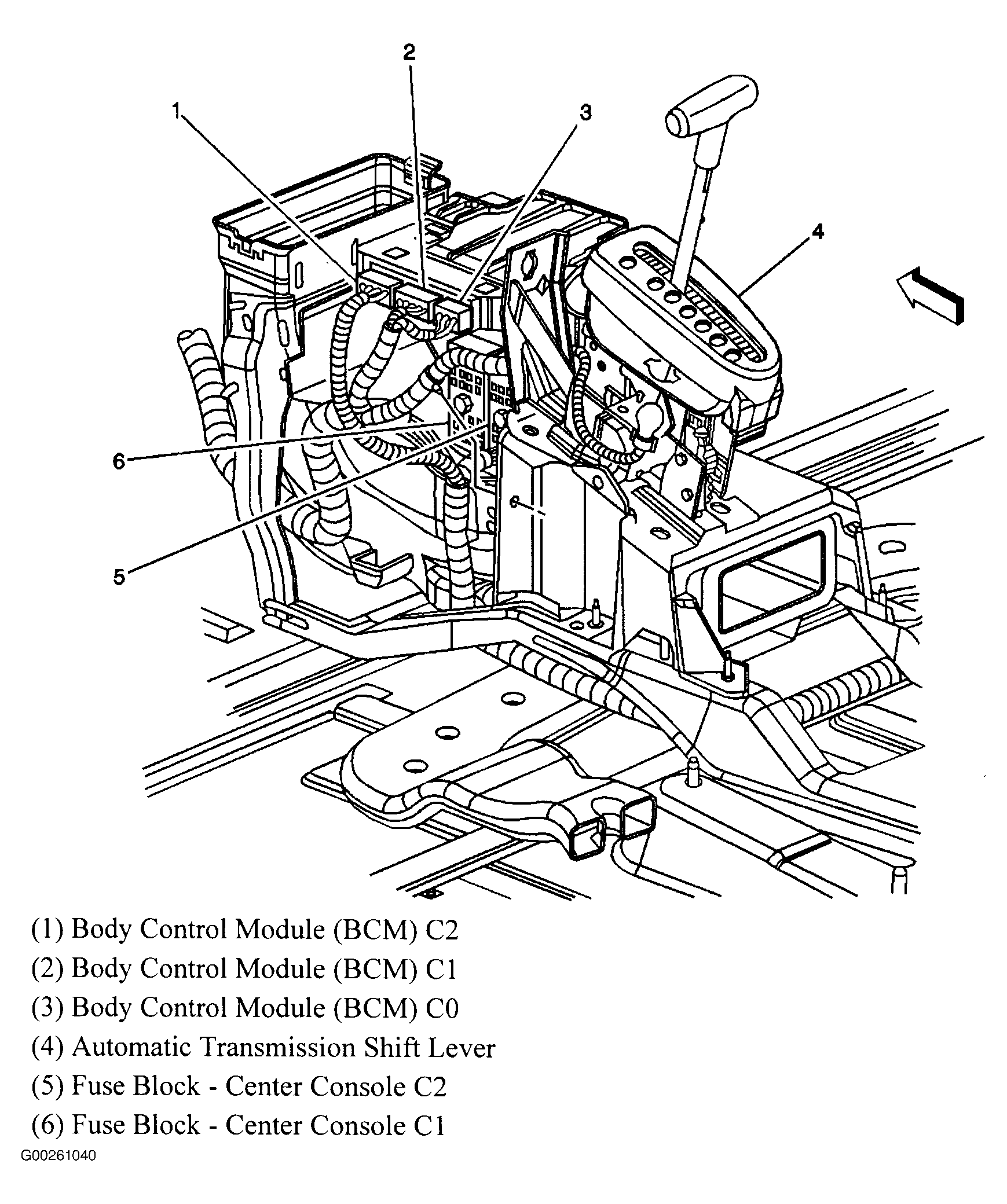

| Center Console Fuse Block (Buick) | In floor console. See Figure. |

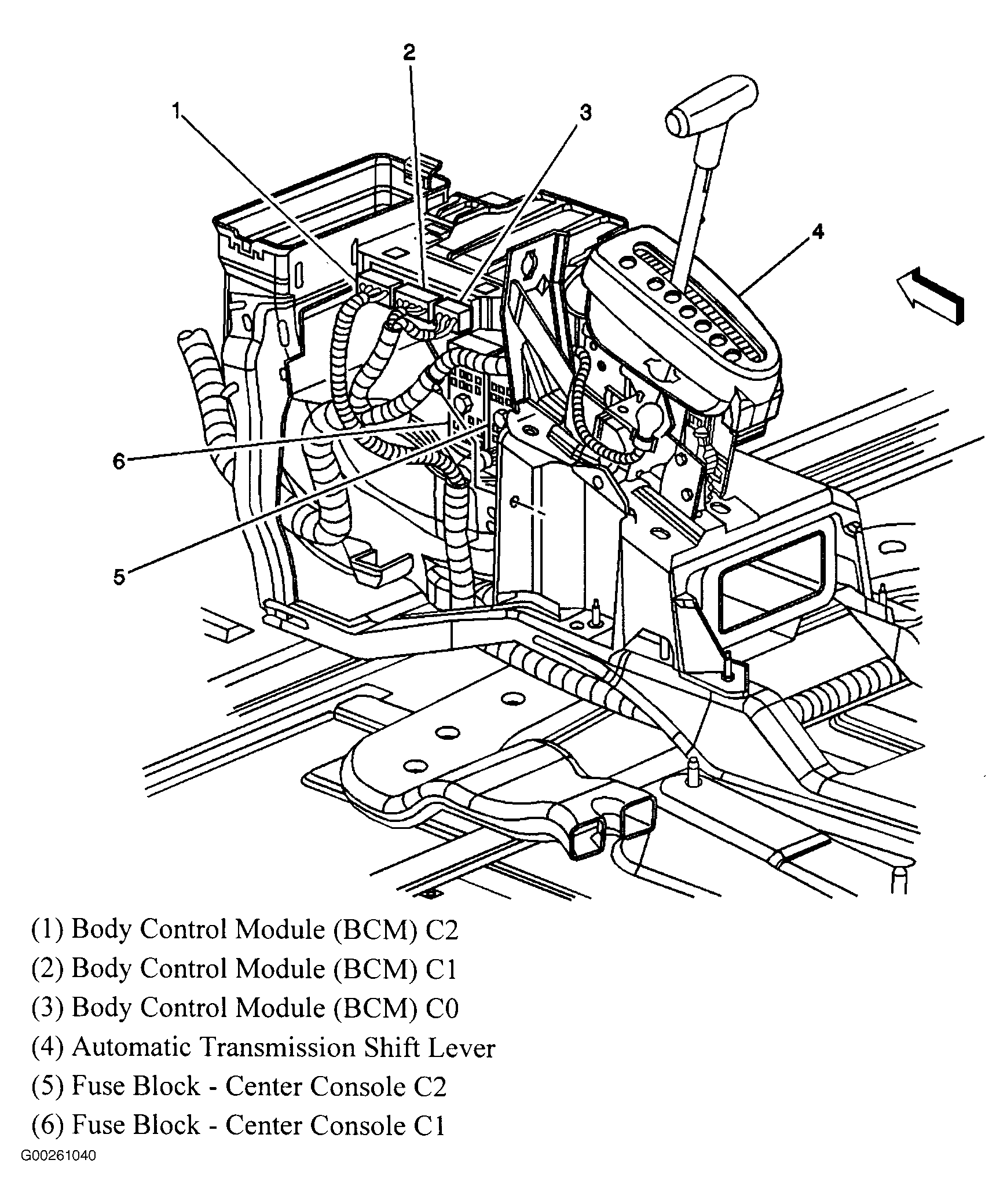

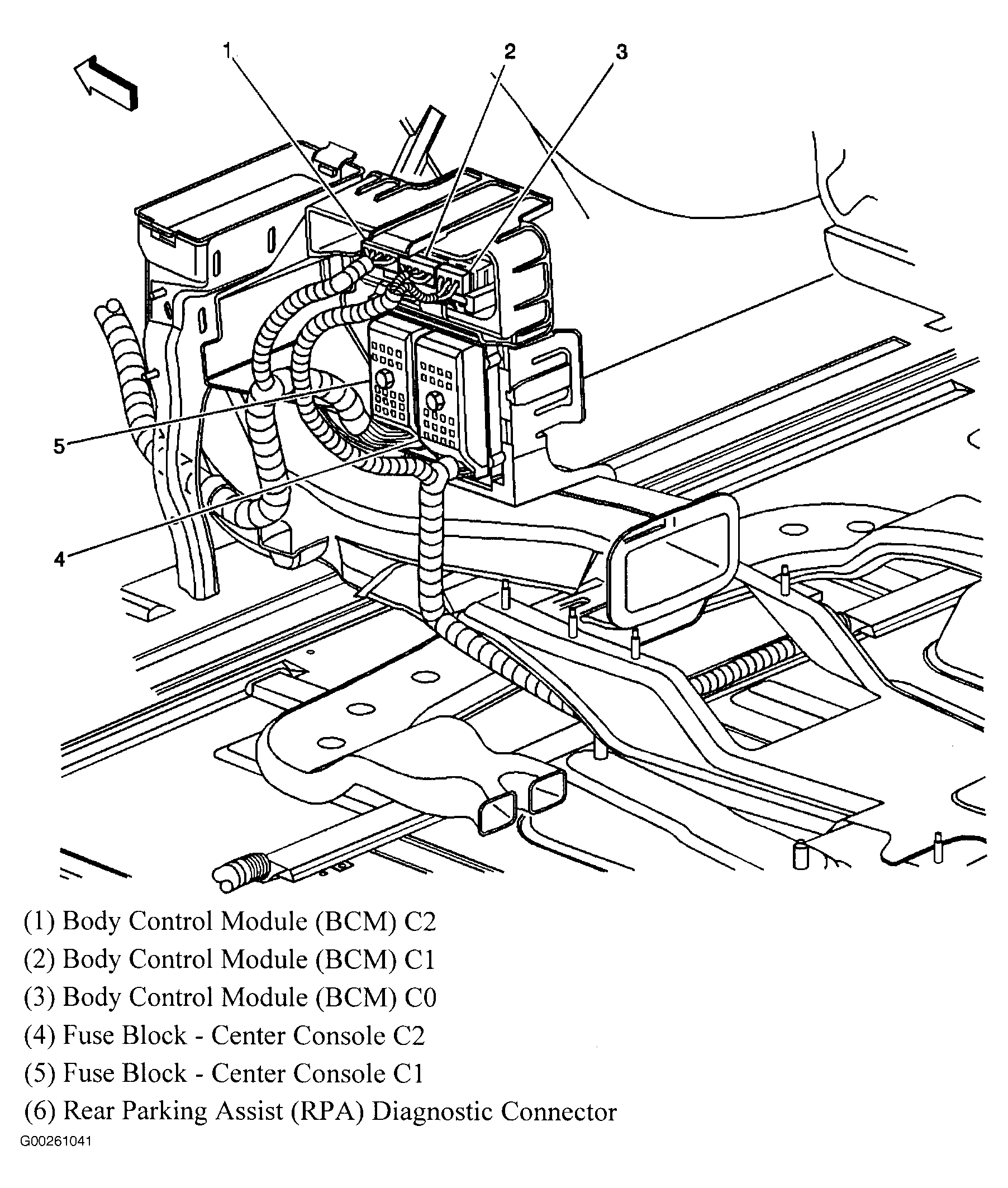

| Center Console Fuse Block (Pontiac) | In floor console. See Figure. |
| Fusible Link | In-line to generator, near positive battery cable. |

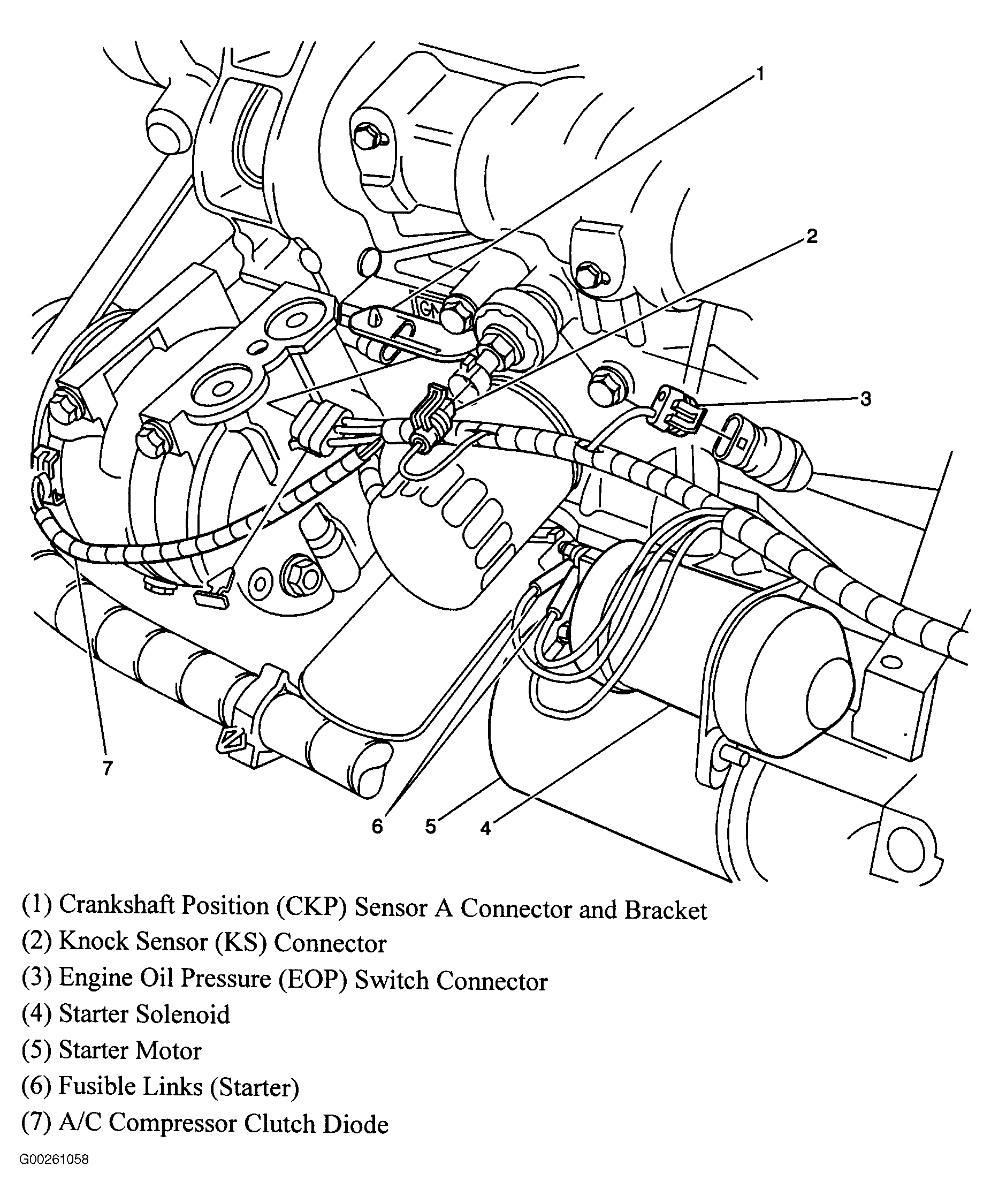

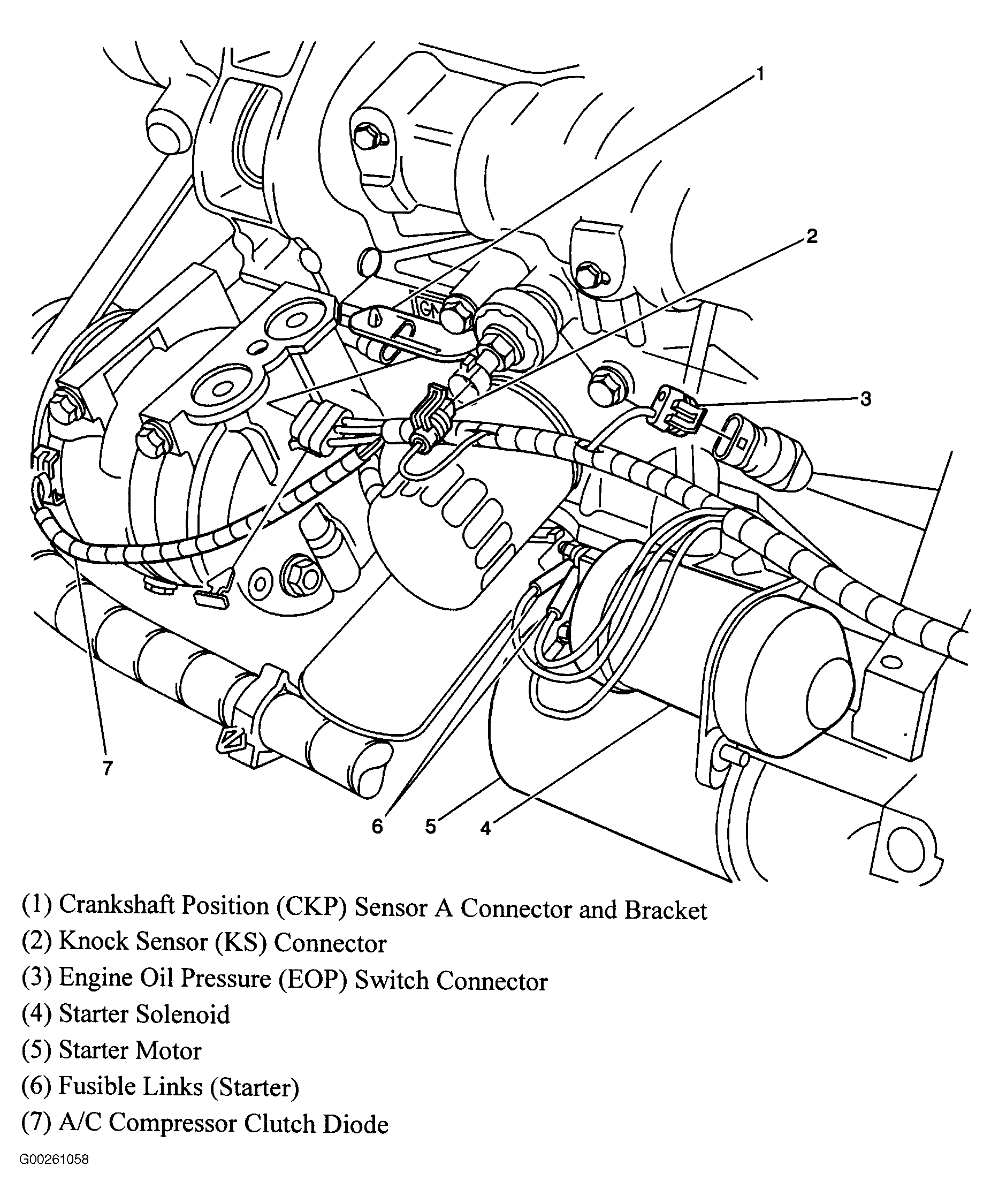

| Fusible Links (Starter) | At starter. See Figure. |

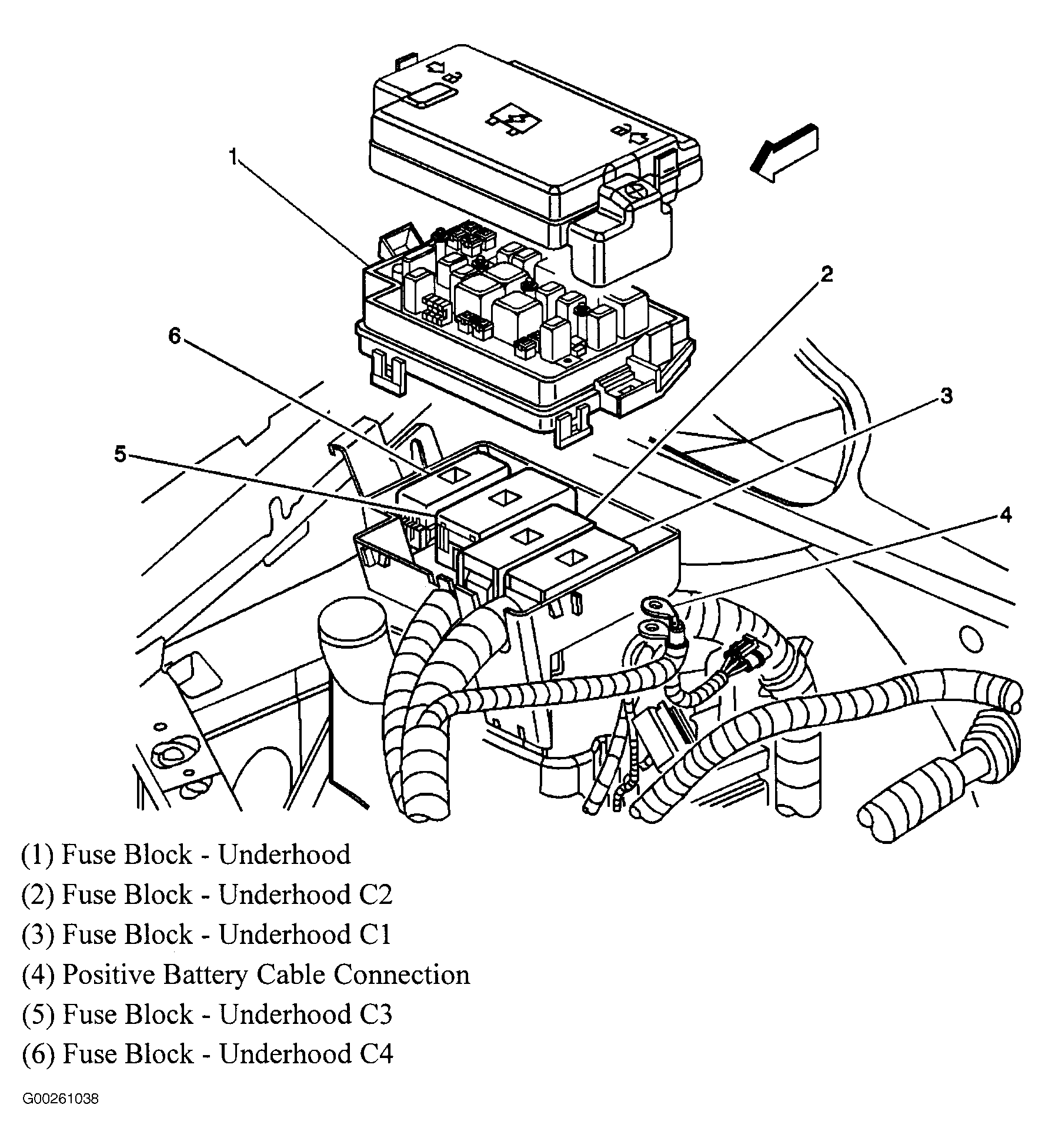

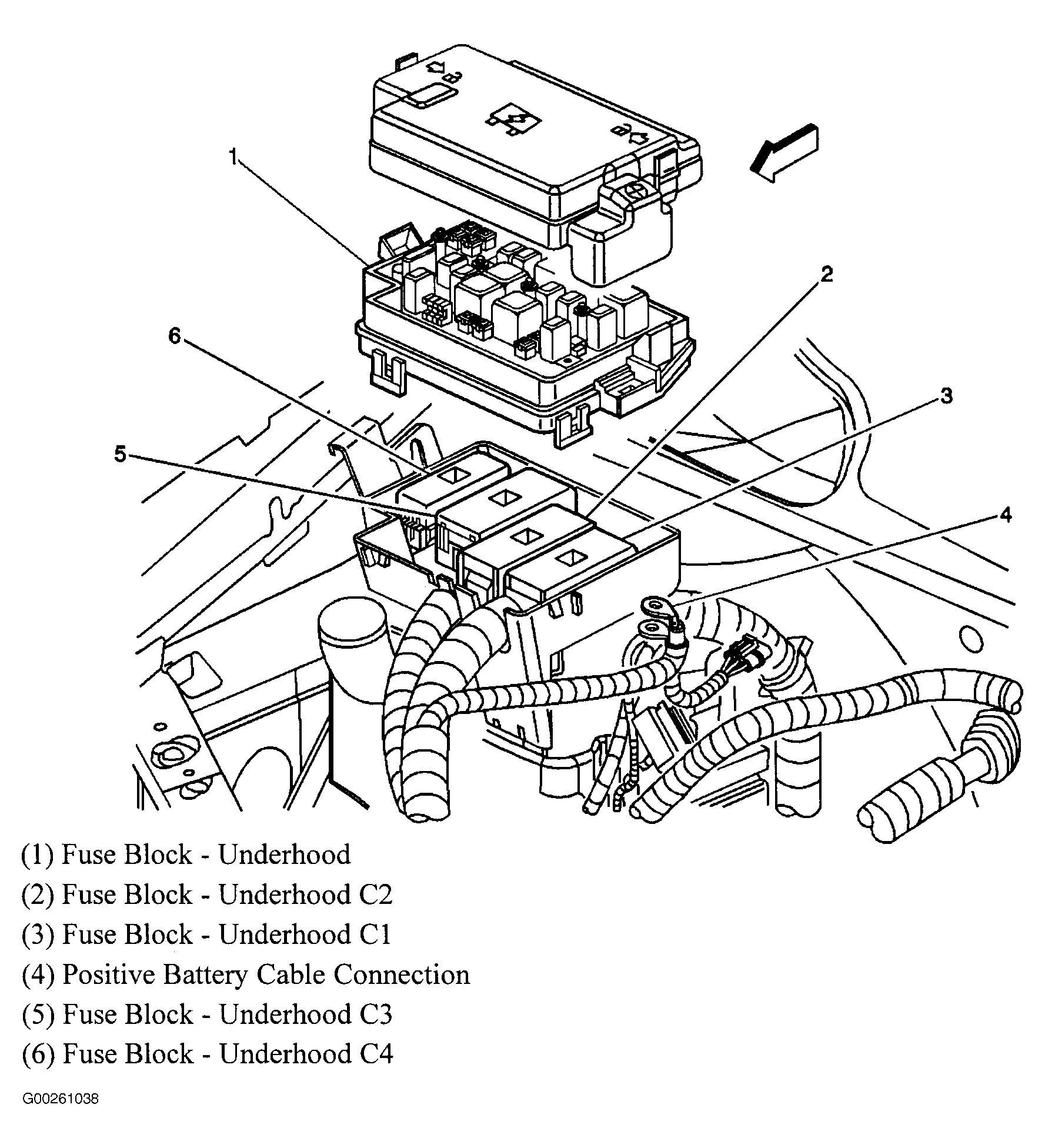

| Underhood Fuse Block | Front of right wheelhouse, above battery. See Figure. |
