Fuse Block - Center Console, Bottom View

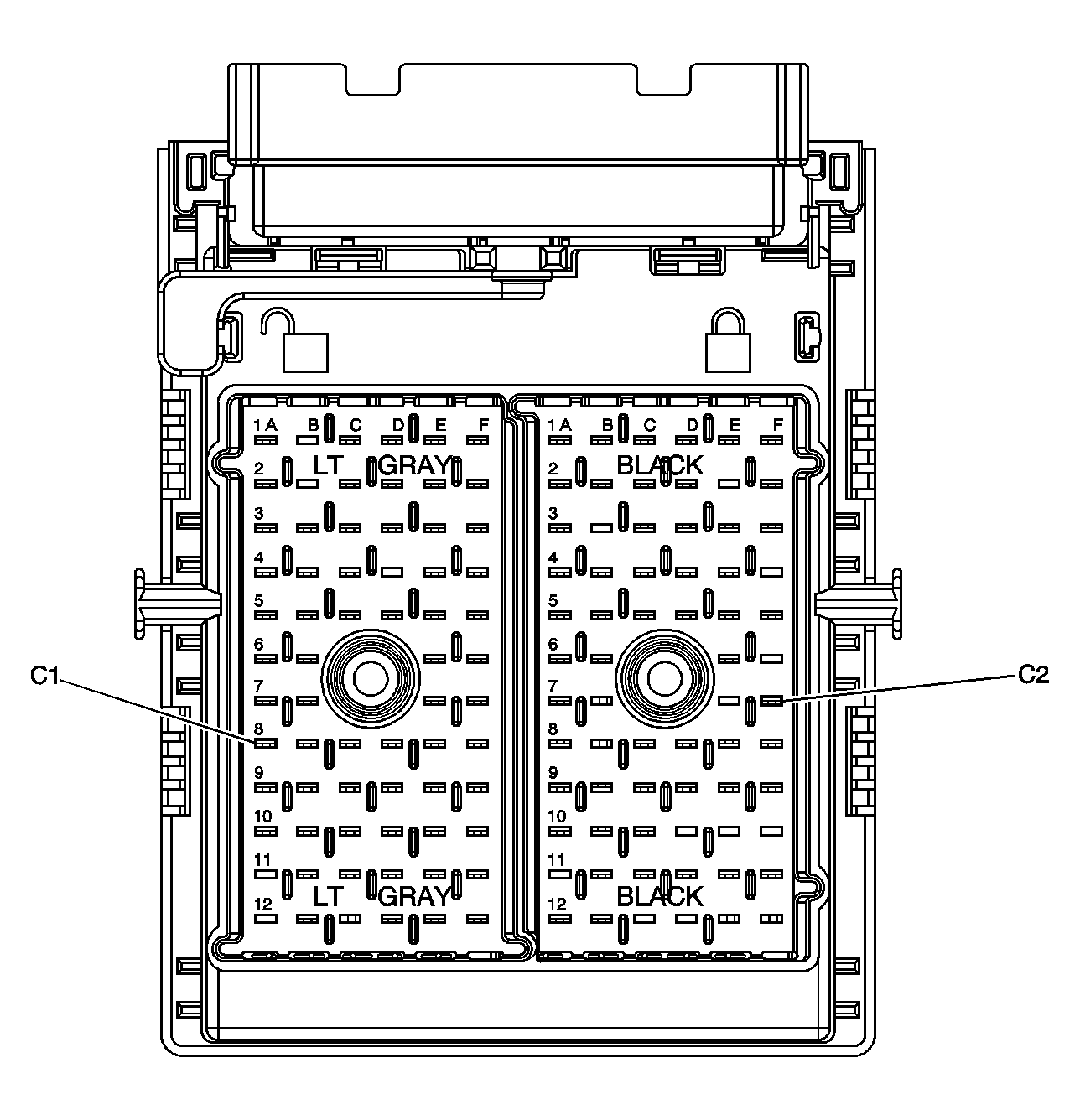

Fig 1: Fuse Block Identification View - Center Console, Bottom View
GM629467Courtesy of GENERAL MOTORS CORP.

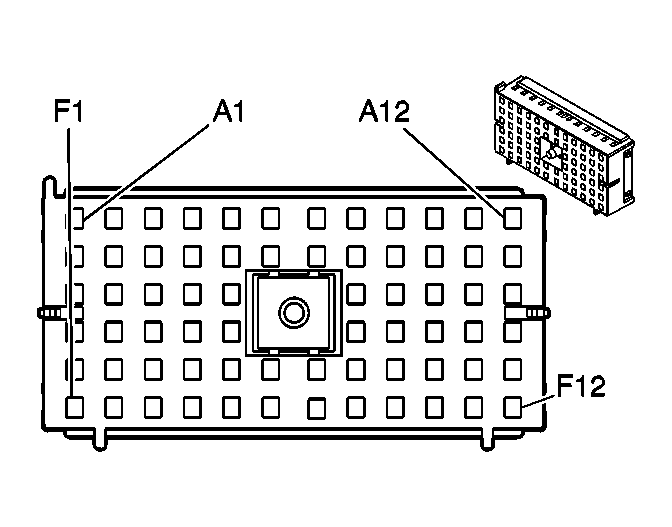

Fuse Block Identification View - Center Console C1

GM684967Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356602
  • 68-Way F Metri-Pack 280 Series Flexlock (L- GY)
Pin Wire Color Circuit No. Function
A1 BK 150 Ground
A2 OG 1840 Battery Positive Voltage
A3 GY/BK 1458 Instrument Panel Lamp Supply Voltage 4
A4 GY/BK 690 Courtesy Lamp Relay Coil Control
GY/BK 690 Courtesy Lamp Relay Coil Control
A5 PK 739 Ignition 1 Voltage
A6 PK 3 Ignition 1 Voltage
A7 - - Not Used
A8-A9 - - Not Used
A10 OG 640 Battery Positive Voltage
OG 640 Battery Positive Voltage (UA6)
A11-A12 - - Not Used
B1-B2 - - Not Used
B3 GY 8 Instrument Panel Lamp Supply Voltage
B4 RD 442 Battery Positive Voltage
B5 PK 539 Ignition 1 Voltage
B6 PK 3 Ignition 1 Voltage
B7 BN 241 Ignition 3 Voltage
BN 241 Ignition 3 Voltage
B8-B9 - - Not Used
B10 OG 640 Battery Positive Voltage
OG 640 Battery Positive Voltage
B11 - - Not Used
B12 OG 5640 Battery Positive Voltage
C1 - - Not Used
C2 D- BU 15 Right Turn Signal Lamps Supply Voltage
D- BU 15 Right Turn Signal Lamps Supply Voltage
C3 D- BU 5290 ECM Supply Voltage (LY7)
C4 WH 1080 Park Lamp Relay Control
C5 OG 1732 Courtesy Lamps Supply Voltage (Buick)
C6-C7 - - Not Used
C8 OG 2340 Battery Positive Voltage
OG/BK 2340 Battery Positive Voltage
C9 - - Not Used
C10 PU 1500 Ignition 0 Voltage
C11 YE 443 Accessory Voltage
C12 - - Not Used
D1 - - Not Used
D2 L- BU 14 Left Turn Signal Lamps Supply Voltage
L- BU 14 Left Turn Signal Lamps Supply Voltage
D3 L- BU 14 Left Turn Signal Lamps Supply Voltage (UH9)
D4 - - Not Used
D5 OG 1732 Courtesy Lamps Supply Voltage
OG 1732 Courtesy Lamps Supply Voltage
D6-D7 - - Not Used
D8 YE 743 Accessory Voltage
D9 - - Not Used
D10 PU 1500 Ignition 0 Voltage
PU 1500 Ignition 0 Voltage
D11 D- GN 500 Ignition 0 Voltage
D12 OG 2040 Battery Positive Voltage (w/UQ3)
E1 WH 17 Stop Lamp Switch Signal
E2 TN 2144 Hazard Switch Signal
E3 WH 17 Stop Lamp Switch Signal
E4 L- GN 911 Heated Seat Switch Supply Voltage
E5 - - Not Used
E6 RD 742 Battery Positive Voltage
E7 BN 241 Ignition 3 Voltage
E8 YE 243 Accessory Voltage
YE 243 Accessory Voltage
E9 - - Not Used
E10 PU 1600 Ignition 0 Voltage (Pontiac)
E11 D- GN 500 Ignition 0 Voltage
E12 OG 5240 Battery Positive Voltage (UV6)
F1 D- BU/WH 1415 Right Front Turn Signal Switch Signal
F2 L- BU/WH 1414 Left Front Turn Signal Switch Signal
F3 RD 642 Battery Positive Voltage
F4 - - Not Used
F5 OG 300 Ignition 3 Voltage
F6 WH 193 Rear Defog Relay Control (C49)
F7 BN 41 Ignition 3 Voltage (CJ2/CJ3)
F8 BN 4 Accessory Voltage
F9 - - Not Used
F10 YE 343 Accessory Voltage (Buick)
F11 RD 42 Battery Positive Voltage
F12 RD 242 Battery Positive Voltage
Fuse Block Identification View - Center Console C2

GM684967Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356602
  • 68-Way F Metri-Pack 280 Series Flexlock (BK)
Pin Wire Color Circuit No. Function
A1 TN 694 Driver Door Lock Actuator Unlock Control
A2 GY 295 Door Lock Actuator Lock Control
GY 295 Door Lock Actuator Lock Control
A3 WH 17 Stop Lamp Switch Signal
A4 - - Not Used
A5 D- GN 1927 Rear Defog Element Supply Voltage (C49)
A6 GY 8 Instrument Panel Lamp Supply Voltage
A7-A9 - - Not Used
A10 YE 343 Accessory Voltage (Buick)
A11 - - Not Used
A12 OG 640 Battery Positive Voltage (Buick)
B1 TN 294 Door Lock Actuator Unlock Control
TN 294 Door Lock Actuator Unlock Control
B2 GY 295 Door Lock Actuator Lock Control
GY 295 Door Lock Actuator Lock Control
B3 - - Not Used
B4 OG 1140 Battery Positive Voltage
B5 - - Not Used
B6 YE 1139 Ignition 1 Voltage
B7-B12 - - Not Used
C1 TN 294 Door Lock Actuator Unlock Control
C2-C3 - - Not Used
C4 OG 1140 Battery Positive Voltage
C5 OG 1732 Courtesy Lamps Supply Voltage
C6-C7 - - Not Used
C8 D- GN 19 Right Rear Stop/Turn Lamp Supply Voltage
D- GN 19 Right Rear Stop/Turn Lamp Supply Voltage
C9 GY/BK 690 Courtesy Lamp Relay Coil Control
C10 L- GN 24 Backup Lamp Supply Voltage
C11 L- GN 24 Backup Lamp Supply Voltage
C12 - - Not Used
D1 BK 550 Ground
D2 OG 1240 Battery Positive Voltage (G67)
D3-D4 - - Not Used
D5 YE 843 Accessory Voltage (w/G67)
D6-D7 - - Not Used
D8 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
D9 D- BU 1307 Power Window Master Switch Lockout Signal
D10 - - Not Used
D11 YE 643 Accessory Voltage
D12 - - Not Used
E1 OG 9294 Tailgate Lock Actuator Lock Control (Pontiac)
E1 PU 1305 Liftgate Actuator Unlock Control (Buick)
E2-E4 - - Not Used
E5 OG 267 Heated Mirror Element Supply Voltage (Buick)
OG 267 Heated Mirror Element Supply Voltage (Buick)
E6-E8 - - Not Used
E9 D- BU 1307 Power Window Master Switch Lockout Signal
E10 - - Not Used
E11 YE 143 Accessory Voltage
E12 - - Not Used
F1 RD 9295 Tailgate Lock Actuator Unlock Control (Pontiac)
WH 1304 Liftgate Actuator Lock Control (Buick)
F2 OG 2540 Battery Positive Voltage
F3-F4 - - Not Used
F5 OG 840 Battery Positive Voltage (Pontiac)
F6 - - Not Used
F7 L- BU 383 Liftgate Release Control (Pontiac)
F8 - - Not Used
F9 D- BU 1307 Power Window Master Switch Lockout Signal
F10 - - Not Used
F11 YE 143 Accessory Voltage
F12 - - Not Used
