Power and Grounding Component Views

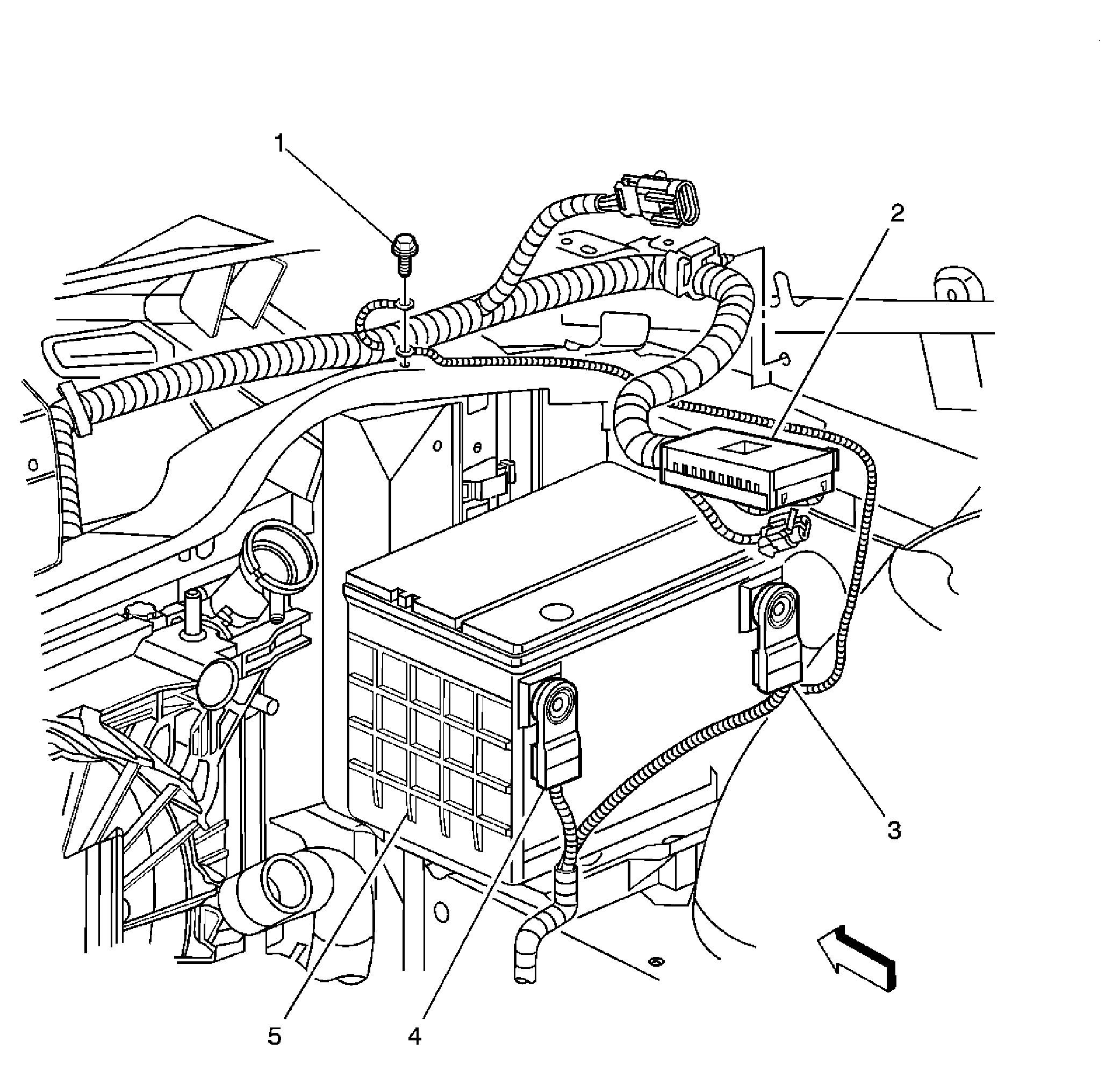

Fig 1: Engine Compartment Component View - RF
GM861237Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G100
2 Fuse Block - Underhood C2
3 Negative Battery Cable
4 Positive Battery Cable
5 Battery

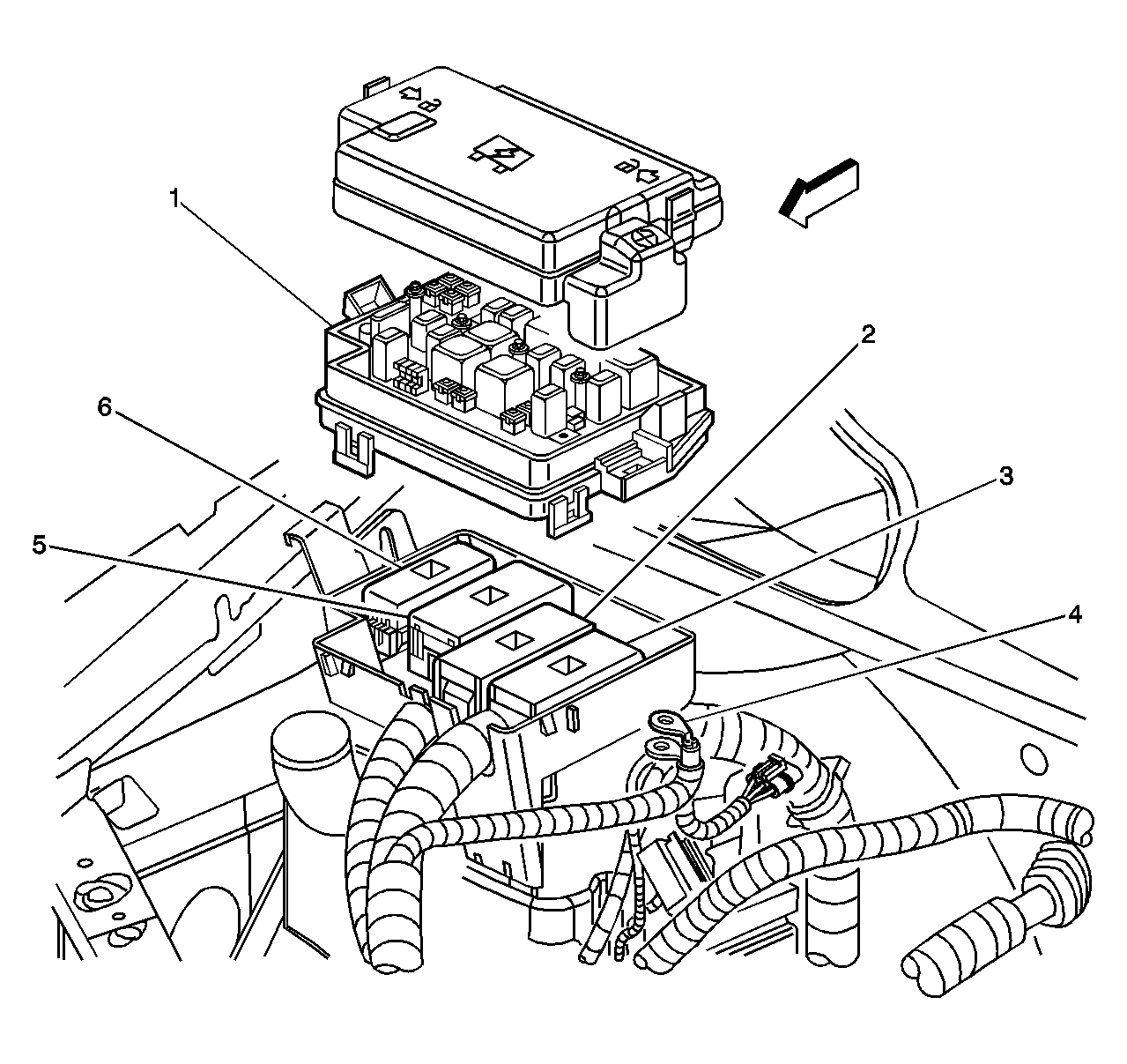

Fig 2: Engine Compartment Component View - RR
GM861238Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Fuse Block - Underhood C2
3 Fuse Block - Underhood C1
4 Positive Battery Cable Connection
5 Fuse Block - Underhood C3
6 Fuse Block - Underhood C4

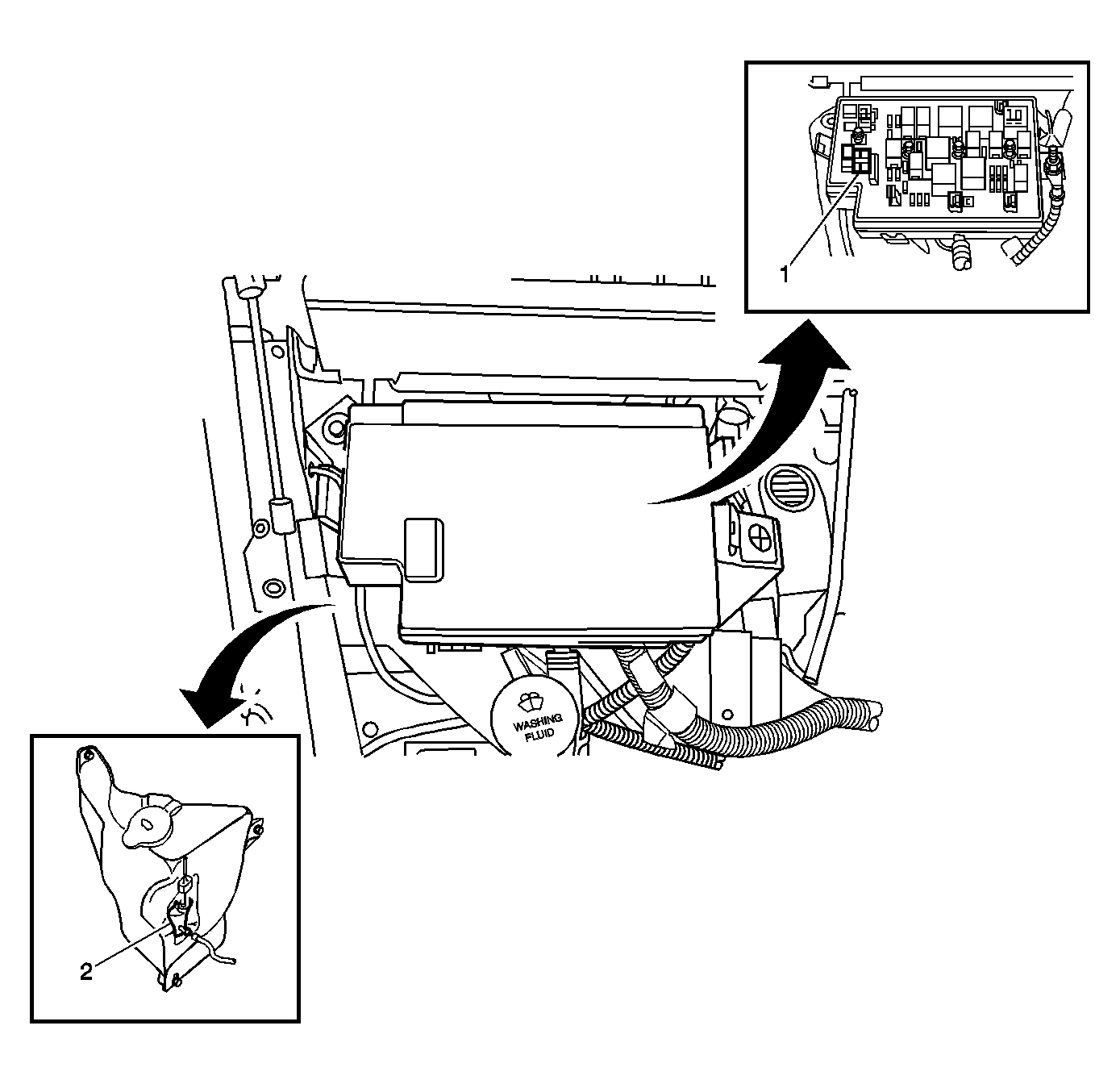

Fig 3: LH Engine Compartment Component View
GM757626Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood
2 Windshield Washer Fluid Pump
Fig 4: Center Console Component View - Pontiac
GM861248Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) C2
2 Body Control Module (BCM) C1
3 Body Control Module (BCM) C0
4 Automatic Transmission Floor Shift Control
5 Fuse Block - Center Console C2
6 Fuse Block - Center Console C1

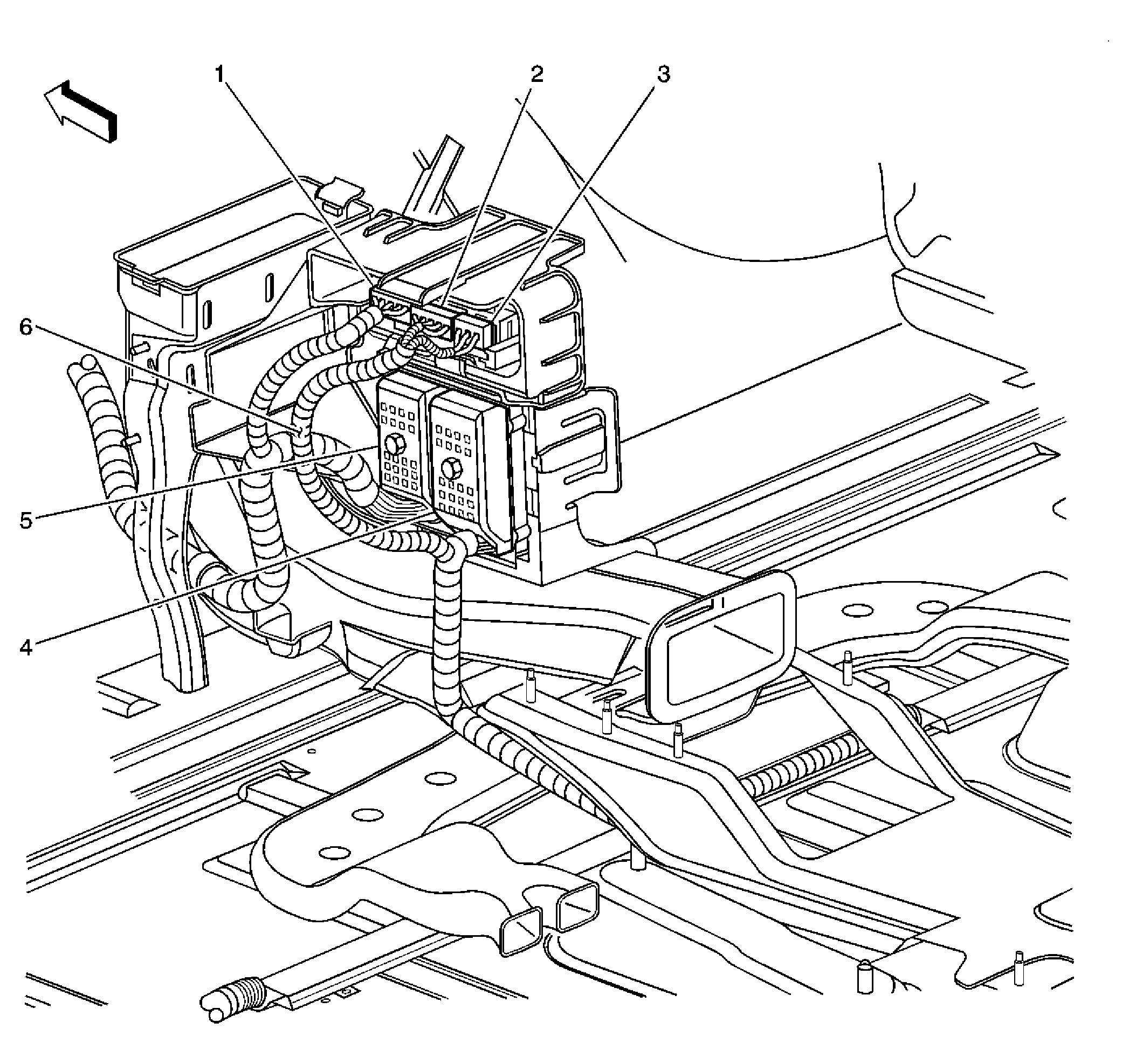

Fig 5: Center Console Component View - Buick
GM861251Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) C2
2 Body Control Module (BCM) C1
3 Body Control Module (BCM) C0
4 Fuse Block - Center Console C2
5 Fuse Block - Center Console C1
6 Rear Parking Assist (RPA) Diagnostic Connector
