Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

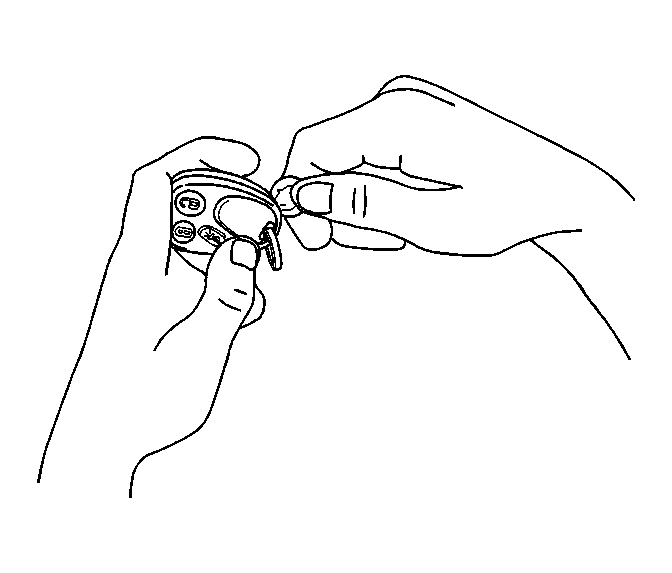

Fig 1: Opening Transmitter Case

Courtesy of GENERAL MOTORS CORP.

Insert a small coin between the two halves of the transmitter case at the slot provided near the key ring hole.
Twist the coin in order to open the case.
Open the transmitter case.

Fig 2: Removing Transmitter Battery

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Handling ESD Sensitive Parts Notice in Cautions and Notices.

Remove the battery.
