Data Link Communications Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

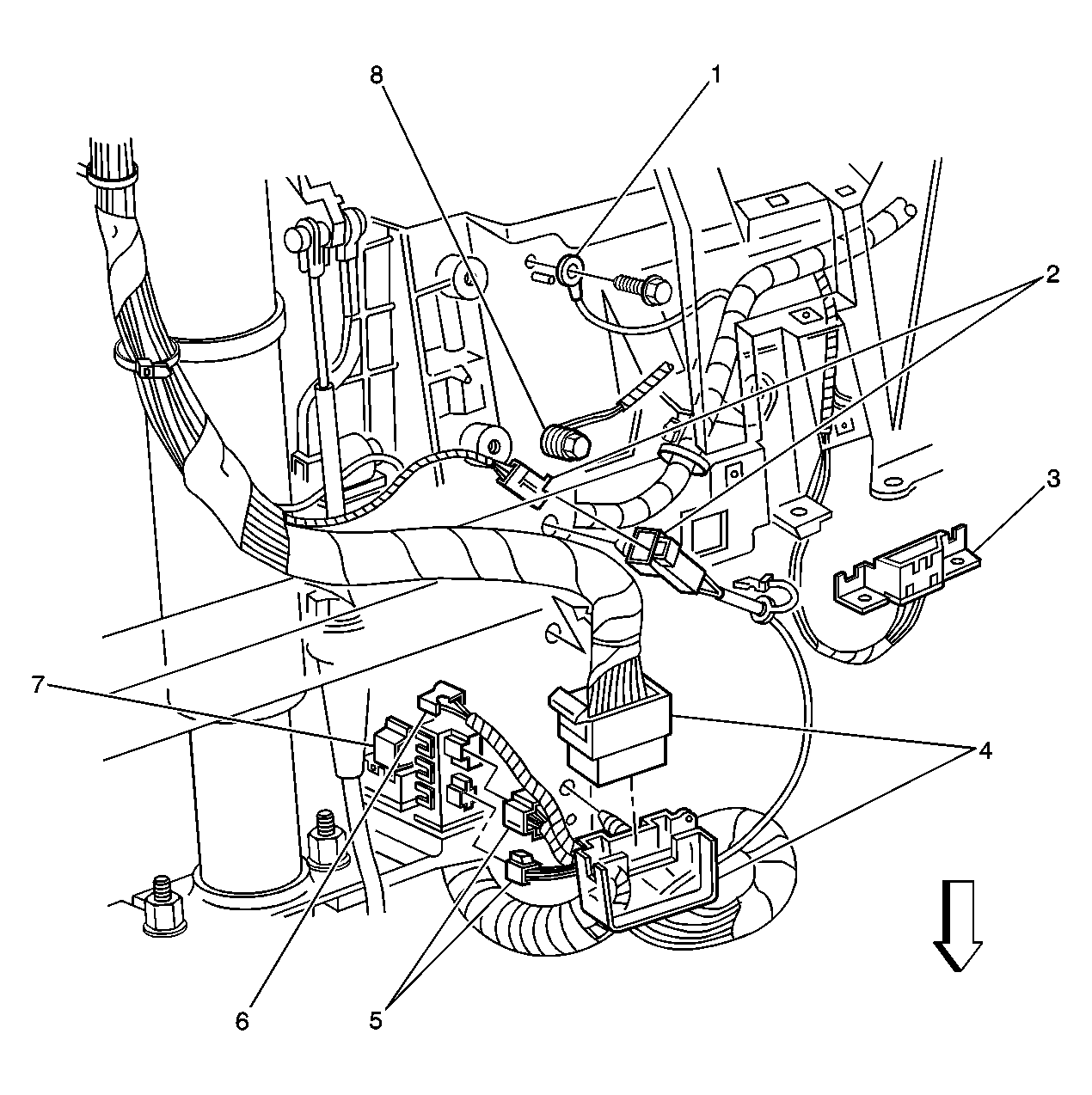

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
G203 |
| 2 |
Inflatable Restraint Steering Wheel Module Coil Connector C1 |
| 3 |
Data Link Connector (DLC) |
| 4 |
C201 |
| 5 |
Stop Lamp Switch Connectors |
| 6 |
Cruise Control Release Switch Connector |
| 7 |
Cruise Control Release Switch |
| 8 |
G201 |

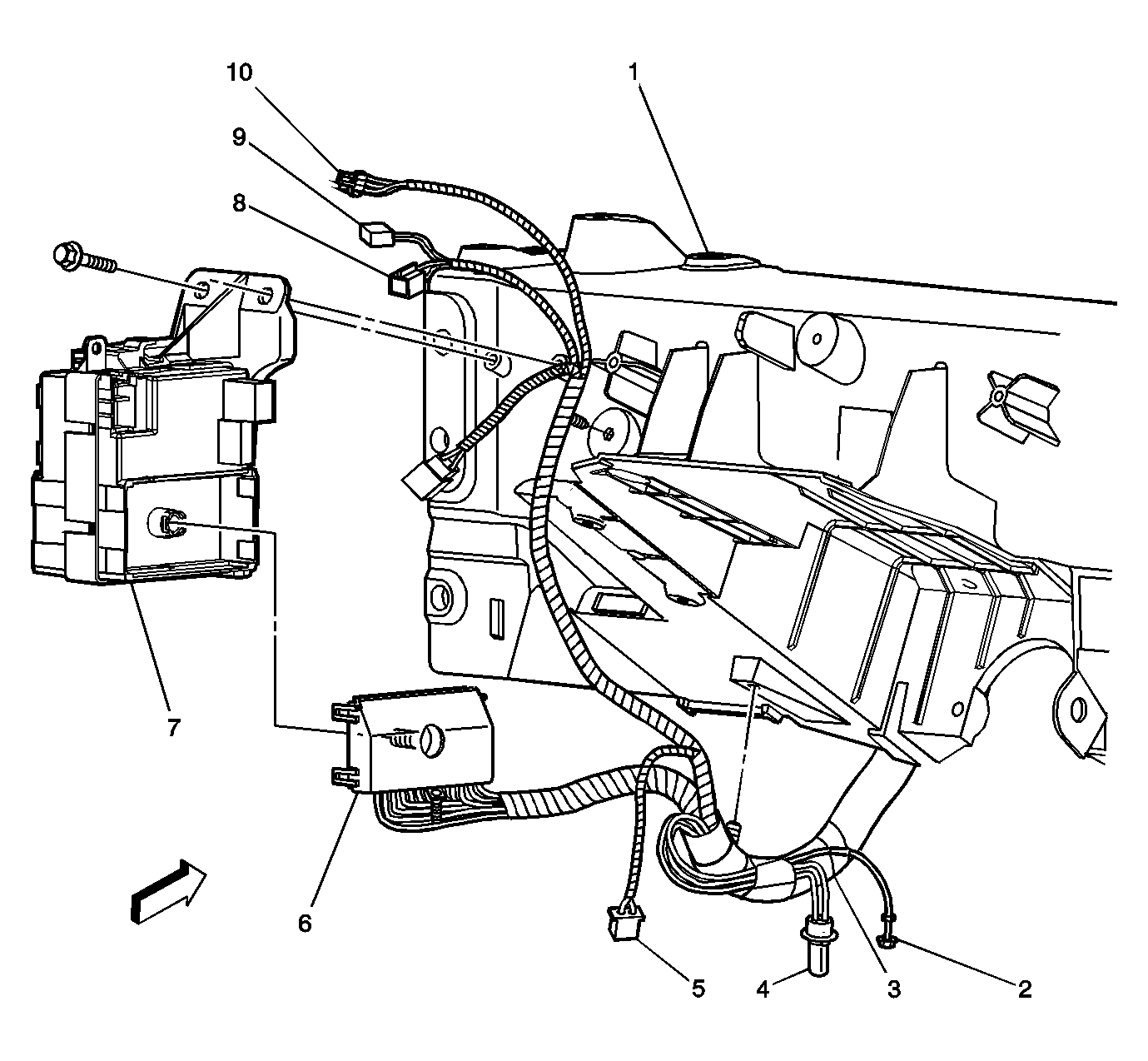

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Instrument Panel Carrier |
| 2 |
C205 (Radio Coax) |
| 3 |
Splice Pack-SP205 (Taped Over) |
| 4 |
Footwell Courtesy Lamp-Left |
| 5 |
Rear Compartment Lid Release Switch Connector |
| 6 |
Junction Block-Left I/P Connector C1 |
| 7 |
Junction Block-Left I/P |
| 8 |
Traction Control Switch (Impala) Connector |
| 9 |
Fog Lamp Switch Connector |
| 10 |
Headlamp Switch Connector |
