WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

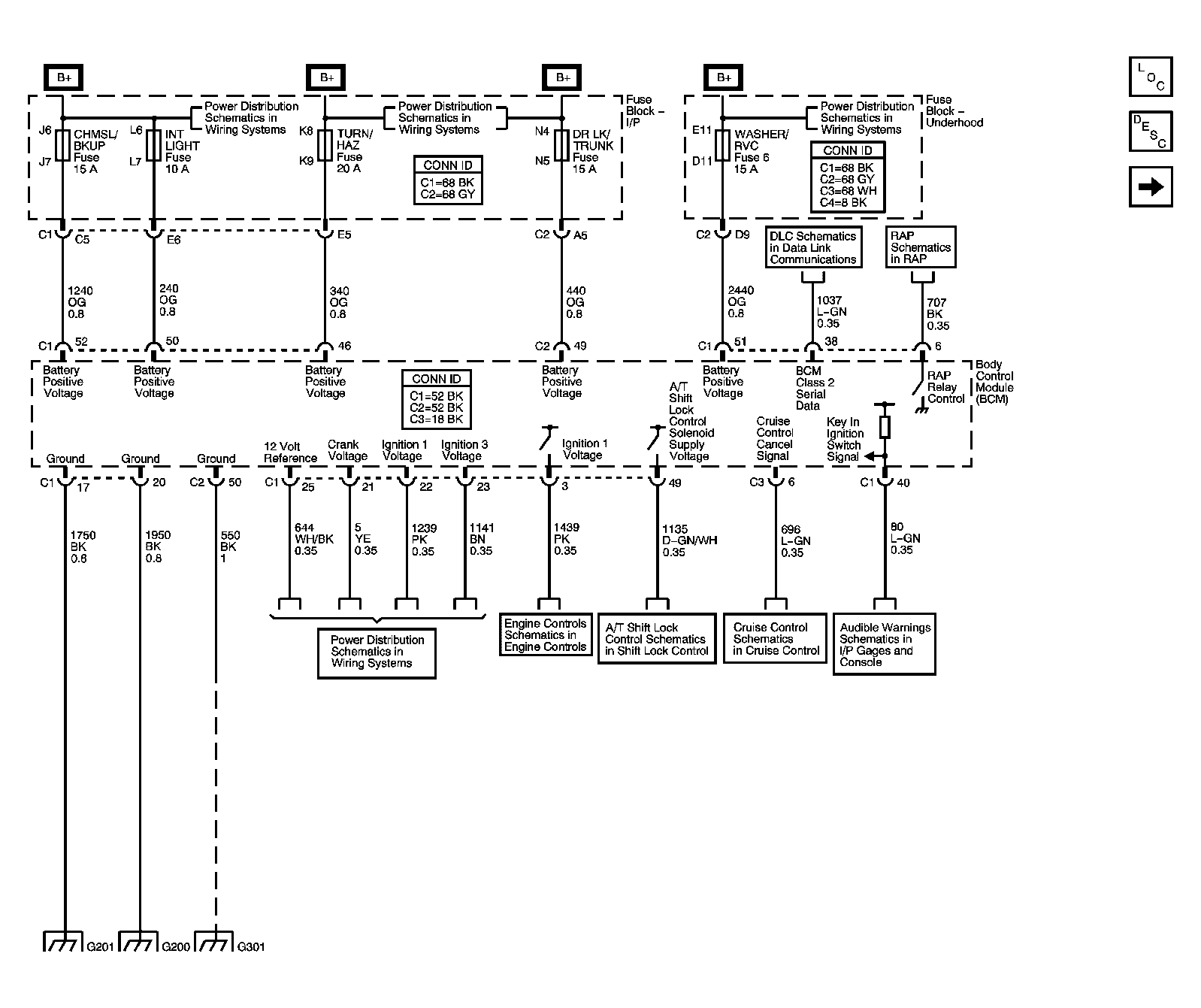

Fig 1: Power, Ground And References
Courtesy of GENERAL MOTORS CORP.

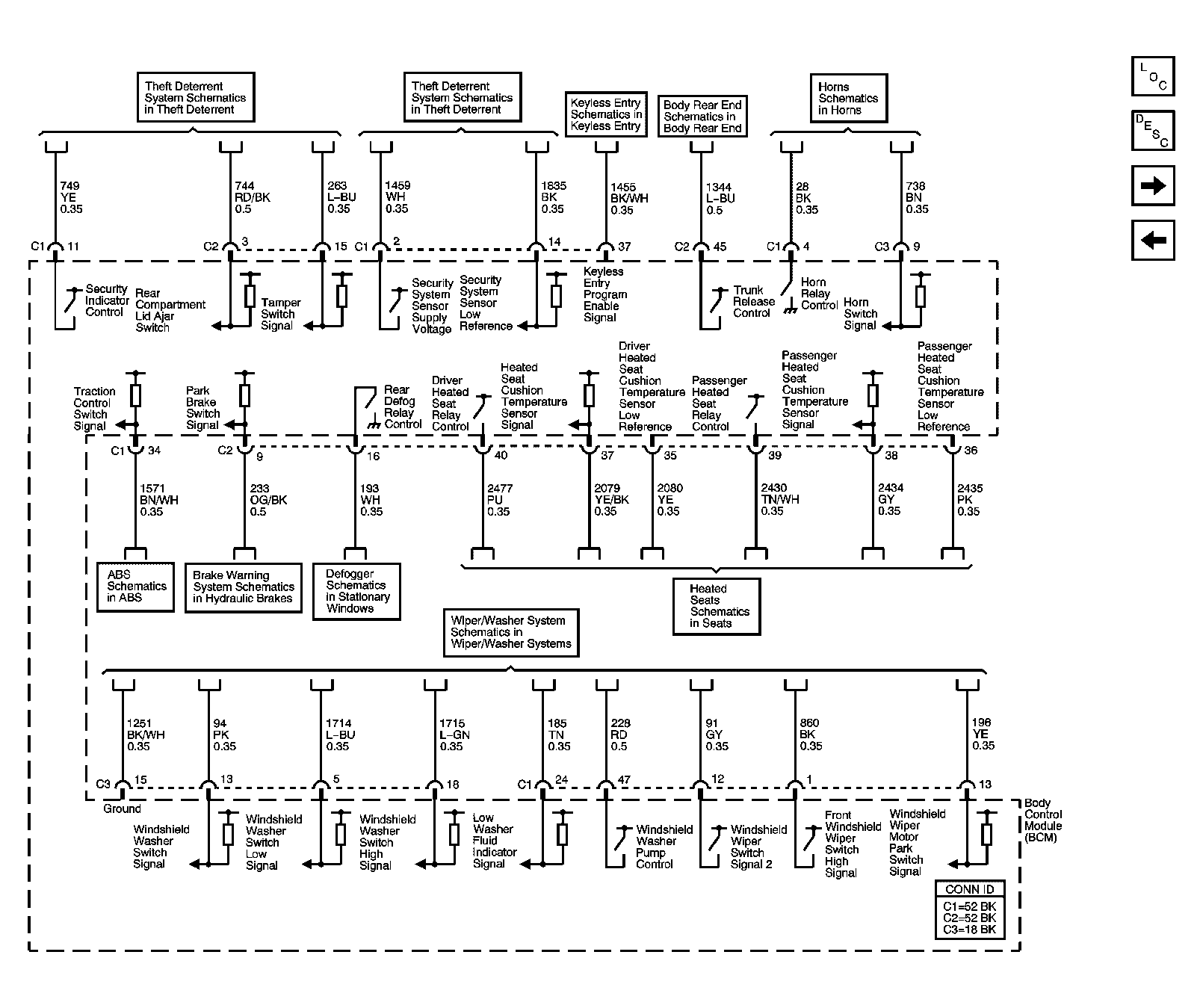

Fig 2: Theft Deterrent, Keyless Entry, Body Rear End, Horns, ABS, Brake Warning, Defogger, Heated Seats And Wiper/Washer System References
Courtesy of GENERAL MOTORS CORP.

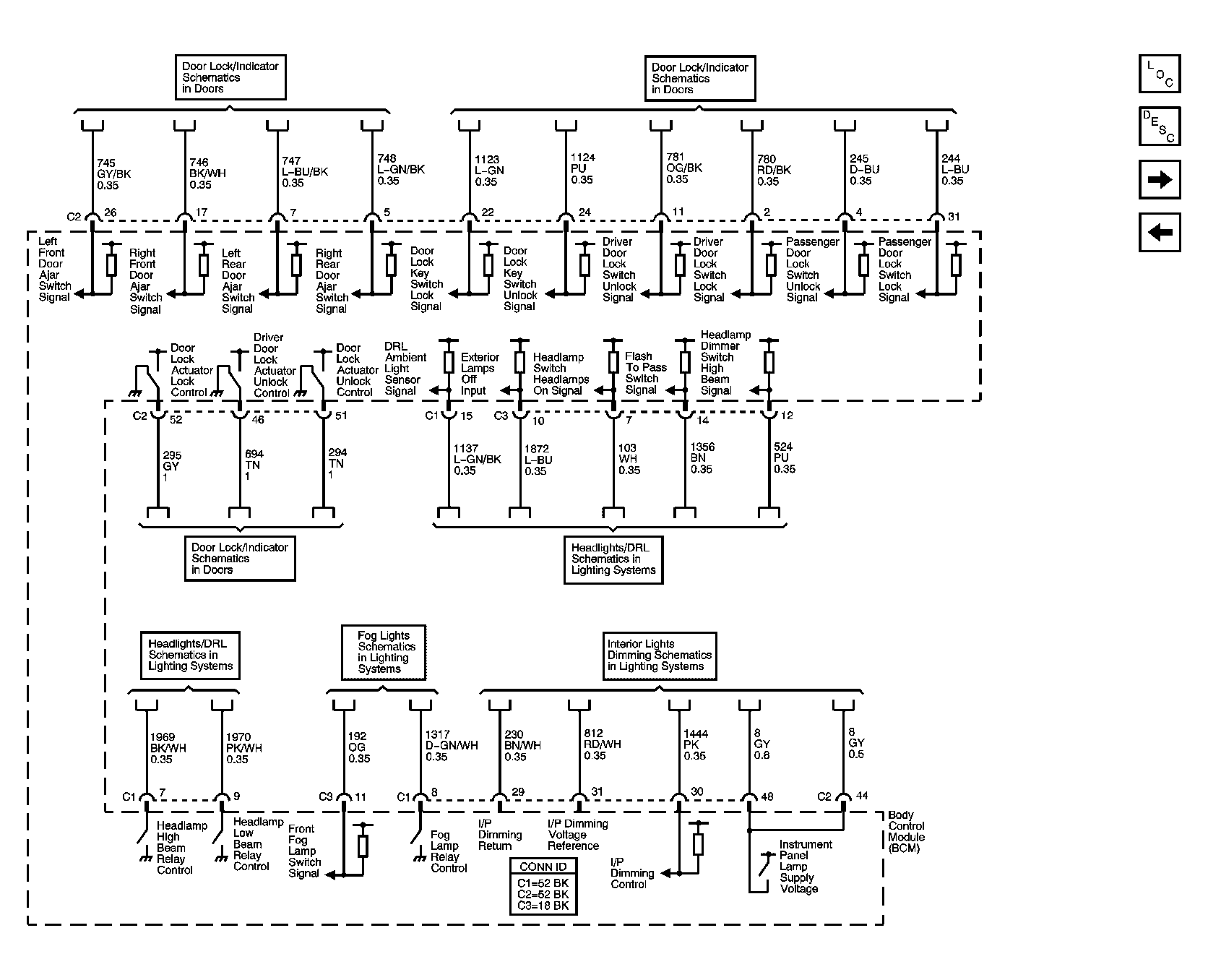

Fig 3: Door Lock/Indicator And Lighting Systems References (1 Of 2)
