Automatic Transmission Shift Lock Control Component Views

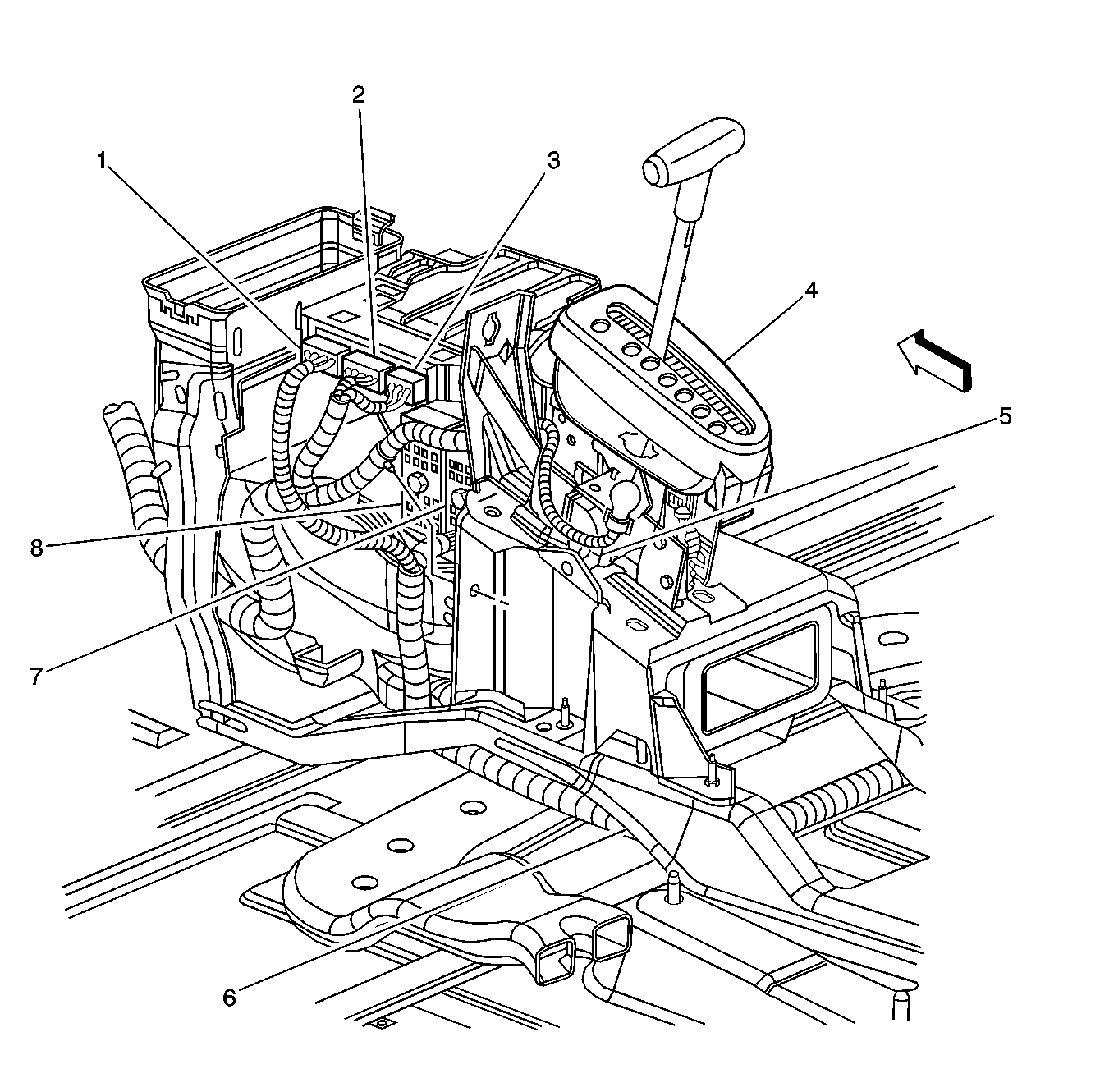

Fig 1: Center Console Component View Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM) C2
2	Body Control Module (BCM) C1
3	Body Control Module (BCM) C0
4	Automatic Transmission Floor Shift Control
5	Automatic Transmission Floor Shift Control Connector
6	Splice Pack 315
7	Fuse Block - Center Console C2
8	Fuse Block - Center Console C1

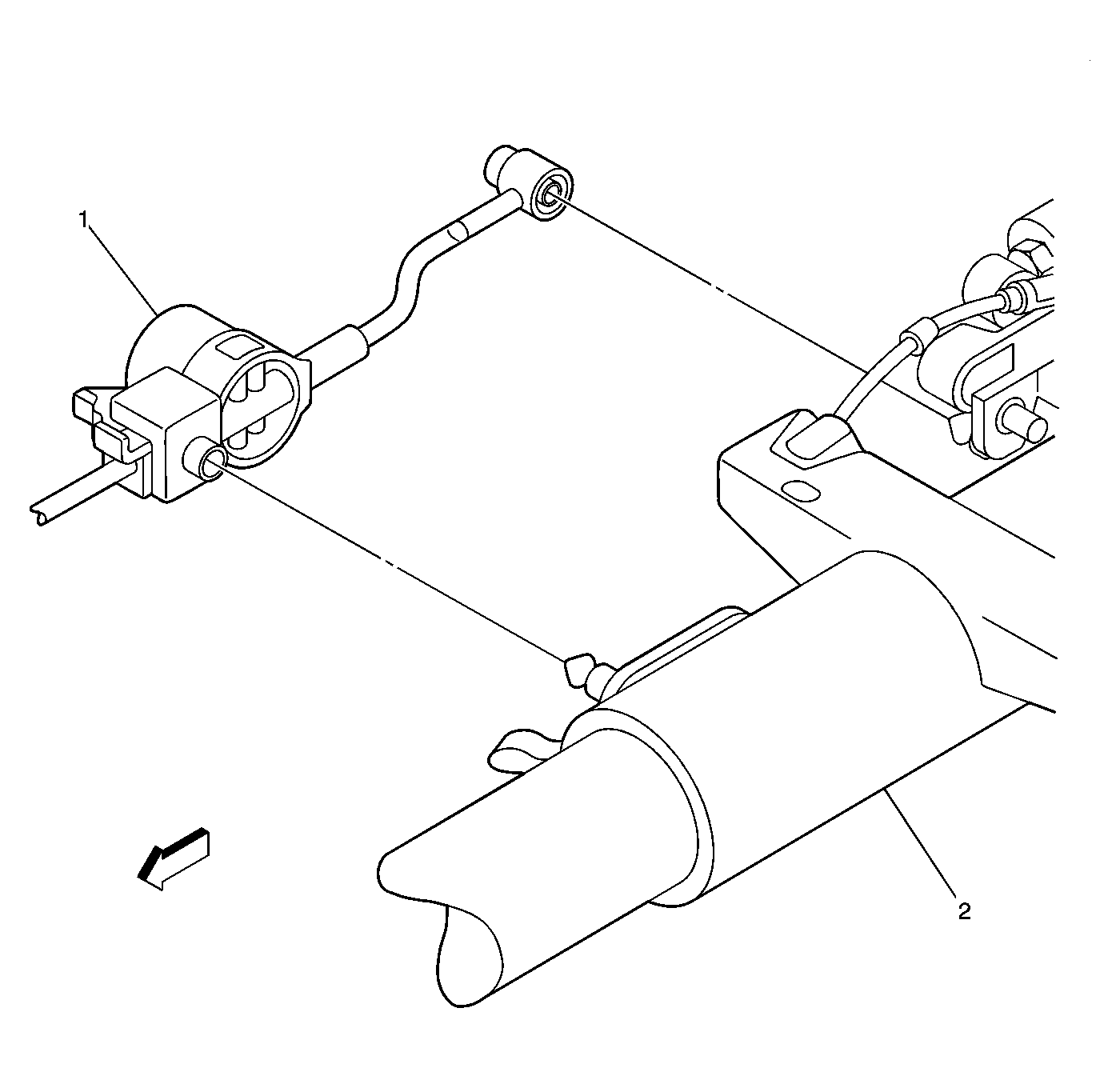

Fig 2: Steering Column Component View Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Steering Column
