Outside Mirror Schematics

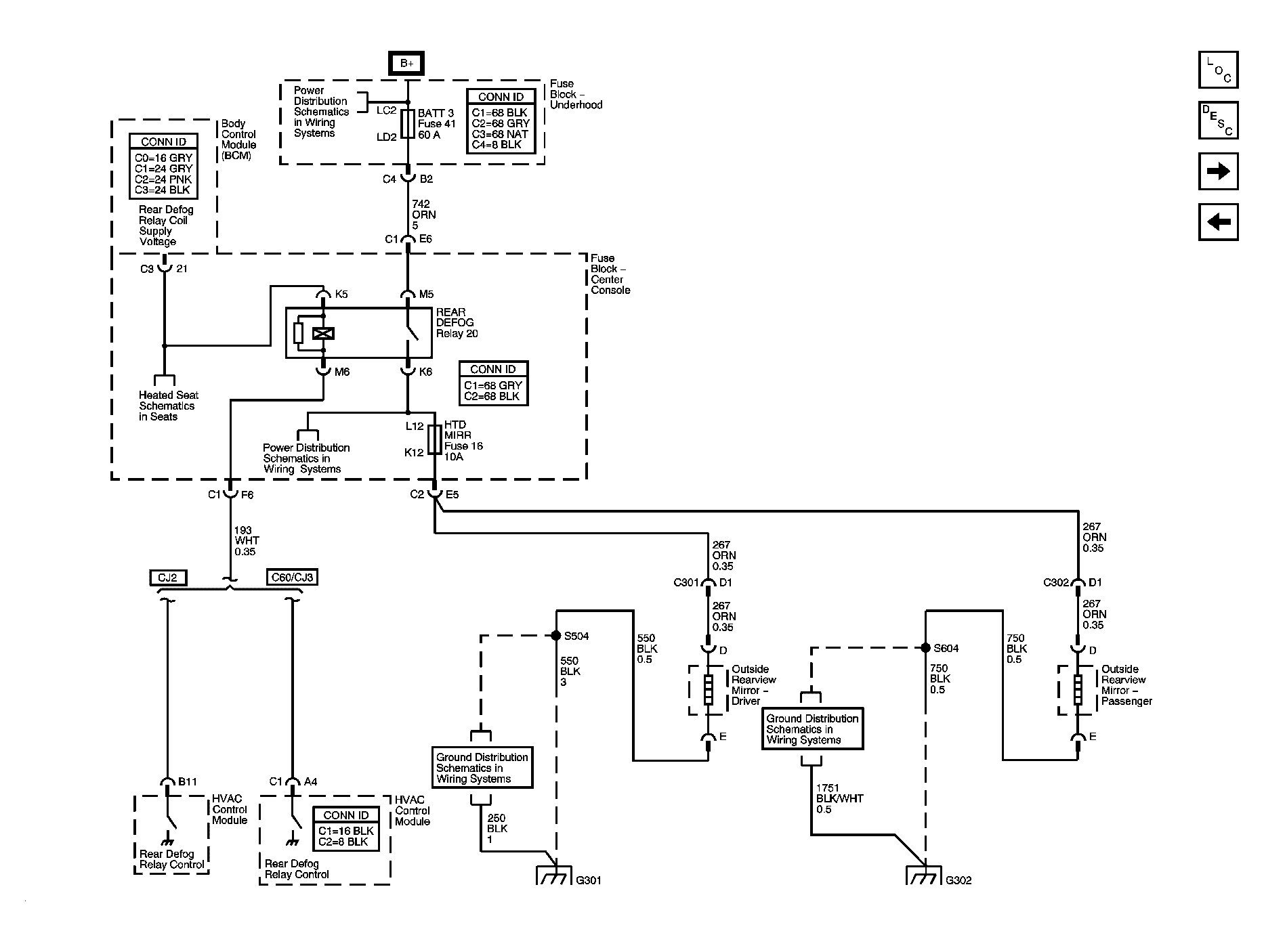

Fig 1: Base Mirrors Schematic

Courtesy of GENERAL MOTORS CORP.

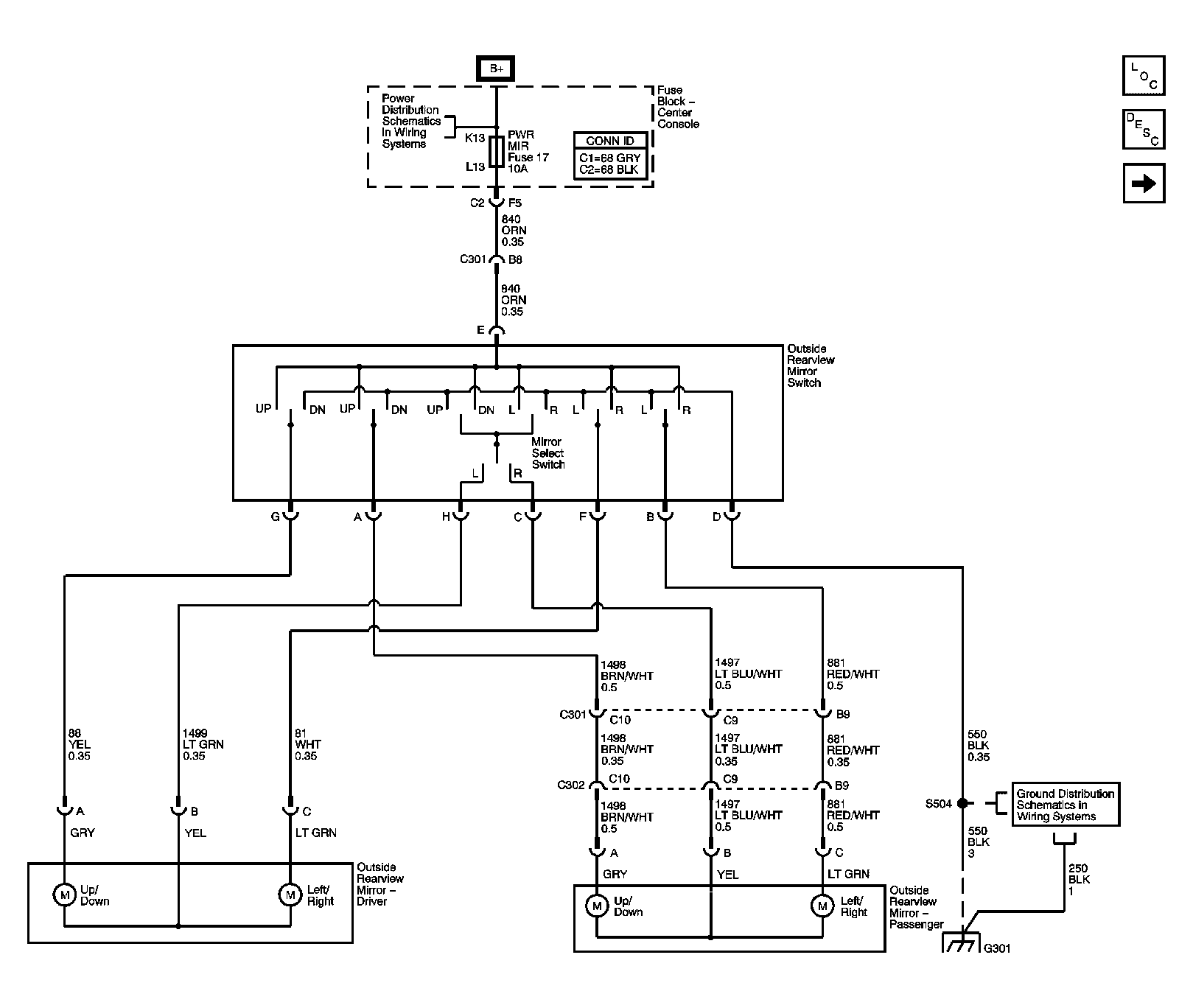

Fig 2: Heated Mirrors Schematic

Courtesy of GENERAL MOTORS CORP.

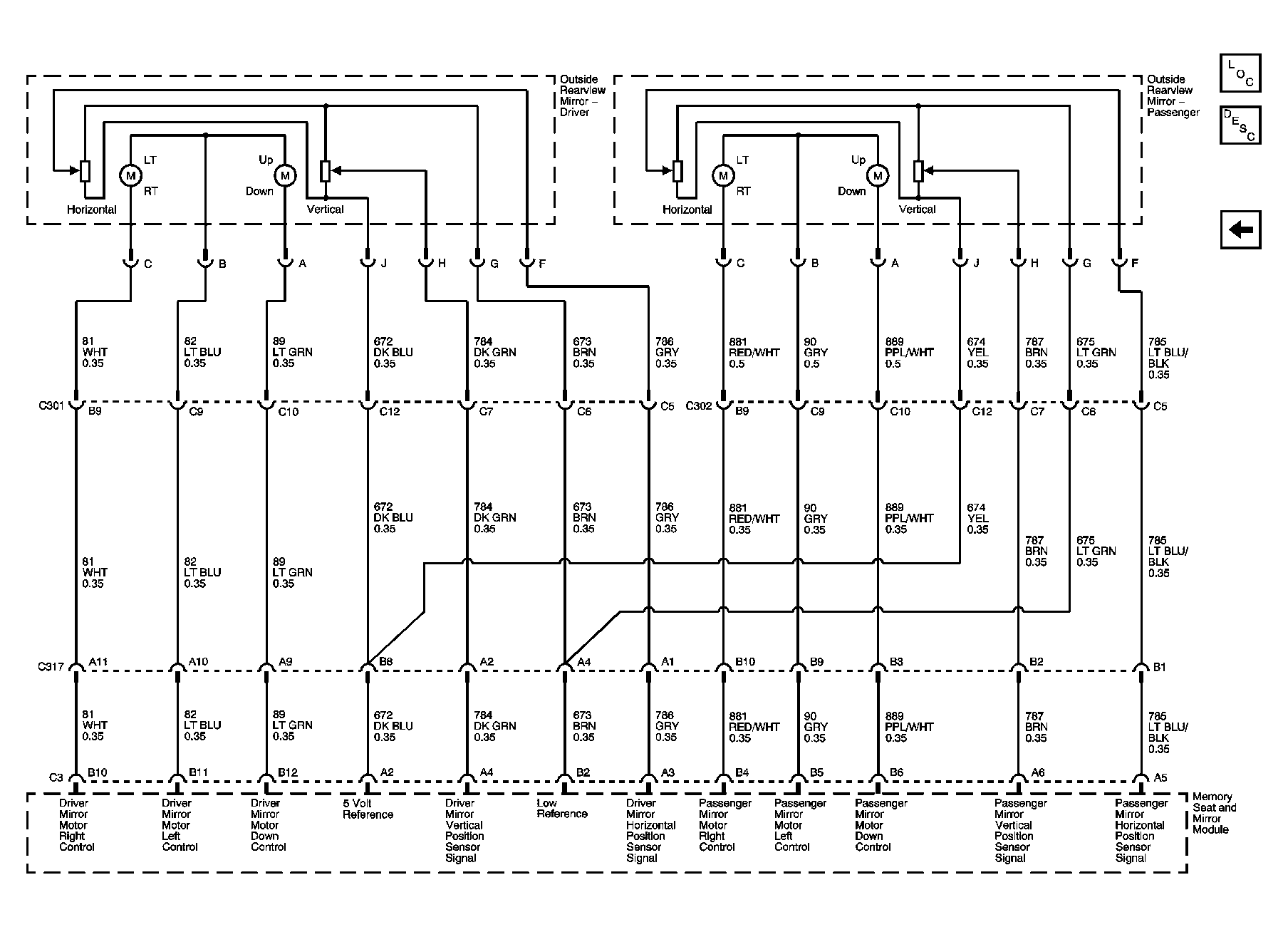

Fig 3: Memory Mirrors - Power, Ground and Switches Schematic

Courtesy of GENERAL MOTORS CORP.

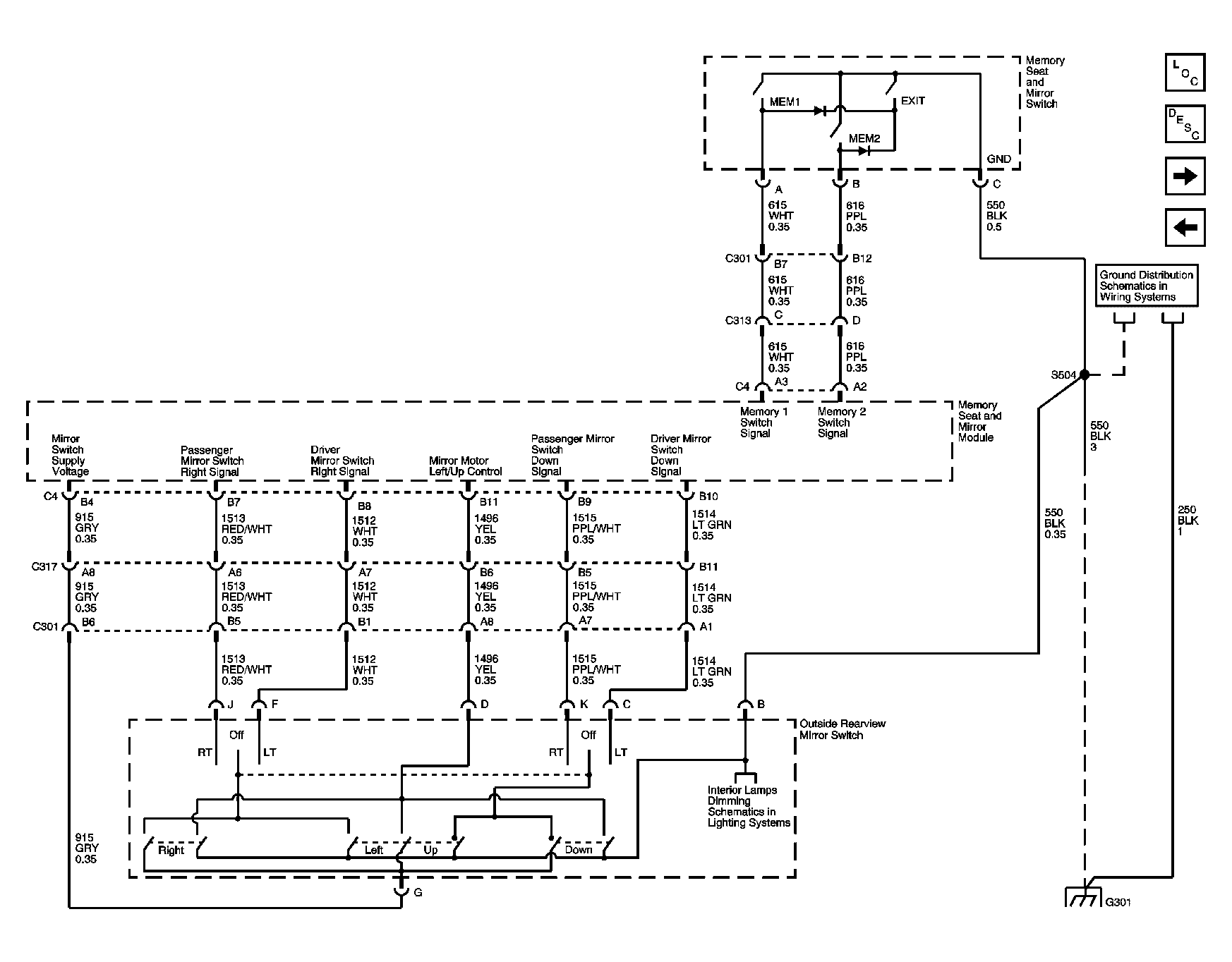

Fig 4: Memory Mirrors - Mirror Controls Schematic
