Stationary Windows Component Views

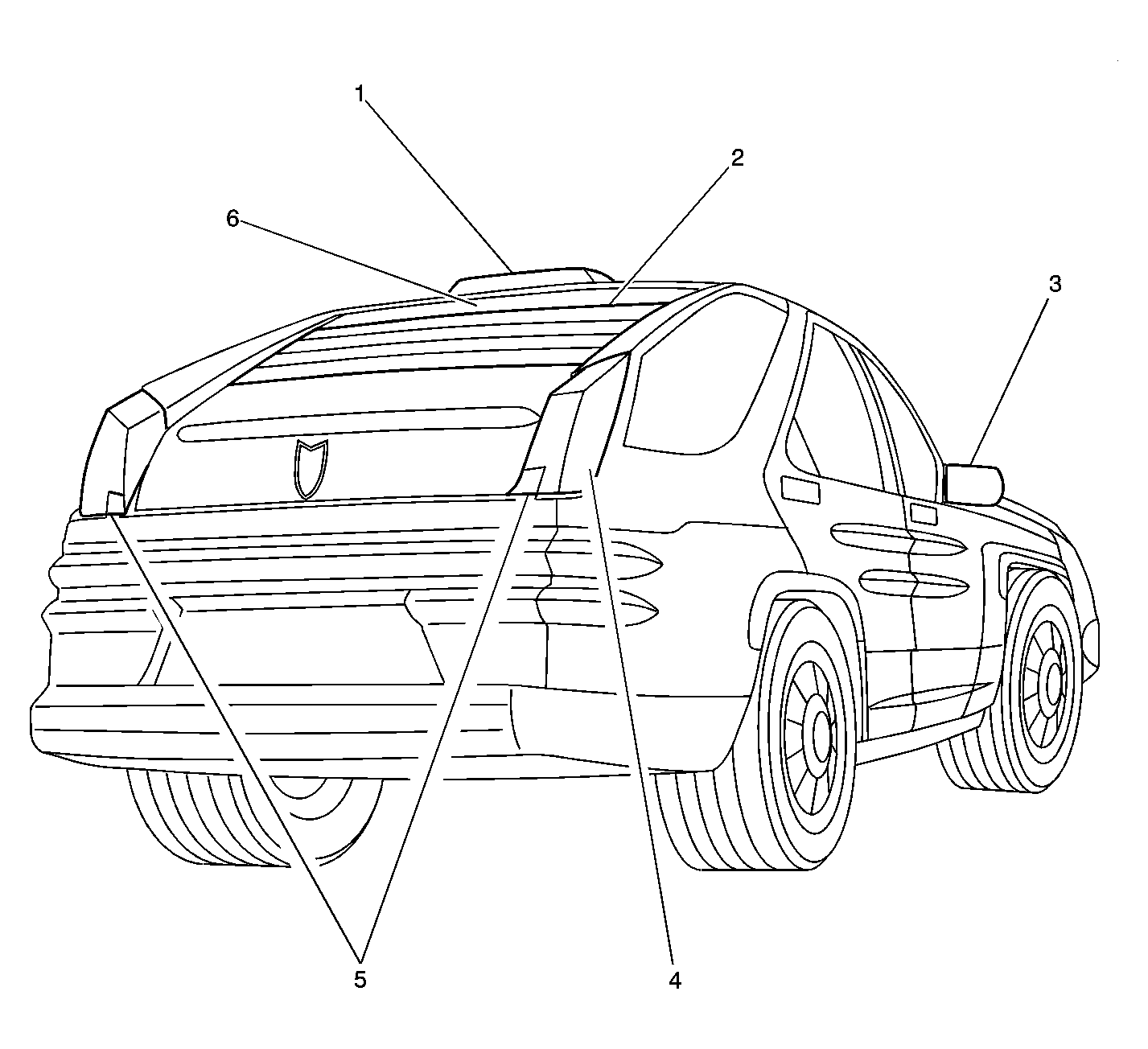

Fig 1: Rear of Vehicle Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	Rear Window Defogger Grid
3	Outside Rear View Mirror-Passenger
4	Tail, Brake, and Signal Lamp Assembly-RR (LR Similar)
5	Back-Up Lamp
6	Cargo Lamp

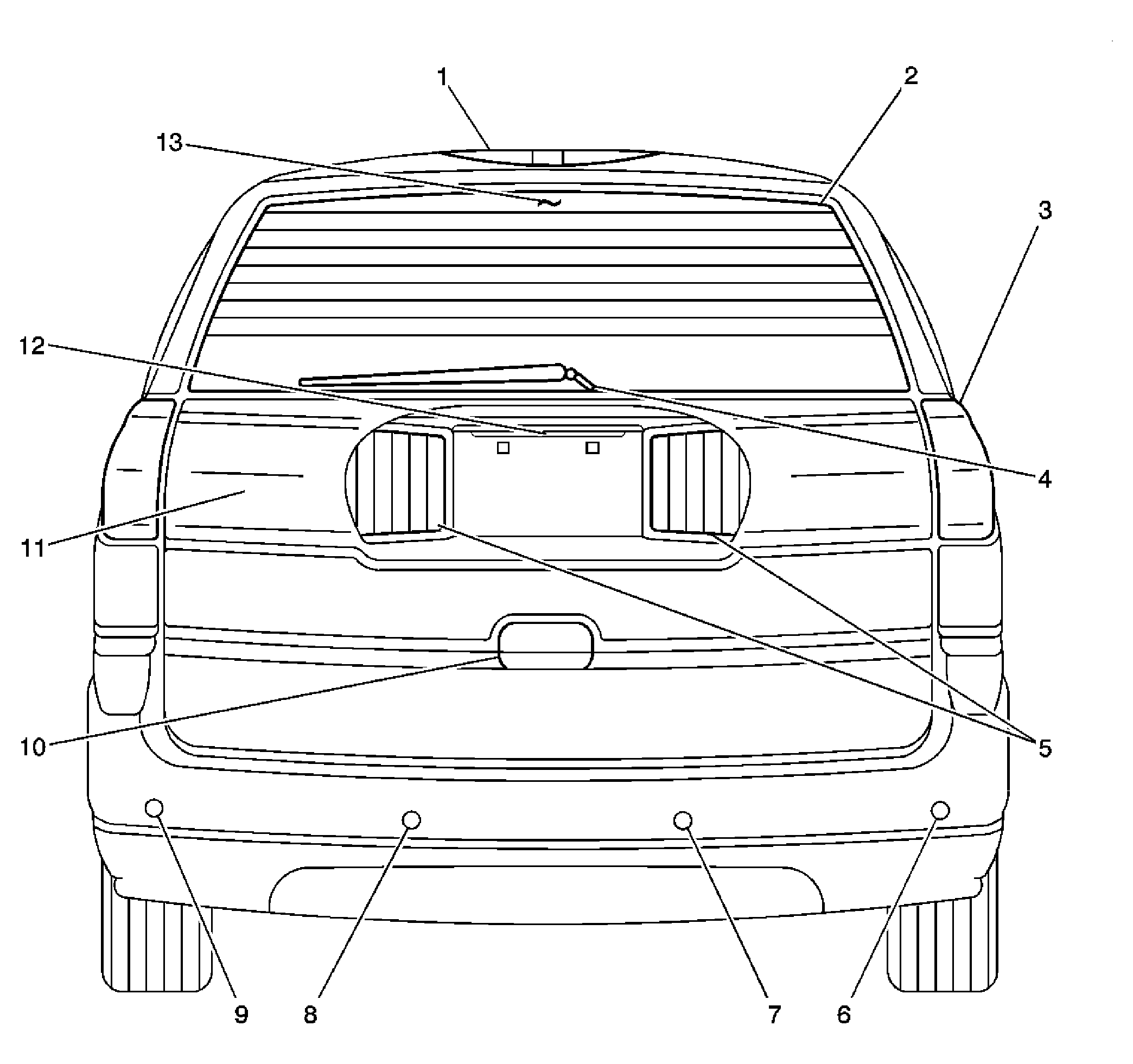

Fig 2: Rear of Vehicle Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	Rear Window Defogger Grid
3	Stop, Signal and Park Lamps-RR (LR Similar)
4	Rear Wiper Arm
5	Backup Lamps
6	Object Sensor RT Outer
7	Object Sensor RT Center
8	Object Sensor LT Center
9	Object Sensor LT Outer
10	End Gate Release Handle
11	Tail Lamp-Left (Right Similar)
12	License Lamp
13	Cargo Lamp

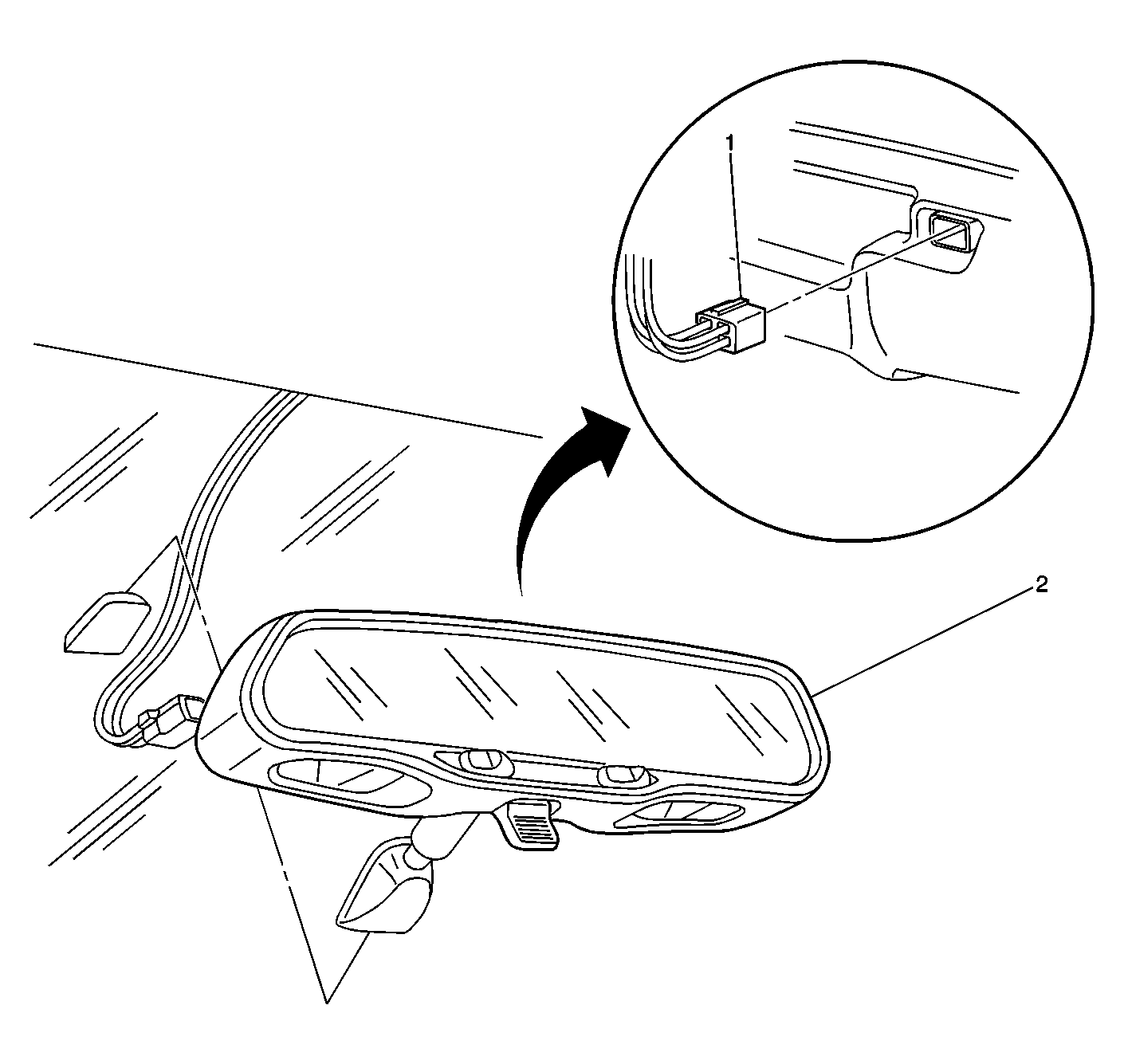

Fig 3: Forward Center of Interior Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror Connector
2	Inside Rearview Mirror
