Stationary Windows Connector End Views

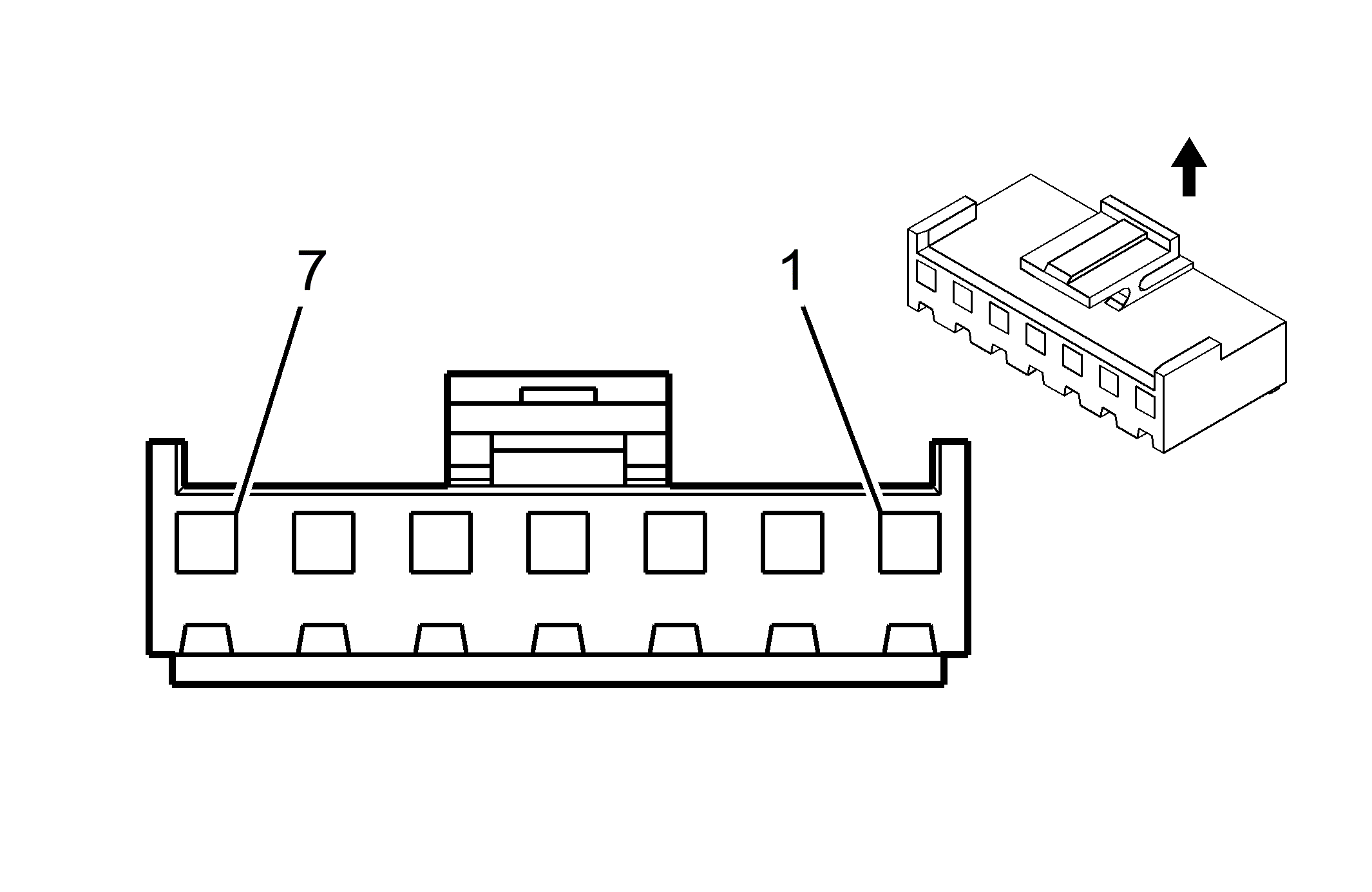

Inside Rearview Mirror (W/O UE1) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12124782 7-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	YEL	643	Accessory Voltage (DD8)
2	BLK	650	Ground
3	LT GRN	24	Backup Lamp Supply Voltage (DD8)
4-5	-	-	Not Used
6	GRY/BLK	690	Courtesy Lamp Low Control
7	ORN	1732	Courtesy Lamps Supply Voltage

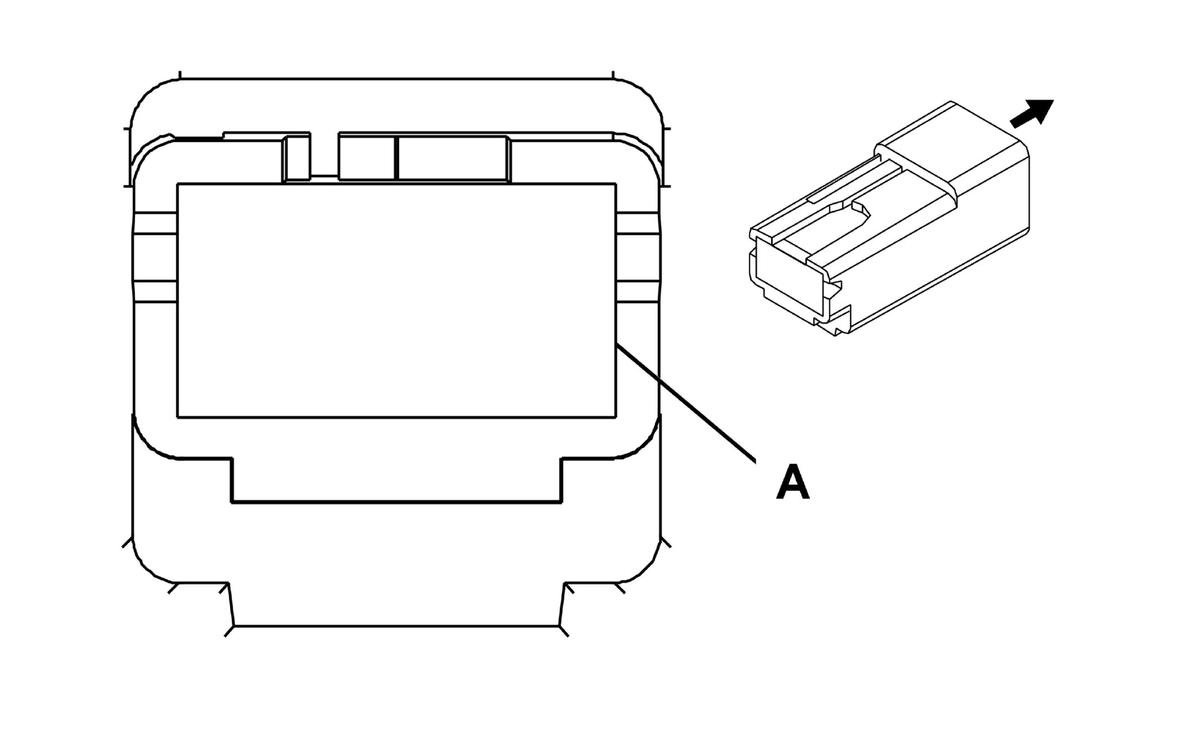

Rear Window Defogger Grid C1 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092133 1-Way F Metri-Pack 630 Series Self Lock (BK)
Pin	Wire Color	Circuit No.	Function
A	DK GRN	1927	Rear Defogger Element Supply Voltage (DD8)

Rear Window Defogger Grid C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092133 1-Way F Metri-Pack 630 Series Self Lock (BK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1150	Ground
