Installation Procedure
Courtesy of GENERAL MOTORS CORP.

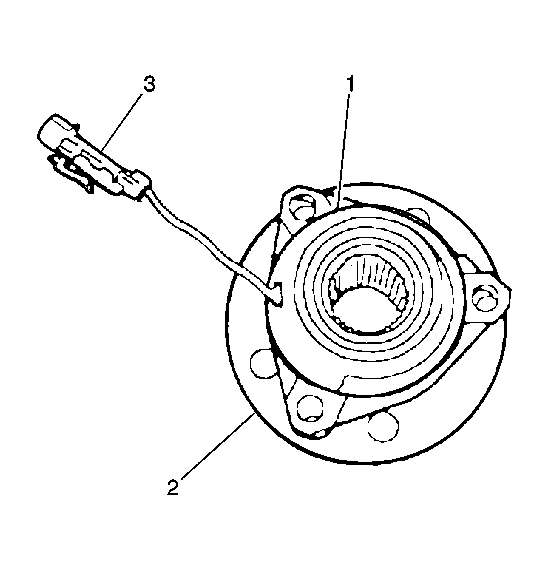

- Install the hub and bearing assembly (2) to the vehicle. Refer to Wheel Bearing/Hub Replacement - Front
in Front Suspension.
Courtesy of GENERAL MOTORS CORP.

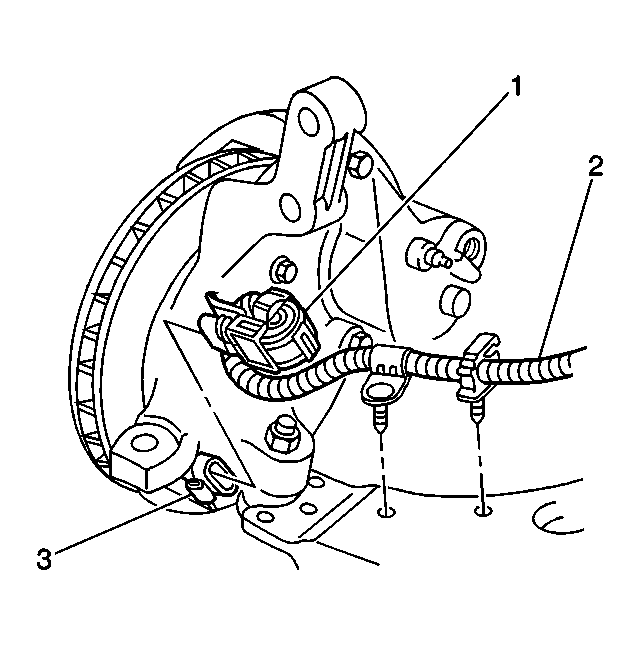

- Install the front wheel speed sensor jumper harness electrical connector (1) to front wheel speed sensor connector (3).
- Install the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation
in Tires and Wheels.
- Lower the vehicle.
- Turn the ignition switch to the RUN position with the engine off.
- Perform the Diagnostic System Check - ABS .
