Installation Procedure

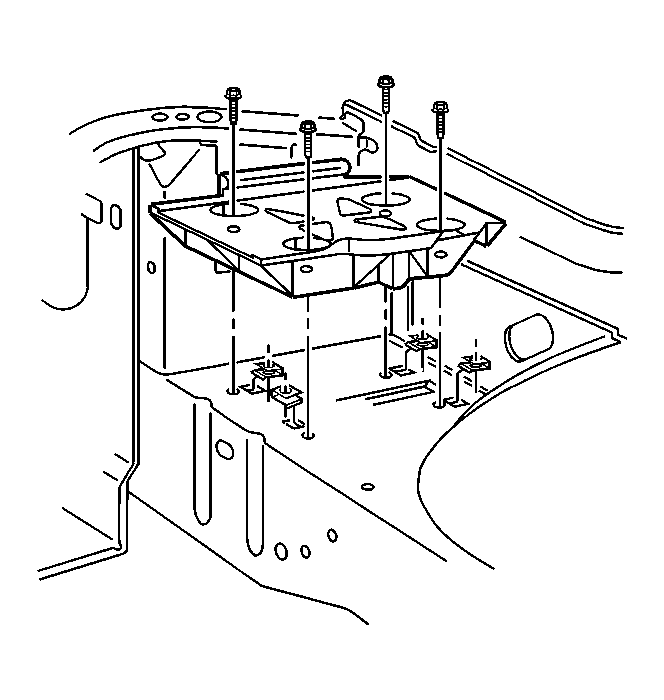

Fig 1: Identifying Battery Tray & Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the battery tray bolts.
Tighten: Tighten the battery tray bolts to 10 N.m (89 lb in).
Install the battery. Refer to Battery Replacement .
