Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

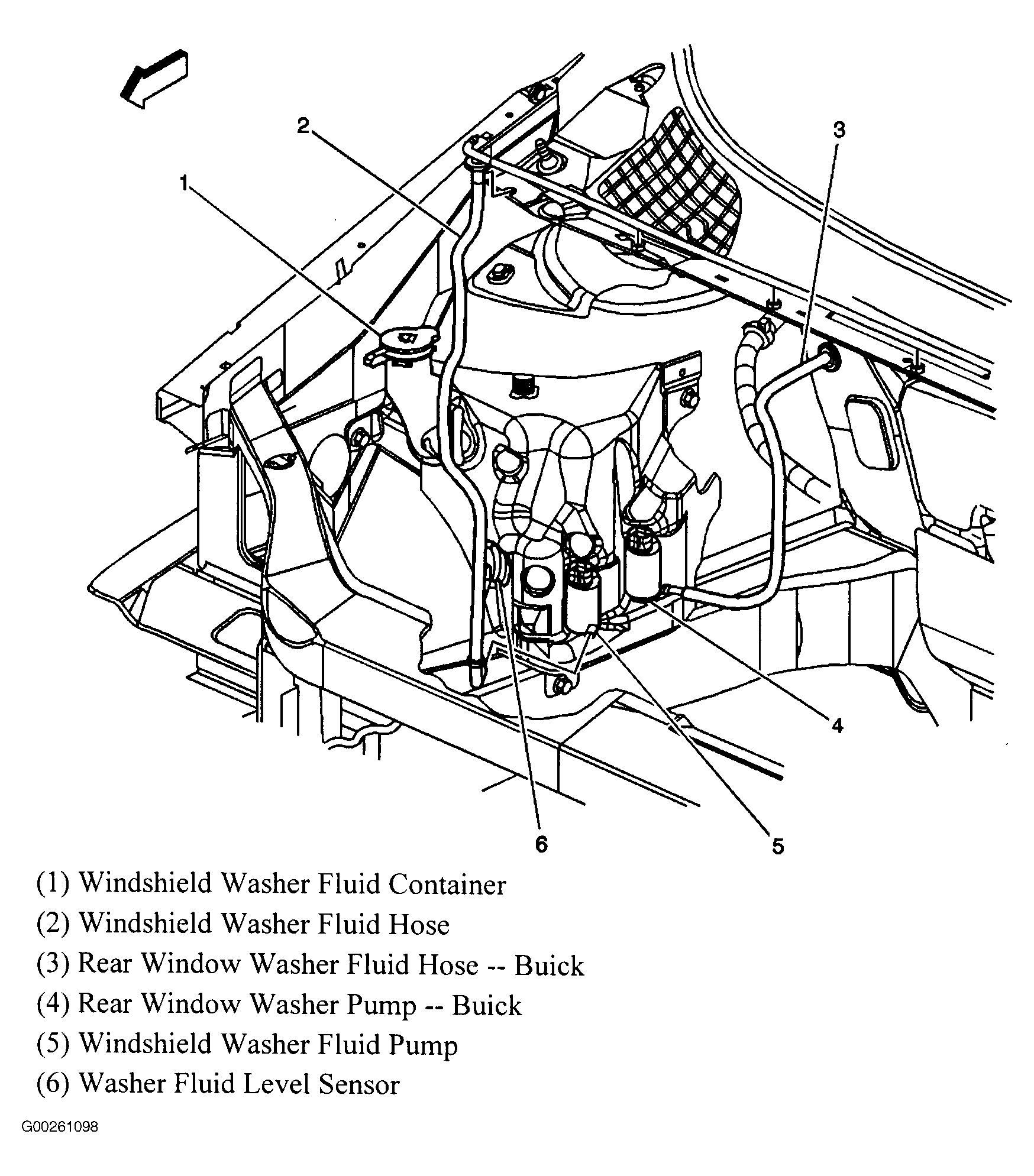

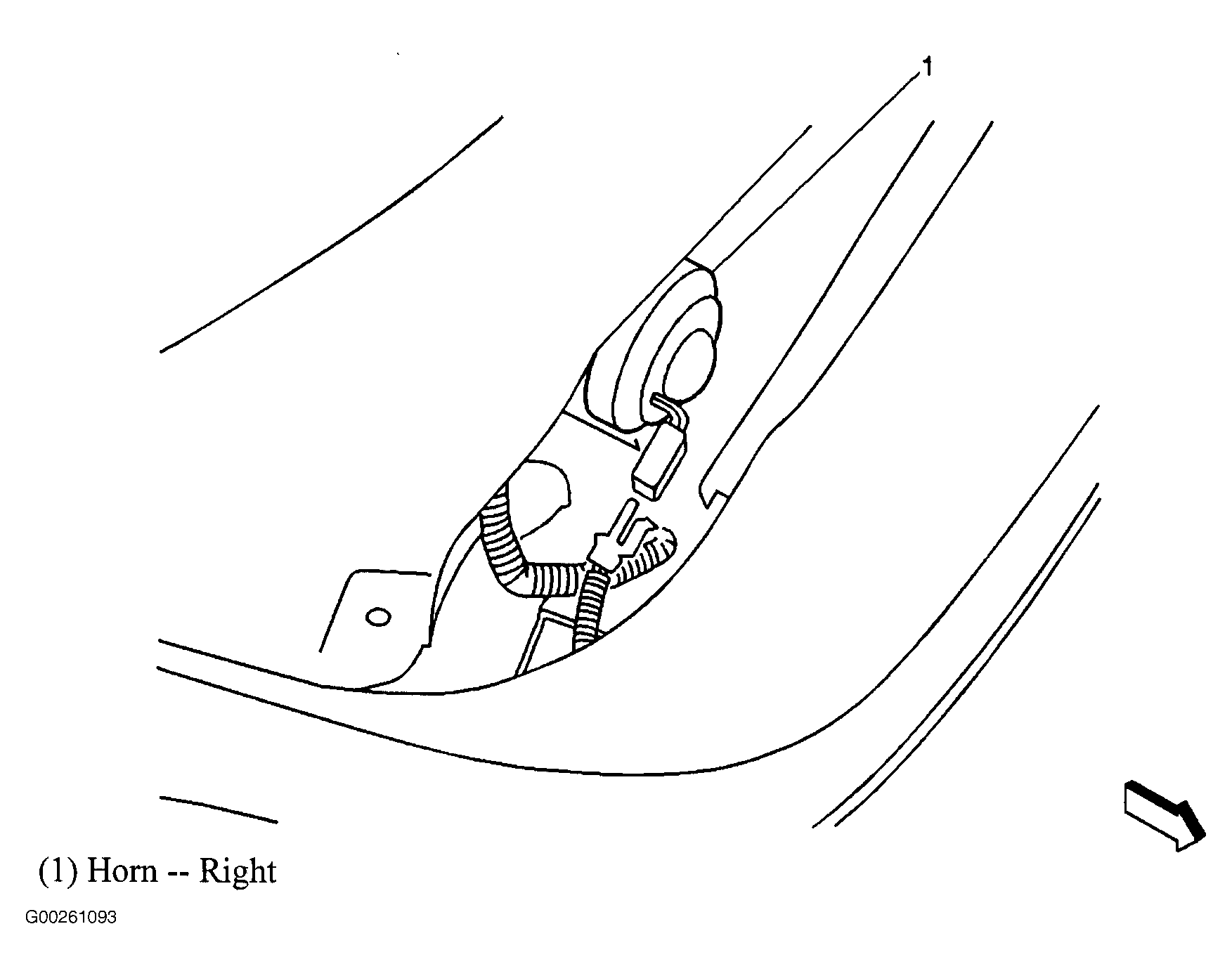

Fig 1: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

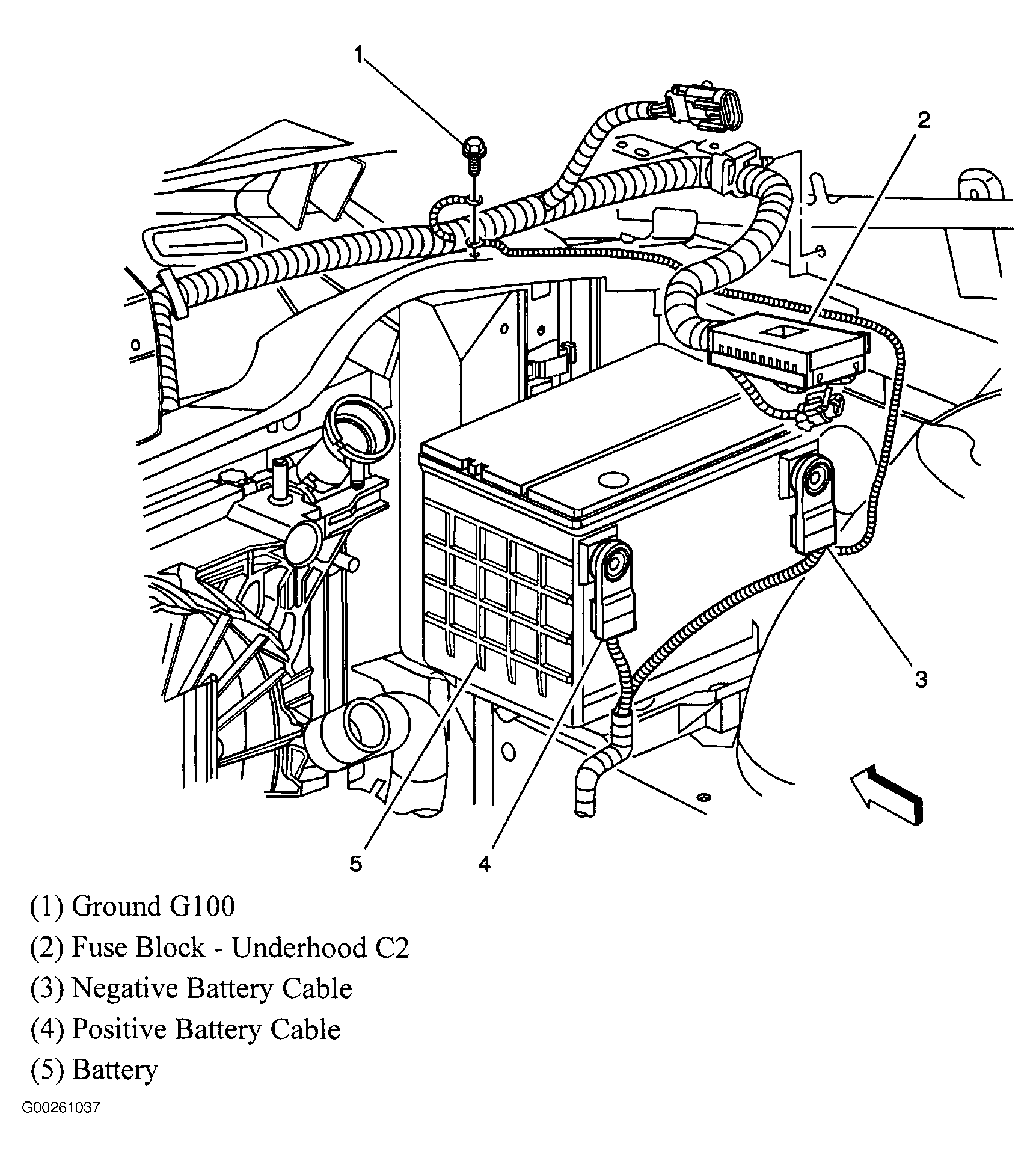

Fig 3: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Center Console (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Center Console (Buick)
Courtesy of GENERAL MOTORS CORP.

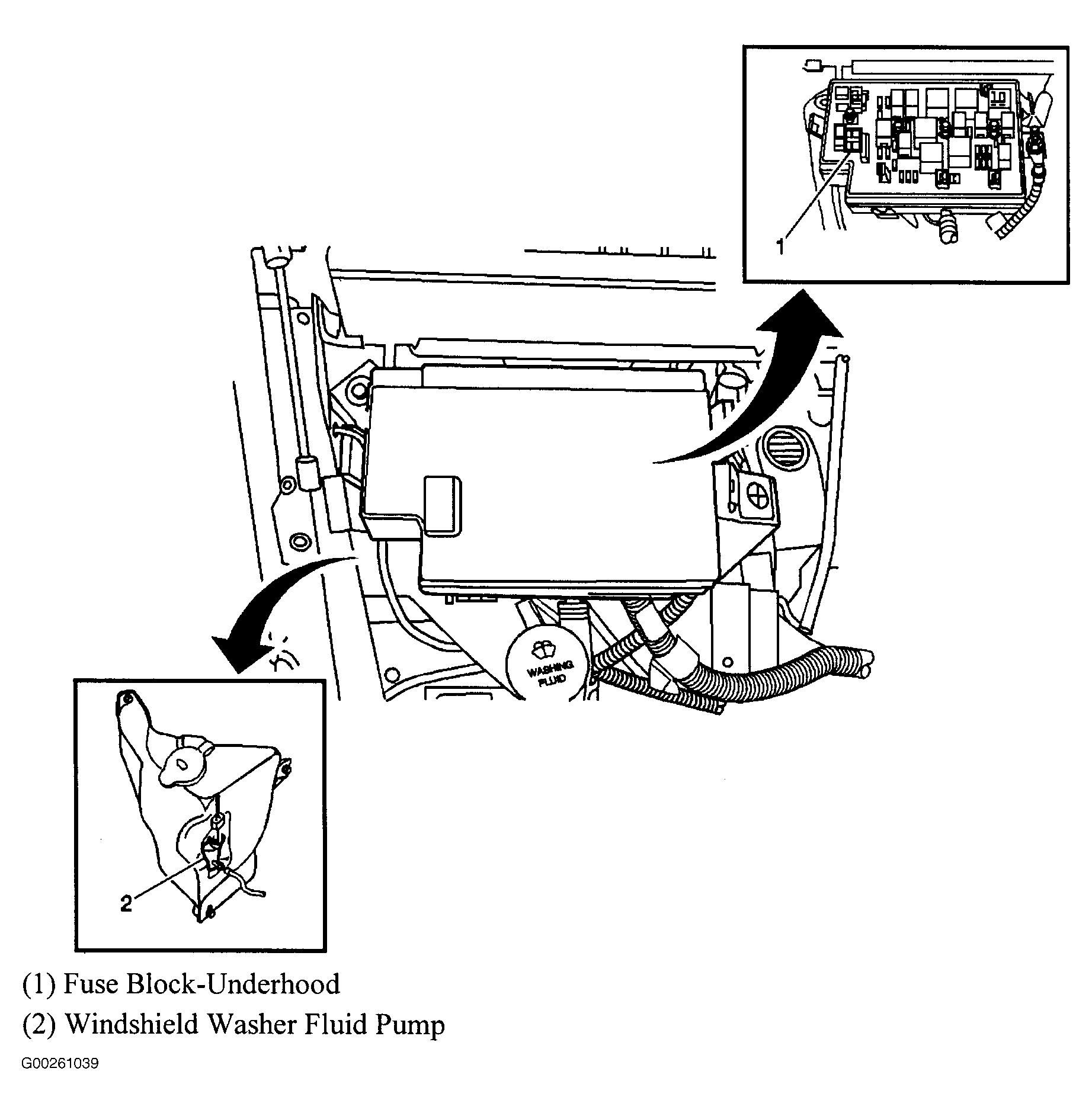

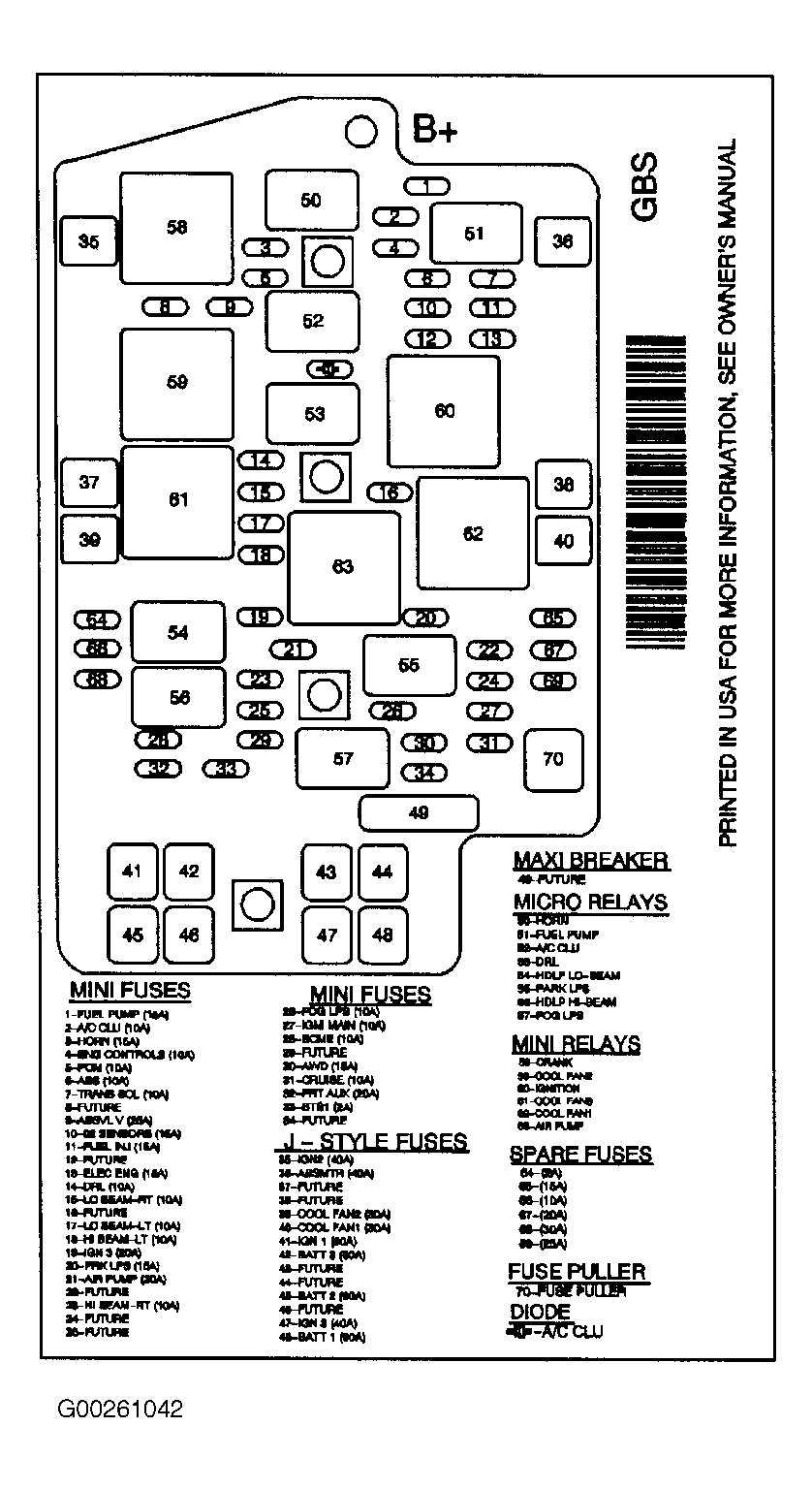

Fig 6: Underhood Fuse Block (Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Underhood Fuse Block (Pontiac)
Courtesy of GENERAL MOTORS CORP.

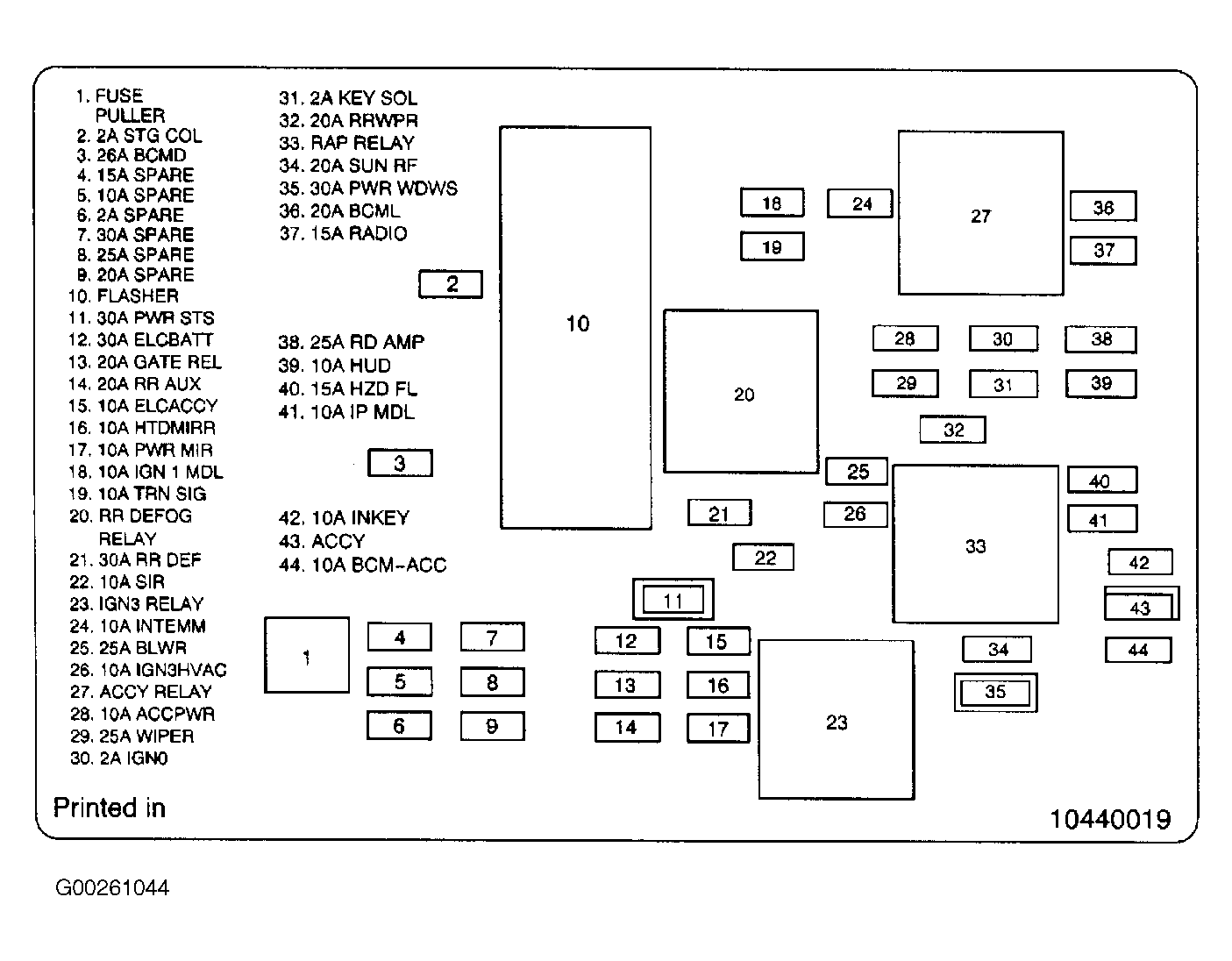

Fig 8: Center Console Fuse Box
Courtesy of GENERAL MOTORS CORP.

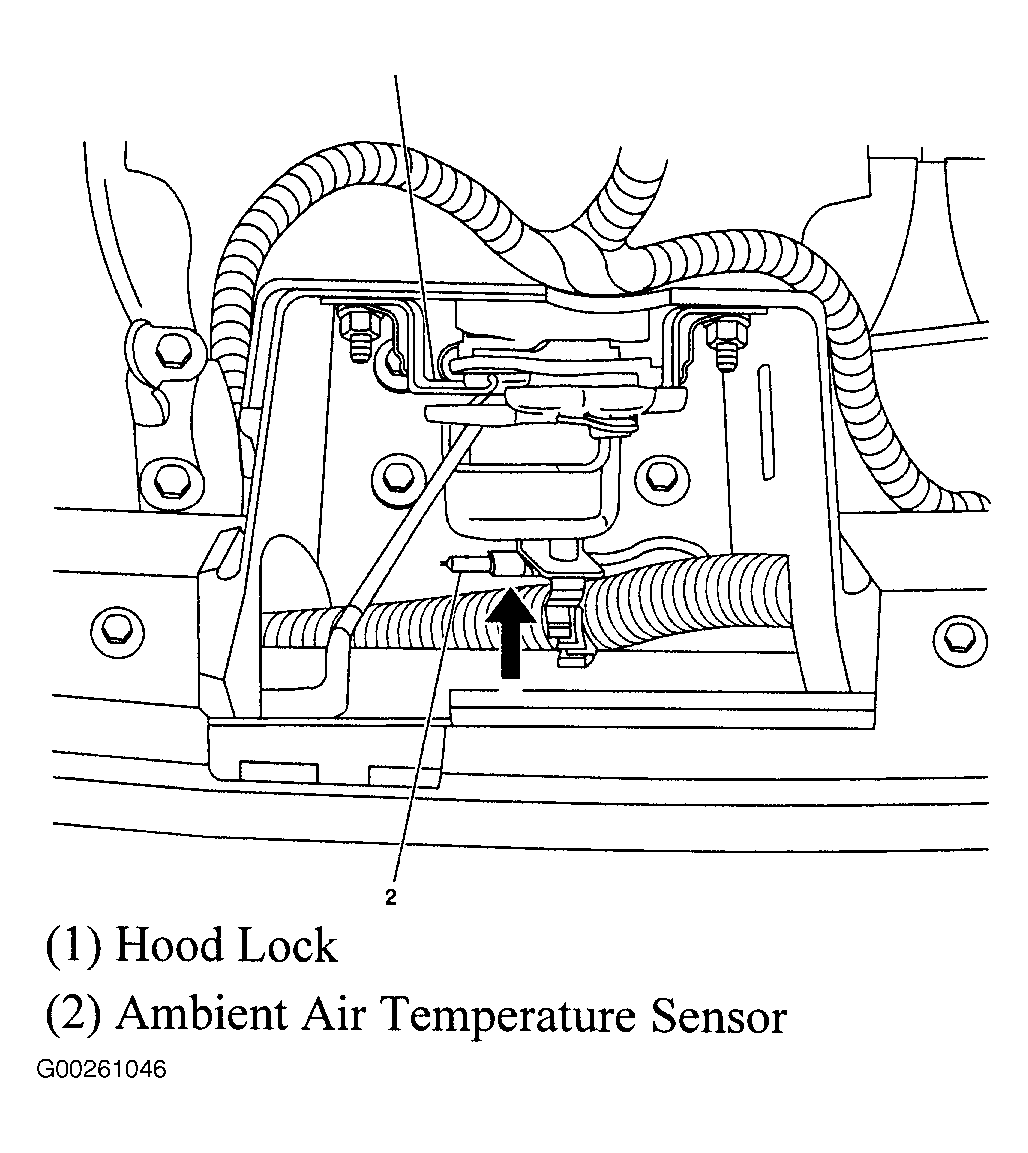

Fig 9: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

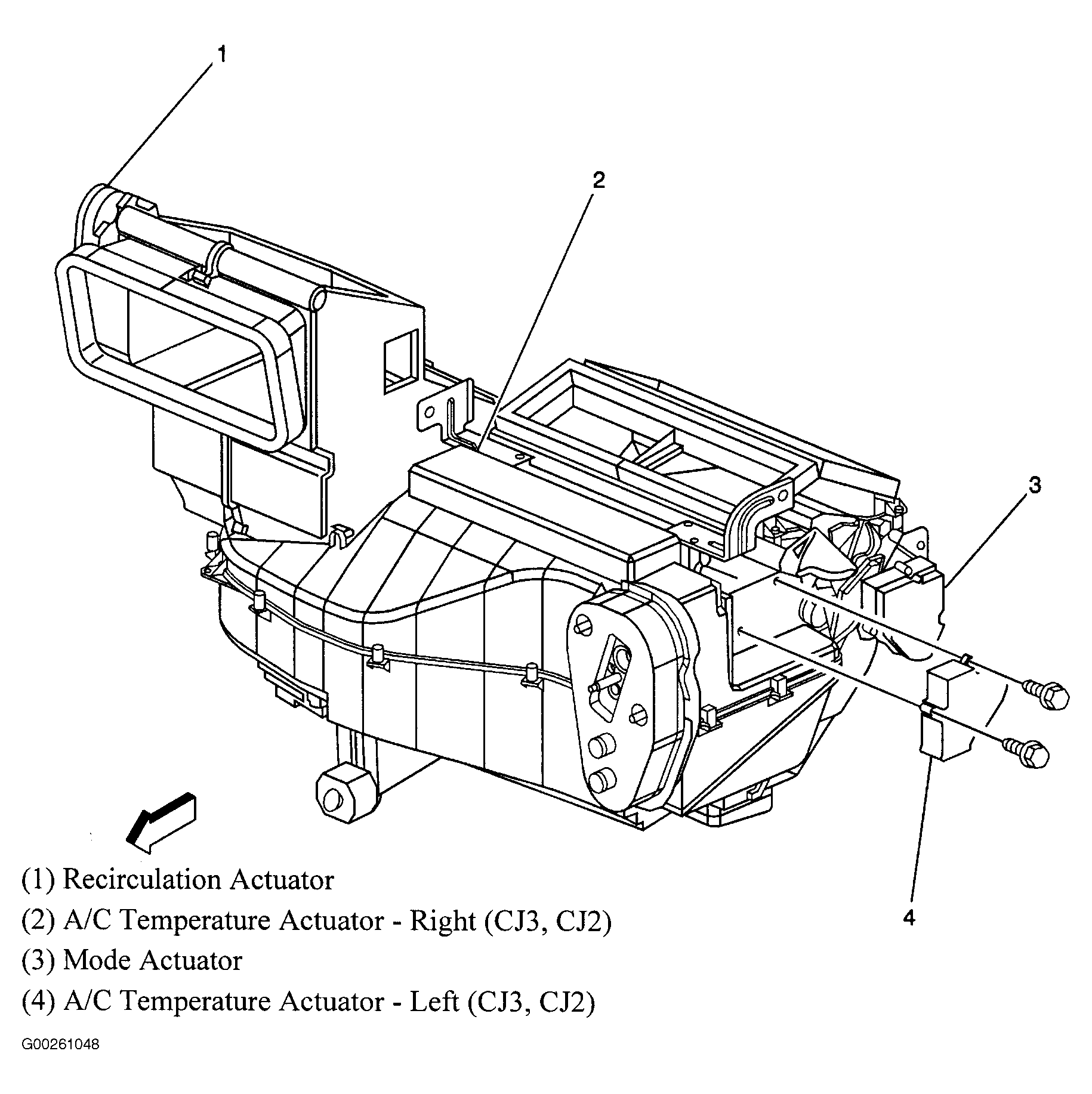

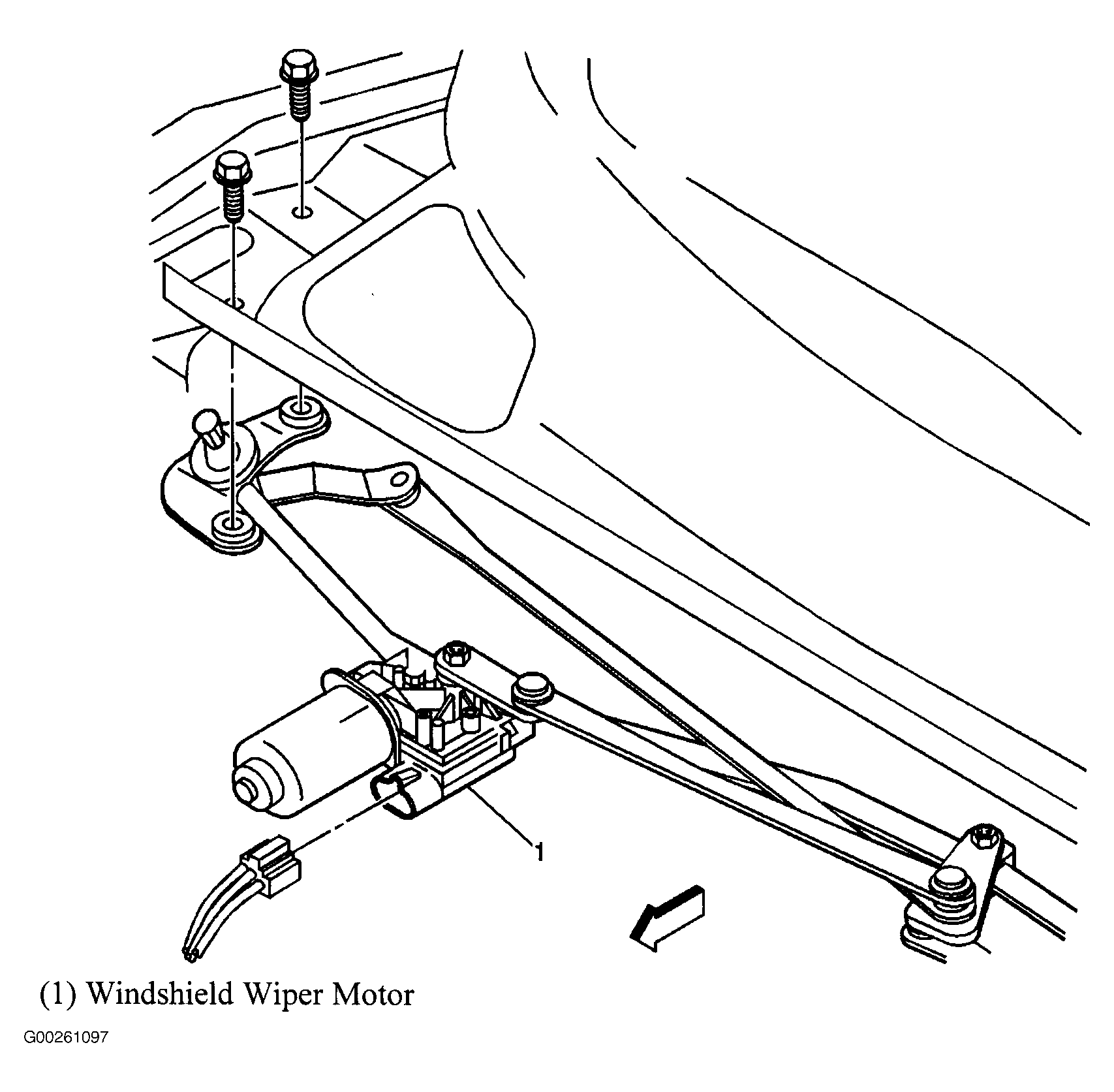

Fig 11: HVAC Air Plenum
Courtesy of GENERAL MOTORS CORP.

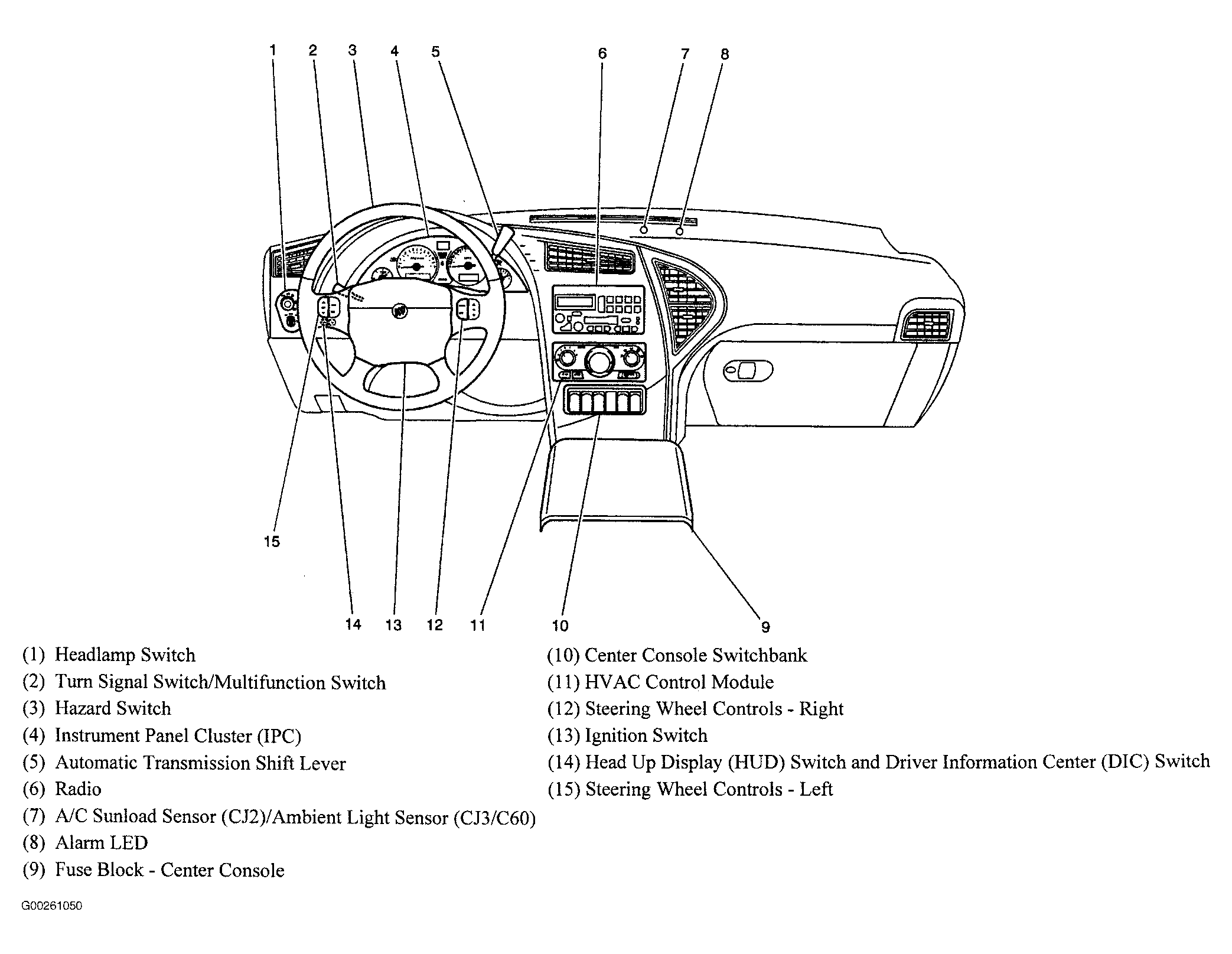

Fig 12: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

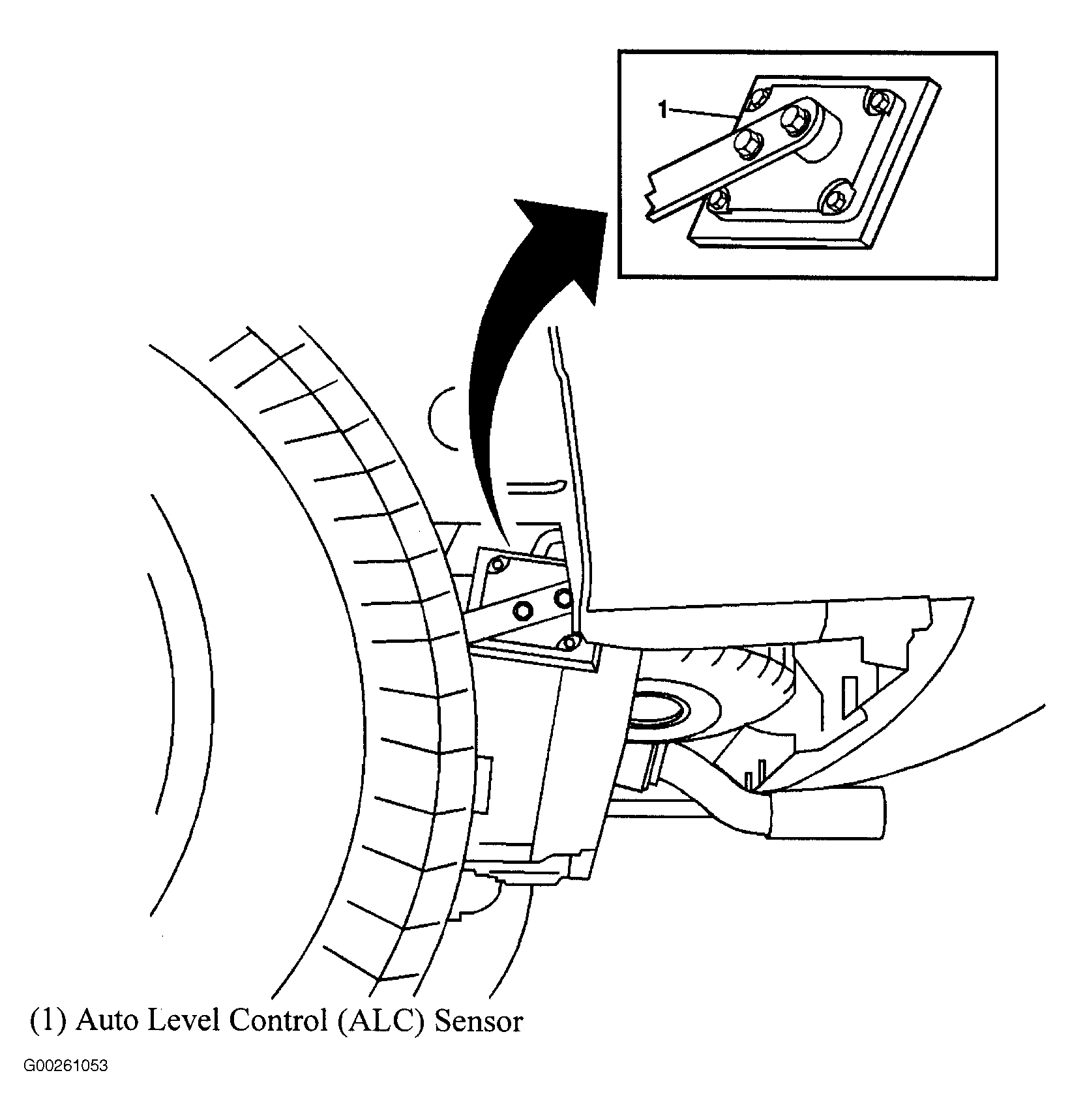

Fig 16: Lower Left Rear Of Vehicle (AWD)
Courtesy of GENERAL MOTORS CORP.

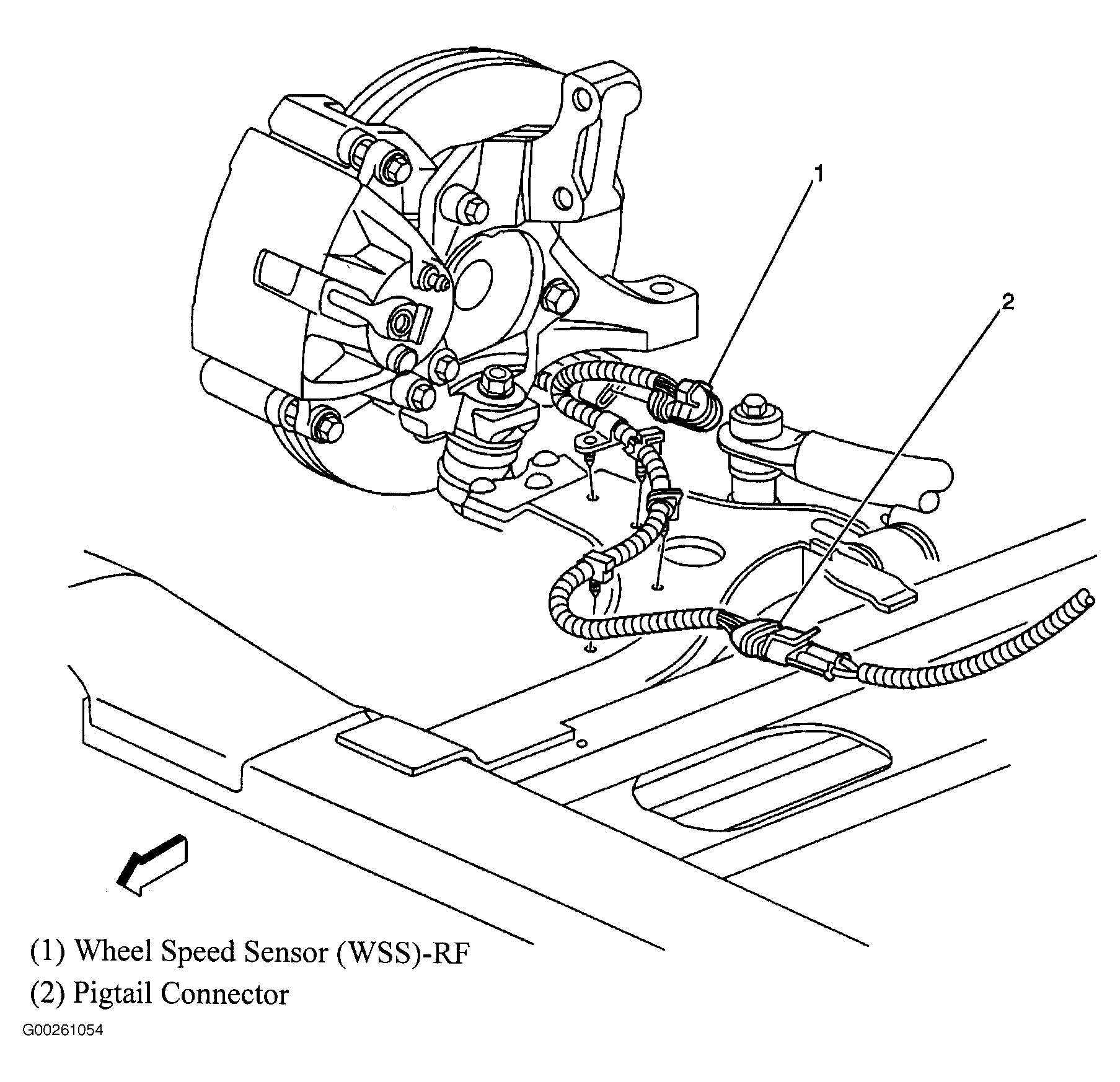

Fig 17: Right Front Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

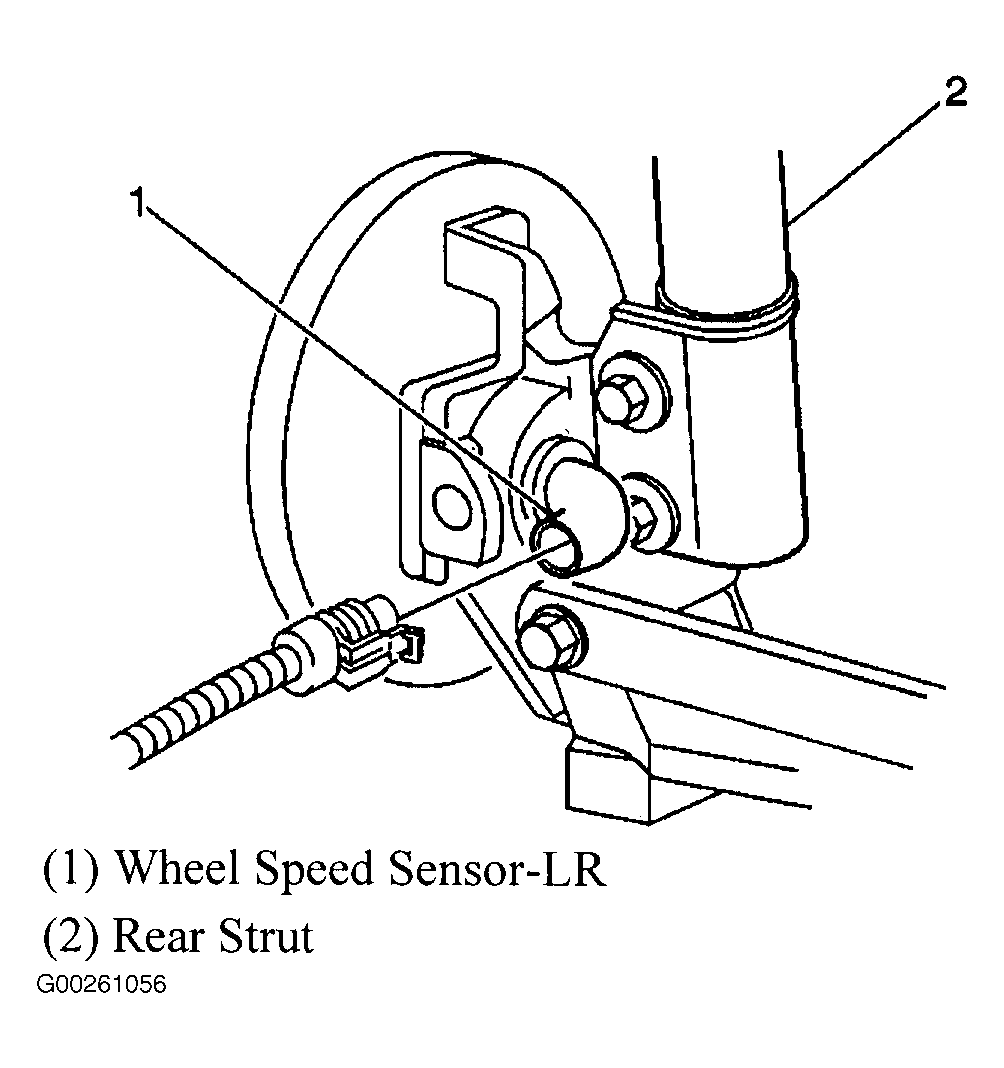

Fig 19: Left Rear Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.

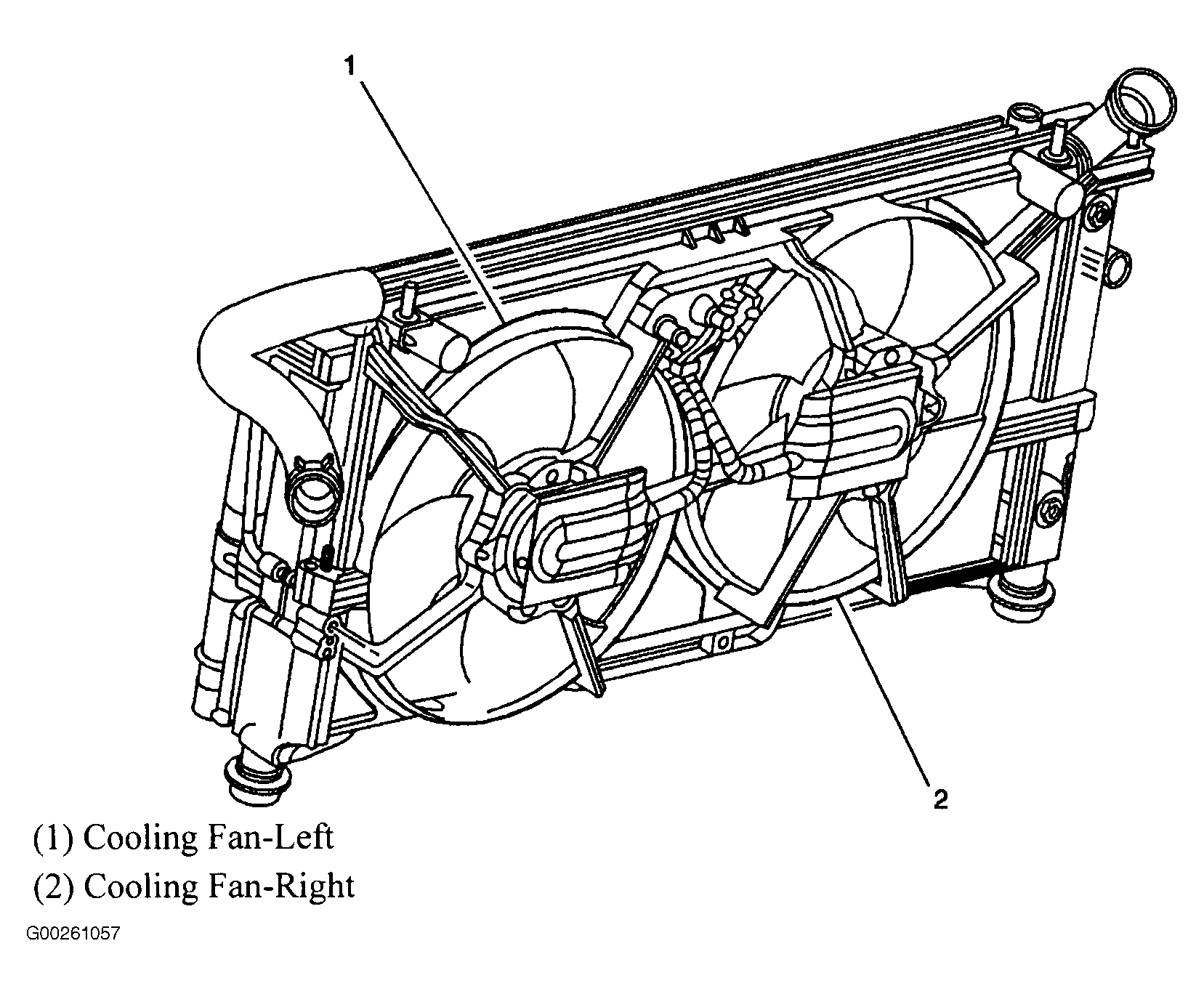

Fig 20: Cooling Fans
Courtesy of GENERAL MOTORS CORP.

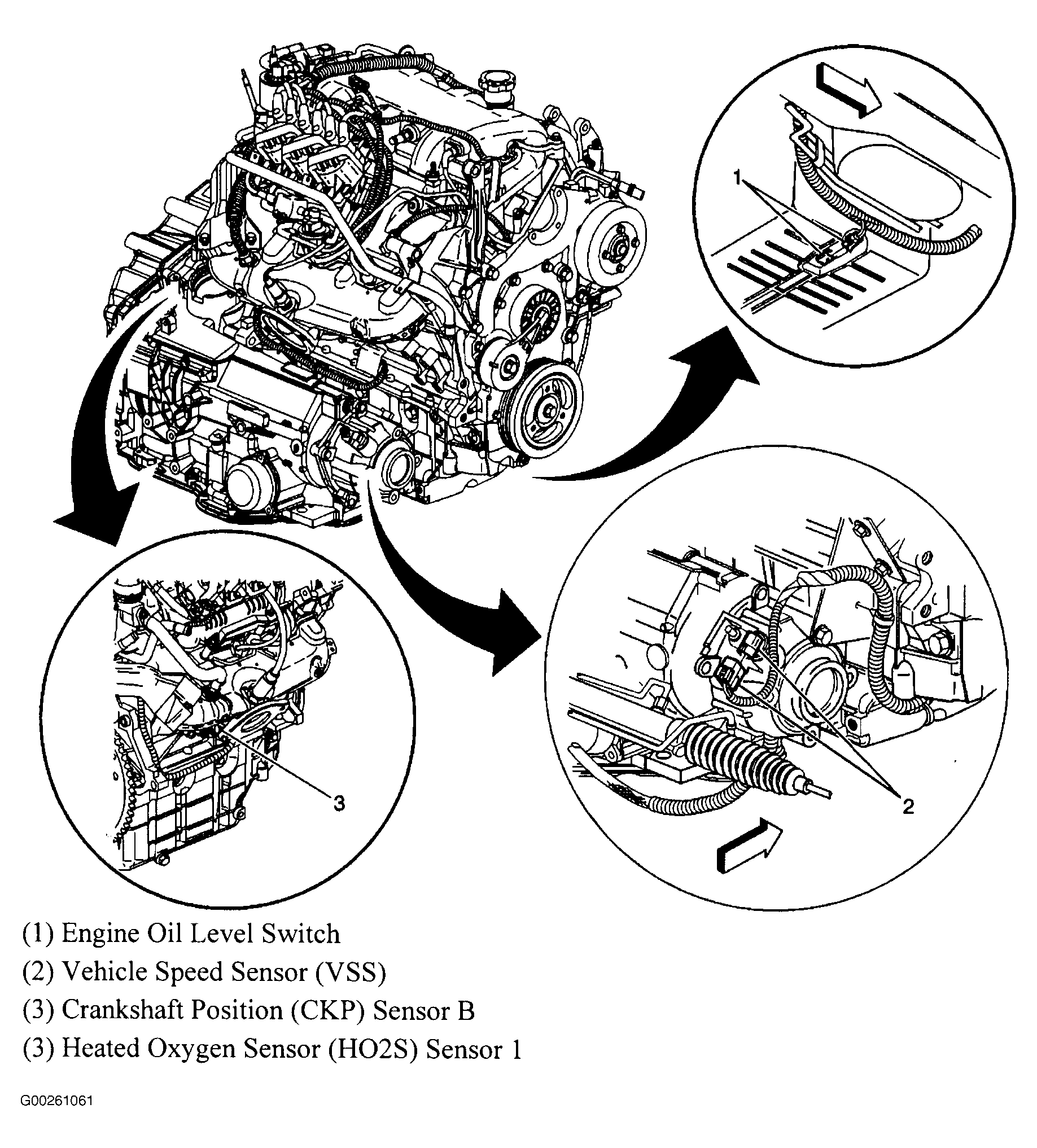

Fig 21: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

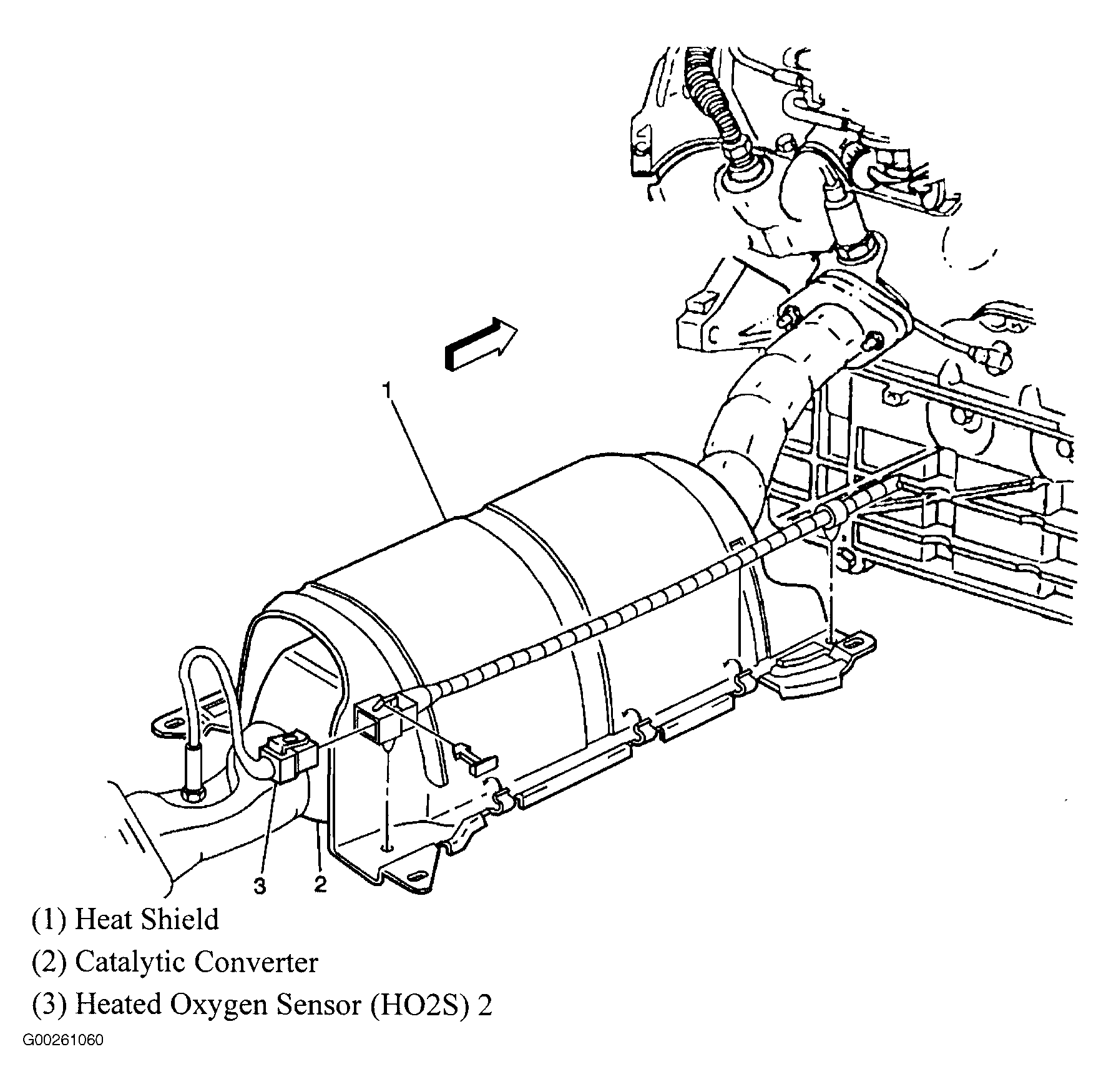

Fig 23: Exhaust
Courtesy of GENERAL MOTORS CORP.

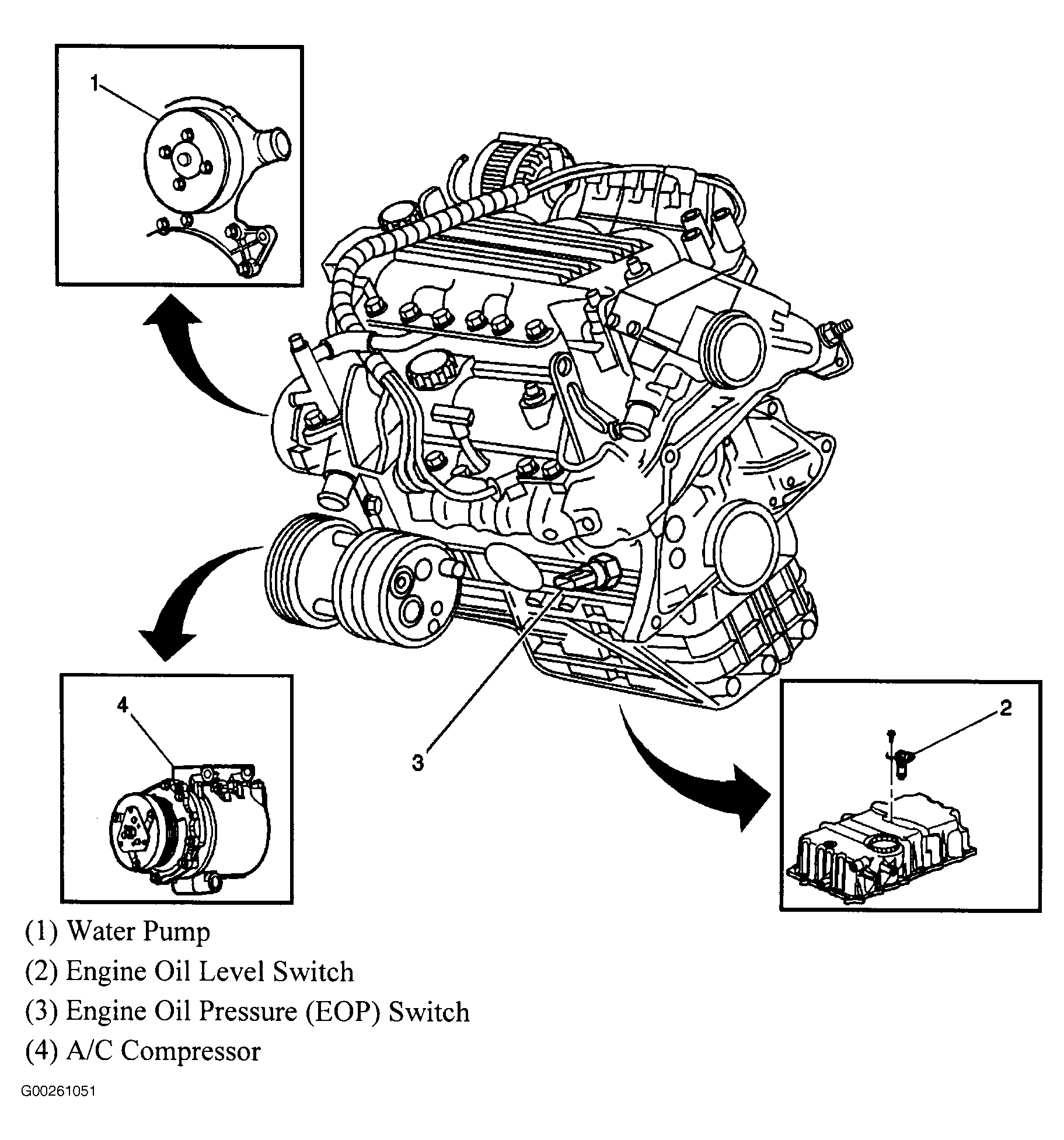

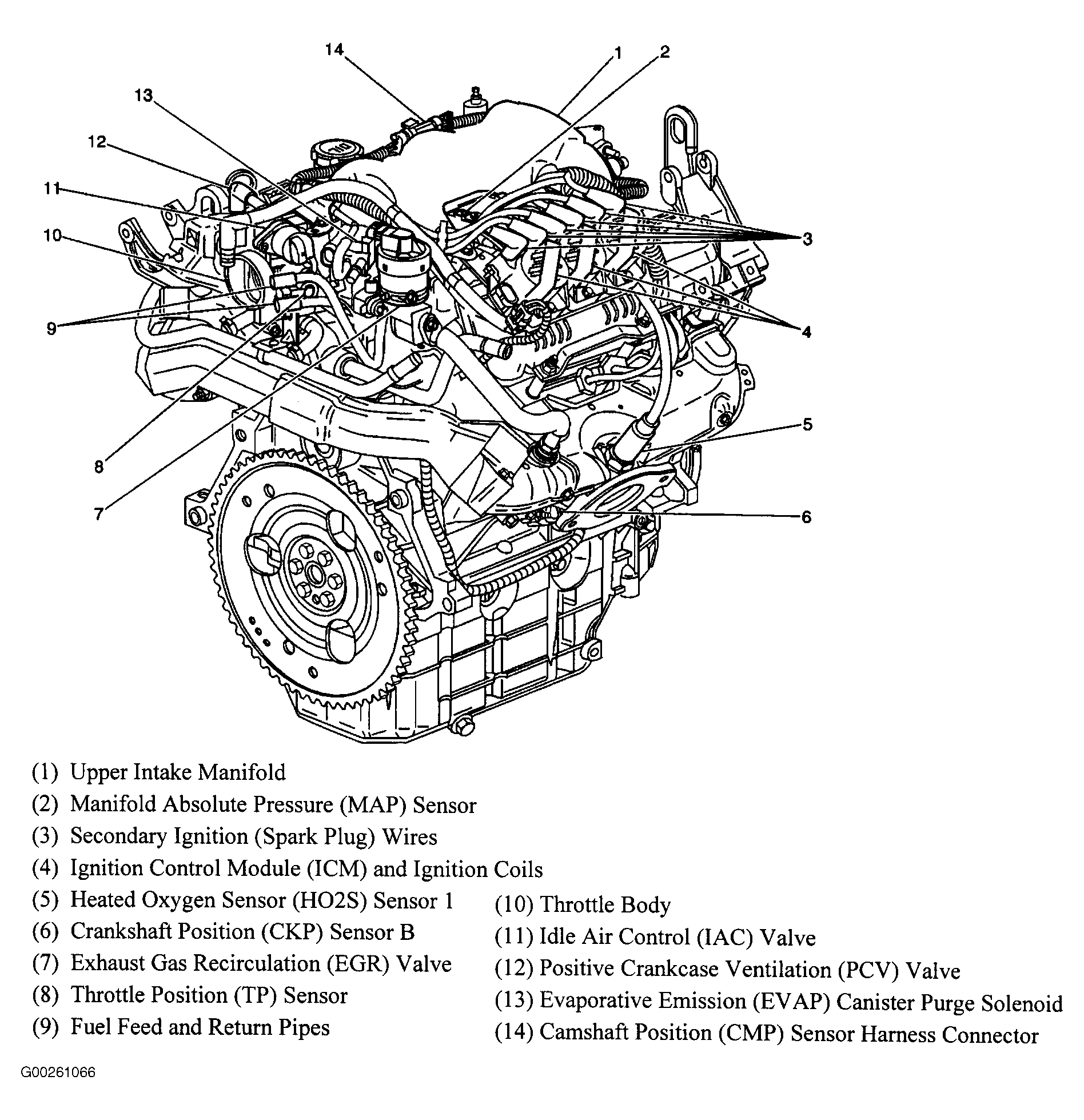

Fig 24: Engine Assembly (3.4L)
Courtesy of GENERAL MOTORS CORP.

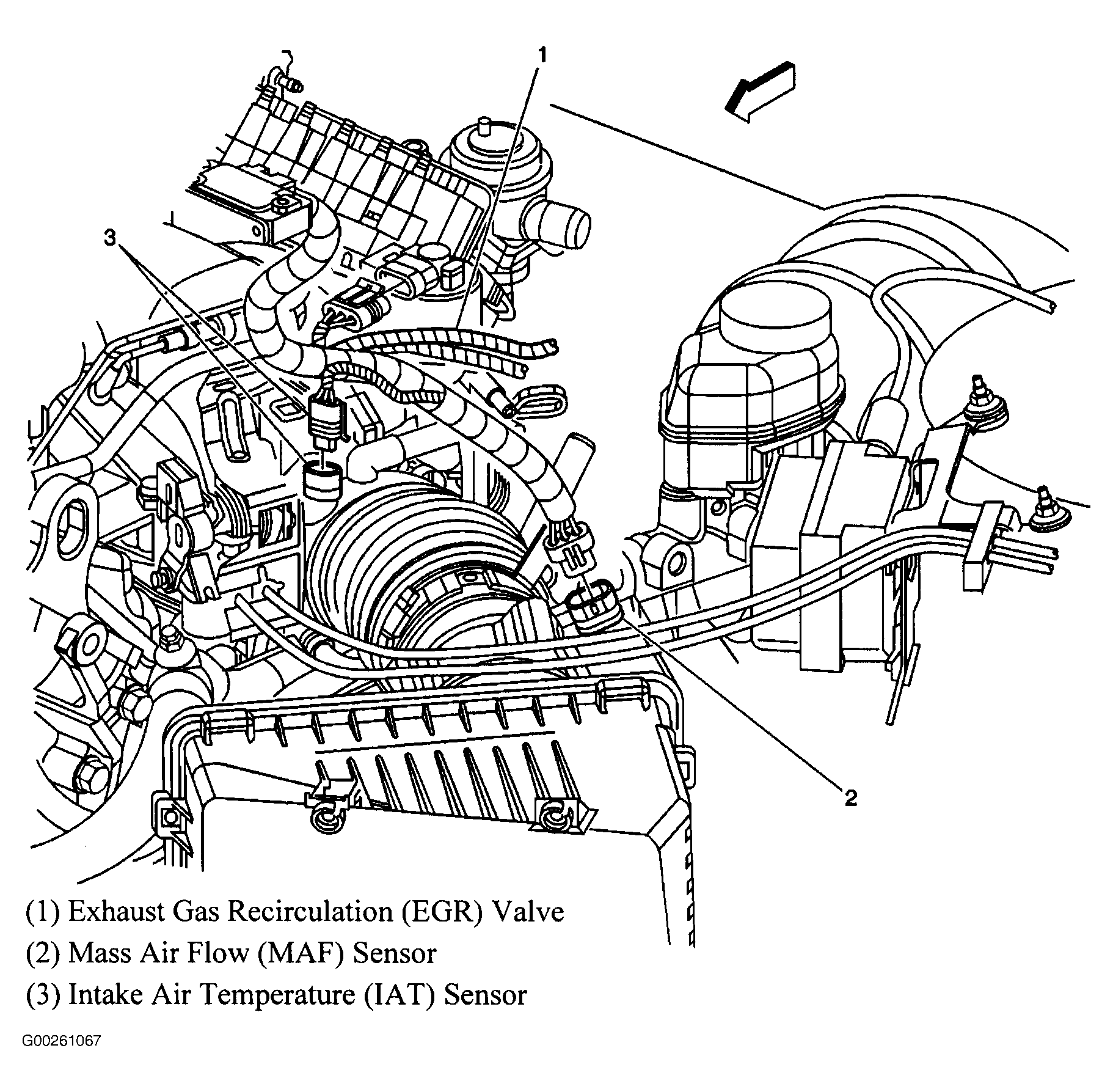

Fig 25: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

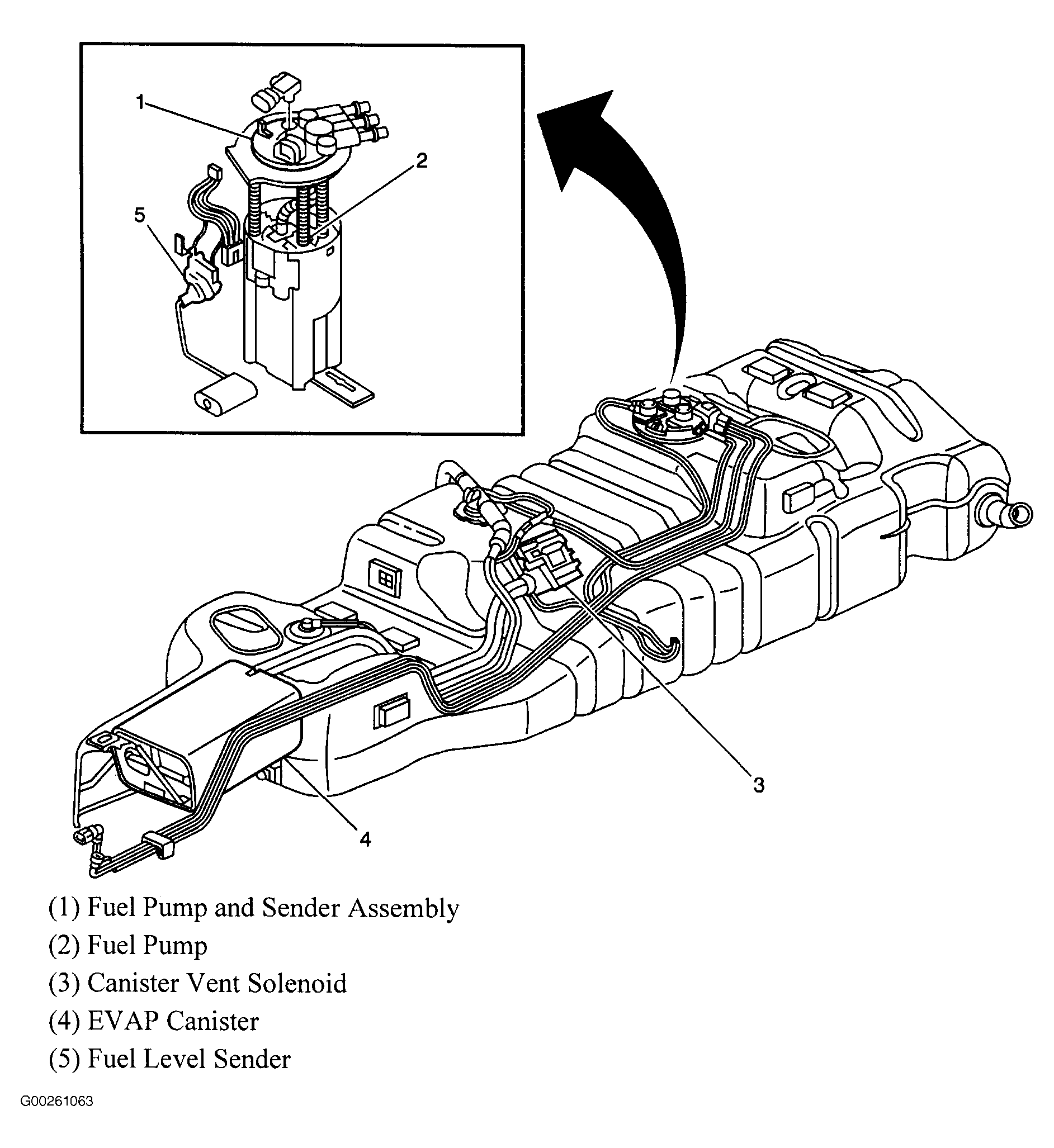

Fig 26: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

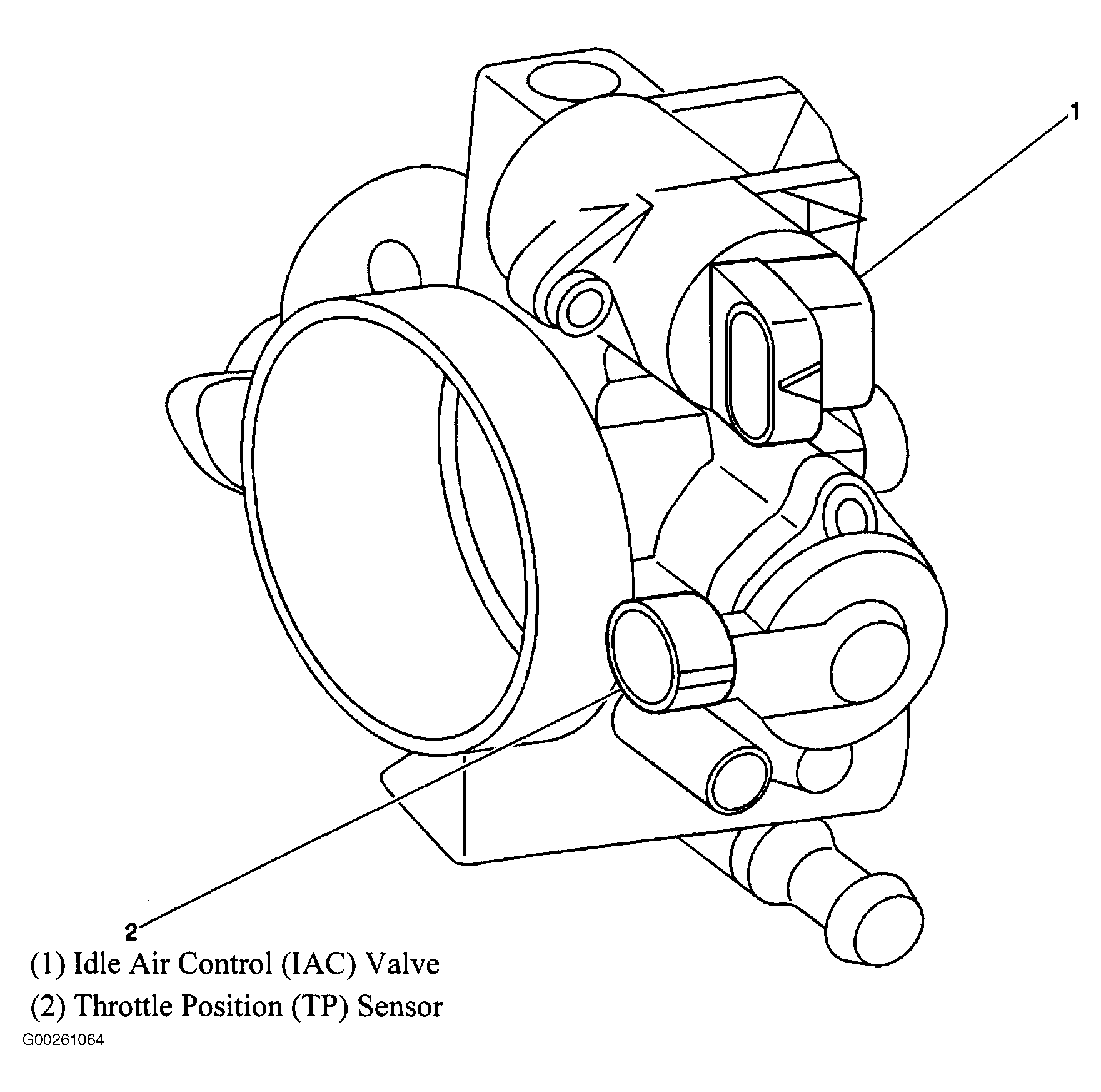

Fig 27: Throttle Body Assembly
Courtesy of GENERAL MOTORS CORP.

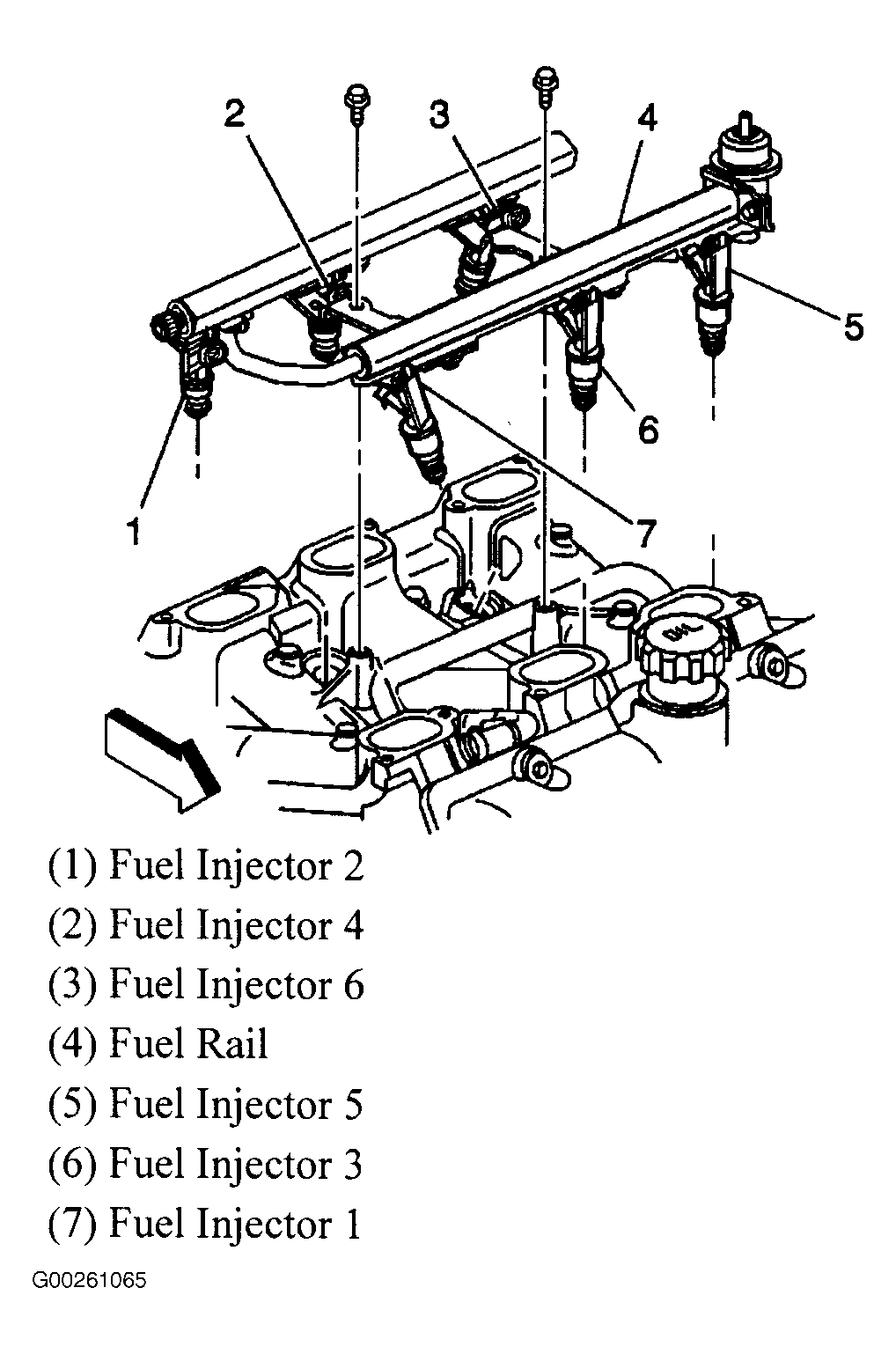

Fig 28: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Rear Of Engine (3.4L)
Courtesy of GENERAL MOTORS CORP.

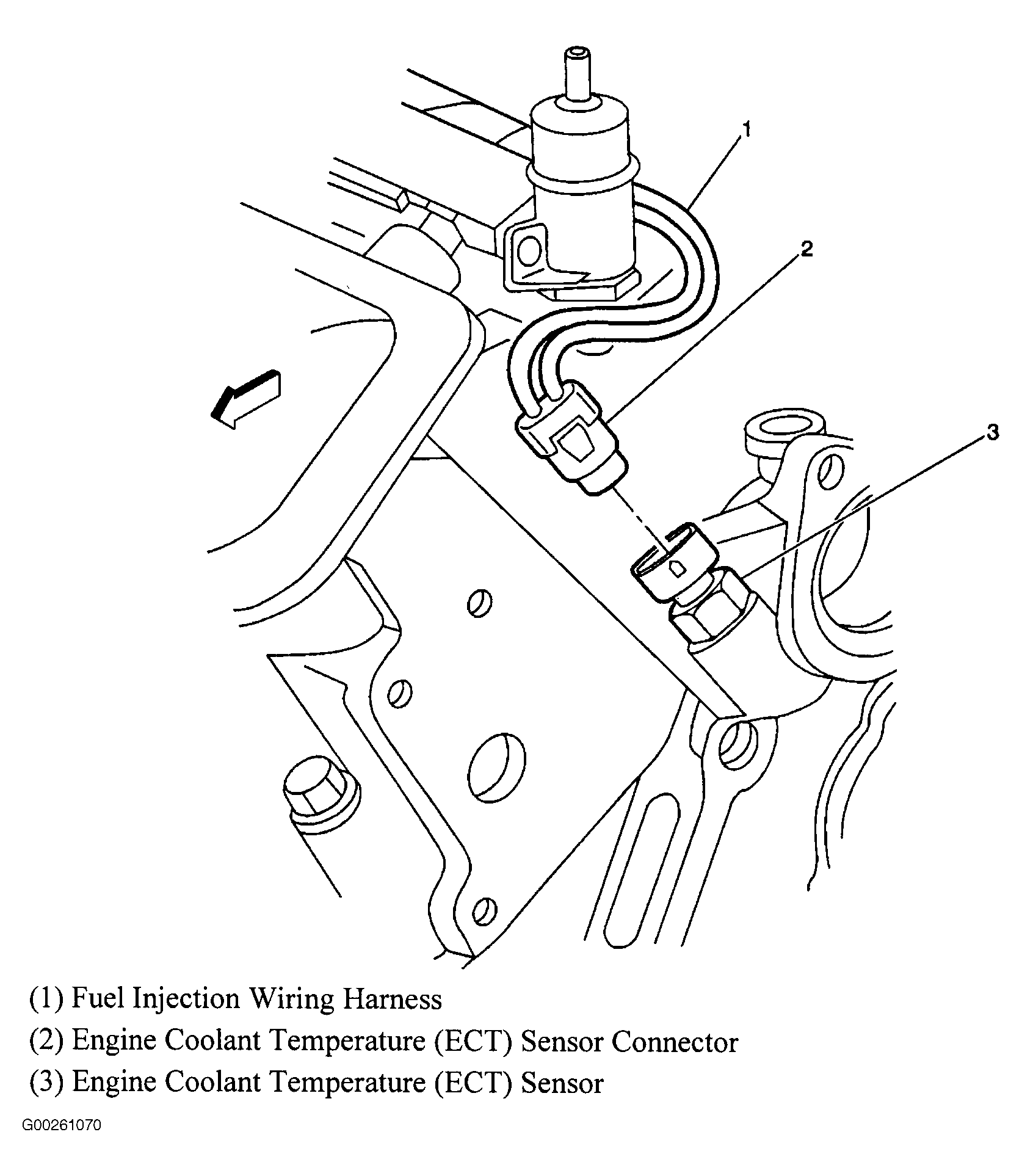

Fig 30: Top Left Of Engine (3.4L)
Courtesy of GENERAL MOTORS CORP.

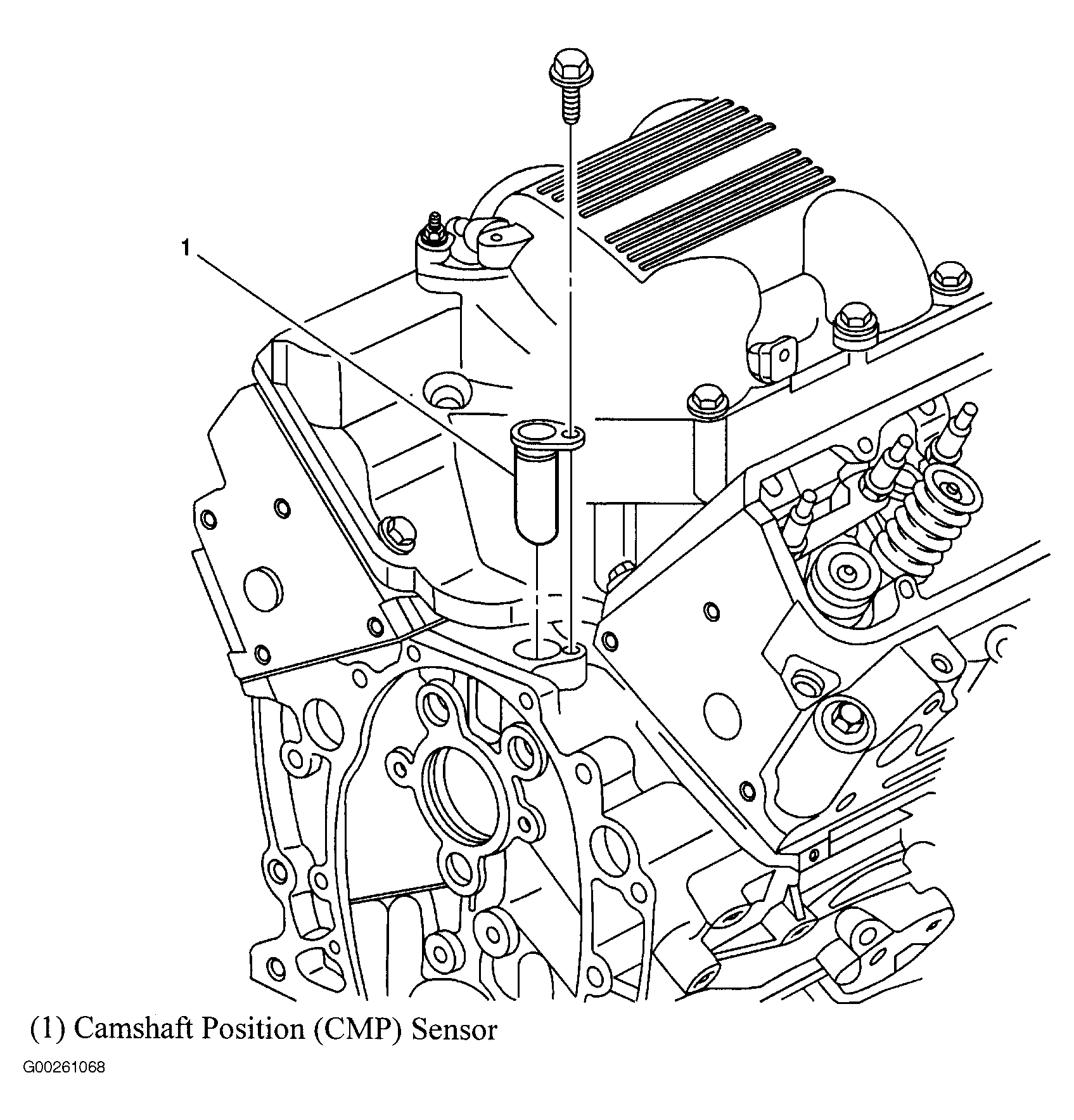

Fig 31: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 32: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 33: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 34: Steering Column Disassembled View (Pontiac)
Courtesy of GENERAL MOTORS CORP.

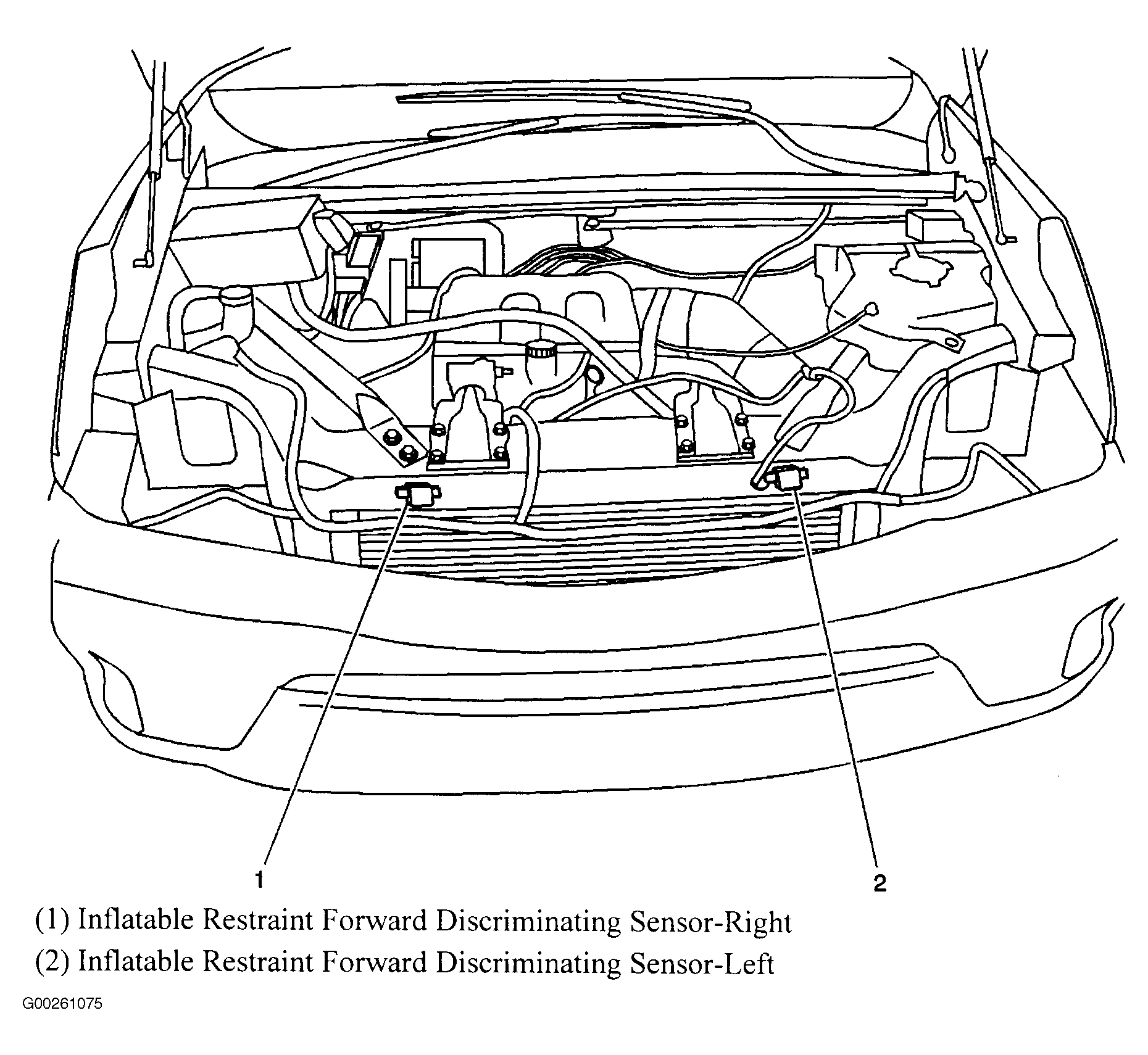

Fig 35: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 36: Top View Of Vehicle
Courtesy of GENERAL MOTORS CORP.

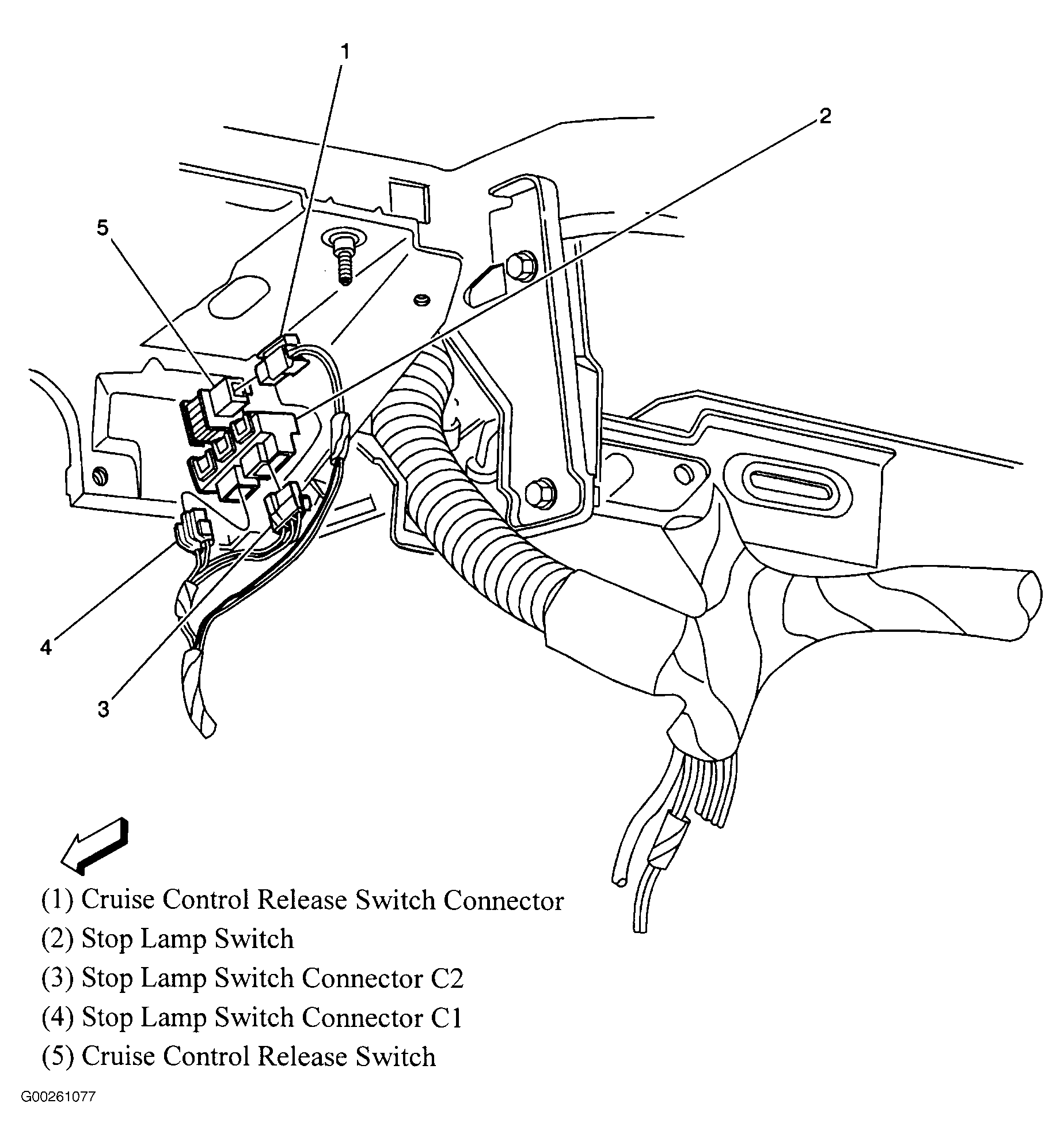

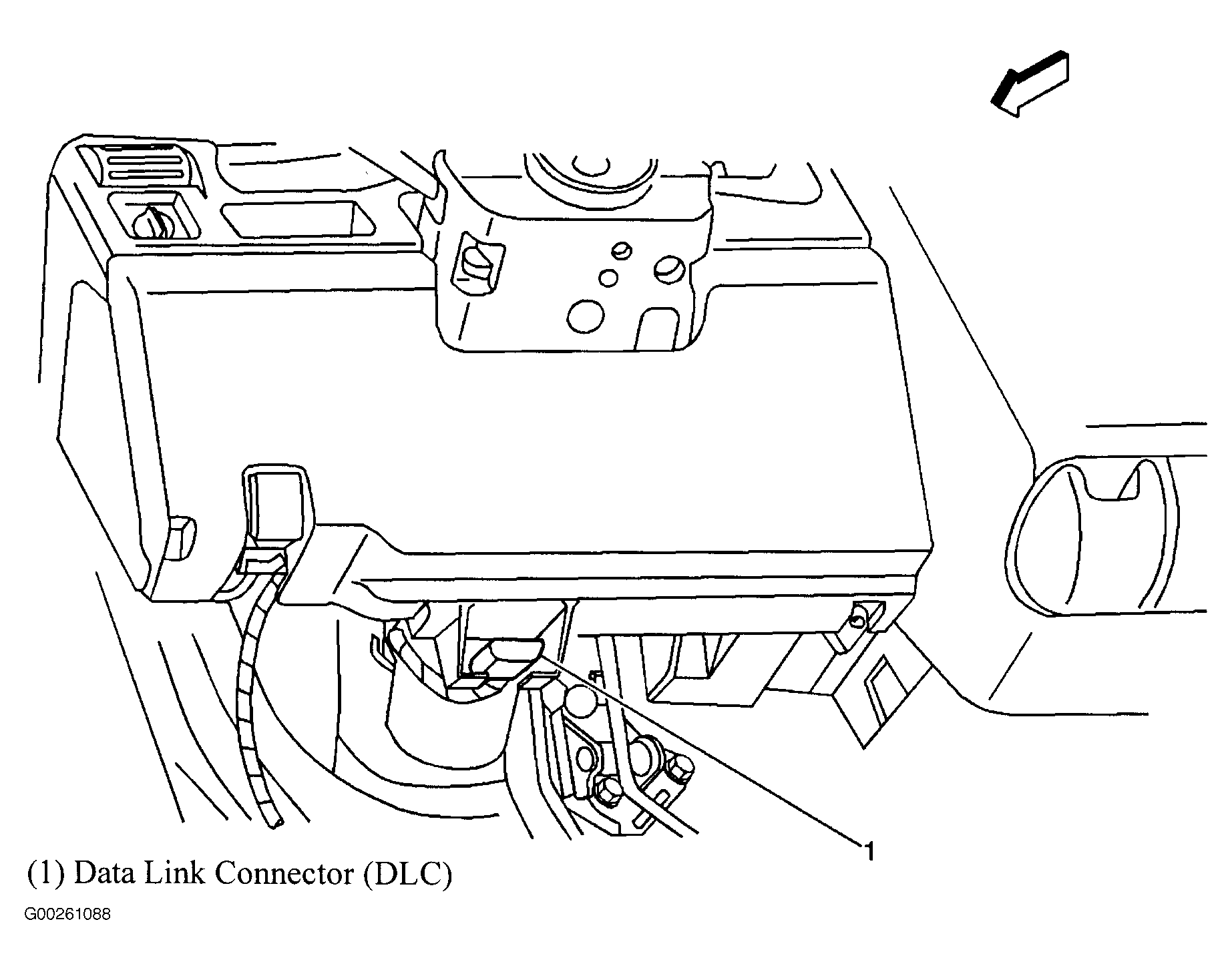

Fig 37: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

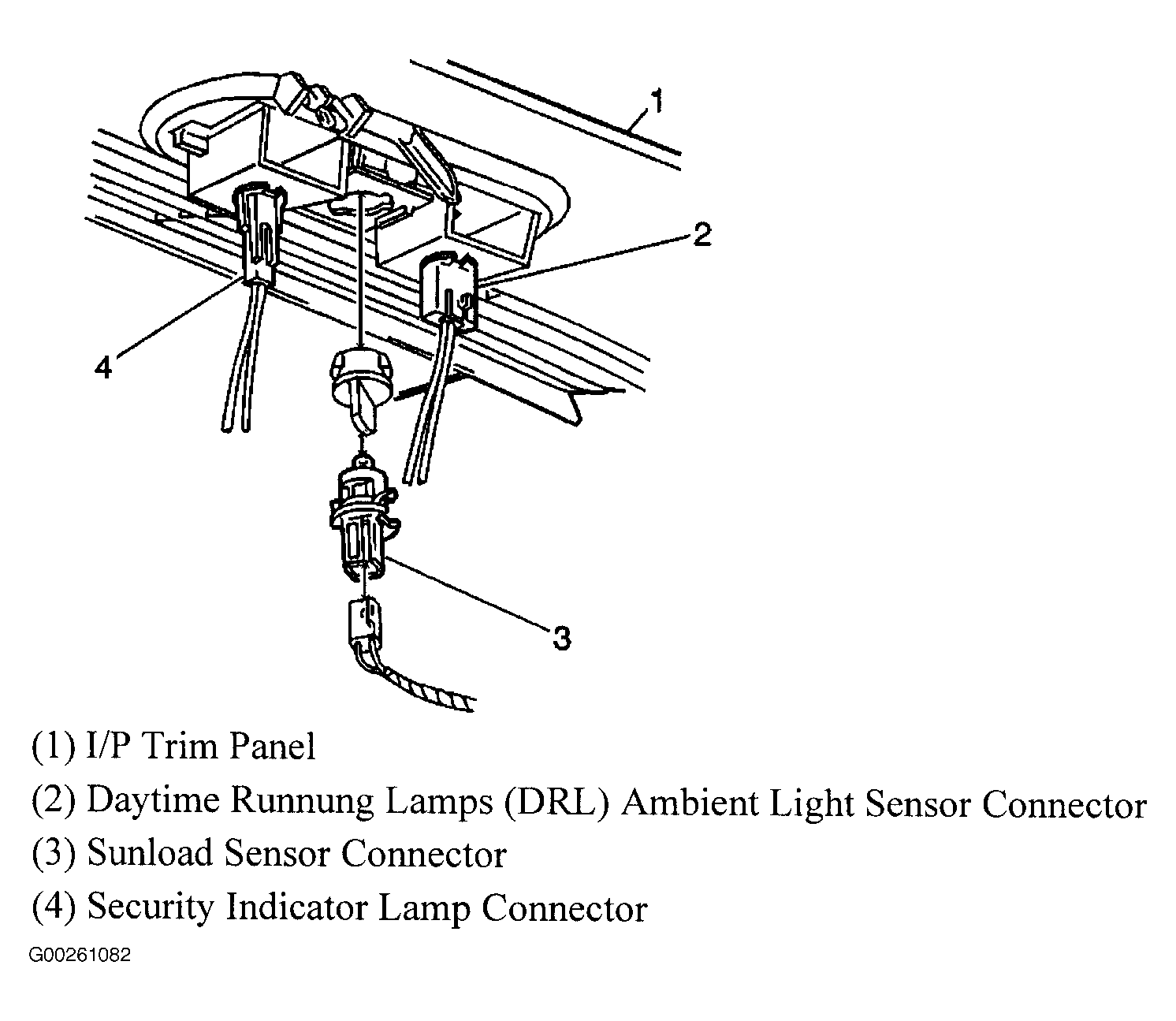

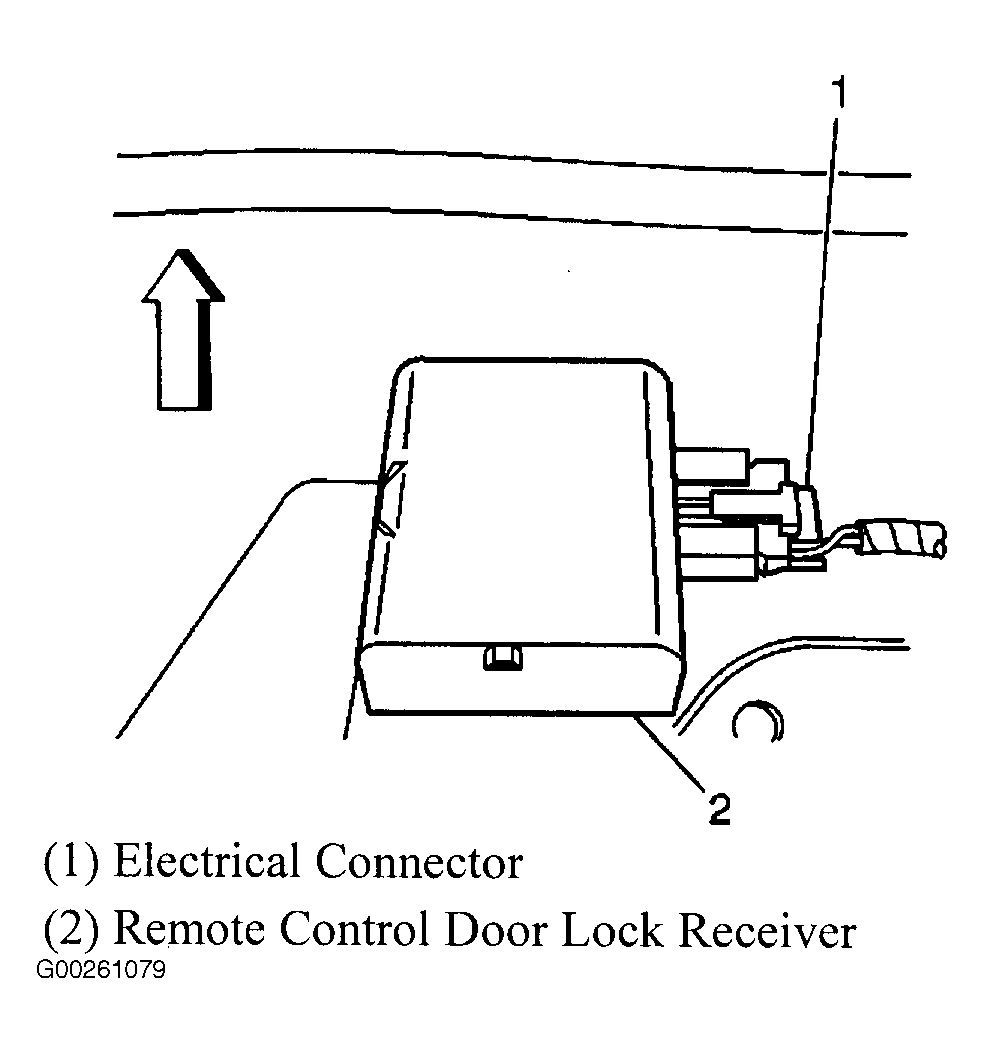

Fig 38: Upper Dash Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 39: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

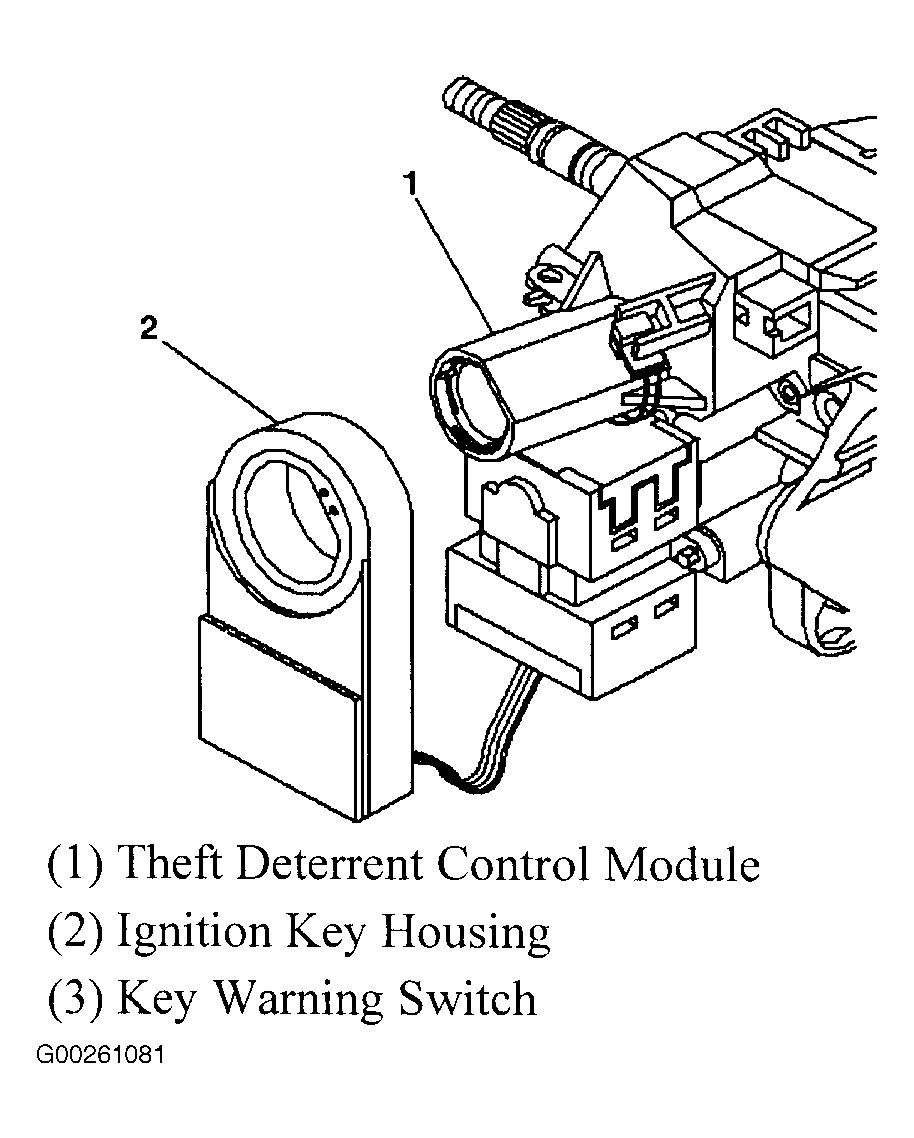

Fig 40: Theft Deterrent Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 41: Dash Trim Panel
Courtesy of GENERAL MOTORS CORP.

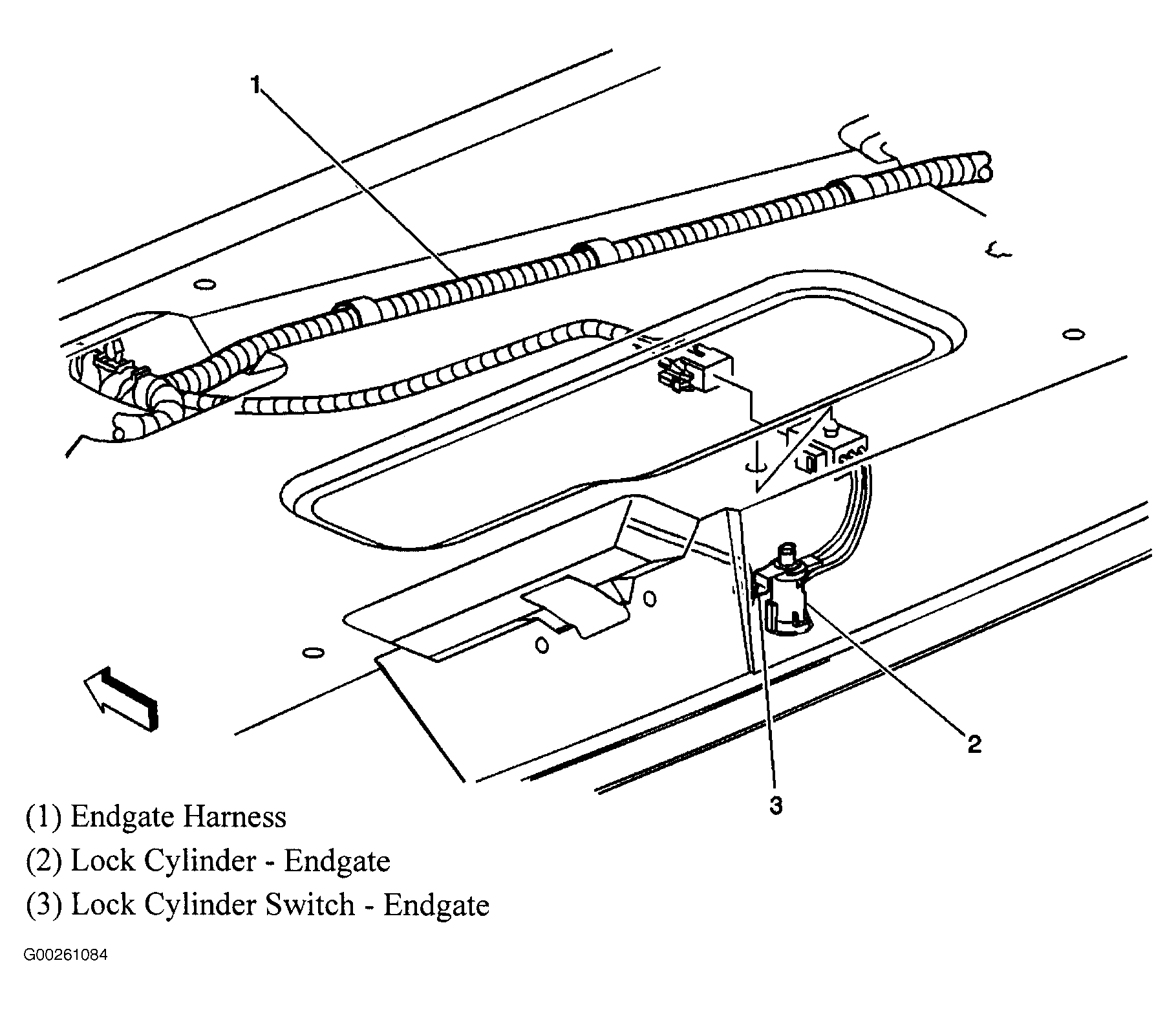

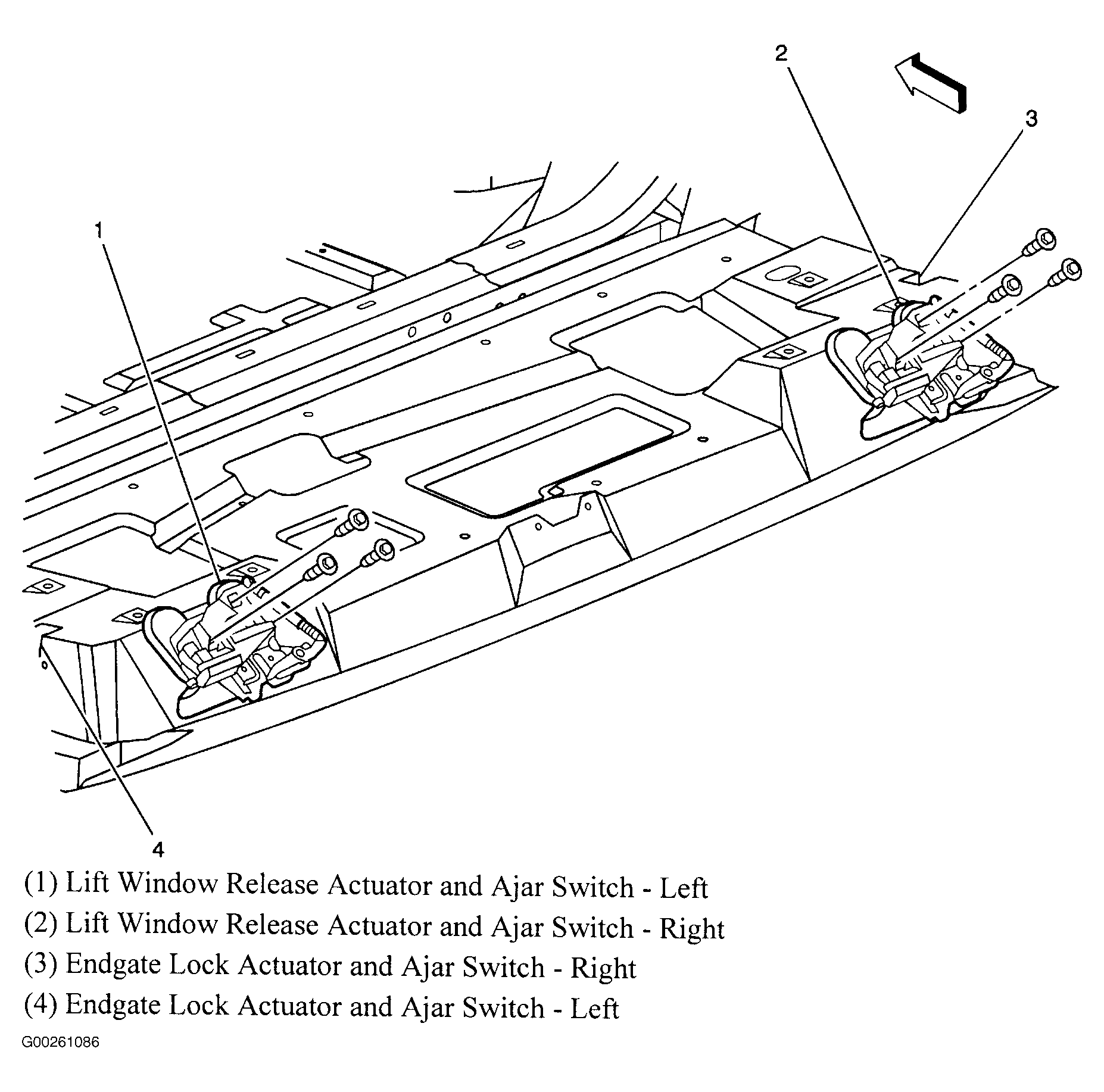

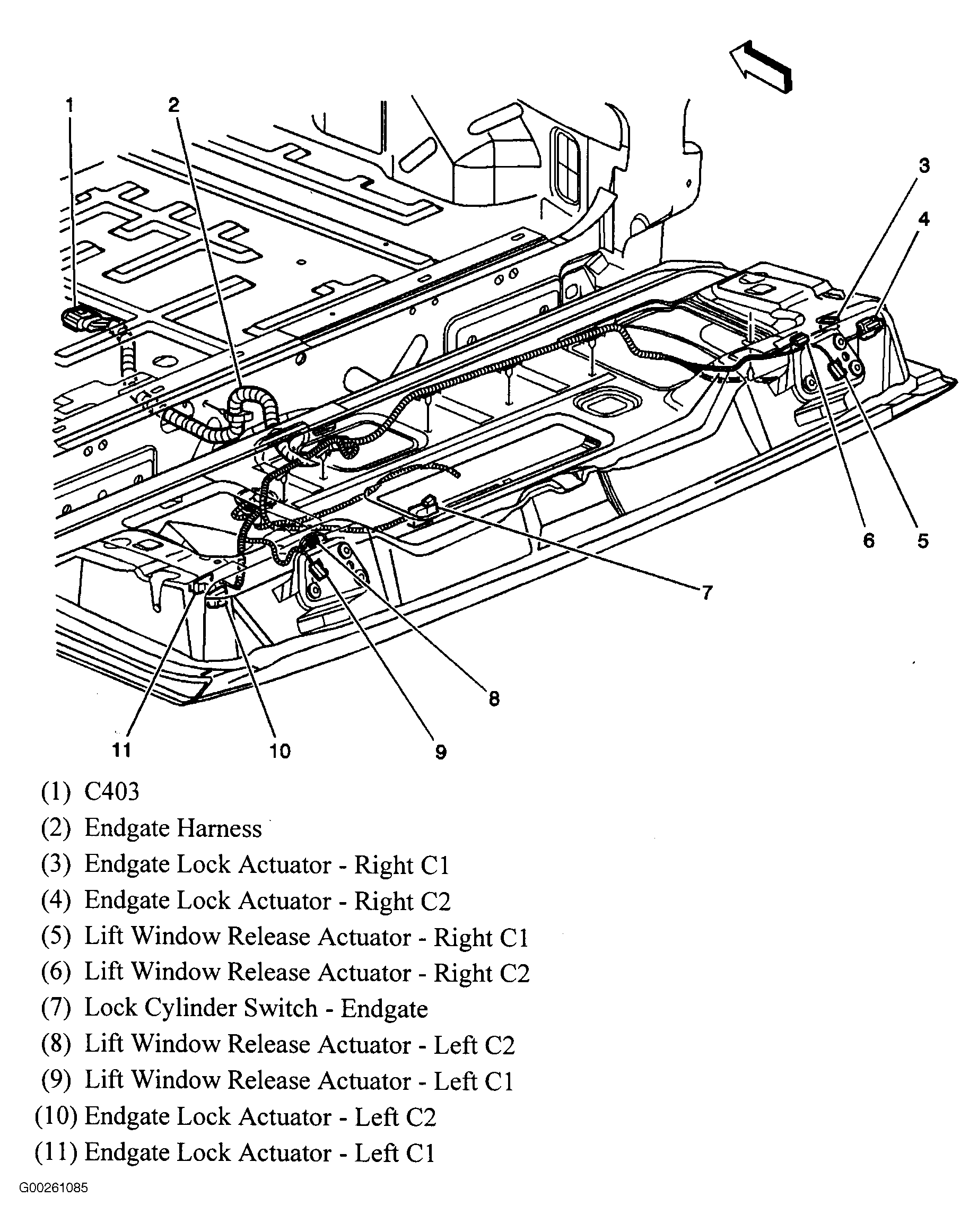

Fig 42: Tailgate (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Tailgate (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Tailgate (Pontiac)
Courtesy of GENERAL MOTORS CORP.

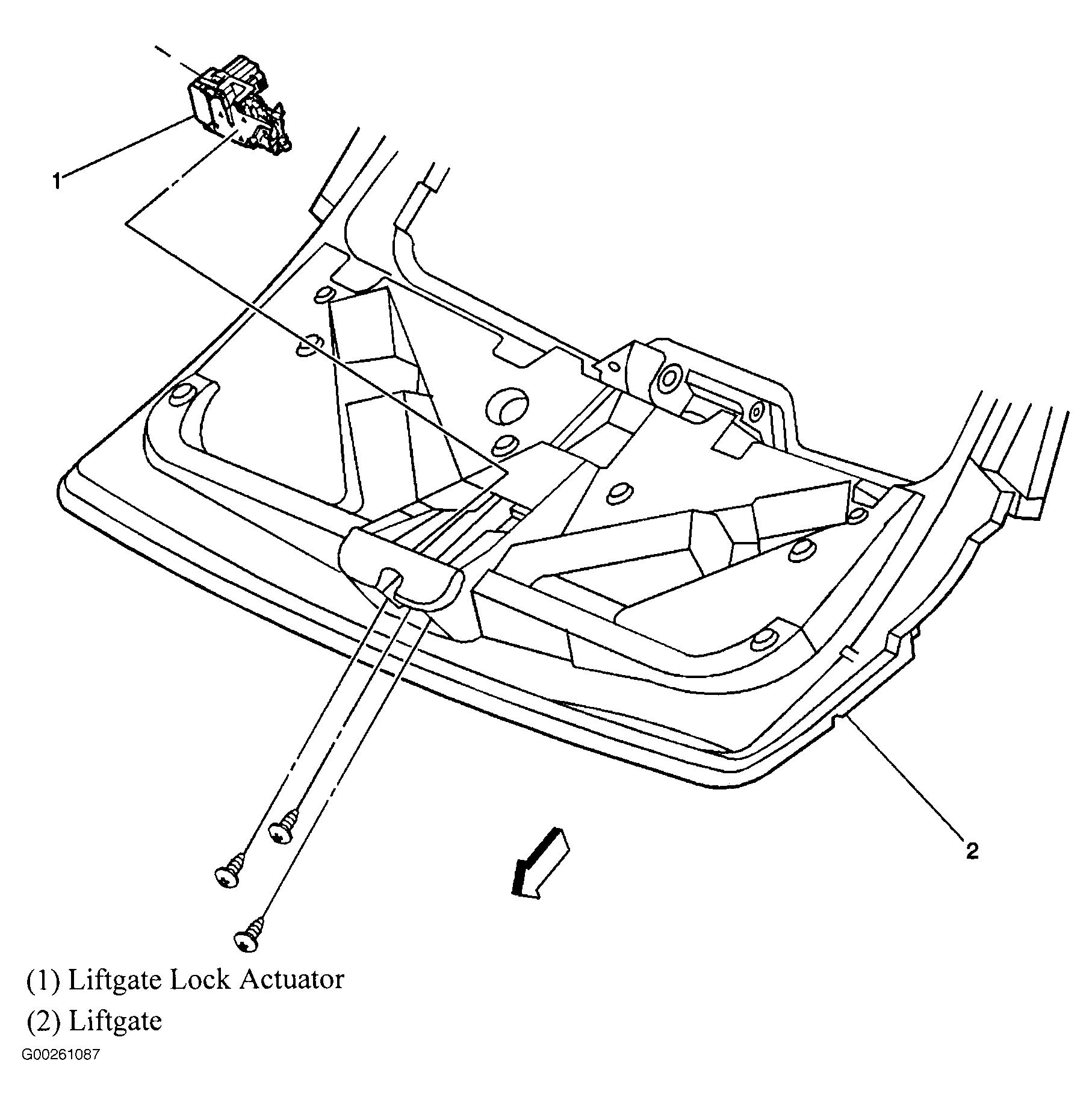

Fig 45: Liftgate (Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

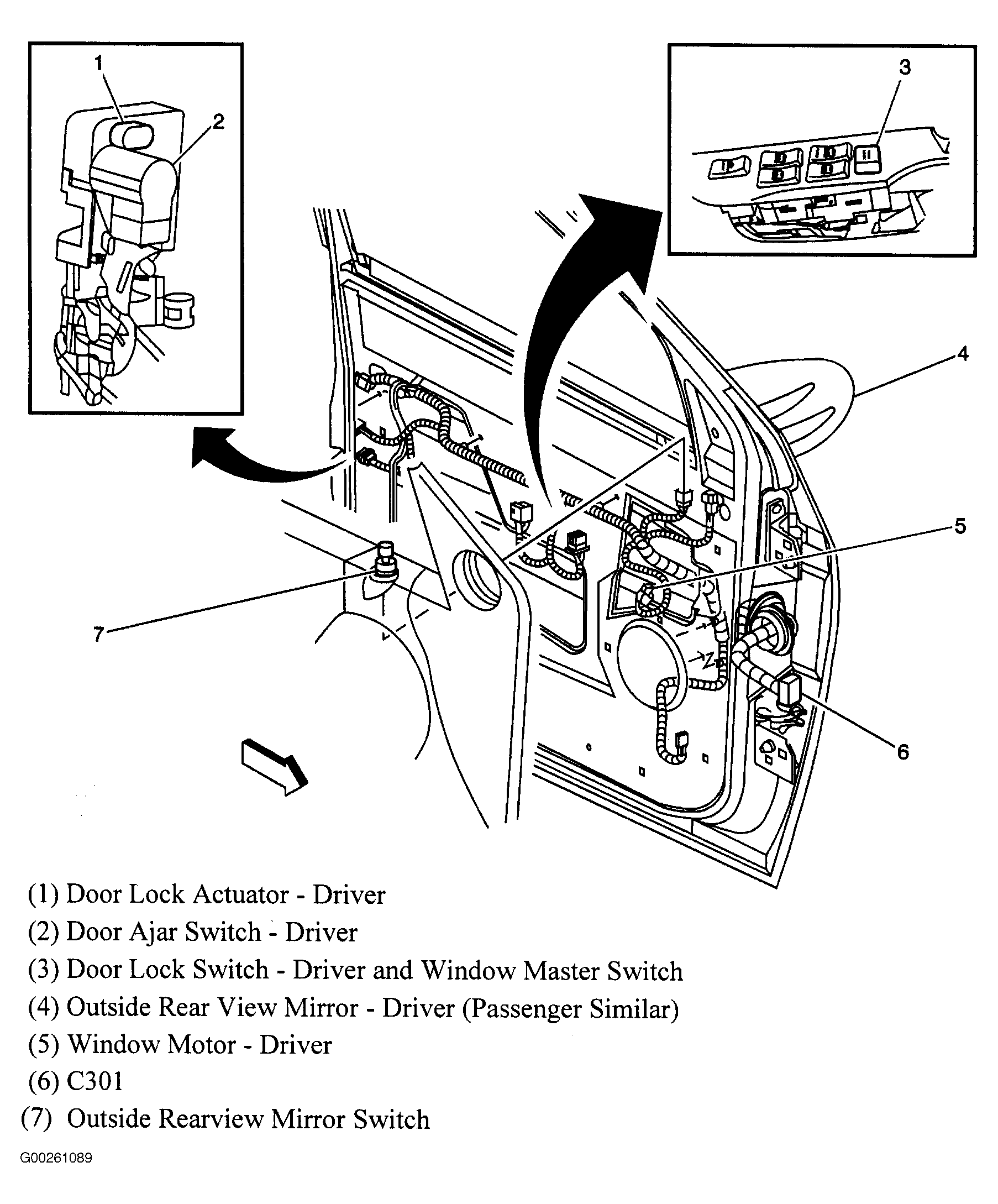

Fig 47: Driver's Door
Courtesy of GENERAL MOTORS CORP.

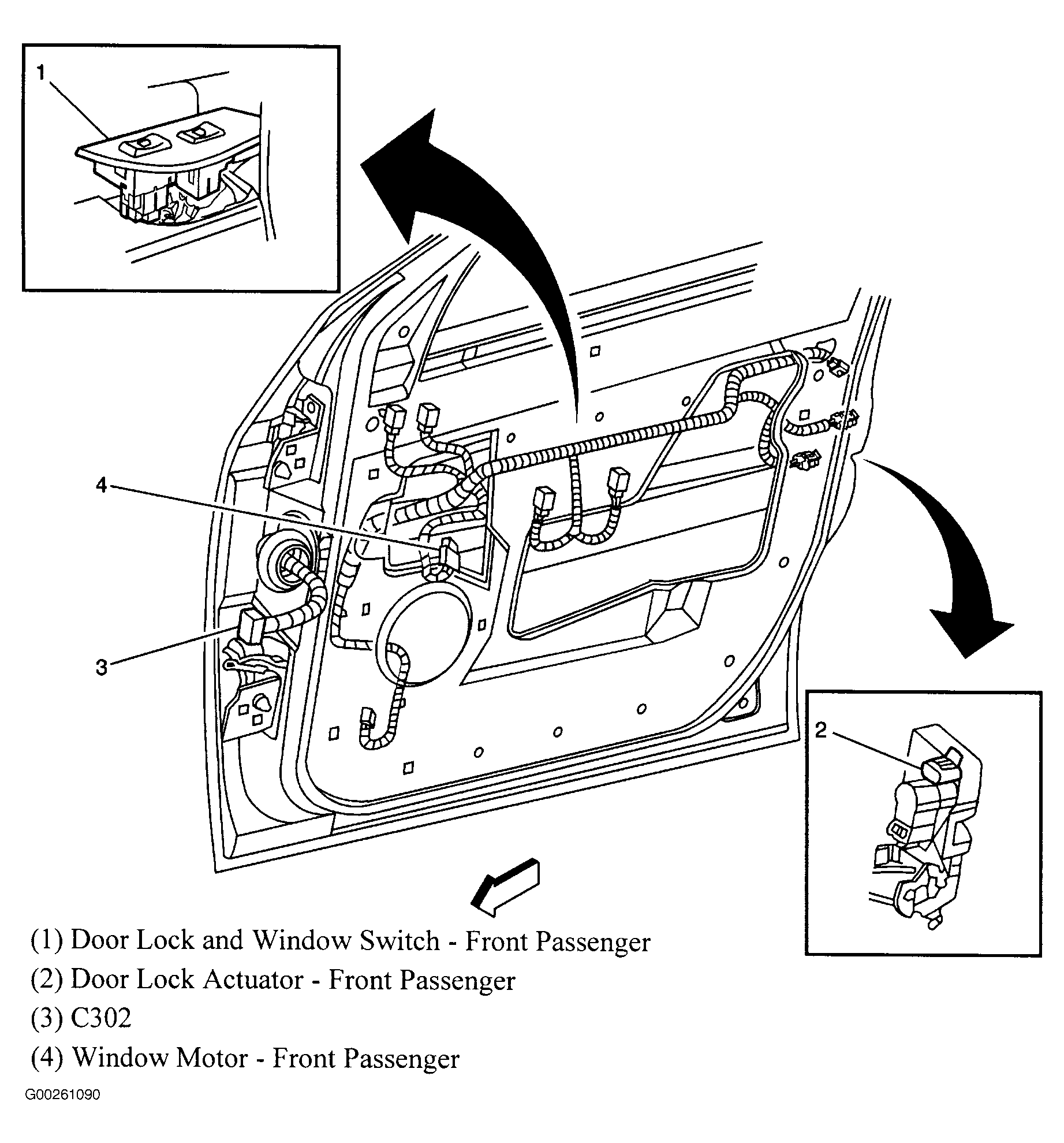

Fig 48: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

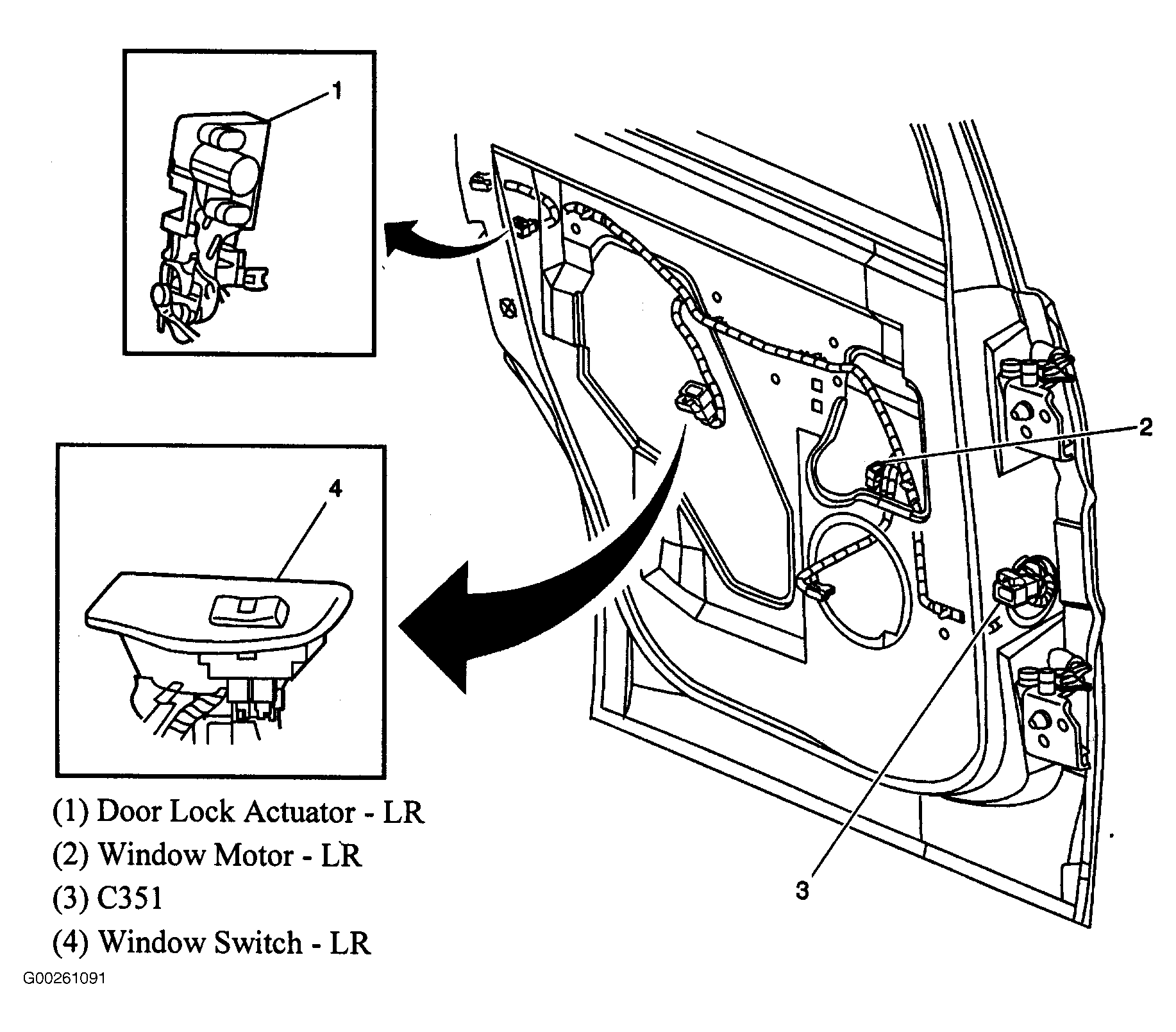

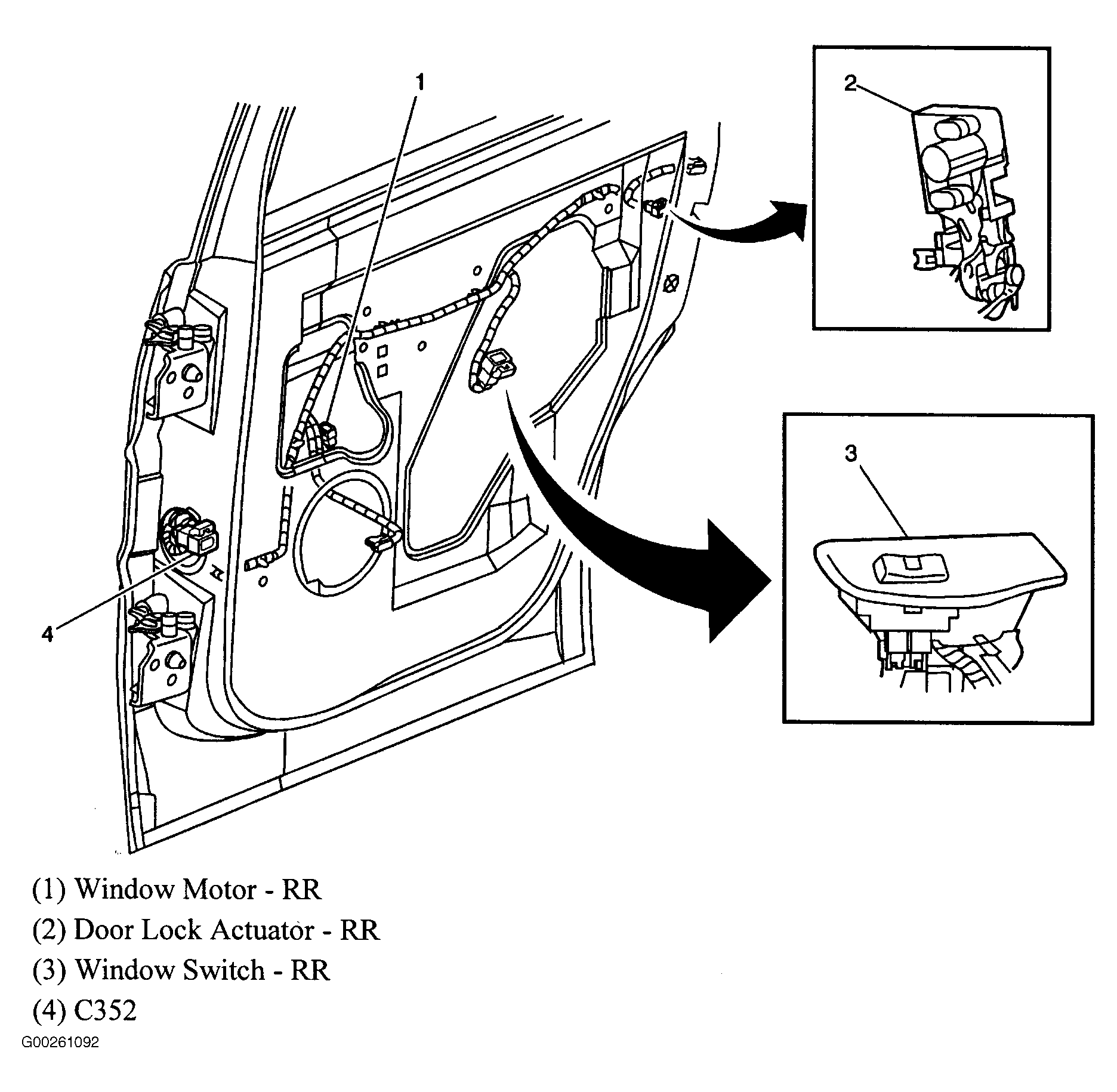

Fig 49: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 52: Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

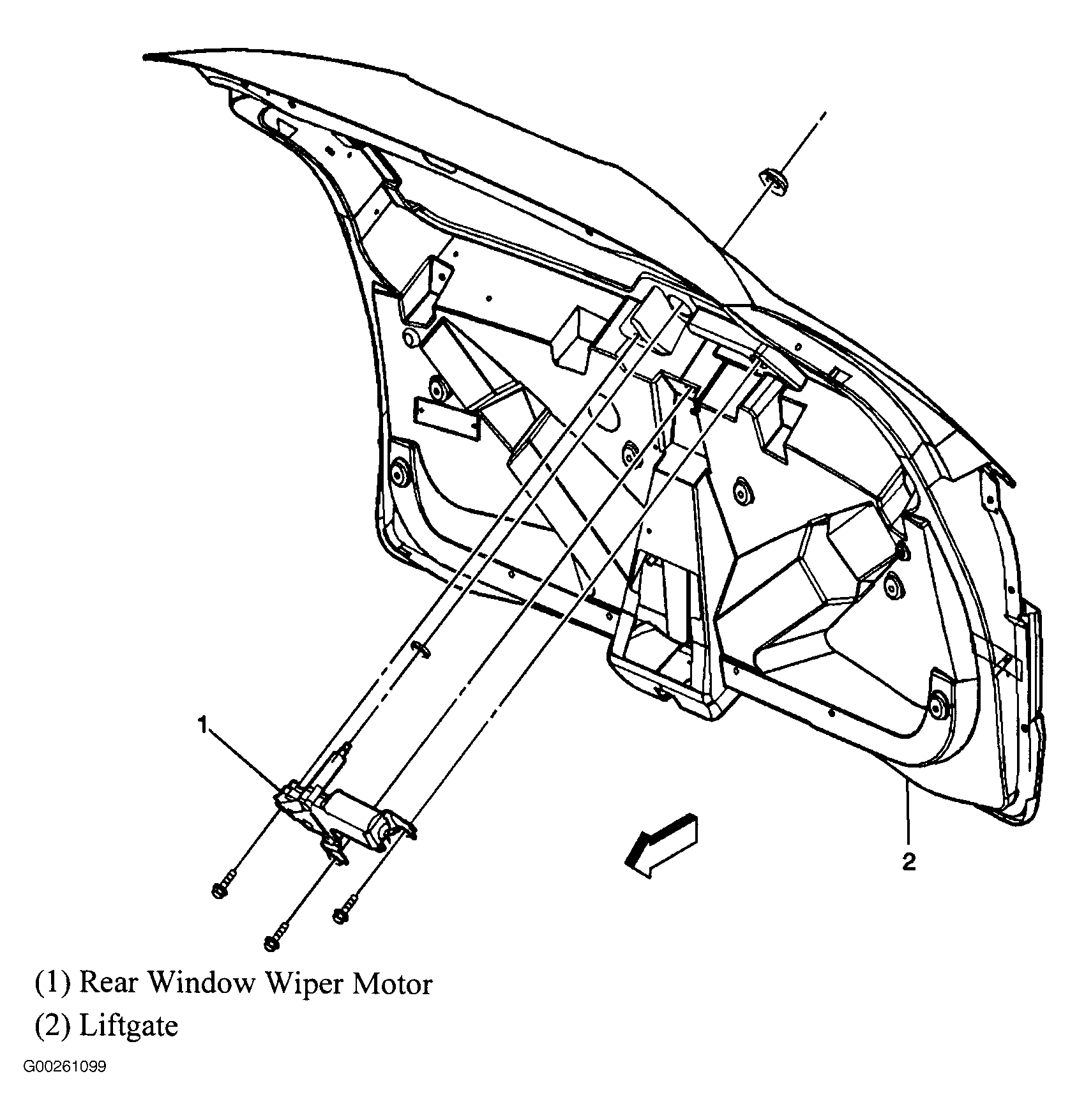

Fig 55: Liftgate
Courtesy of GENERAL MOTORS CORP.
