Installation Procedure

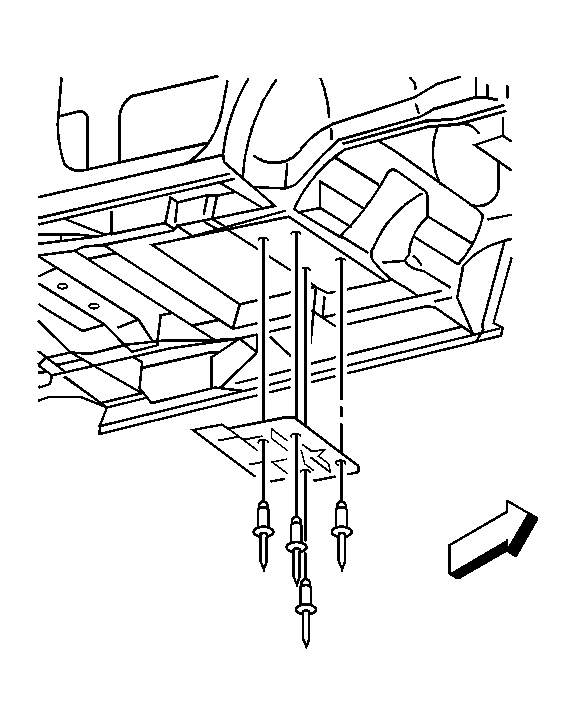

    Fig 1: View Of Catalytic Converter Heat Shield Rivets
    GM373071Courtesy of GENERAL MOTORS CORP.
  1. Install the catalytic converter heat shield.
  2. Install the catalytic converter heat shield to the vehicle with new rivets.
  3. Install the catalytic converter. Refer to Catalytic Converter Replacement .
  4. Lower the vehicle.
