Installation Procedure

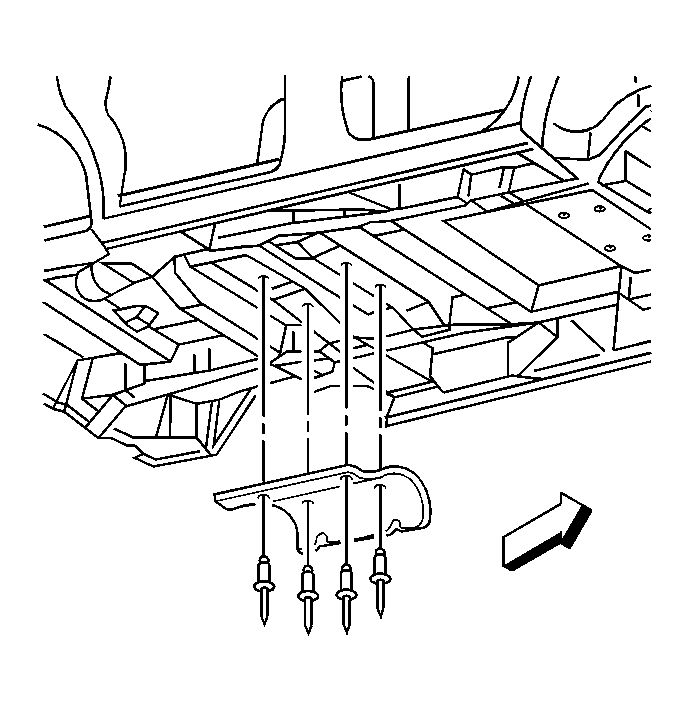

    Fig 1: Locating Exhaust Heat Shield Rivets
    GM373072Courtesy of GENERAL MOTORS CORP.
  1. Install the heat shield to the vehicle with new rivets.
    2. Fig 2: View Of Catalytic Converter Bolts
    GM739224Courtesy of GENERAL MOTORS CORP.
  2. Connect the muffler to the catalytic converter. Refer to Muffler Replacement .
  3. Lower the vehicle.
