Navigation System Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

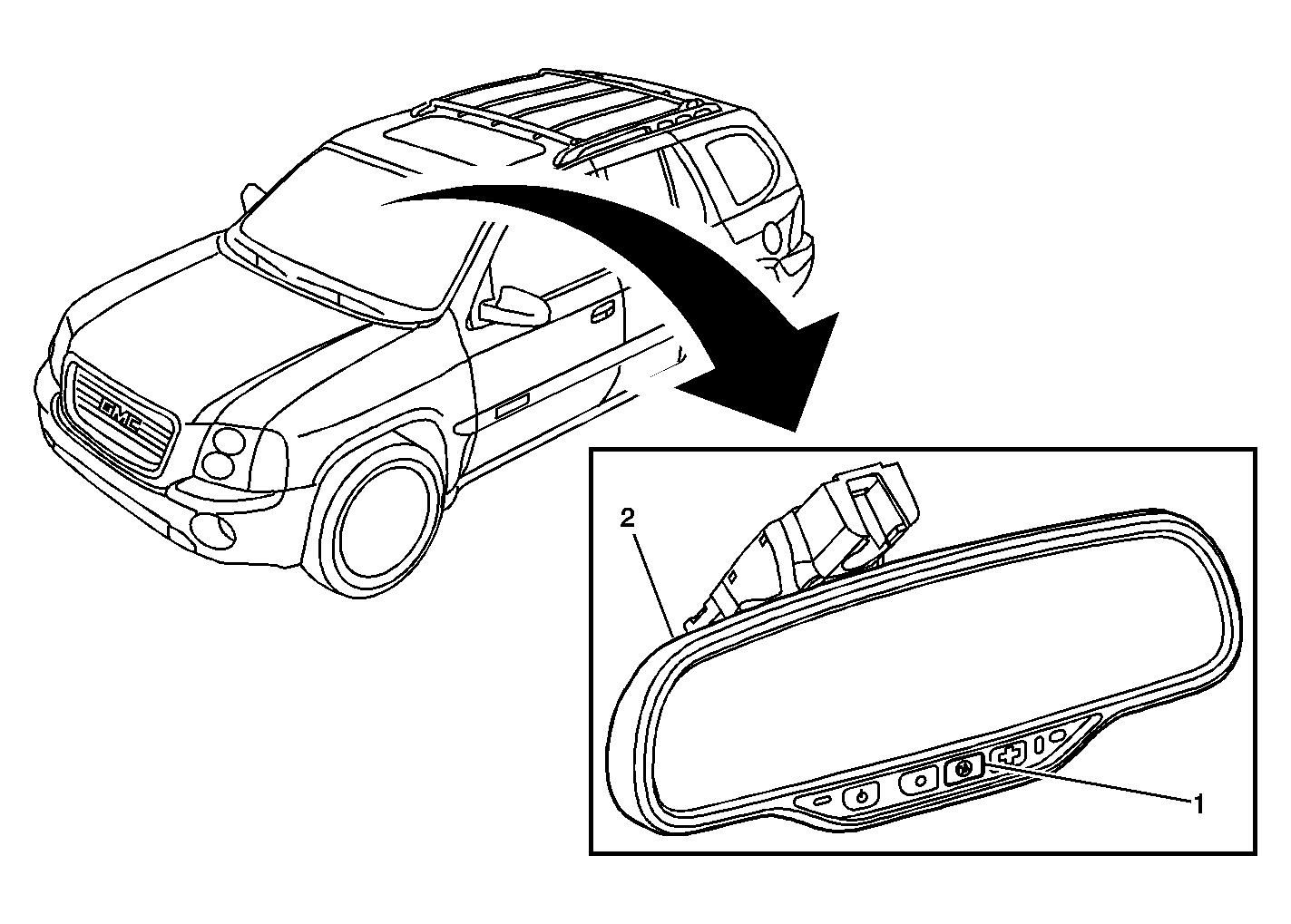

Fig 1: OnStar Keypad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	OnStar Keypad
2	Rearview Mirror

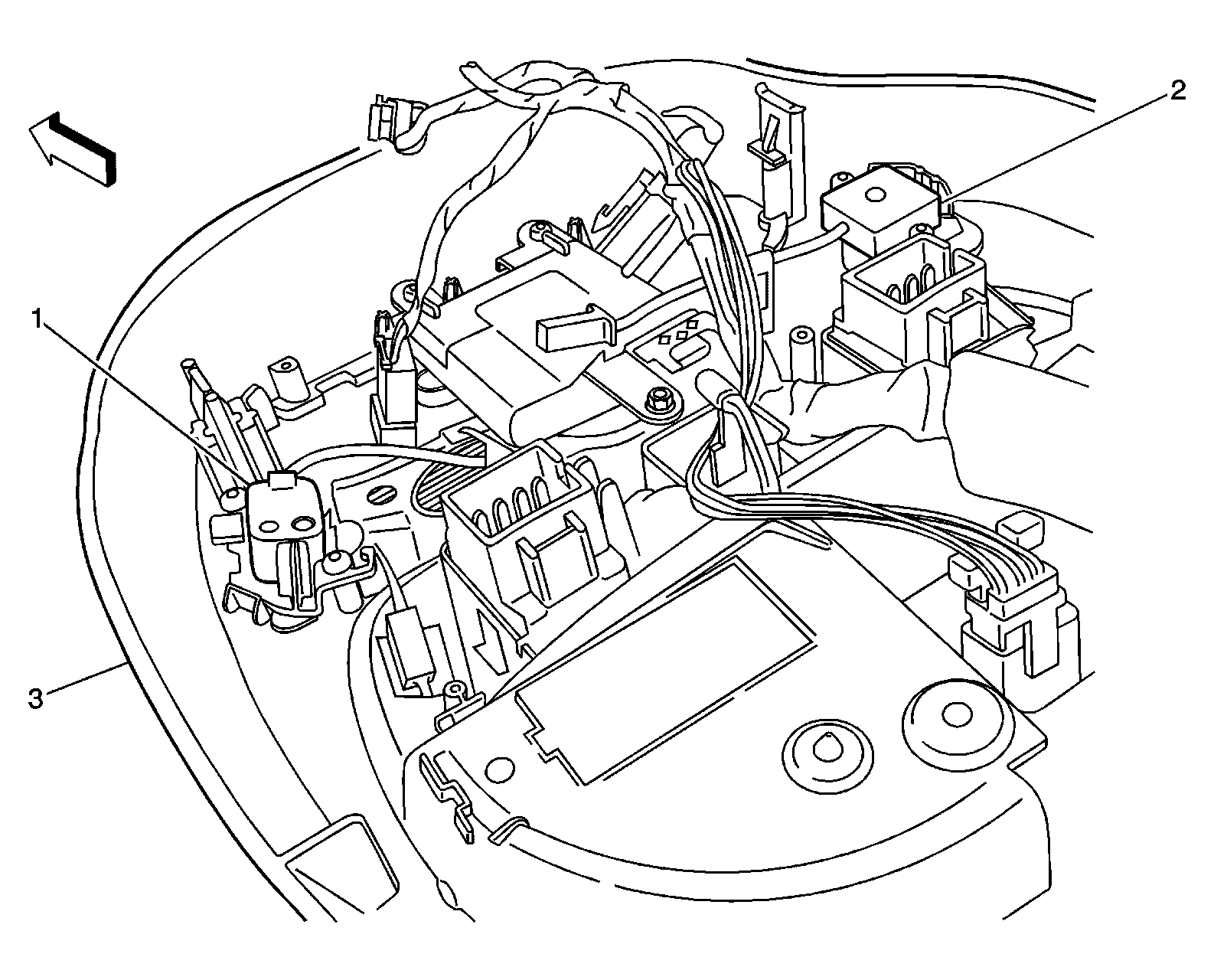

Fig 2: Overhead Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone
2	Noise Reduction Microphone
3	Overhead Console

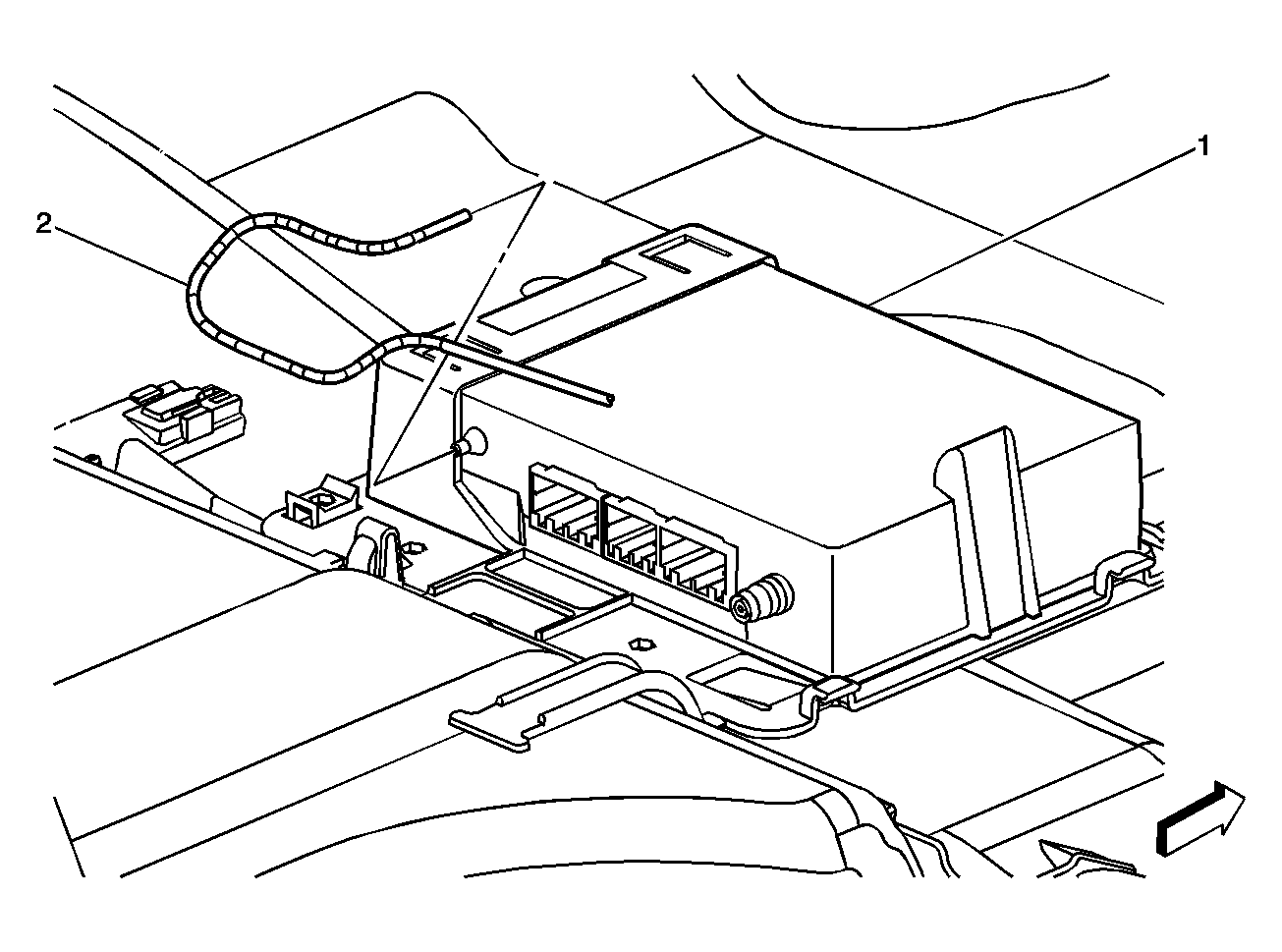

Fig 3: Global Positioning System Antenna Connection

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)
2	Headliner Harness

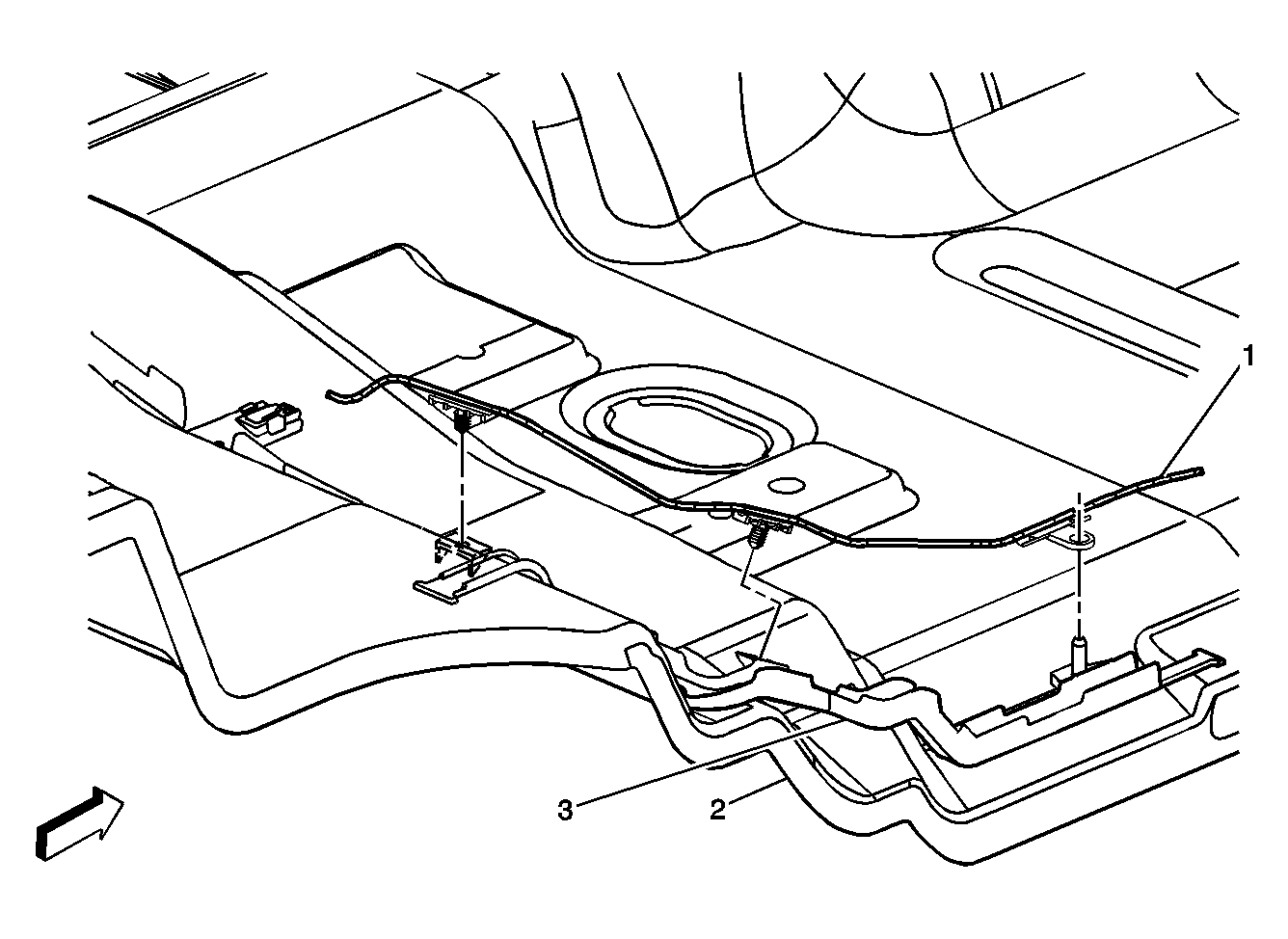

Fig 4: Component Views - Rear Floor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner Harness to GPS Antenna
2	Rear Floor
3	Body Harness Channel

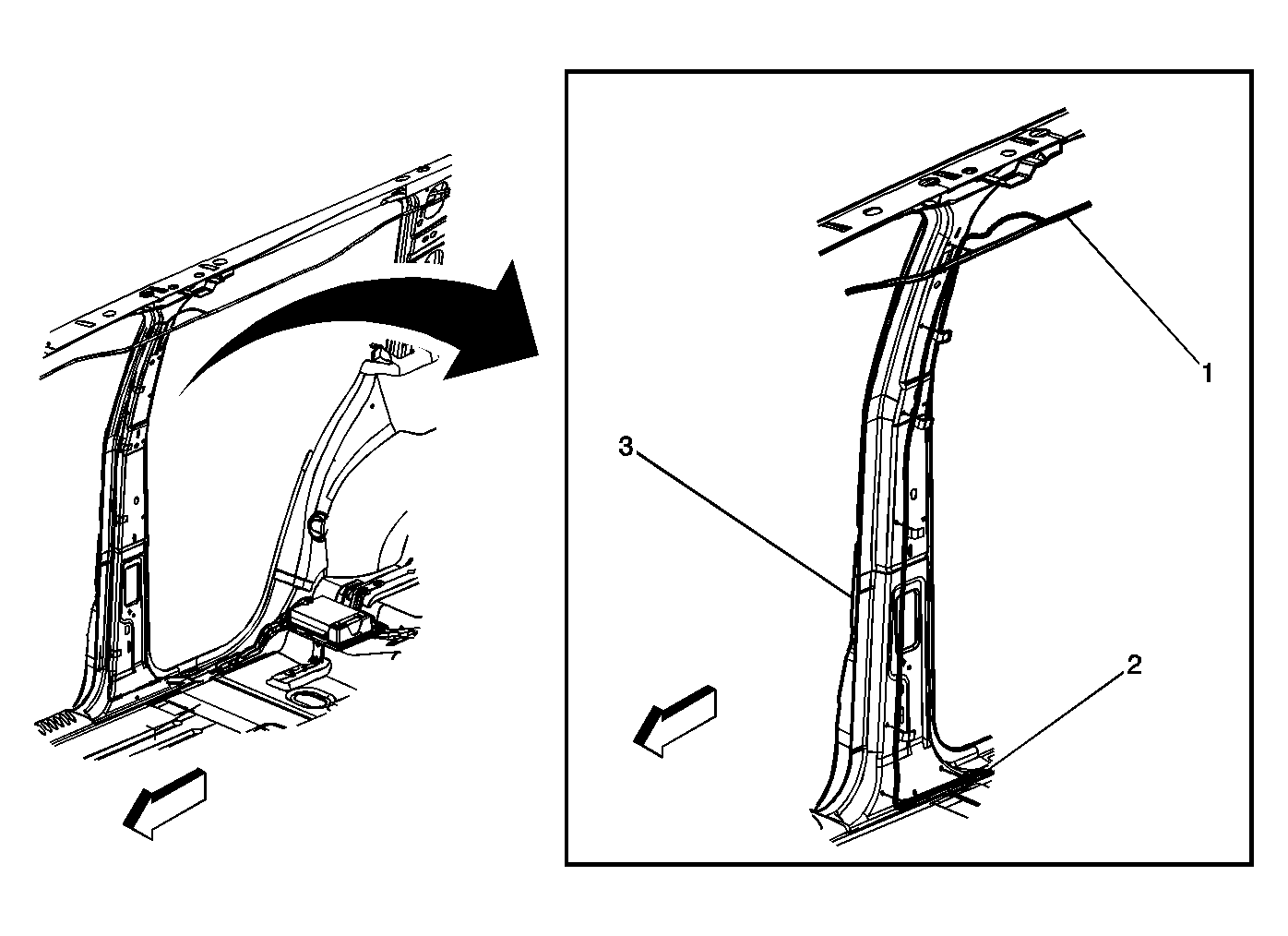

Fig 5: Component Views - Right B Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner Harness to GPS Antenna
2	Headliner Harness, to Vehicle Communication Interface Module (VCIM)
3	Door Frame

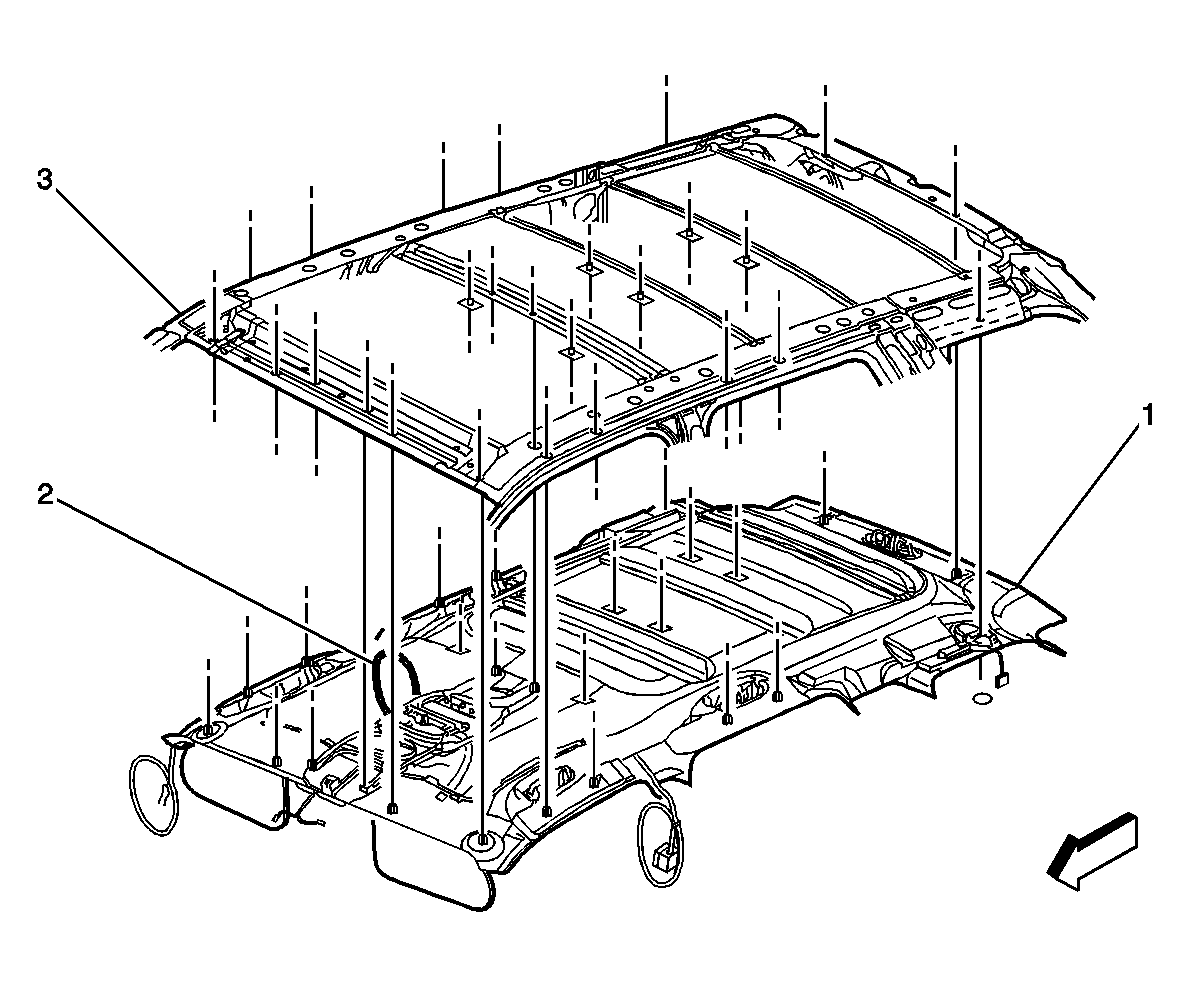

Fig 6: Component Views - Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Antenna Harness, partial, to GPS Antenna
3	Roof Panel

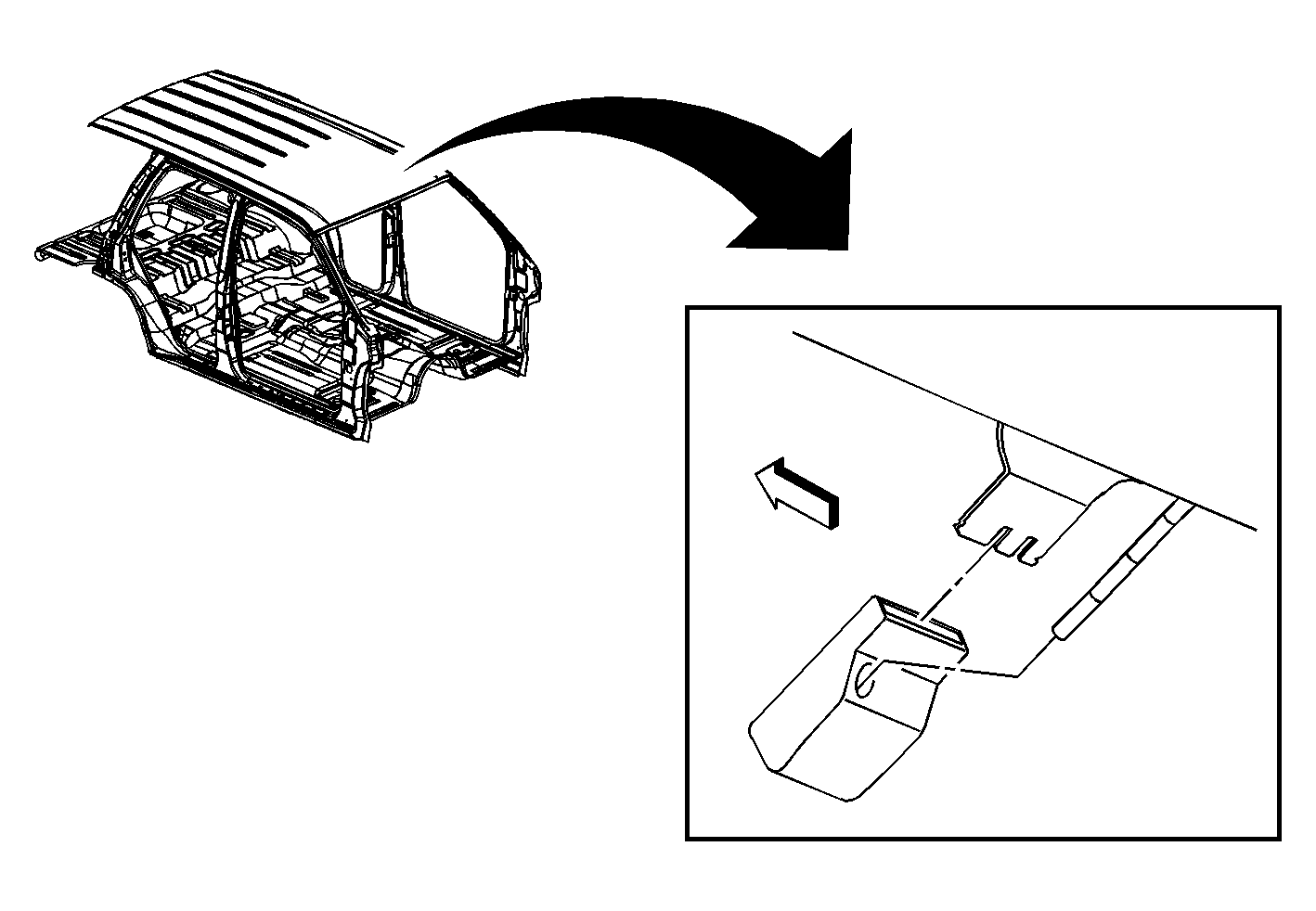

Fig 7: Global Positioning System (GPS) Antenna

Courtesy of GENERAL MOTORS CORP.

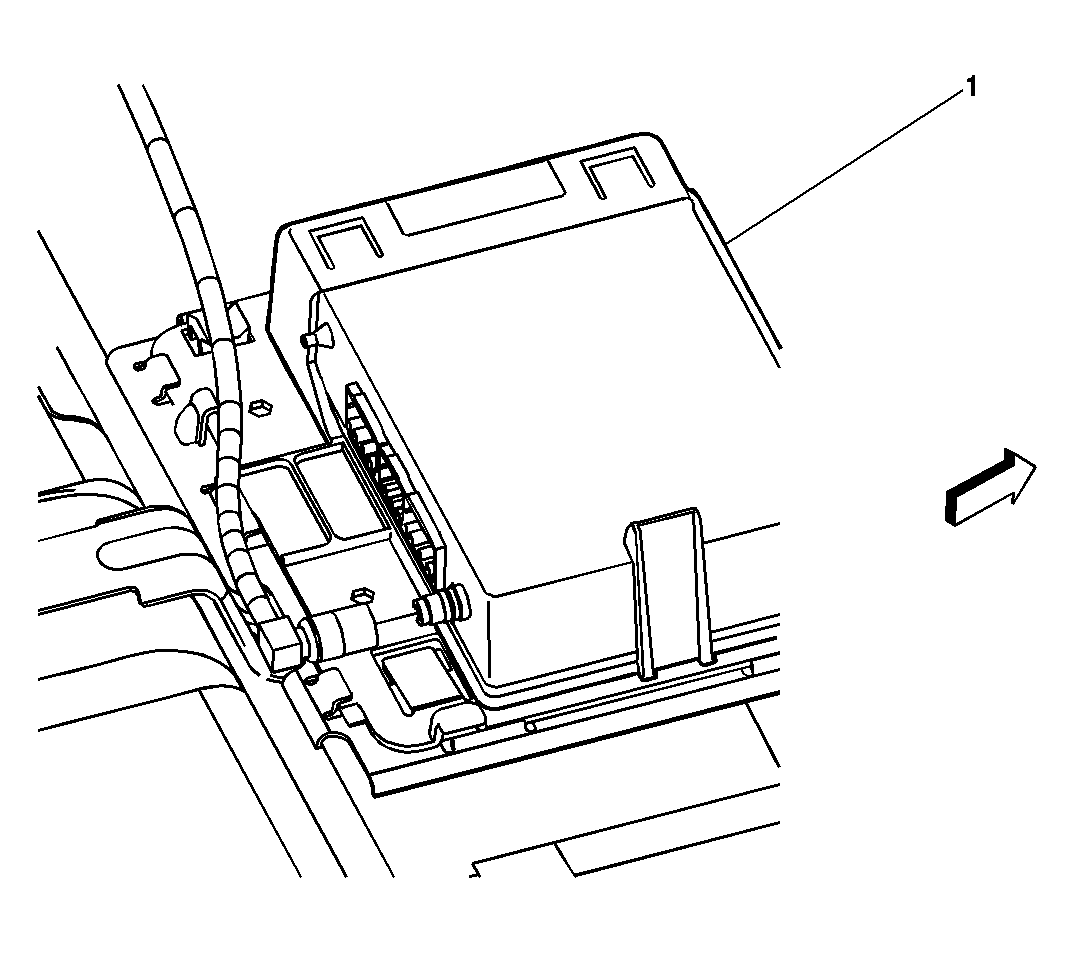

Fig 8: Cellular Cable to Vehicle Communication Interface Module (VCIM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module

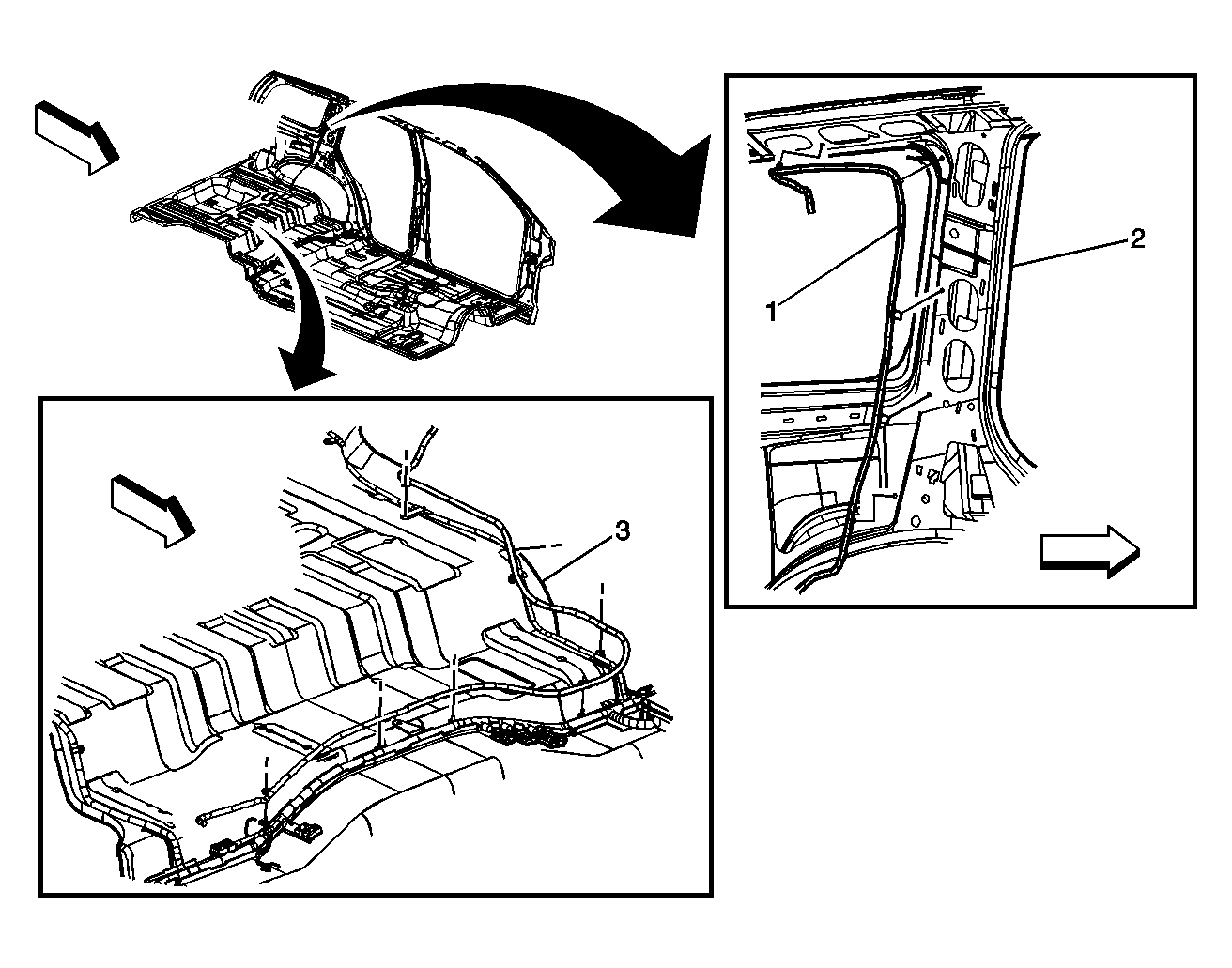

Fig 9: Component Views - Rear Floor and C Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coaxial Cable
2	C Pillar
3	Coaxial Cable

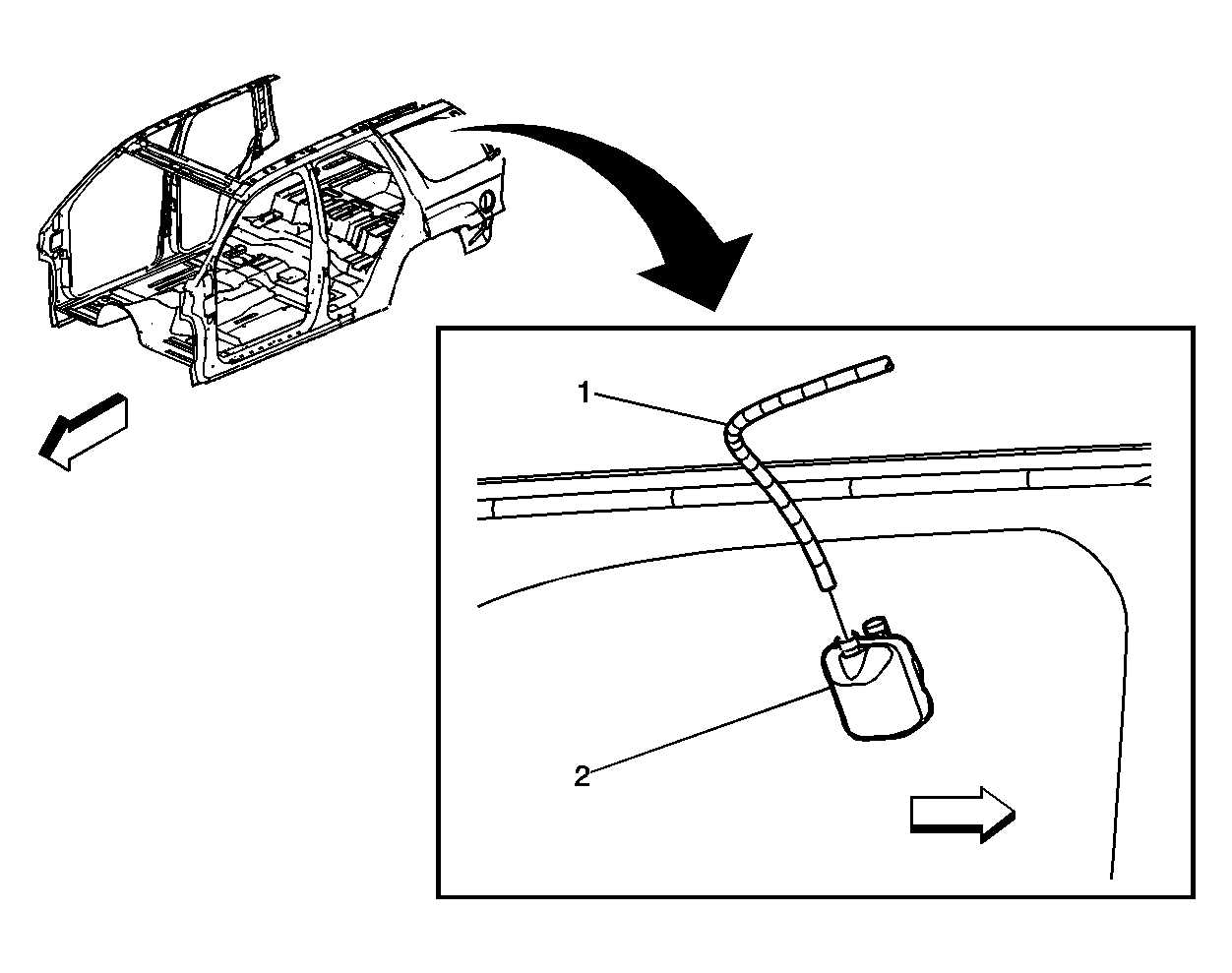

Fig 10: Cellular Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coaxial Cable
2	Cellular Antenna

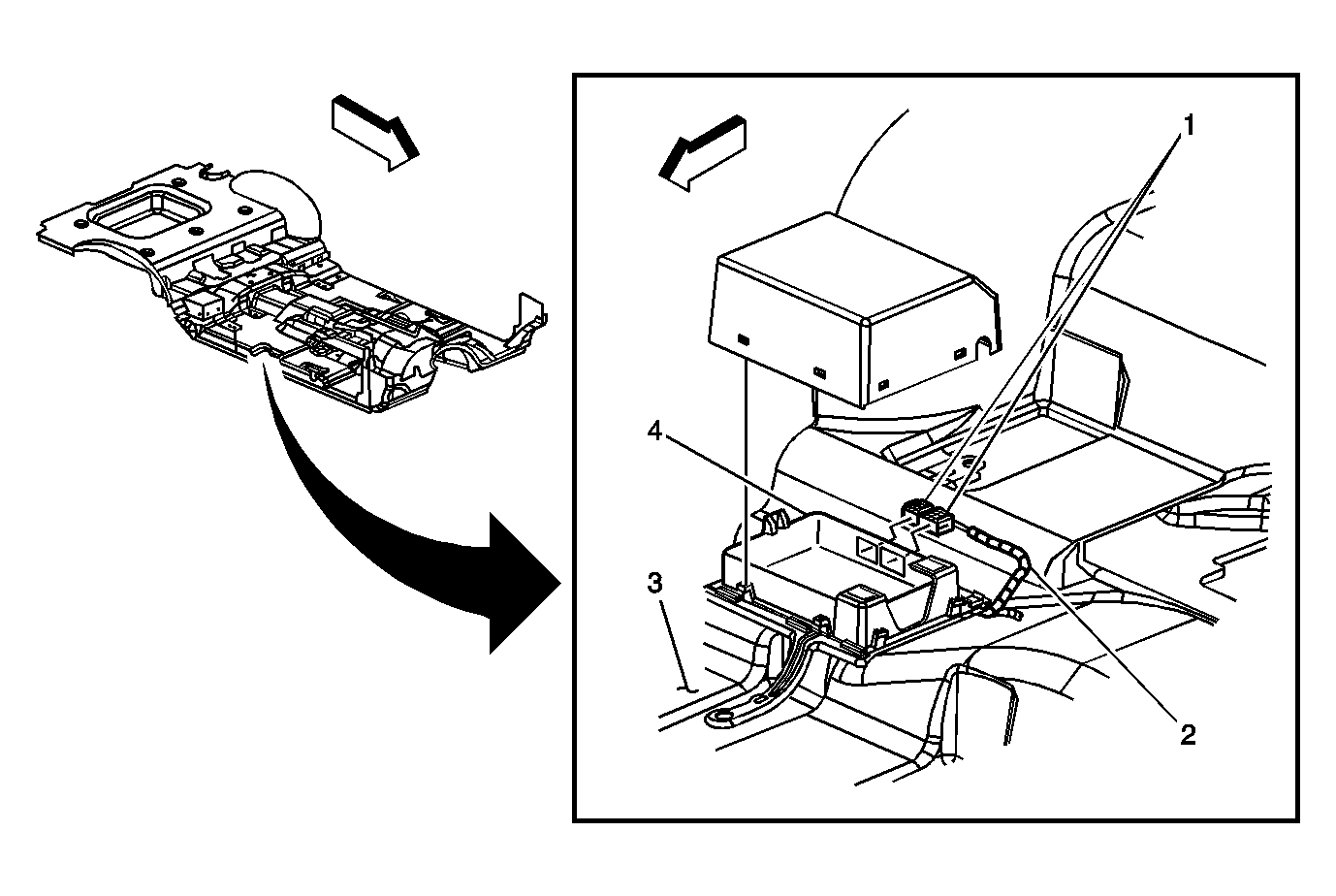

Fig 11: Vehicle Communication Interface Module (VCIM), Short Wheelbase, Body Type VIN - 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Connectors
2	Body Harness
3	Rear Floor Panel
4	Vehicle Communication Interface Module (VCIM)

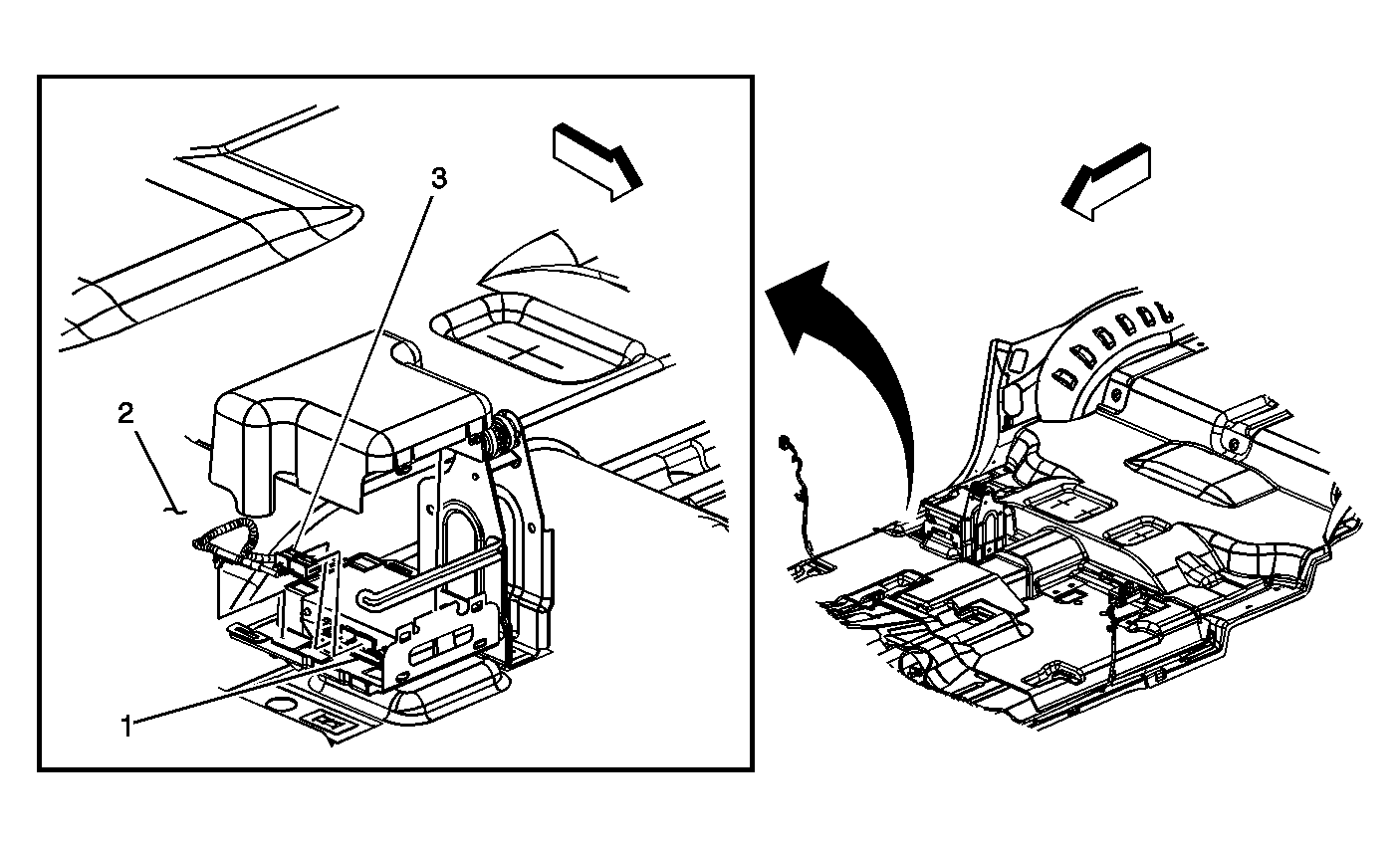

Fig 12: Vehicle Communication Interface Module (VCIM), Long Wheelbase, Body Type VIN - 6

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)
2	Rear Floor
3	Connectors
