Keyless Entry Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

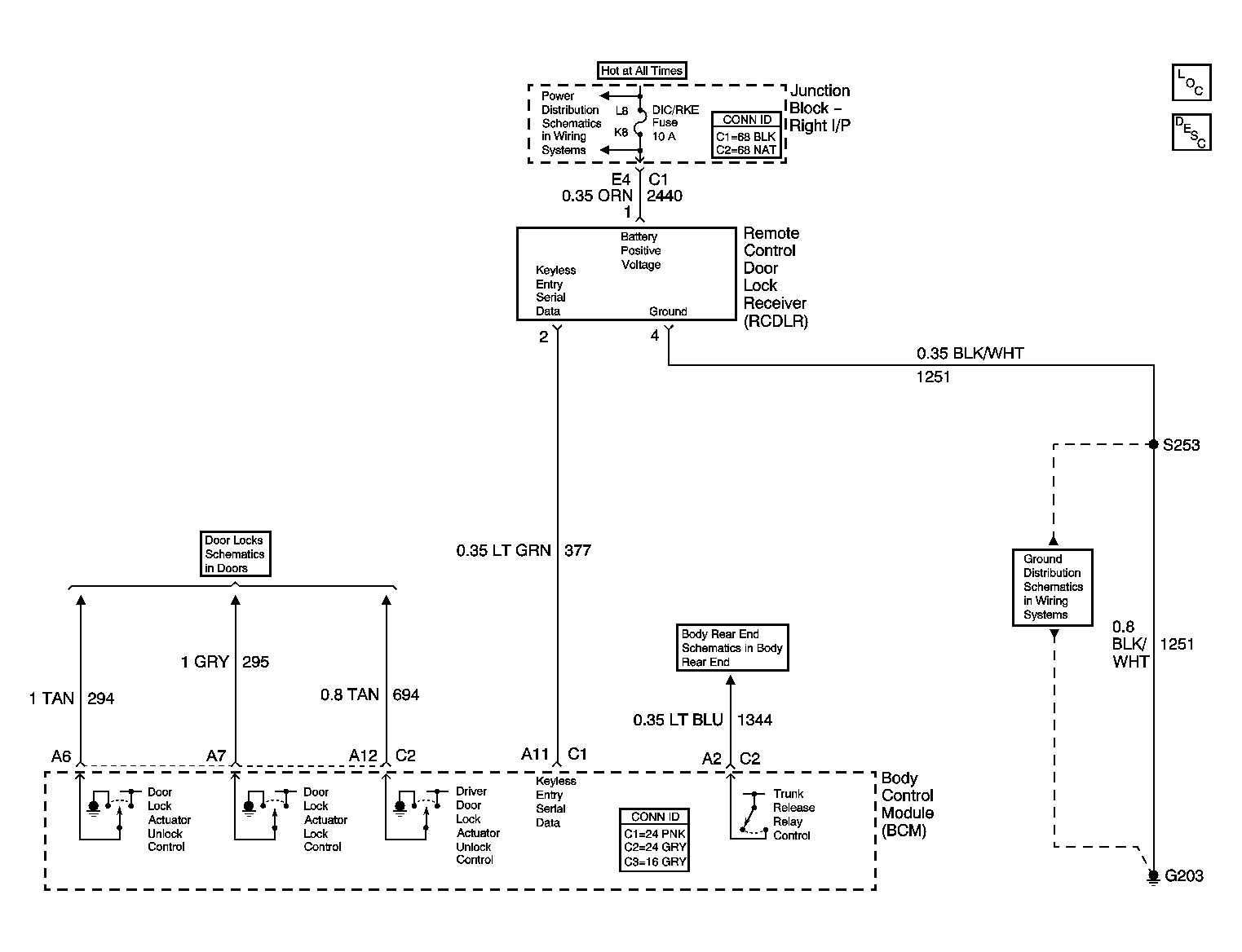

Fig 1: Keyless Entry Schematics
GM699061Courtesy of GENERAL MOTORS CORP.
