Installation Procedure

IMPORTANT: Verify that the release lever is at the top of the adjuster bracket in the full up position.

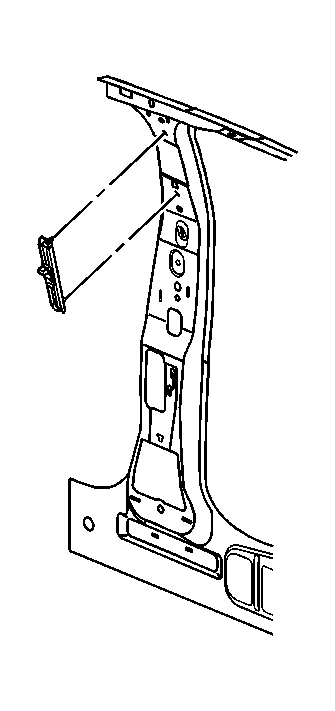

Fig 1: Locating Shoulder Belt Guide Belt Adjuster Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt to the shoulder belt guide belt adjuster bracket.
Tighten: Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).
Install the center pillar upper trim panel. Refer to Trim Panel Replacement - Upper Center Pillar in Interior Trim.
