Installation Procedure

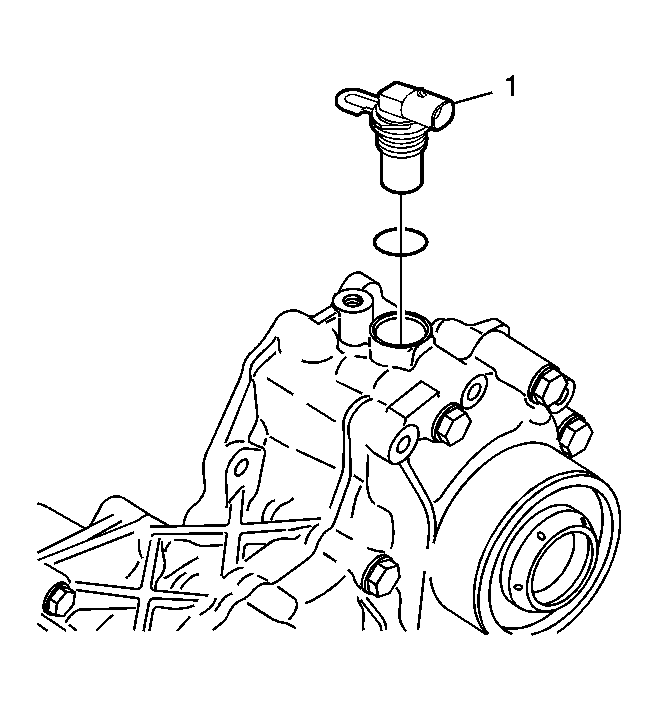

    Fig 1: Locating Speed Sensor
    GM630579Courtesy of GENERAL MOTORS CORP.
  1. Install the O-ring to the speed sensor, if removed.
  2. Install the speed sensor (1) to the transfer case.

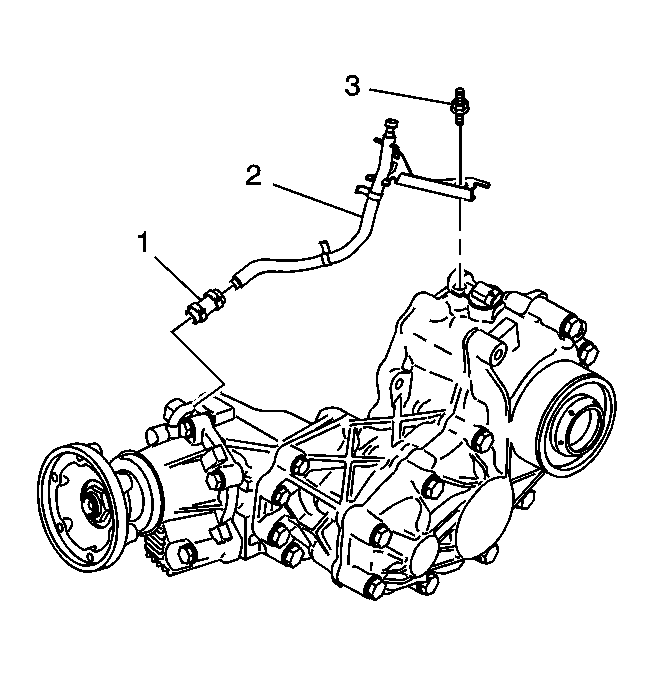

    3. Fig 2: View Of Transfer Case Hose/Clamp Assembly, Vent Hose, Bracket & Bolt
    GM630581Courtesy of GENERAL MOTORS CORP.
  3. Position the pinion housing vent hose (2) and mounting bracket to the speed sensor bolt boss.
    4. NOTE: Refer to Fastener Notice .
  4. Install the speed sensor bolt (3) to the transfer case.

    Tighten:  Tighten the bolt to 30 N.m (22 lb ft).

  5. Connect the electrical connector to the speed sensor.
  6. Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  7. Lower the vehicle.
