Keyless Entry Connector End Views

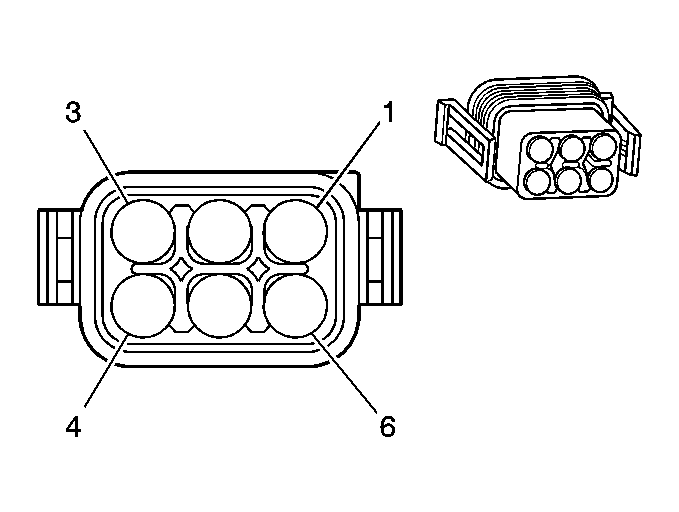

Door Lock Actuator - Driver Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		9229-6306-41 6-Way Female (GY)
Pin	Wire Color	Circuit No.	Function
1	PU/WH	5171	Dead Lock Actuator Lock Control
2	BU/BK	694	Driver Door Lock Actuator Unlock Control
3	L-GN/YE	781	Driver Door Lock Switch Unlock Signal
4	BN/RD	195	Door Lock Control
5	BK/BU	650	Ground
6	BK/YE	295	Door Lock Actuator Lock Control

Door Lock Actuator - Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		9229-6306-41 6-Way Female (GY)
Pin	Wire Color	Circuit No.	Function
1	PU/WH	5171	Dead Lock Actuator Lock Control
2	BK/RD	294	Door Lock Actuator Unlock Control
3	BN/OG	194	Door Unlock Control
4	BN/RD	195	Door Lock Control
5	BK/BU	650	Ground
6	BK/YE	295	Door Lock Actuator Lock Control

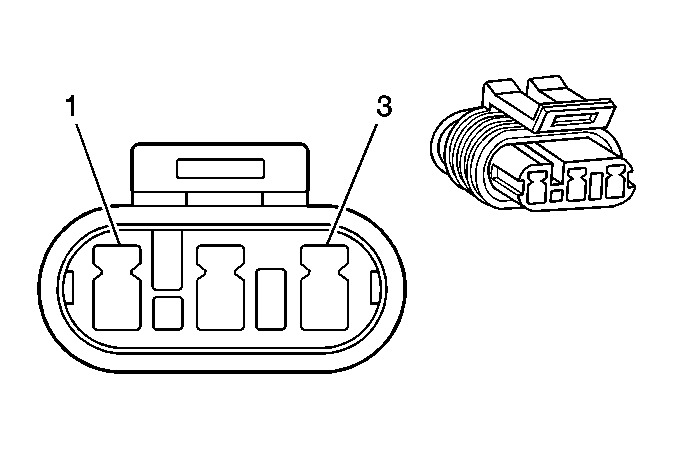

Door Lock Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		9129-2087-30 3-Way Female (BK)
Pin	Wire Color	Circuit No.	Function
1	BK/BU	650	Ground
2	L-GN/YE	781	Driver Door Lock Switch Unlock Signal
3	BN/WH	780	Driver Door Lock Switch Lock Signal

Horn Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5146-30 2-Way Female (BK)
Pin	Wire Color	Circuit No.	Function
A	GN	1149	Horn Control
B	BK/RD	450	Ground

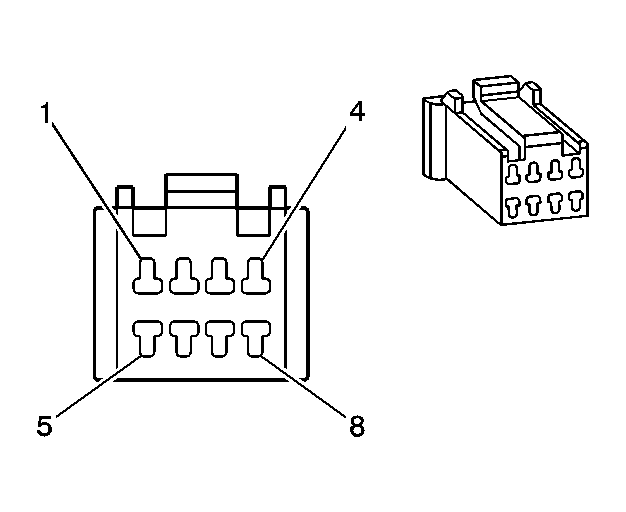

Remote Key Receiver Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7123-1287 8-Way Female (WH)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	YE	218	Keyless Entry Antenna Signal
3	-	-	Not Used
4	YE/BK	1784	Twilight Sentinel Enable Signal
5	-	-	Not Used
6	OG/BK	740	Battery Positive Voltage
7	BN/GN	219	Keyless Entry Antenna Low Reference
8	-	-	Not Used
