Installation Procedure

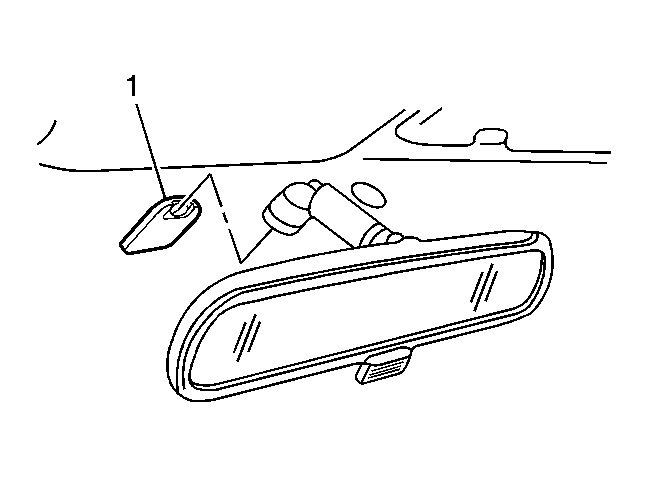

    Fig 1: View Of Rearview Mirror Mount
    GM1364647Courtesy of GENERAL MOTORS CORP.
  1. Position the rearview mirror to the mount (1)
  2. Slide the rearview downwards on the mount (1) making sure the clip engages.
