Power Outlet Connector End Views

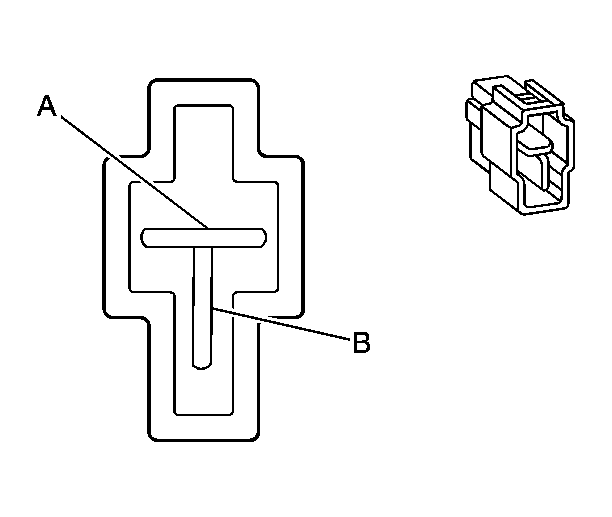

Accessory Power Outlet - 12-Volt Connector End View

GM1356247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • X112-X2
  • 2-Way Male (WH)
Pin Wire Color Circuit No. Function
A BN/YE 143 Accessory Voltage
B BK/WH 550 Ground

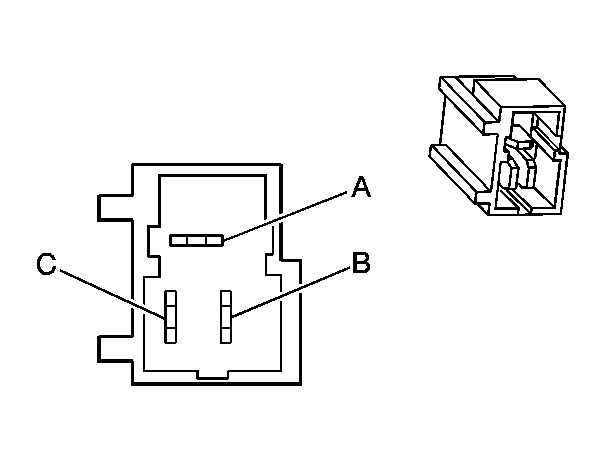

Cigar Lighter - Front Connector End View

GM1356249Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7122-6030
  • 3-Way Male (WH)
Pin Wire Color Circuit No. Function
A BN/WH 32 Instrument Panel Lamps Fuse Supply Voltage
B YE 39 Ignition 1 Voltage
C BK/WH 550 Ground
Cigar Lighter - Rear Connector End View

GM1356249Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7122-6030
  • 3-Way Male (WH)
Pin Wire Color Circuit No. Function
A BN/WH 32 Instrument Panel Lamps Fuse Supply Voltage
B YE 39 Ignition 1 Voltage
C BK/WH 550 Ground
