Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Entertainment Components
Courtesy of GENERAL MOTORS CORP.
Fig 2: Cruise Control Components
Courtesy of GENERAL MOTORS CORP.

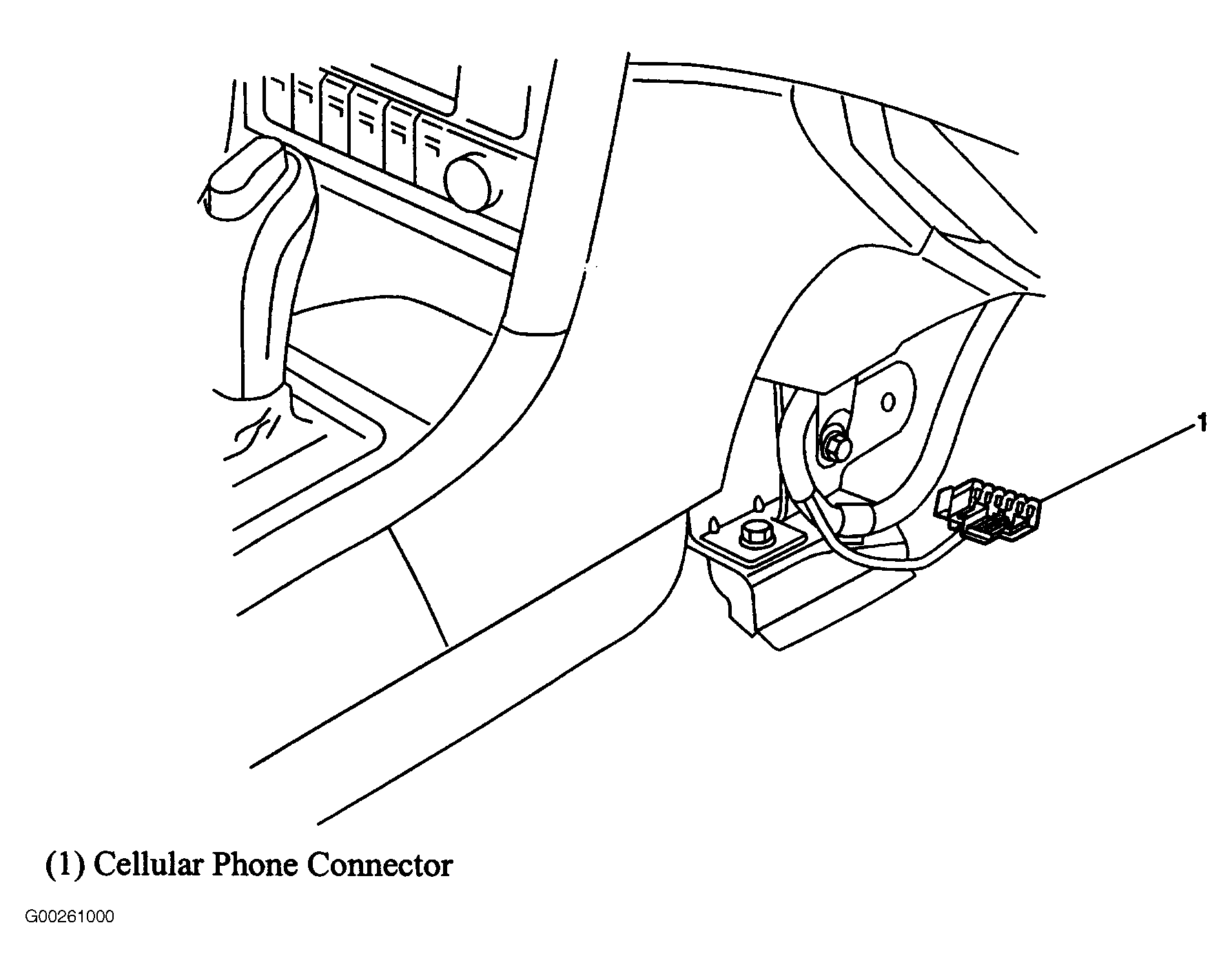

Fig 3: Right Front Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 4: SIR Component Views
Courtesy of GENERAL MOTORS CORP.

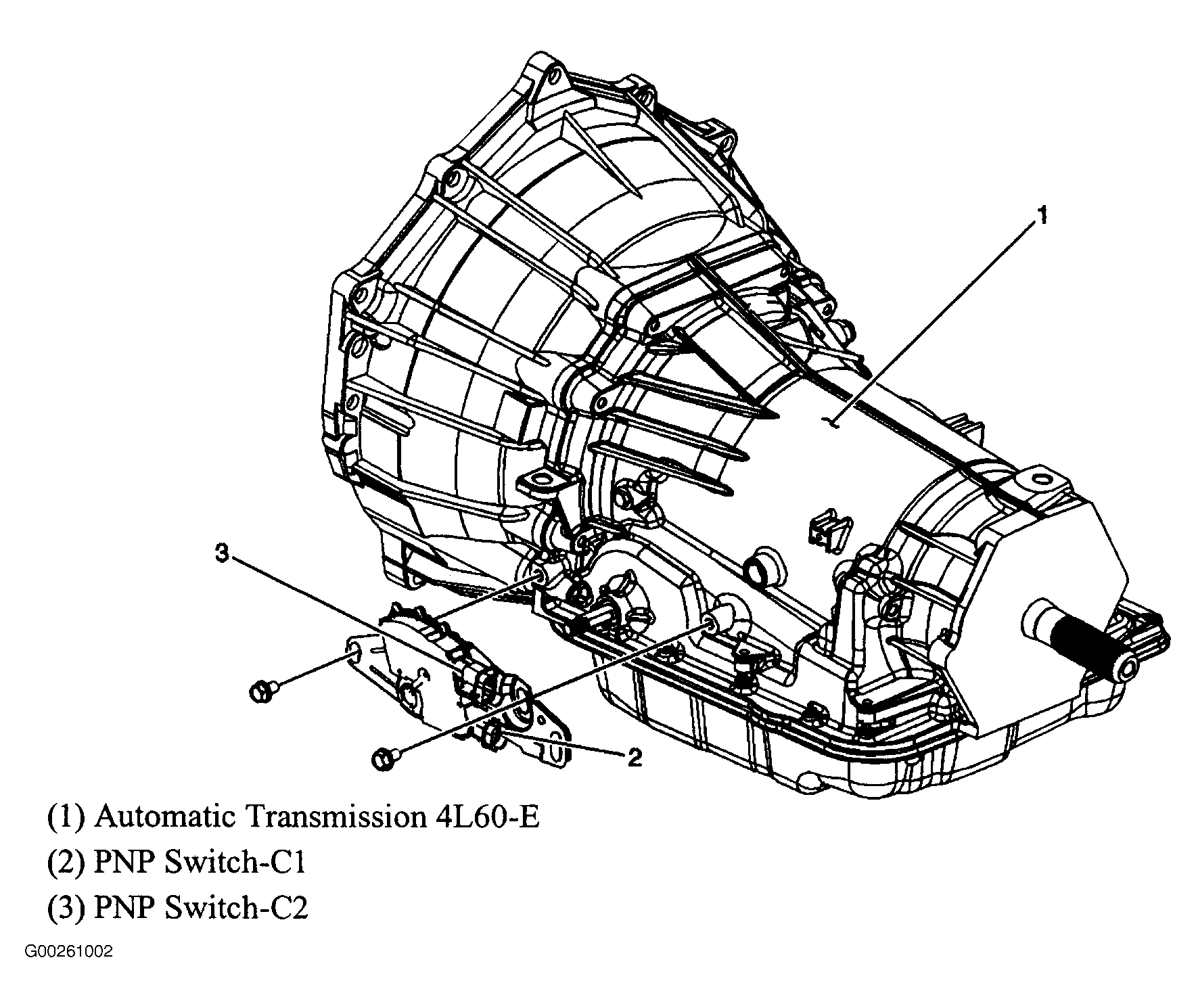

Fig 5: Left Side Of Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

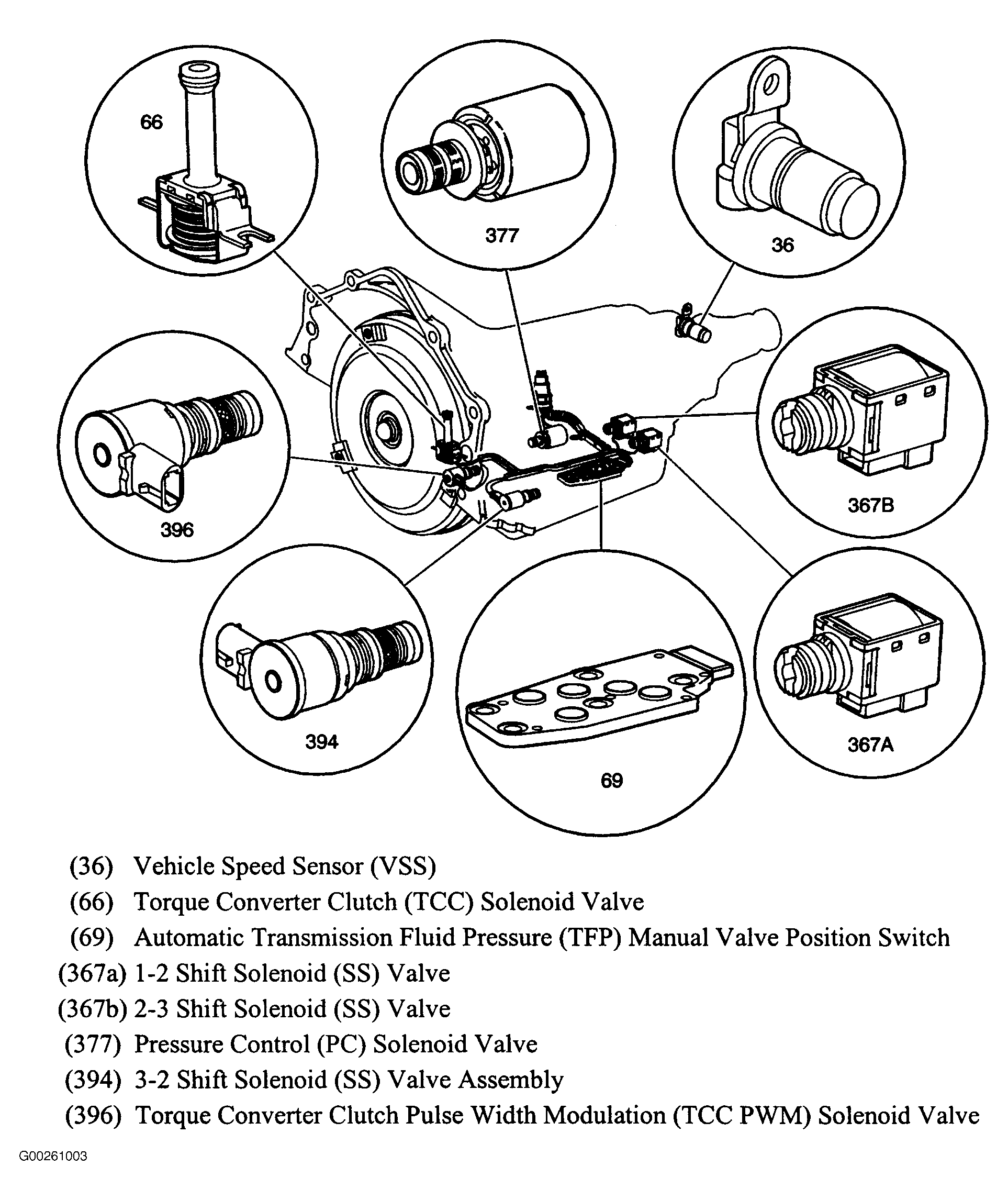

Fig 6: Automatic Transmission Components
Courtesy of GENERAL MOTORS CORP.

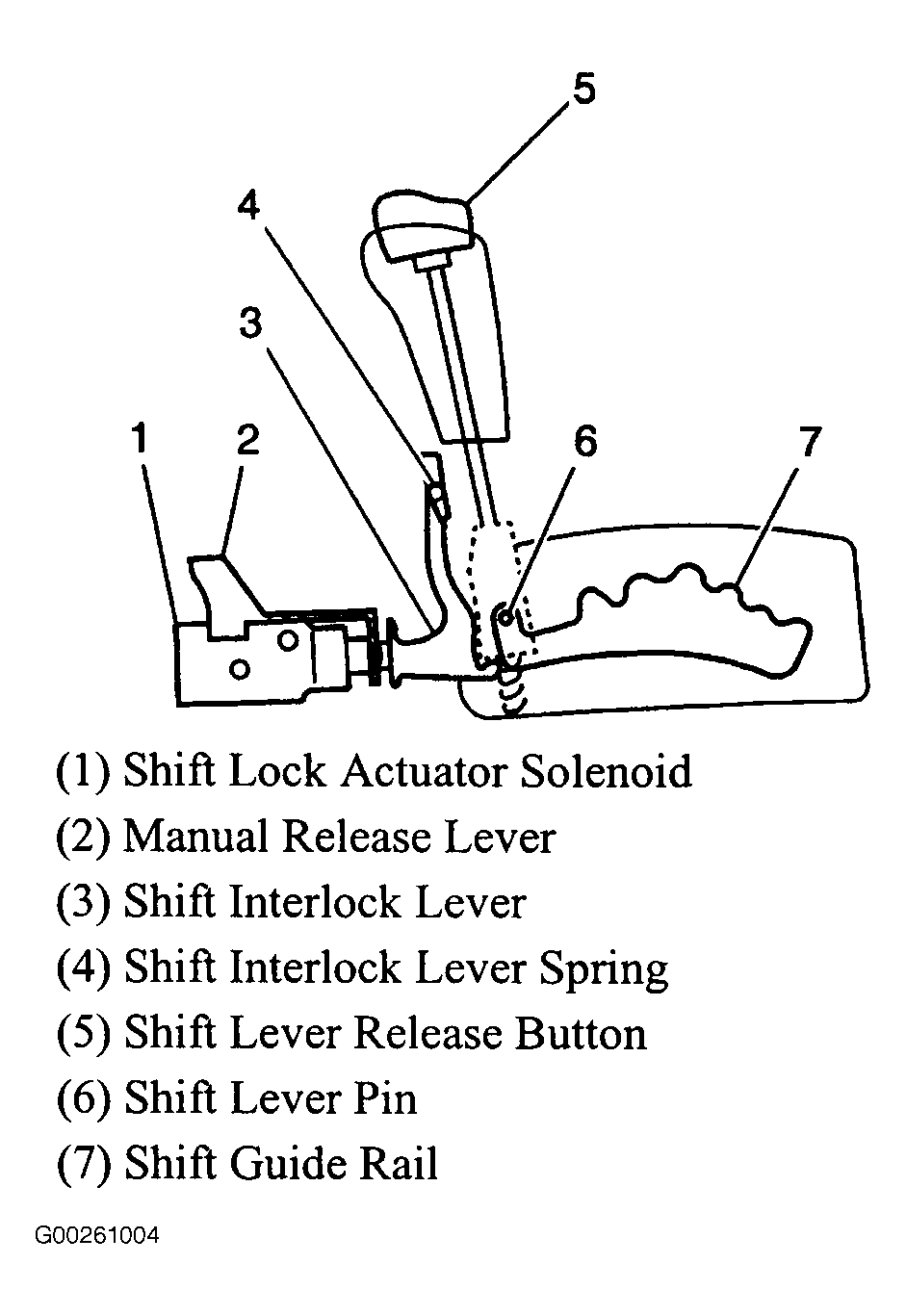

Fig 7: A/T Shift Lock Components
Courtesy of GENERAL MOTORS CORP.

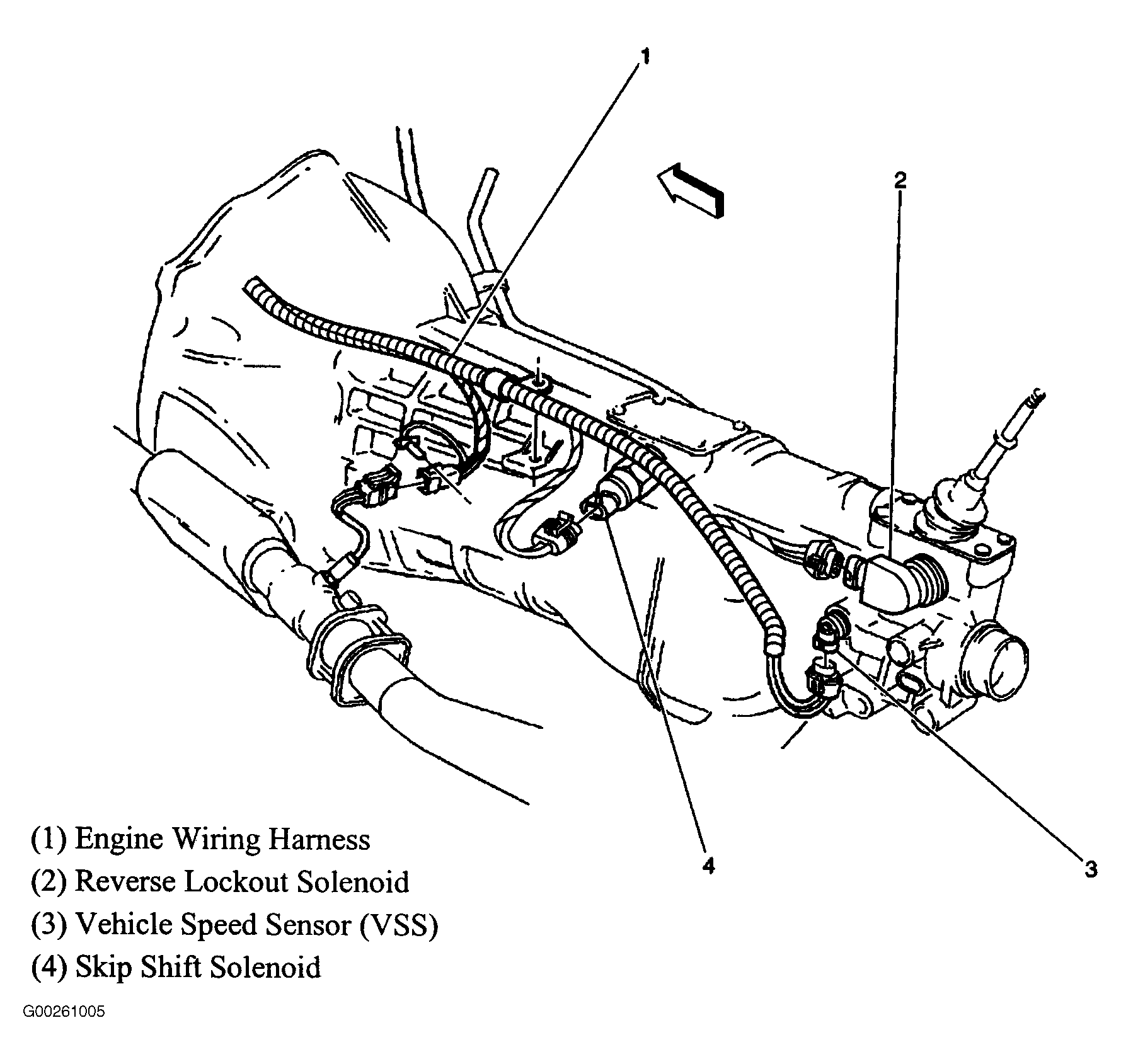

Fig 8: Manual Transmission Components
Courtesy of GENERAL MOTORS CORP.

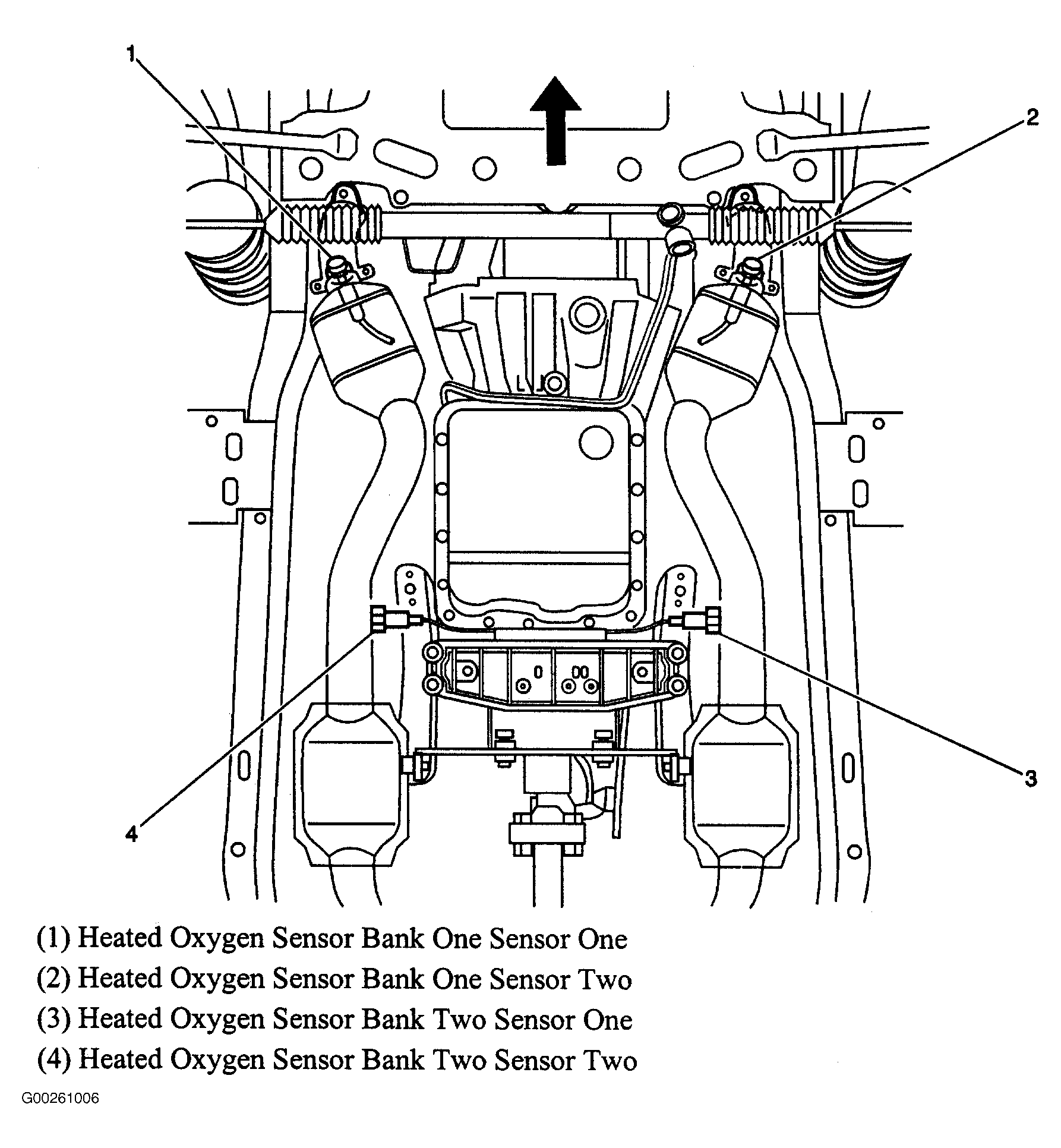

Fig 9: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 10: Powertrain Control Module
Courtesy of GENERAL MOTORS CORP.

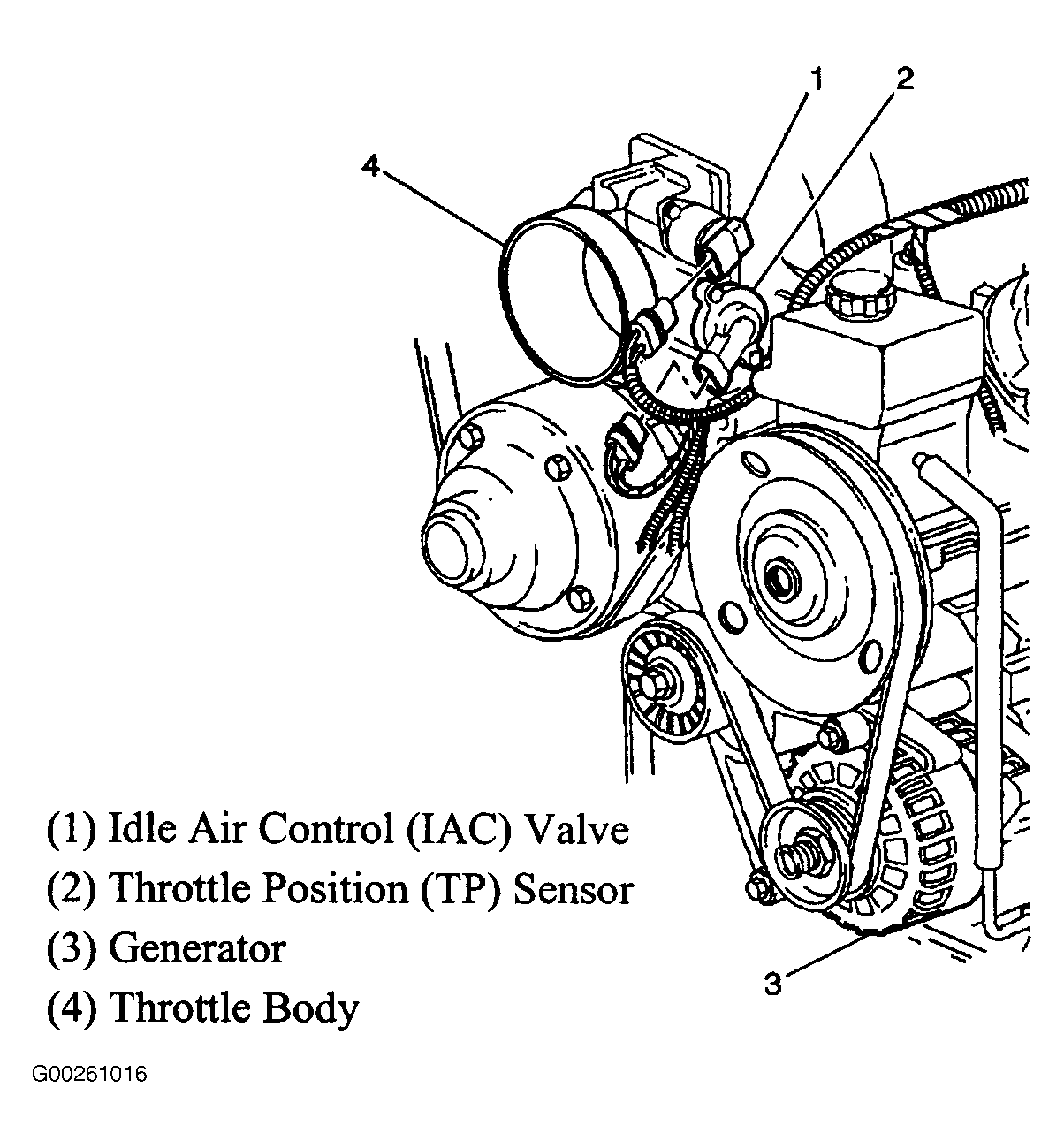

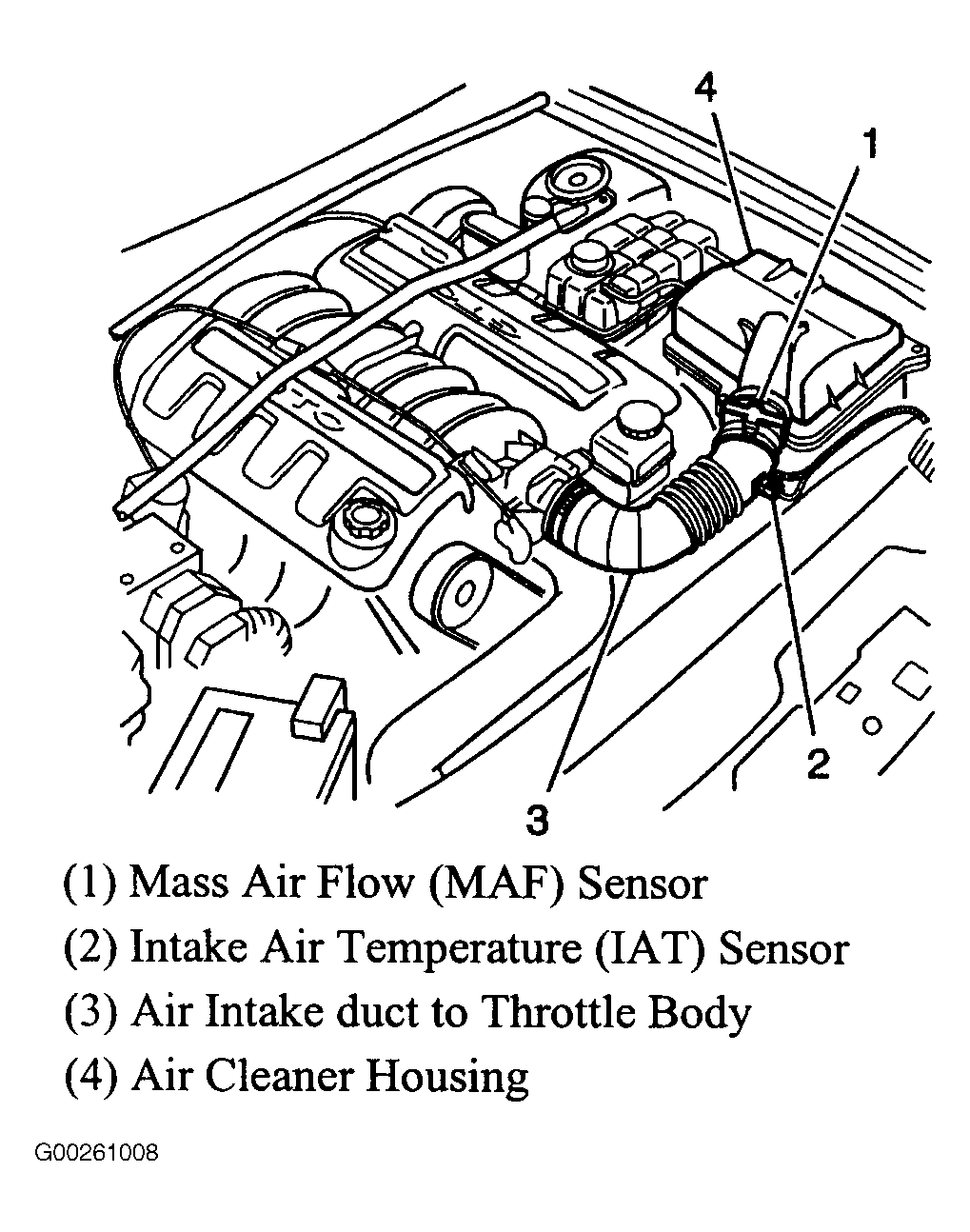

Fig 11: Air Intake Components
Courtesy of GENERAL MOTORS CORP.

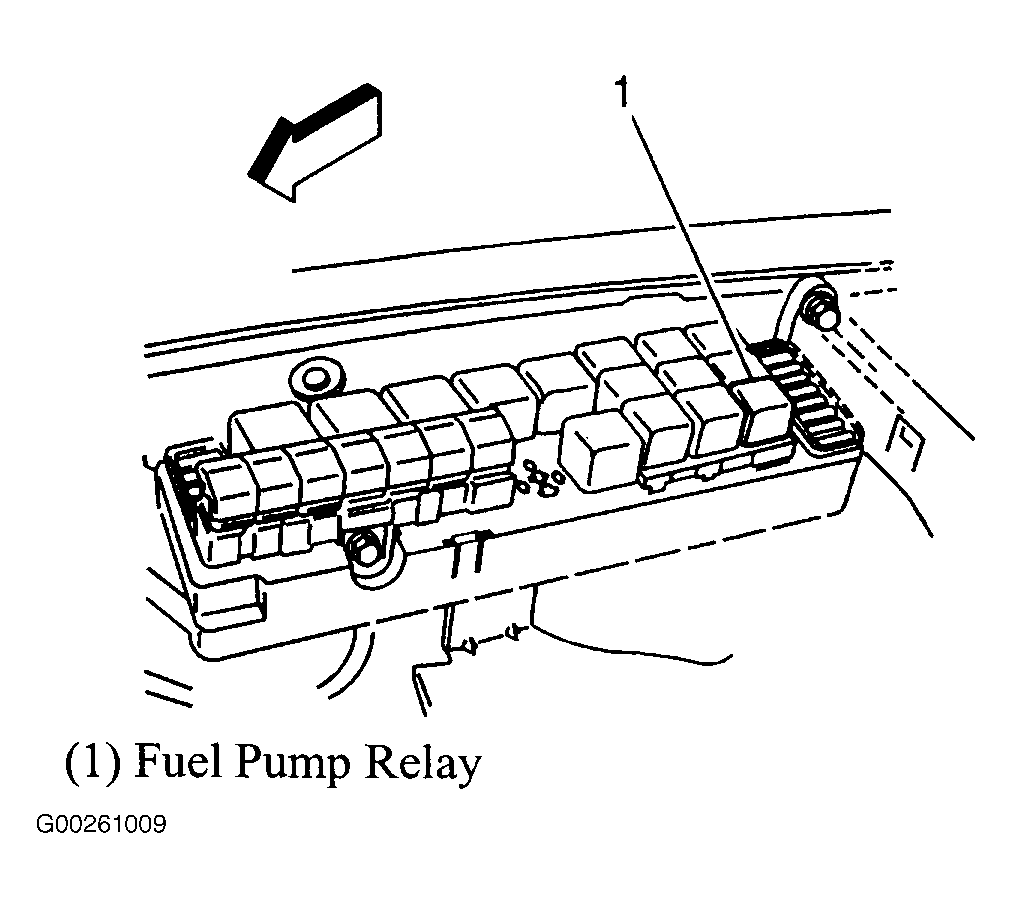

Fig 12: Fuel Pump Relay
Courtesy of GENERAL MOTORS CORP.

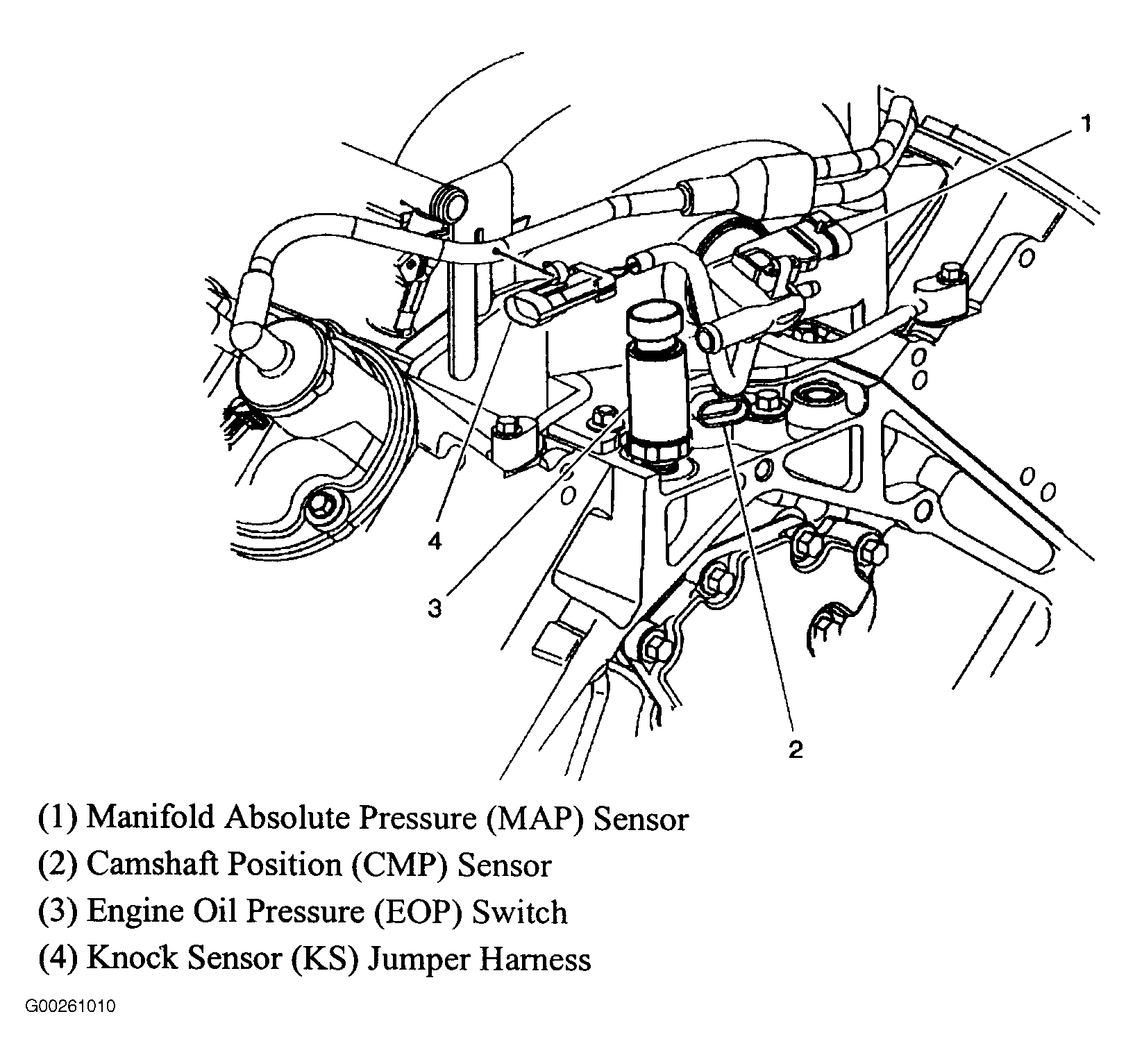

Fig 13: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

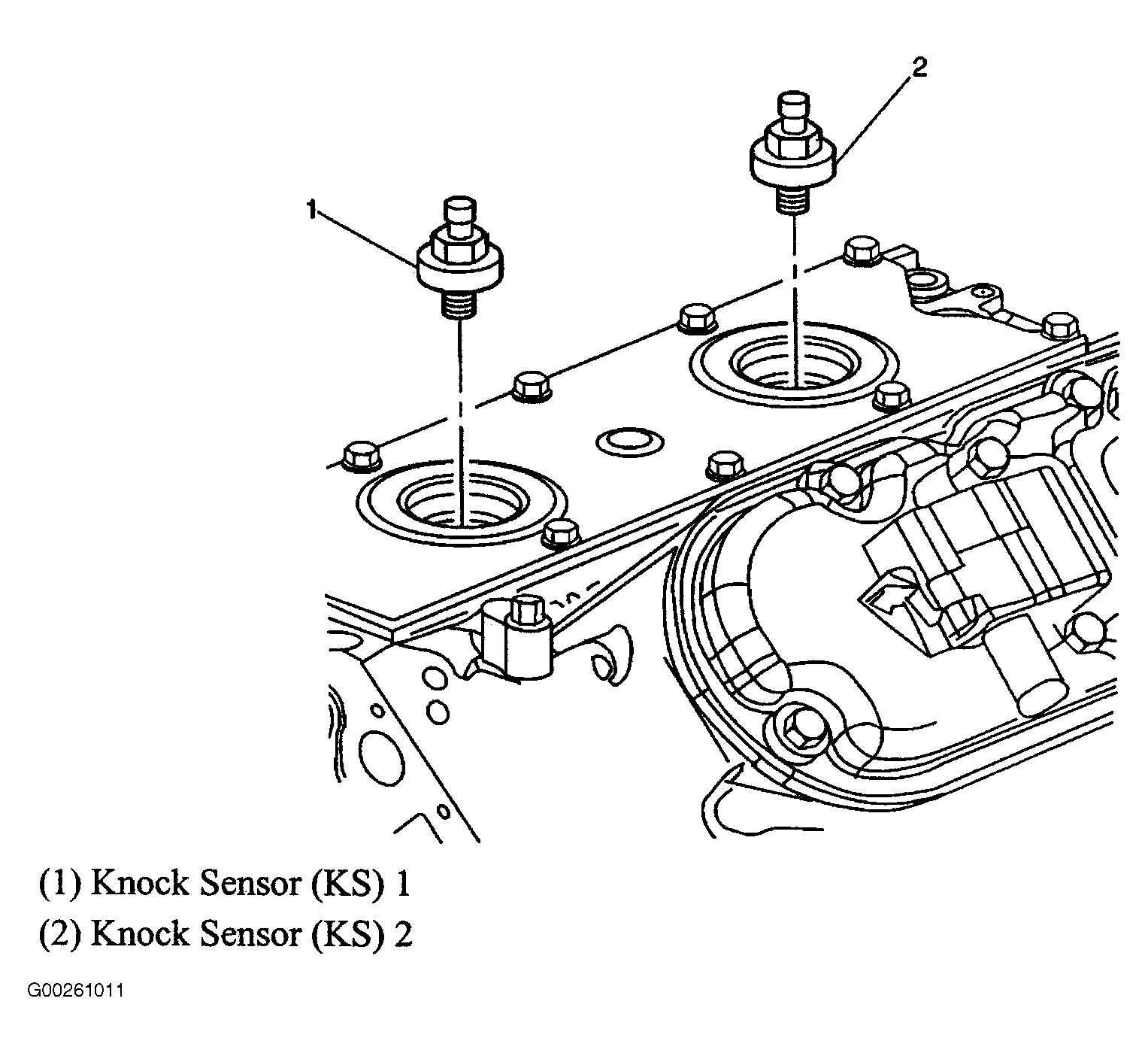

Fig 14: Knock Sensors
Courtesy of GENERAL MOTORS CORP.

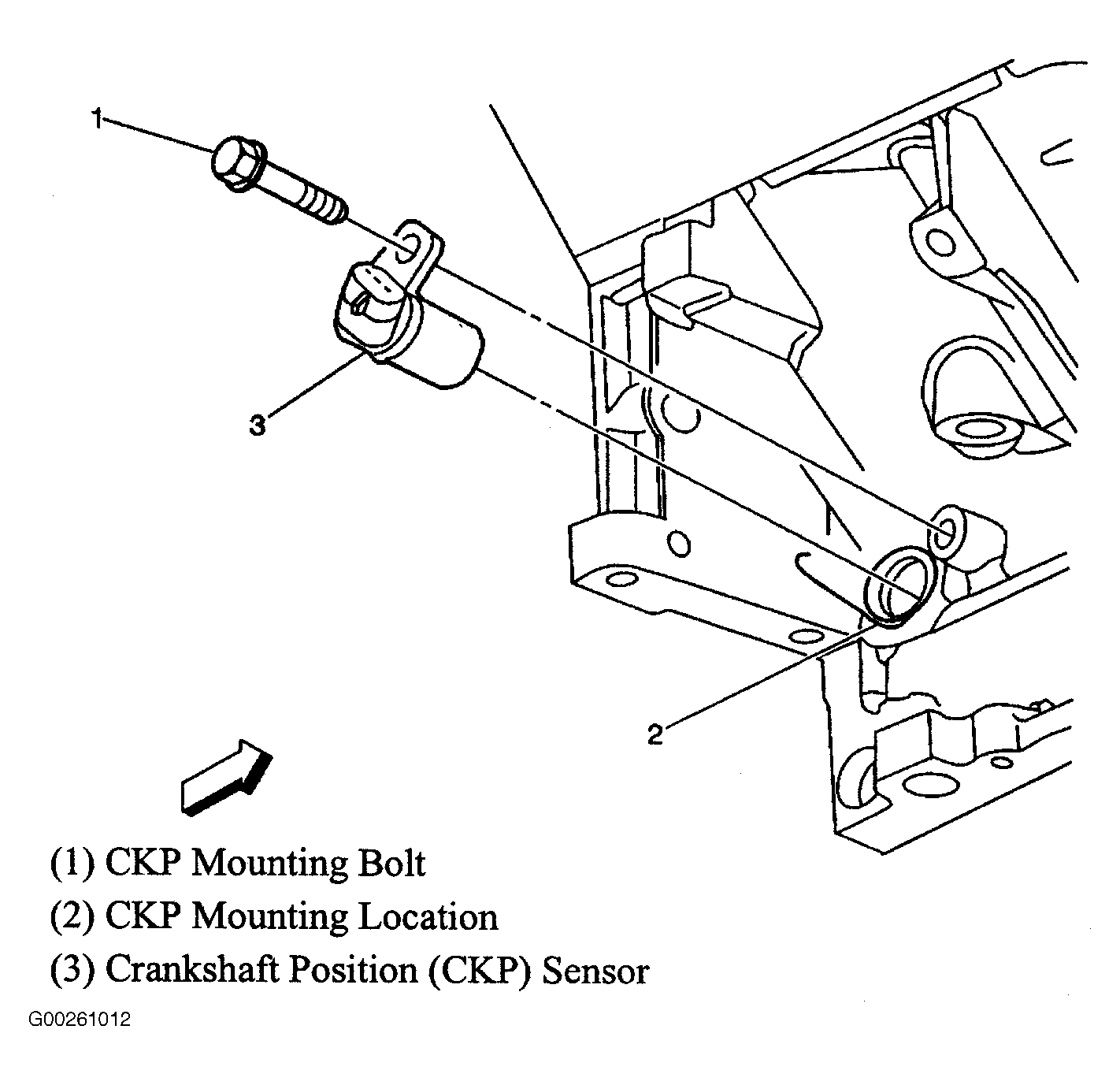

Fig 15: Crankshaft Position Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Vehicle Front View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

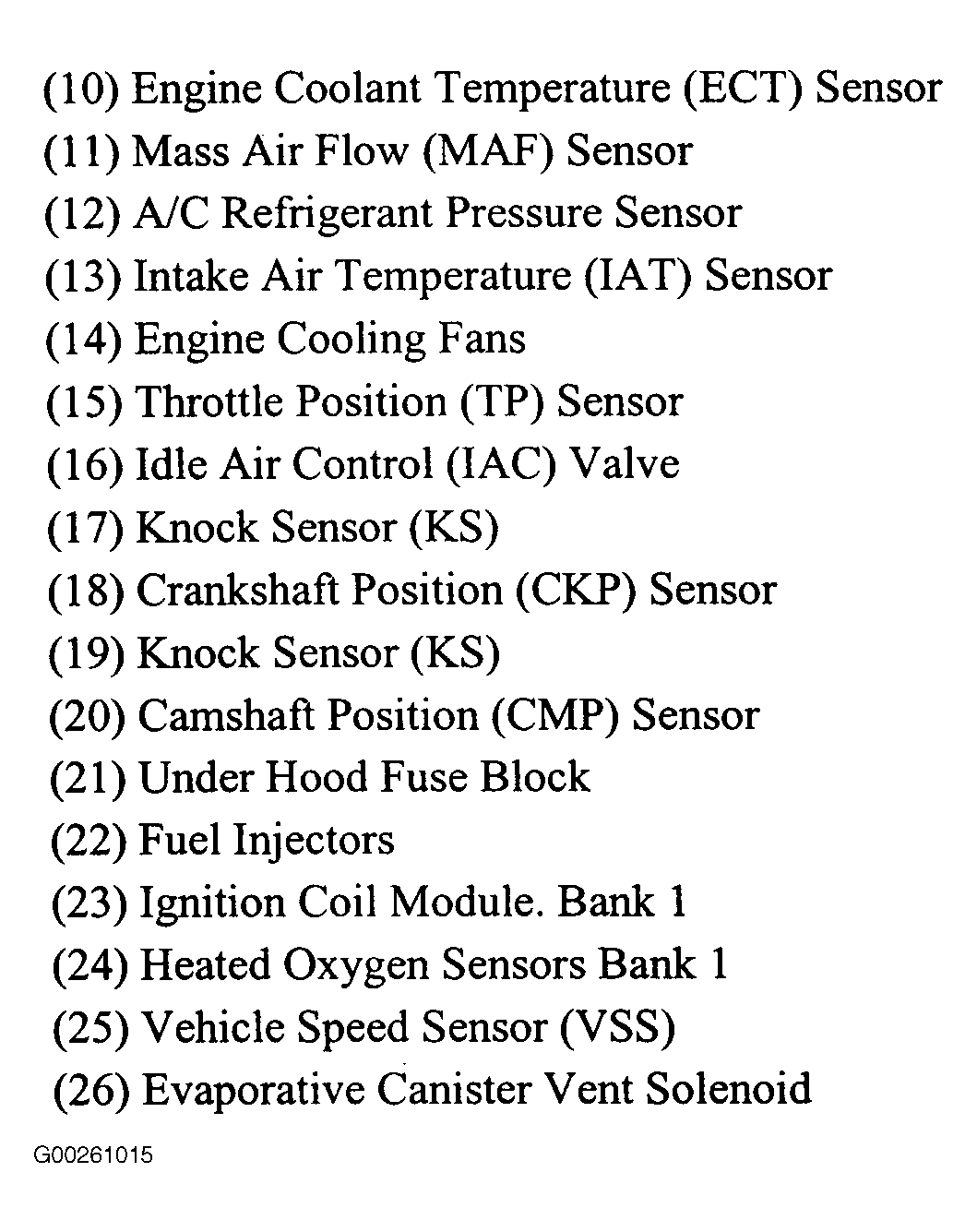

Fig 18: Vehicle Front View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Top Front Of Engine
Courtesy of GENERAL MOTORS CORP.

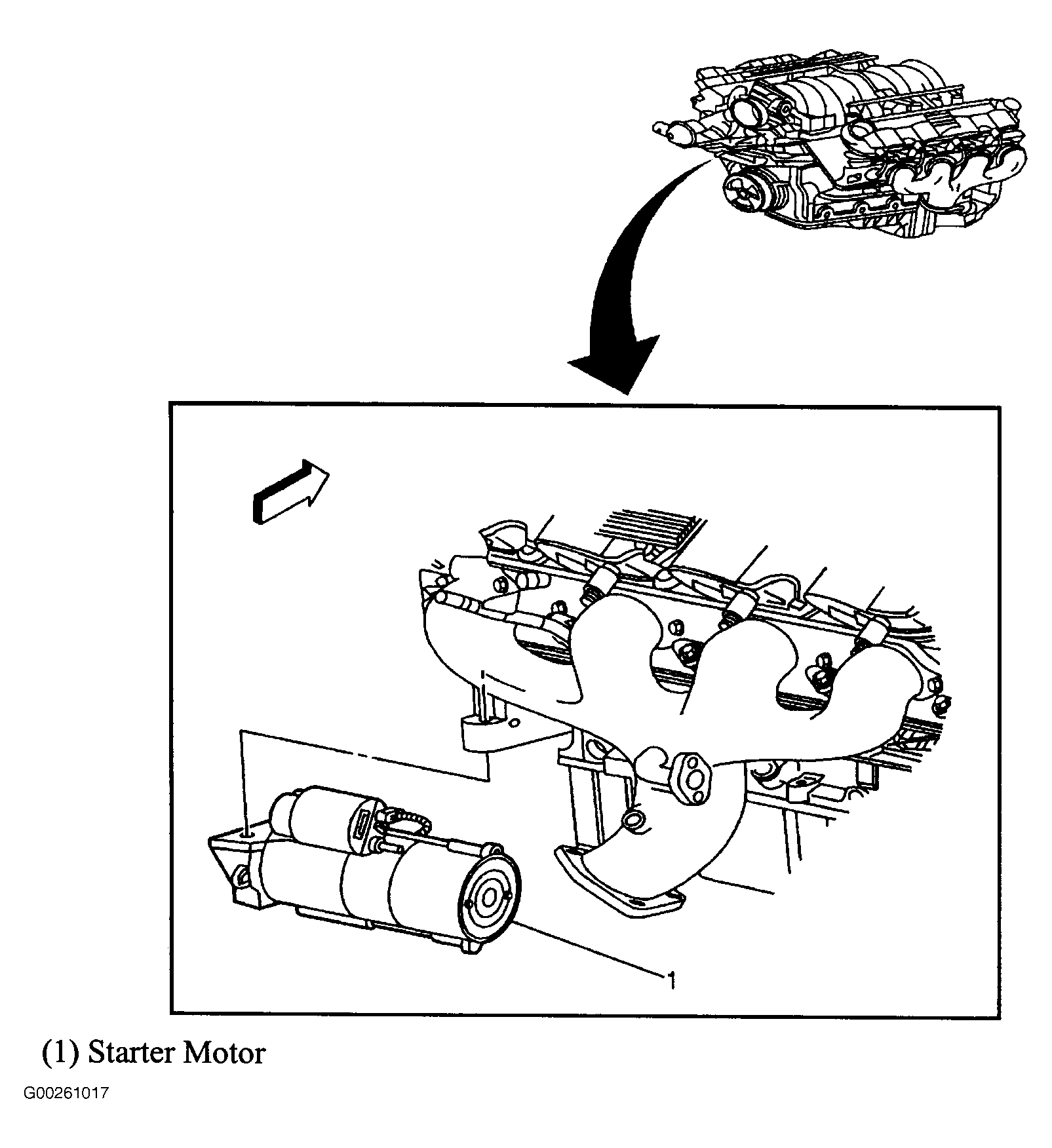

Fig 20: Starter Motor
Courtesy of GENERAL MOTORS CORP.

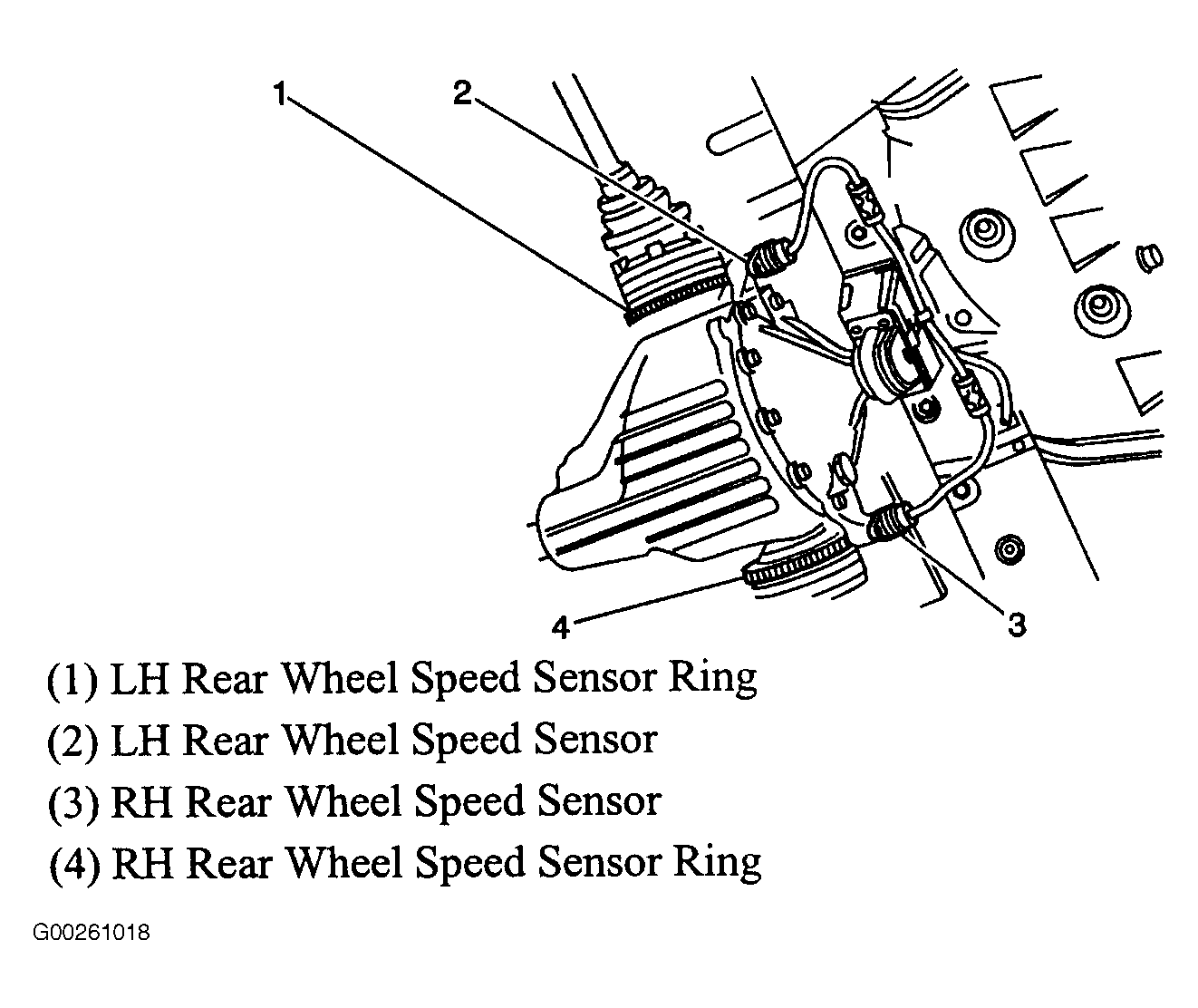

Fig 21: Rear Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

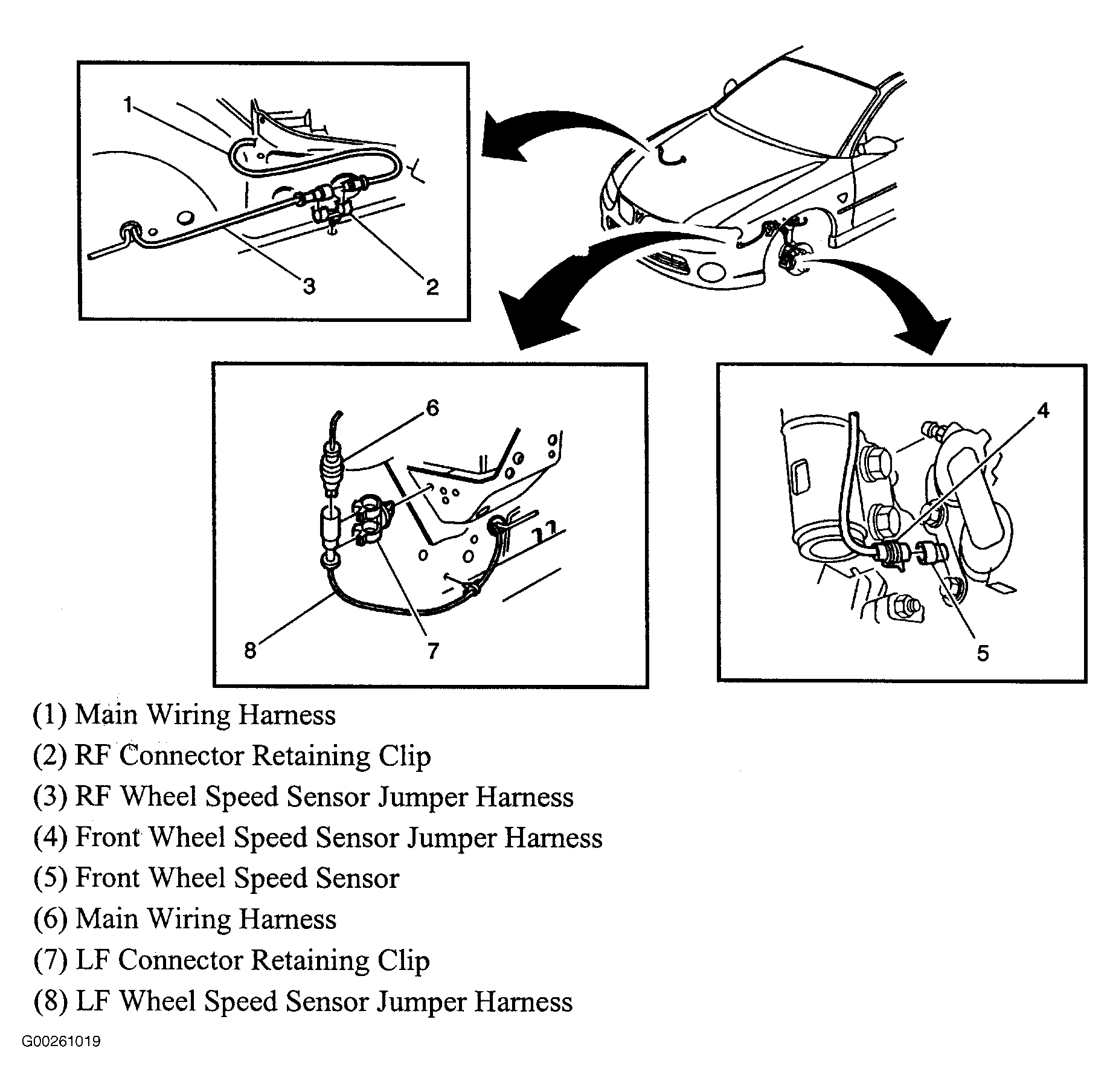

Fig 22: Front Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 23: Control Modules
Courtesy of GENERAL MOTORS CORP.
Fig 24: Throttle Relaxer Assembly & Control Modules
Courtesy of GENERAL MOTORS CORP.

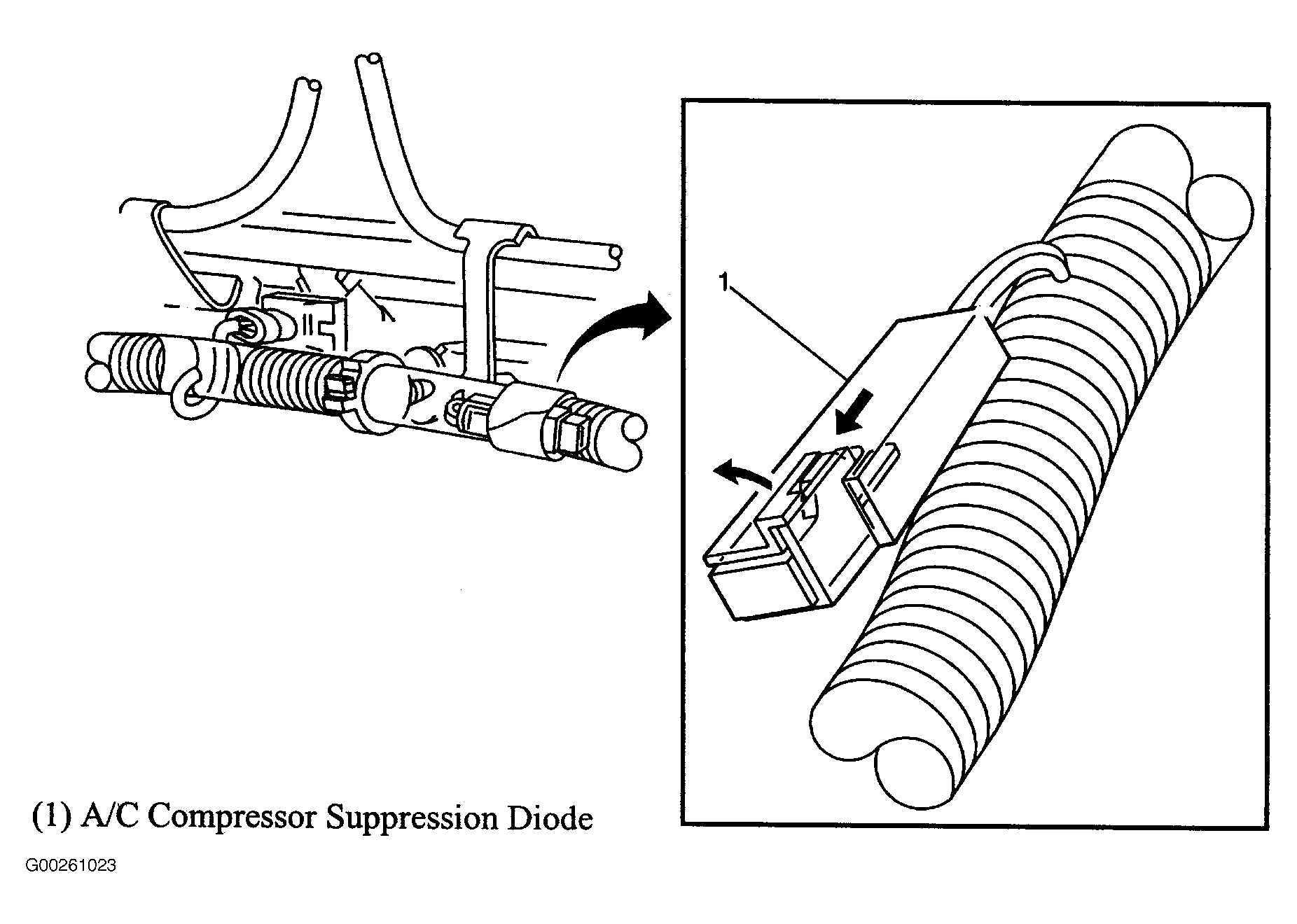

Fig 25: A/C Compressor Suppression Diode
Courtesy of GENERAL MOTORS CORP.

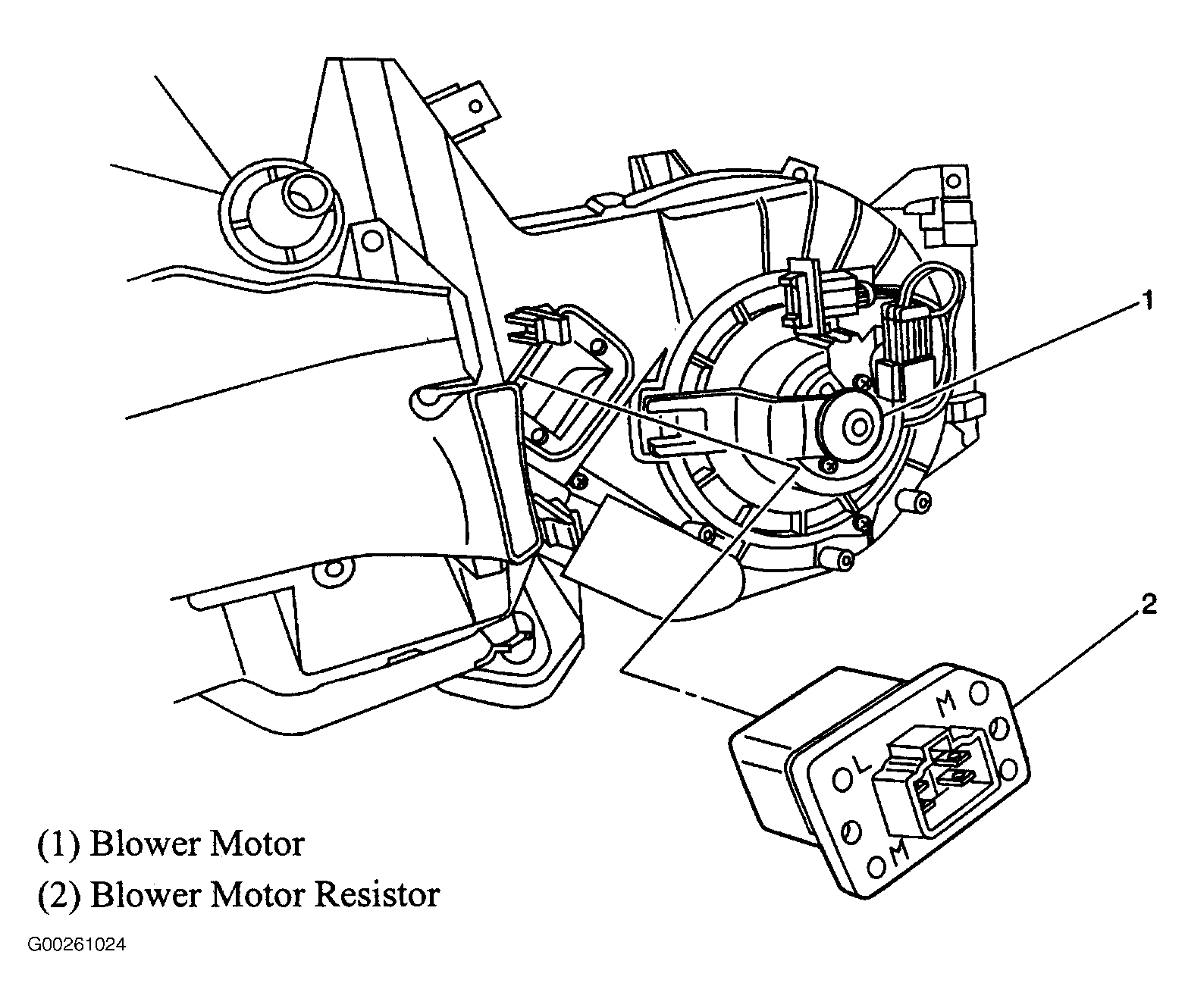

Fig 26: Blower Motor & Resistor
Courtesy of GENERAL MOTORS CORP.

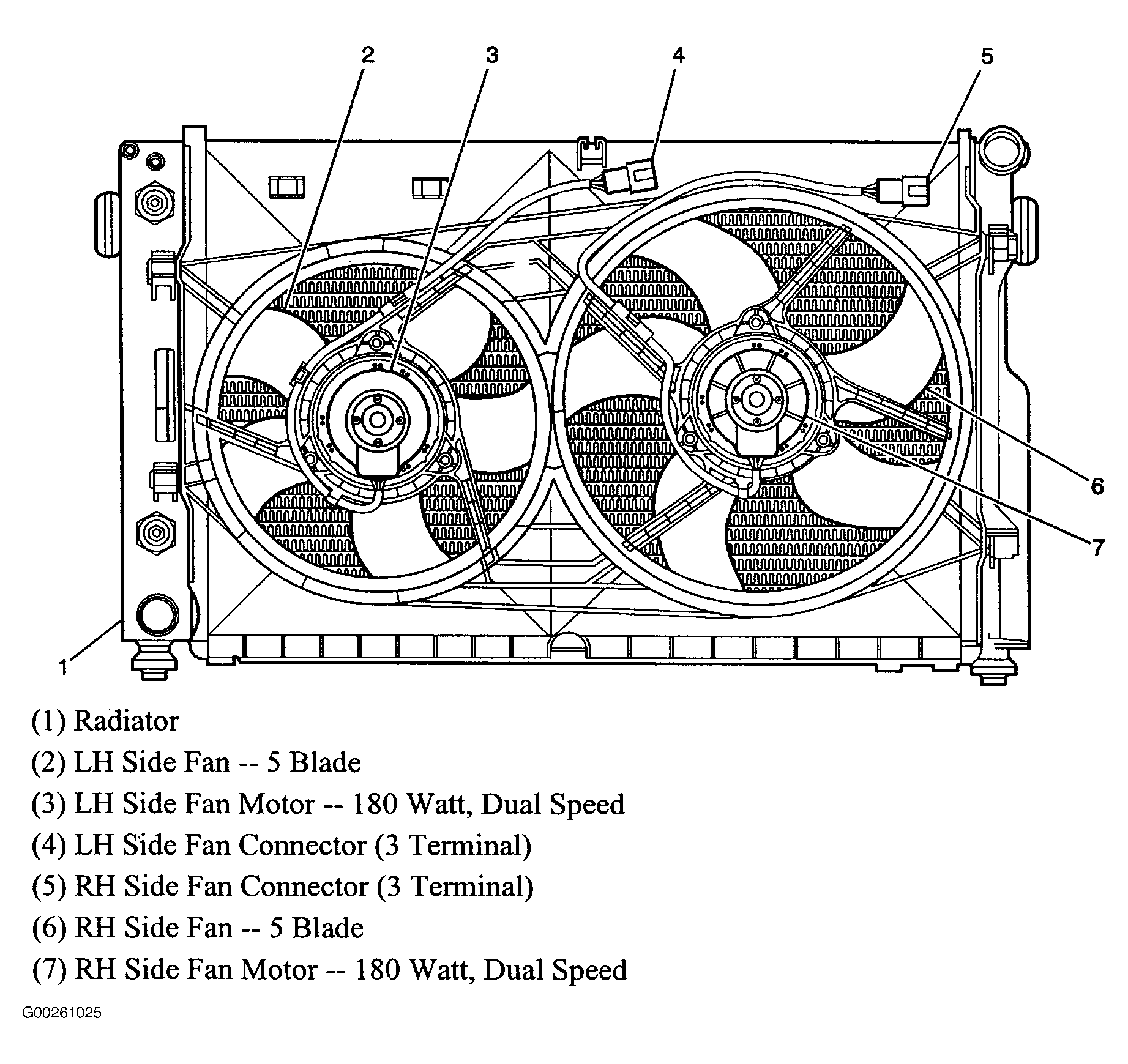

Fig 27: Cooling Fans
Courtesy of GENERAL MOTORS CORP.

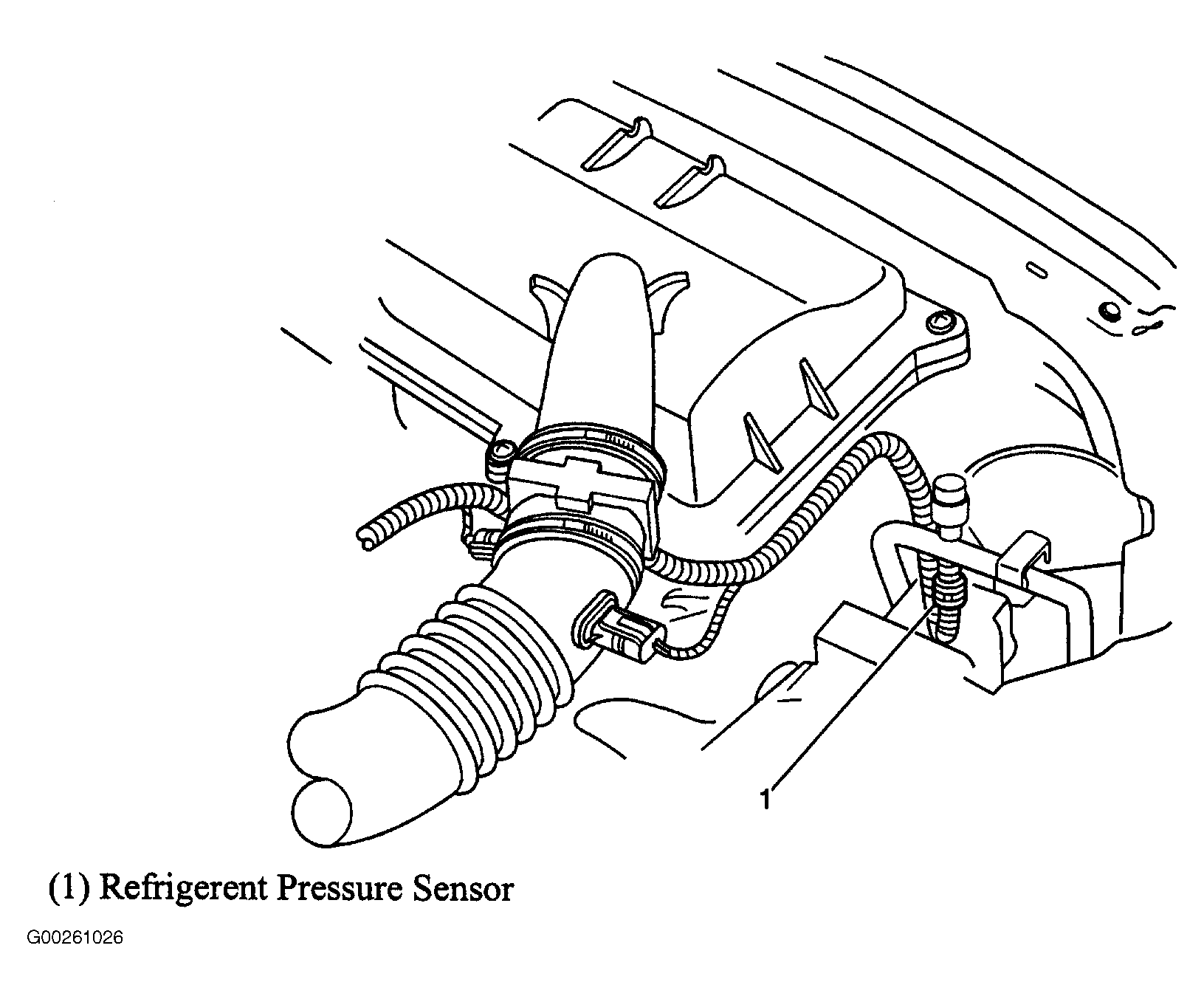

Fig 28: Refrigerant Pressure Sensor
Courtesy of GENERAL MOTORS CORP.

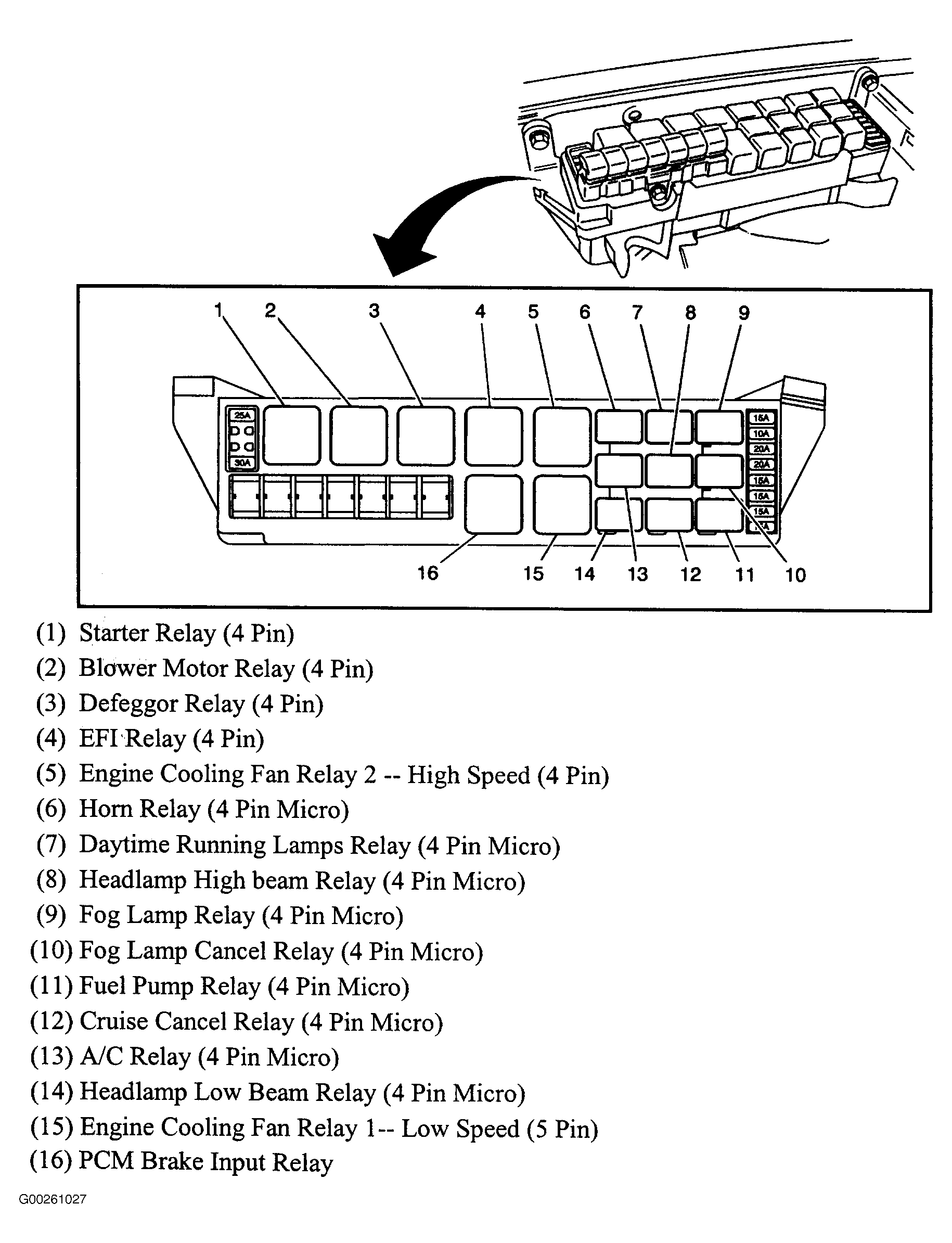

Fig 29: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

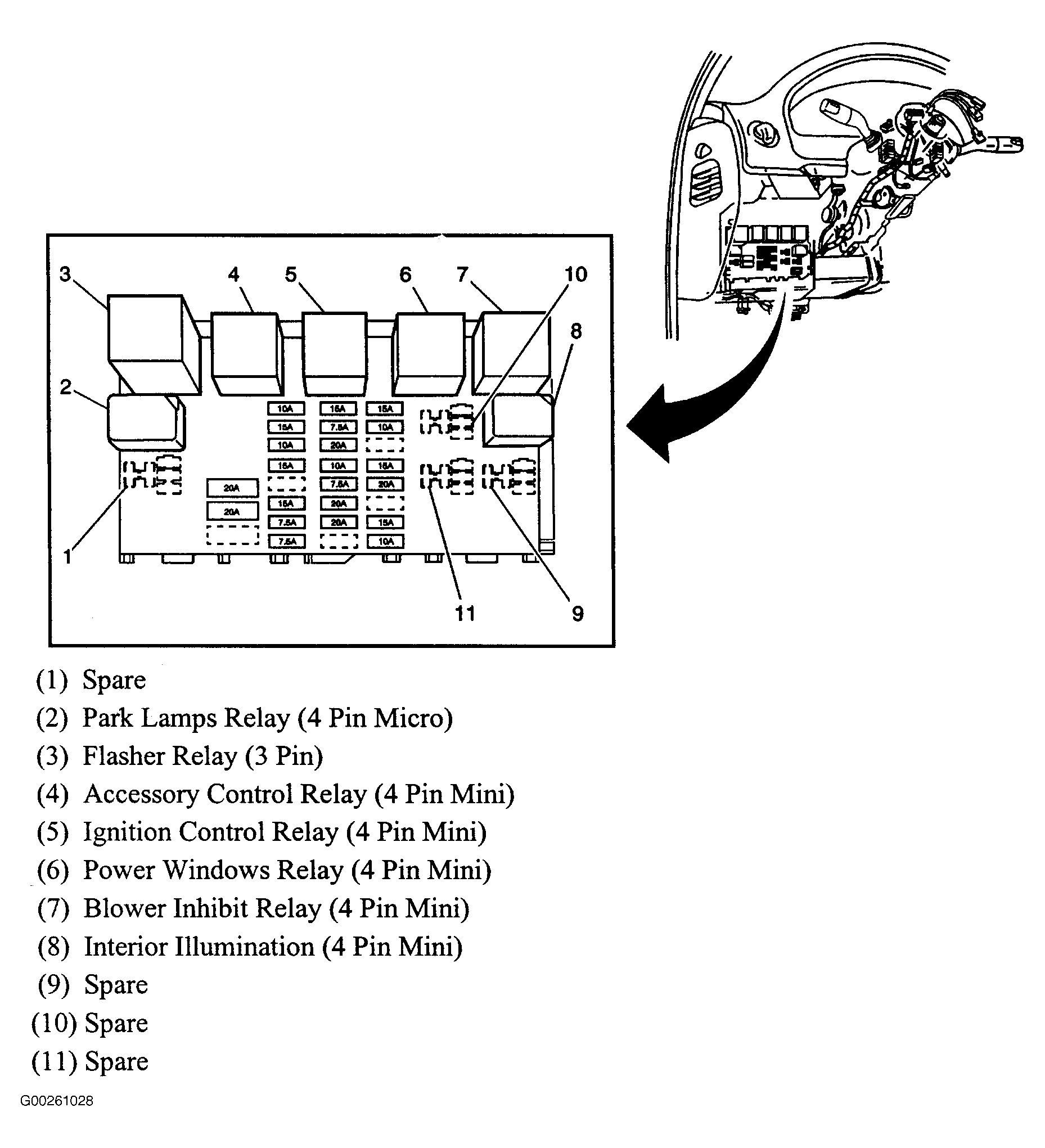

Fig 30: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

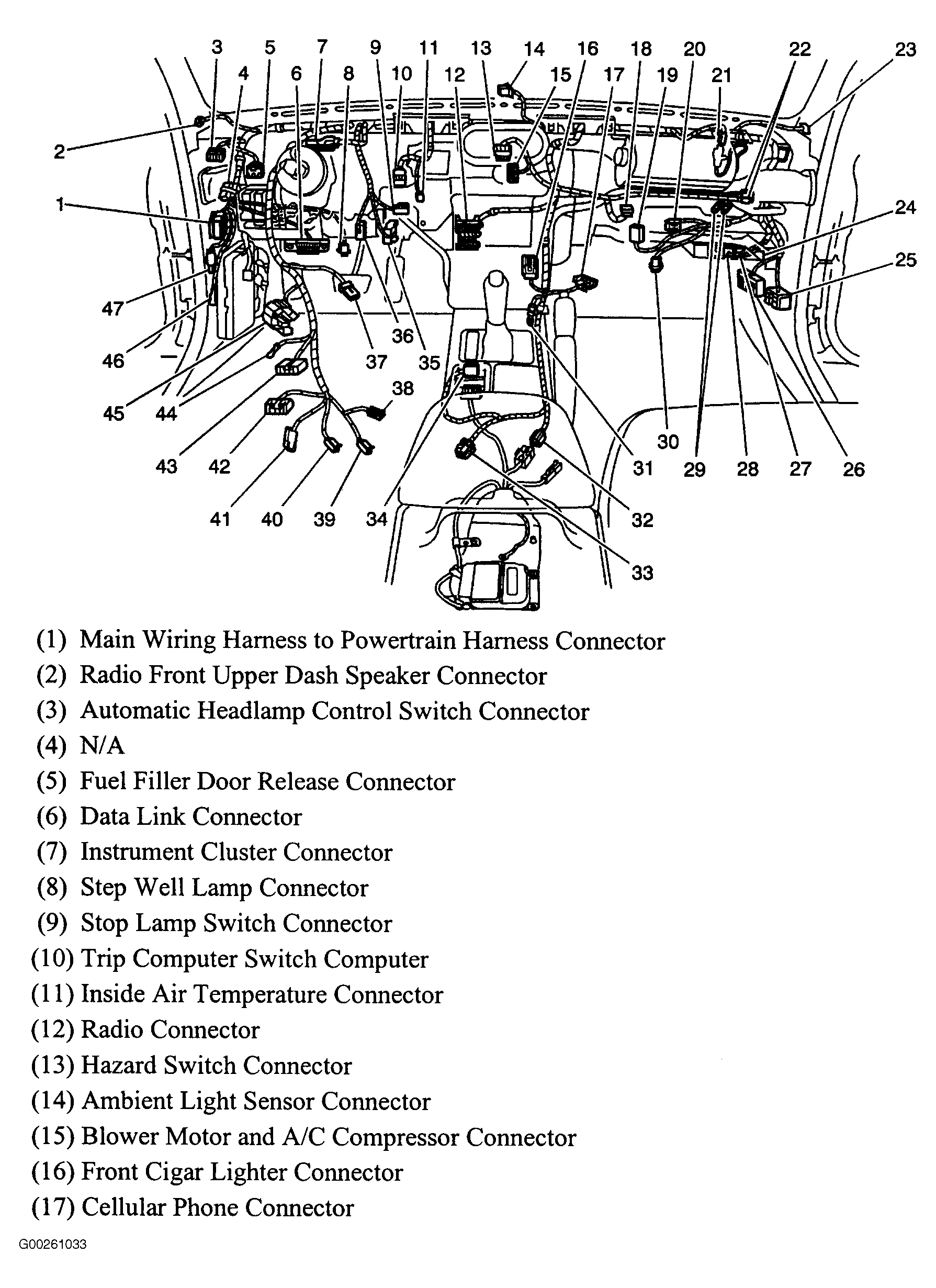

Fig 31: Harness Connectors
Courtesy of GENERAL MOTORS CORP.
Fig 32: Instrument Panel Connectors (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Instrument Panel Connectors (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Body Control Module
Courtesy of GENERAL MOTORS CORP.
