Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

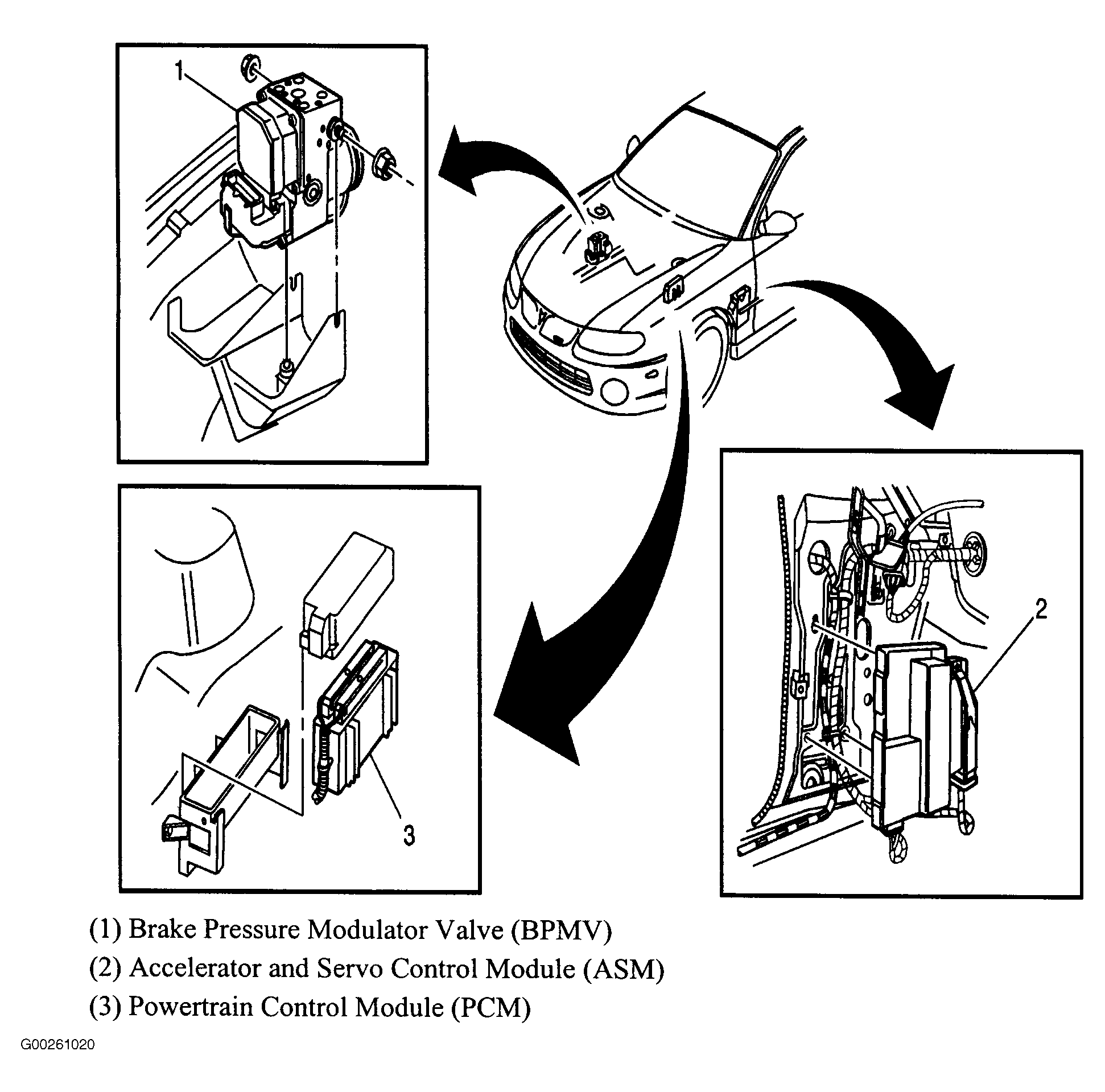

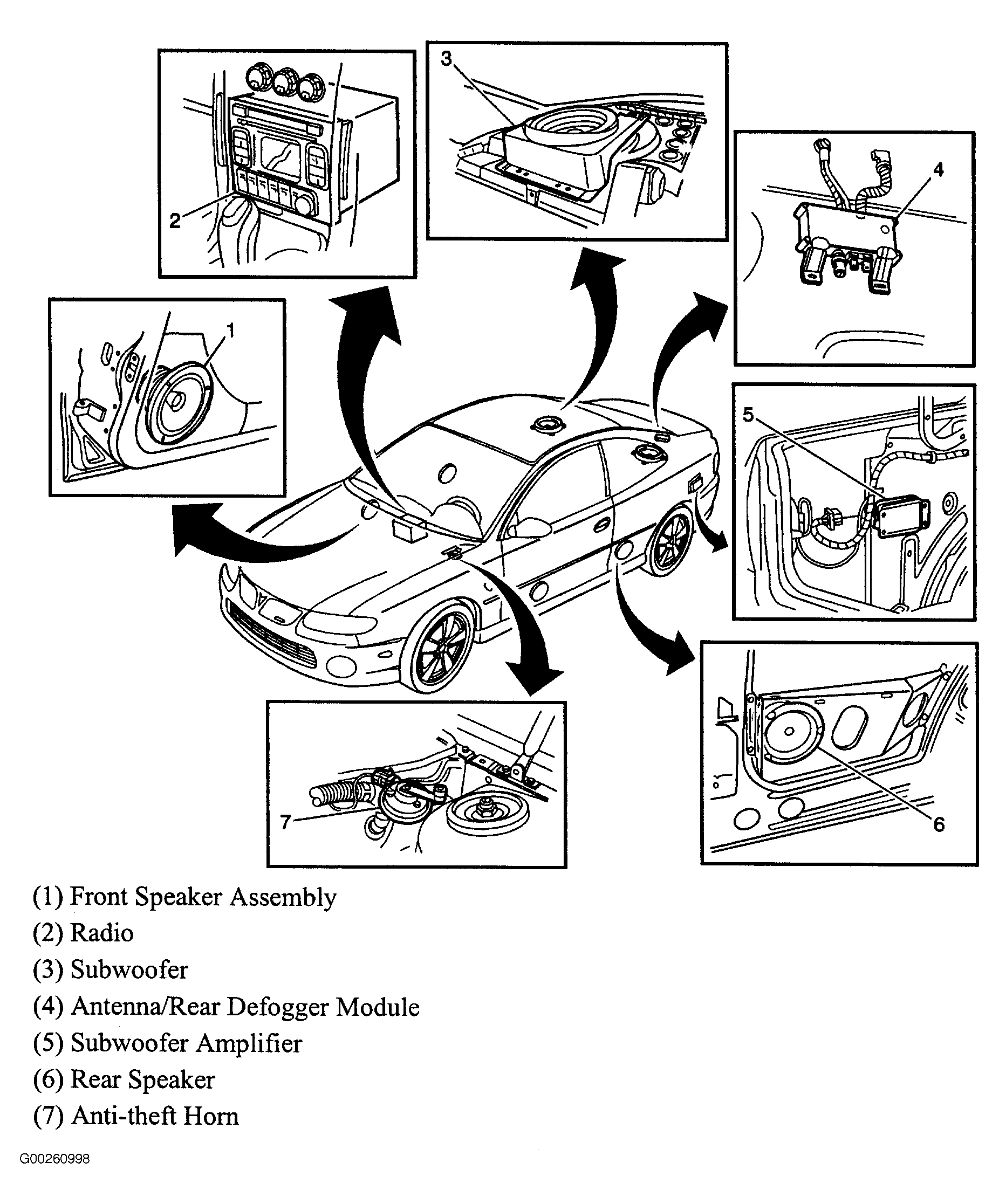

| Accelerator And Servo Control Module (ASM) | Left kick panel. See Figure . |
| Antenna/Rear Defogger Module | Left side of rear window. See Figure . |

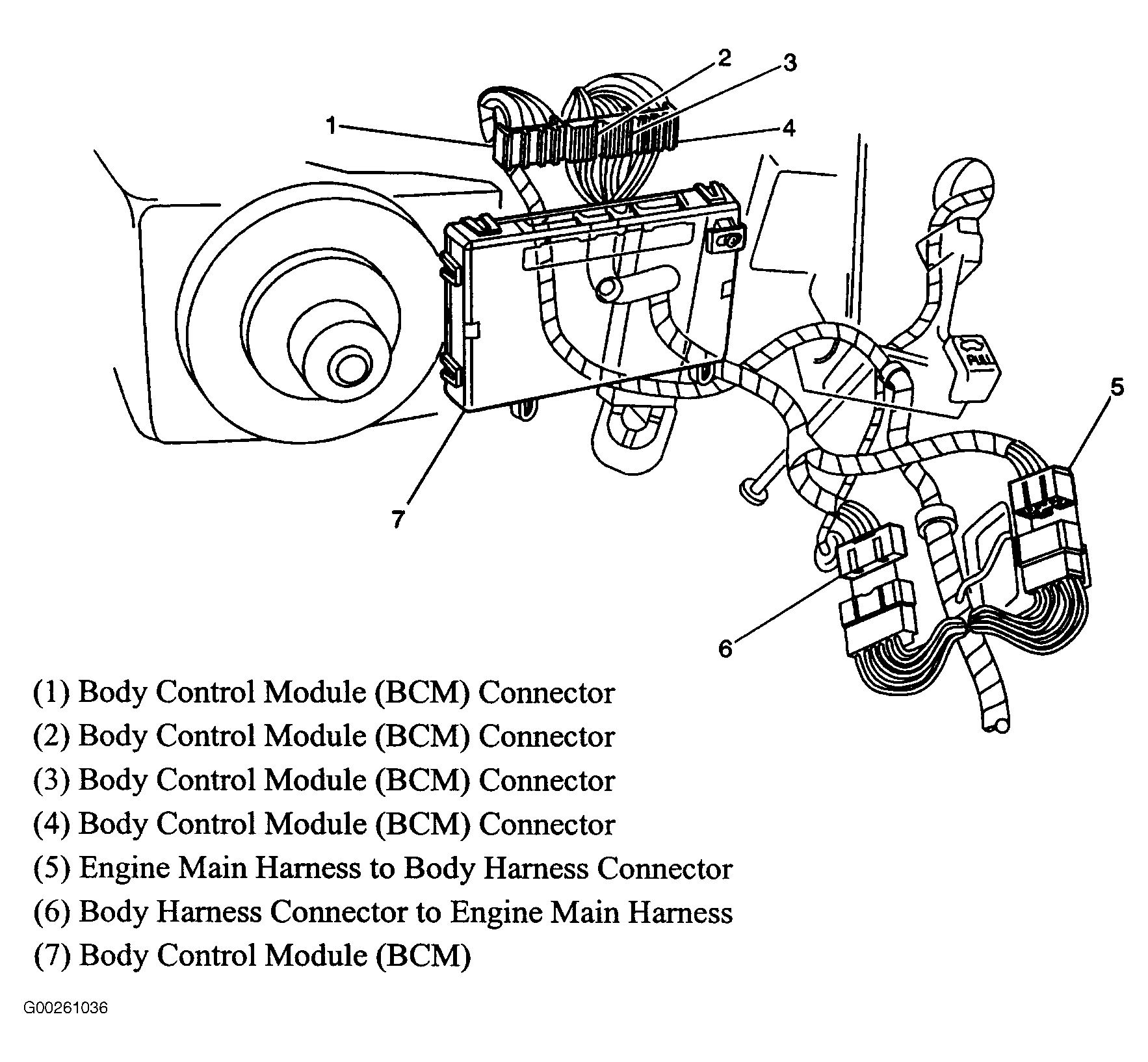

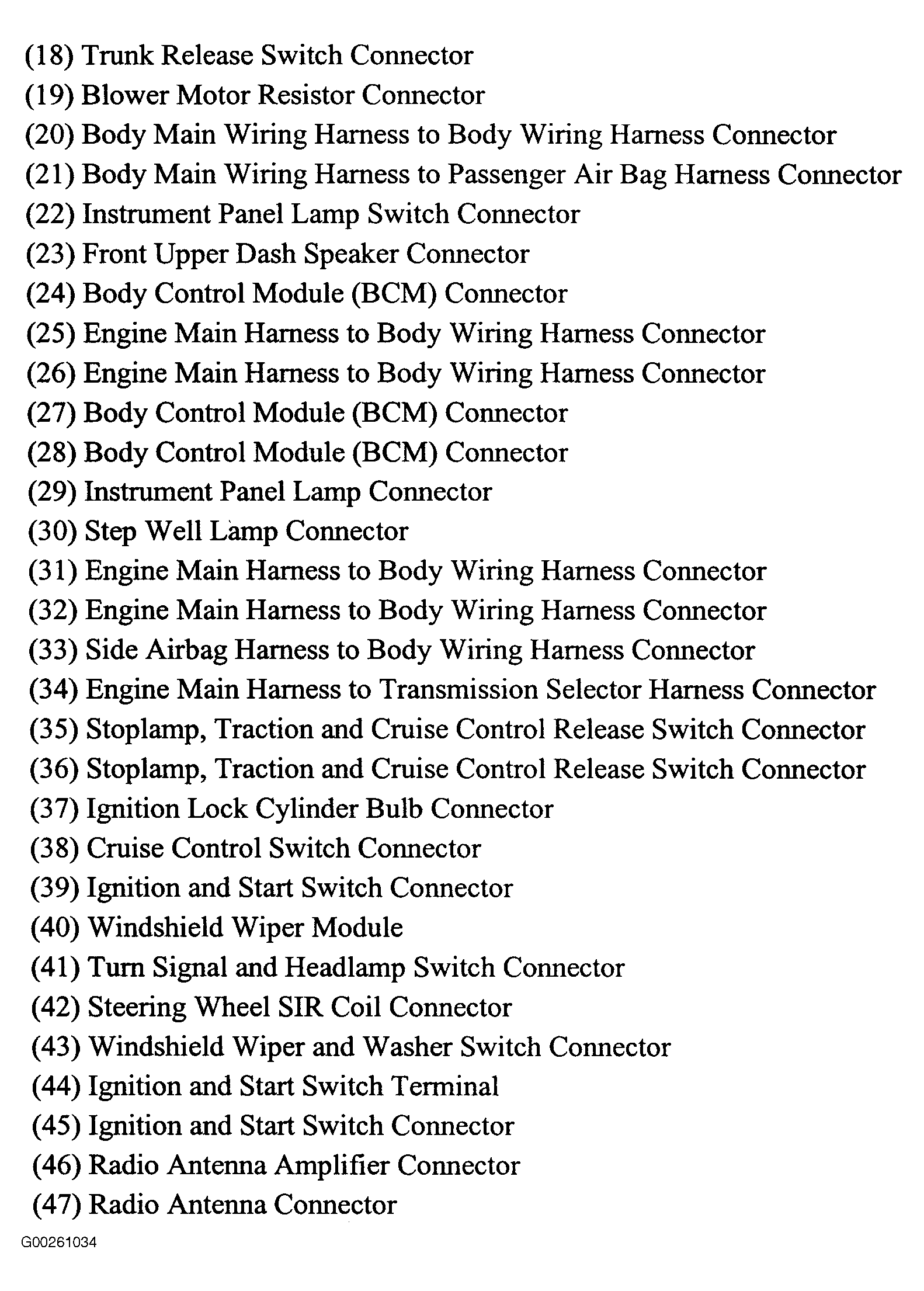

| Body Control Module (BCM) | Below right side of dash. See Figure . |
| Body Control Module (BCM) Connector | Below right side of dash. See Figure . |

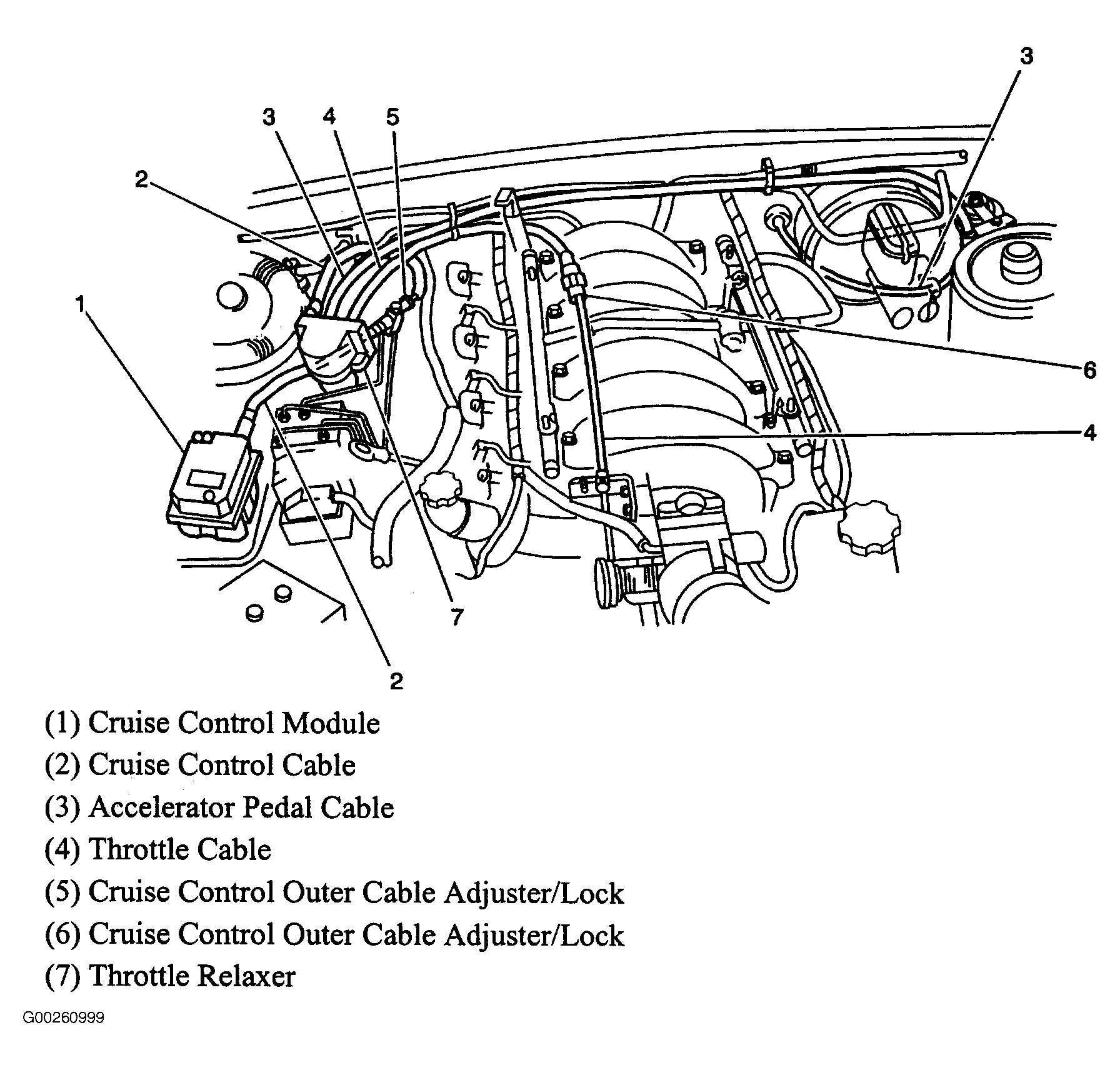

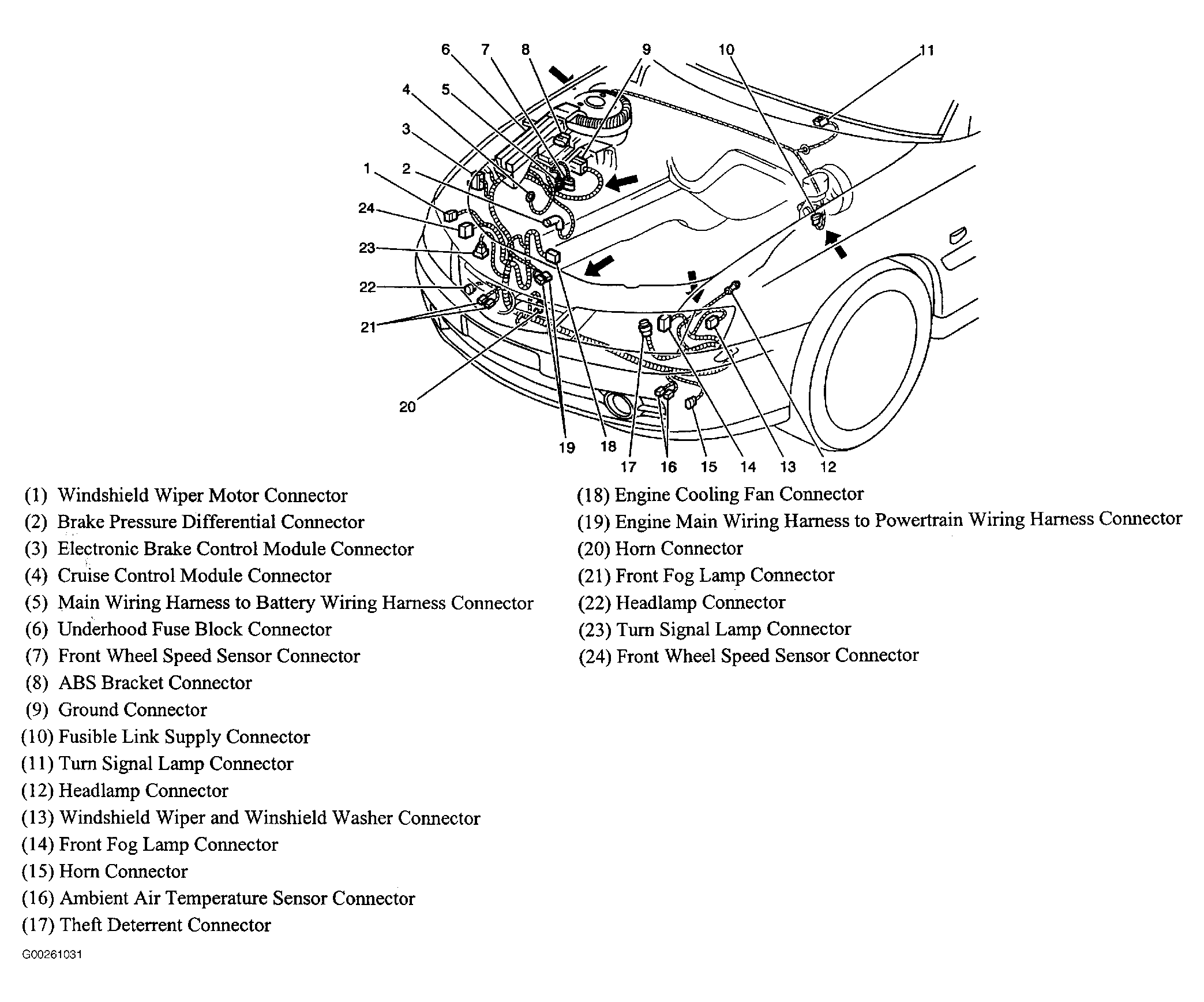

| Cruise Control Module | Right side of engine compartment. See Figure . |
| Cruise Control Module Connector | Right side of engine compartment. See Figure . |

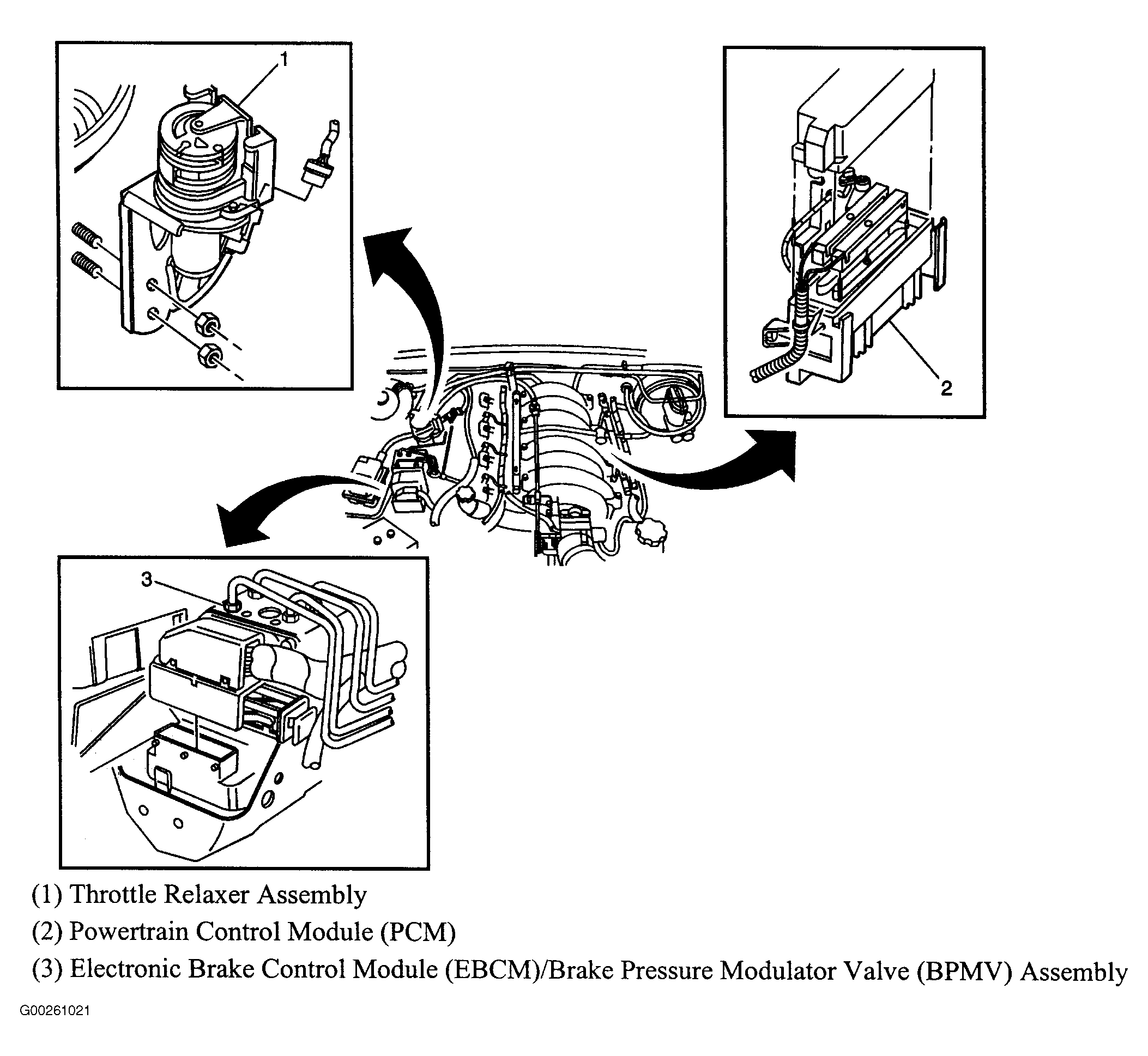

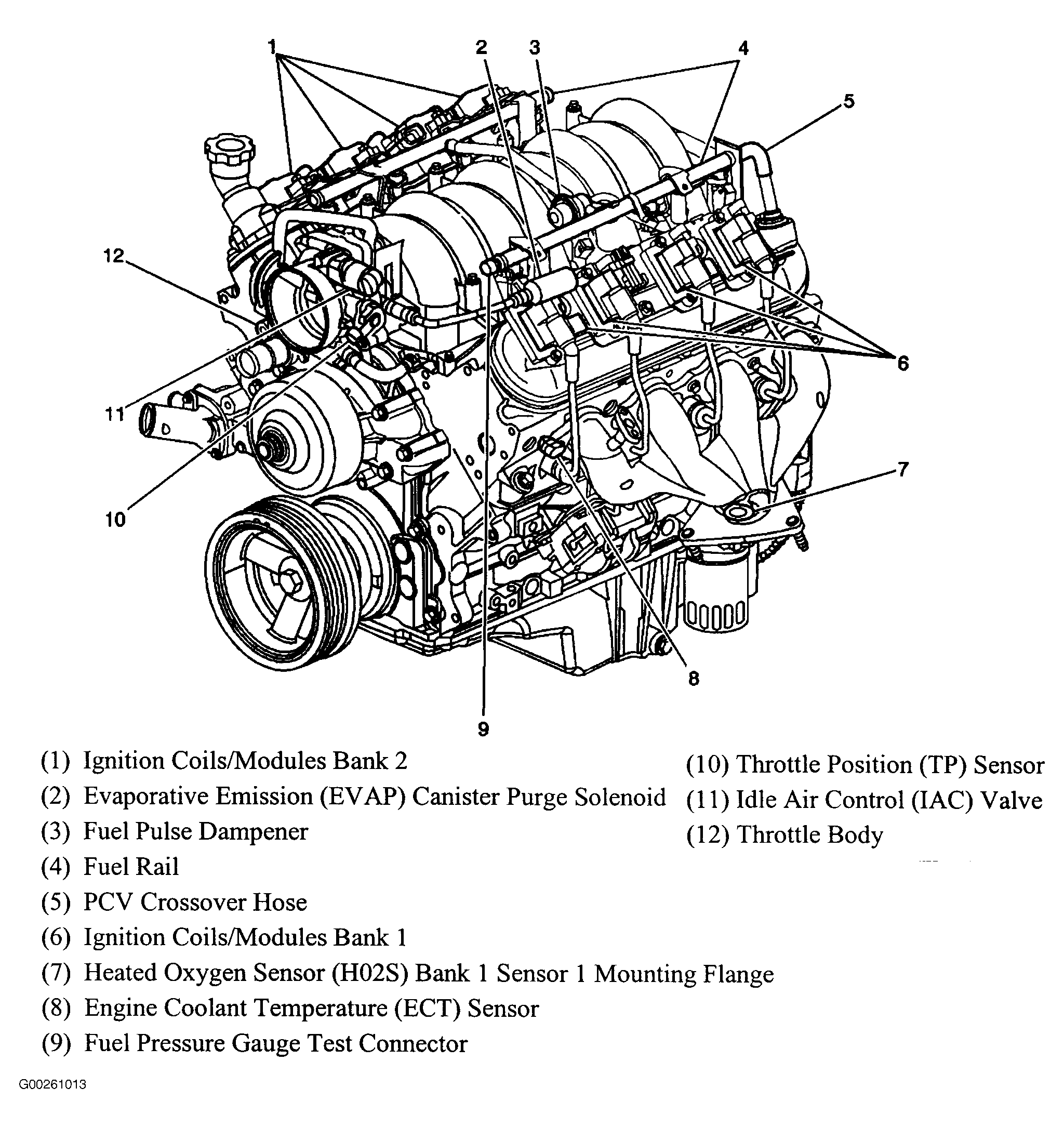

| Electronic Brake Control Module (EBCM) | Right side of engine compartment. See Figure . |
| Electronic Brake Control Module (EBCM) Connector | Right side of engine compartment. See Figure . |
| HVAC Control Assembly | Center of dash, under radio. |
| Ignition Coils/Modules Bank 2 | On right valve cover. See Figure . |
| Ignition Coils/Modules Bank 2 | On left valve cover. See Figure . |

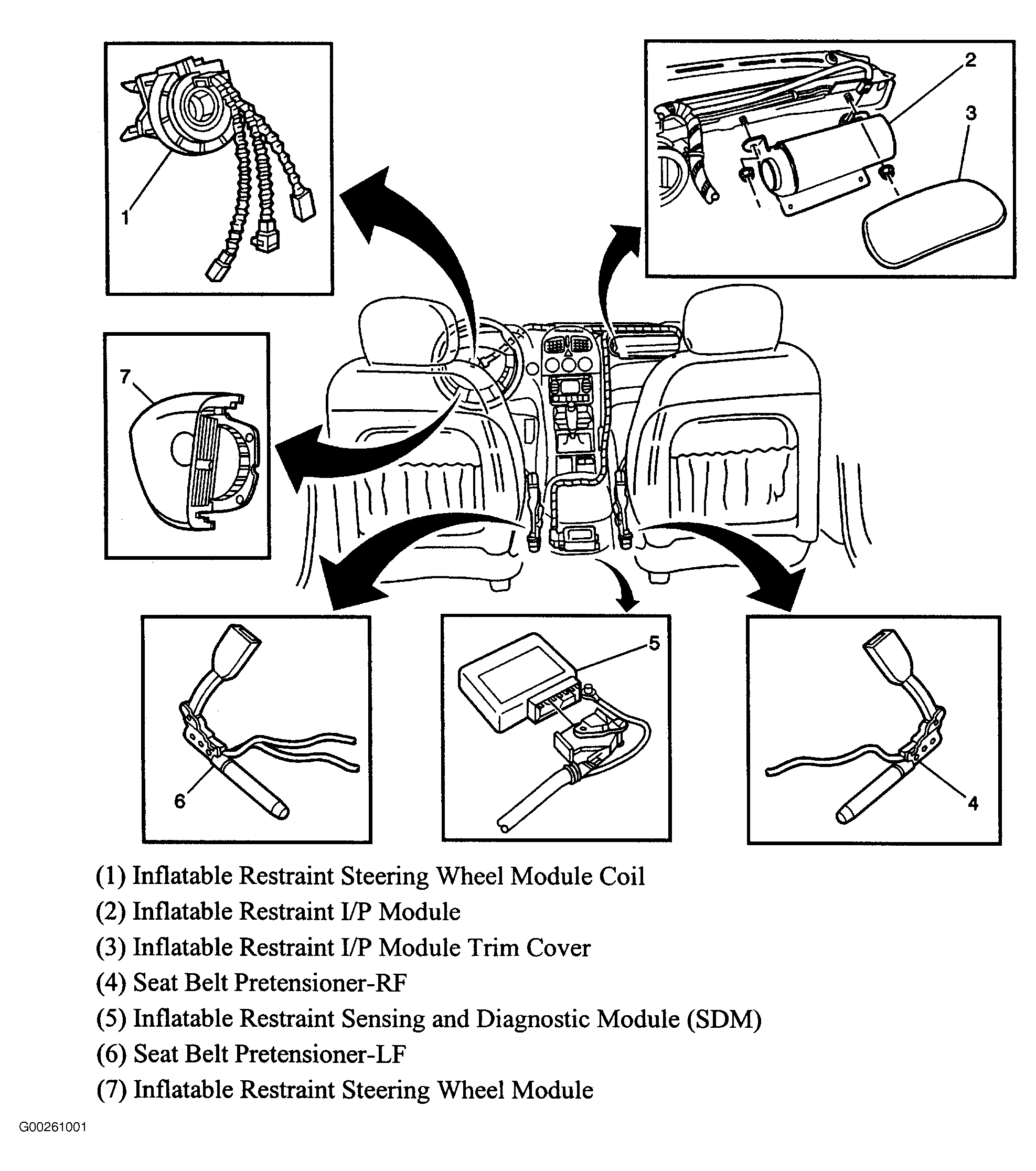

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below center console. See Figure . |

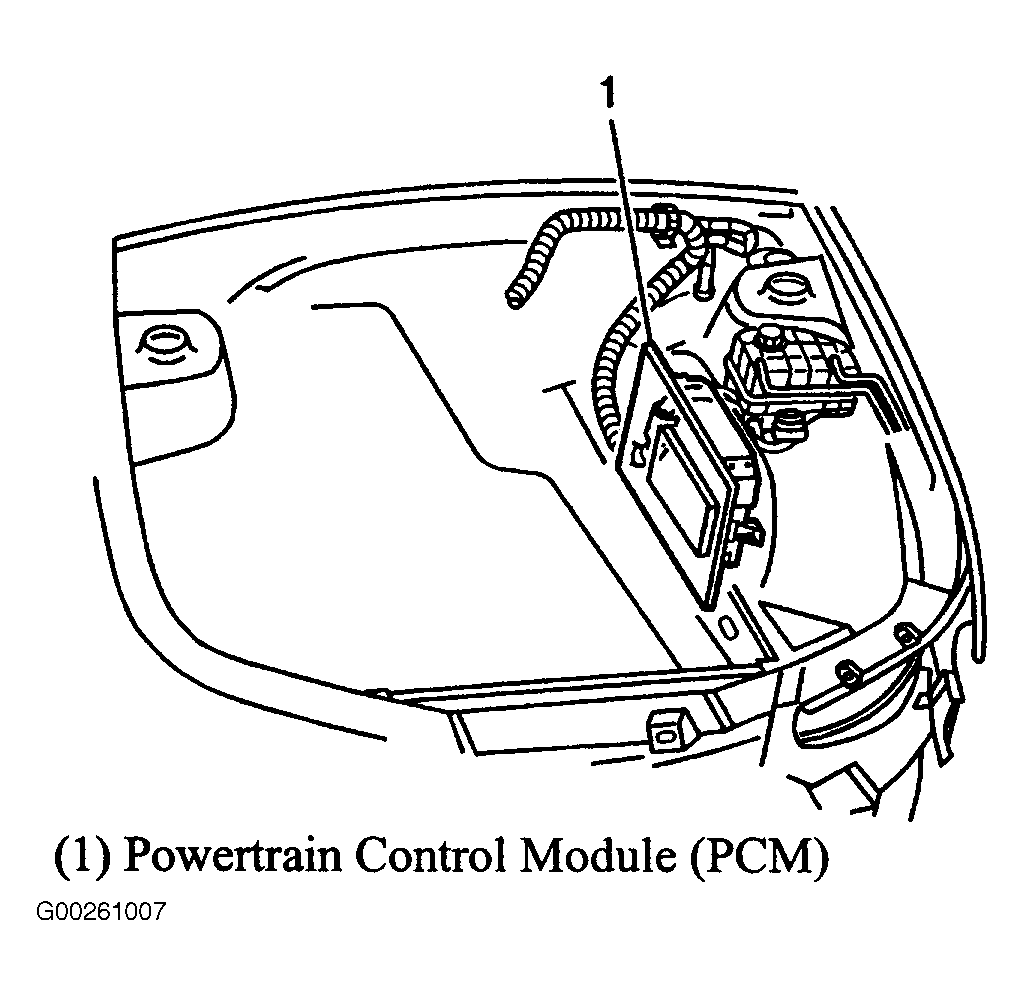

| Powertrain Control Module (PCM) | Left side of engine compartment. See Figure . |

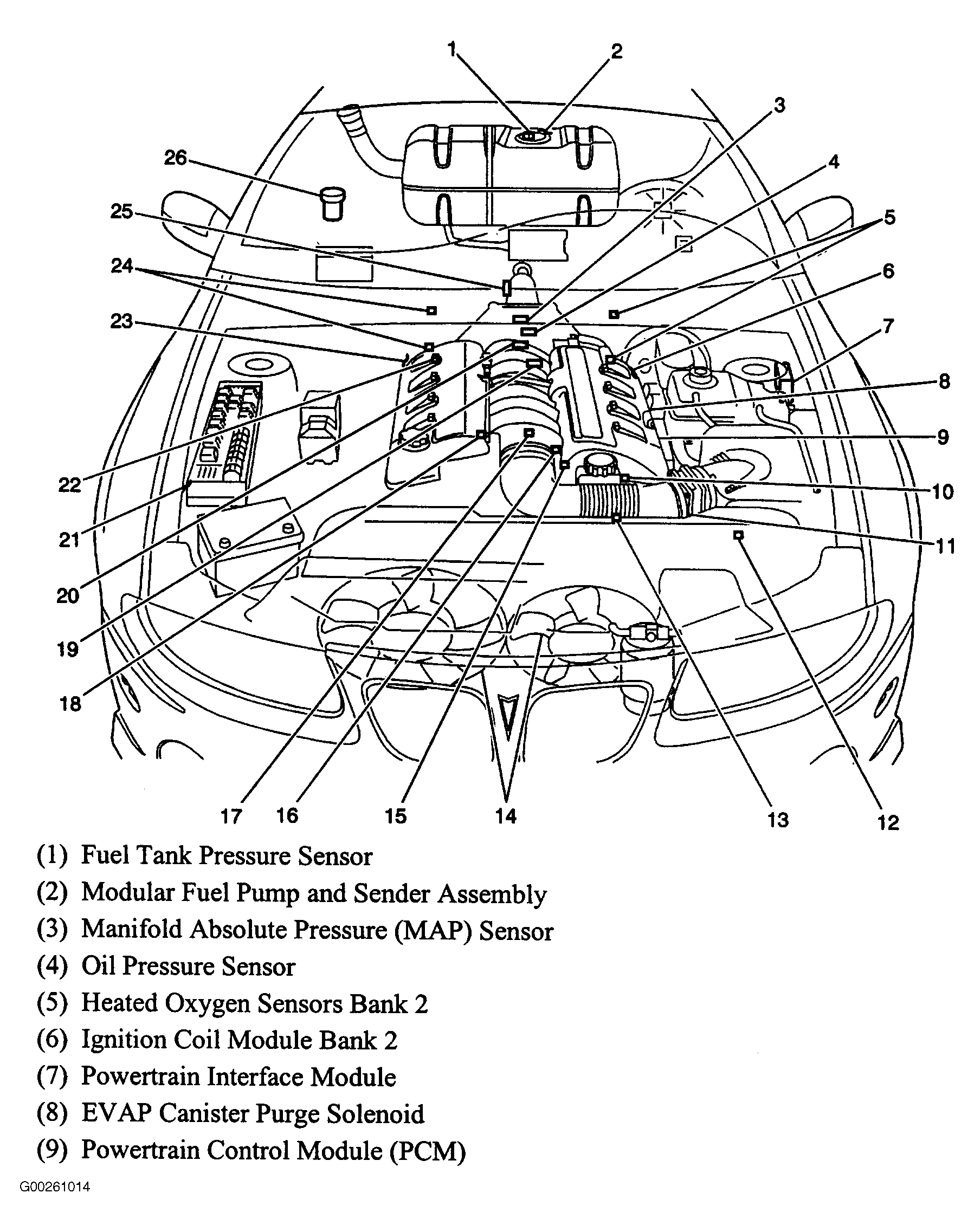

| Powertrain Interface Module | Left rear of engine compartment. See Figure . |
| Radio Antenna Amplifier Module | Behind left rear quarter window. |
| Remote Control Door Lock Receiver | Center top of dash. |
