Engine Controls Connector End Views

A/C Refrigerant Pressure Sensor Terminal Identification

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9730-30
  • 3-Way Female (GY)
Pin Wire Color Circuit No. Function
A GN/OG 5514 Low Reference
B PU/WH 2700 5-Volt Reference
C GN/BK 380 A/C Refrigerant Pressure Sensor Signal

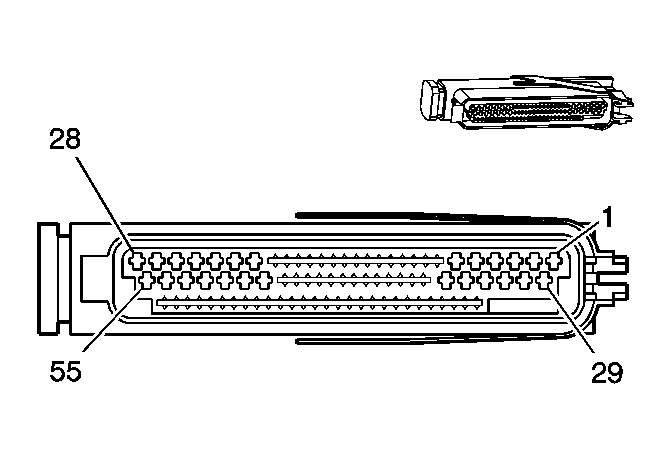

Accelerator and Servo Control Module Terminal Identification

GM1356029Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9123-2160-30
  • 55-Way Female (BK)
Pin Wire Color Circuit No. Function
1 RD 839 Ignition 1 Voltage
2-21 - - Not Used
22 RD/WH 560 Throttle Relaxer Motor - Feed
23 - - Not Used
24 RD/YE 1440 Battery Positive Voltage
25 - - Not Used
26 RD/BK 561 Throttle Relaxer Motor - Return
27 - - Not Used
28 BK/RD 450 Ground
29-34 - - Not Used
35 BK/WH 464 Delivered Torque Signal
36 - - Not Used
37 OG/WH 463 Requested Torque Signal
38-39 - - Not Used
40 BU 411 Throttle Position Signal
41 GY 2701 5-Volt Reference
42 - - Not Used
43 BK/YE 2752 Low Reference
44-48 - - Not Used
49 RD/WH 560 Throttle Relaxer Motor - Feed
50 - - Not Used
51 RD/YE 1440 Battery Positive Voltage
52 - - Not Used
53 RD/BK 561 Throttle Relaxer Motor - Return
54 - - Not Used
55 BK/RD 450 Ground
Automatic Transmission (C2) Terminal Identification

GM1356253Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9229-1511-41
  • 20-Way Female (GY)
Pin Wire Color Circuit No. Function
A L-GN 1222 1-2 Shift Solenoid Valve Control
B YE/BK 1223 2-3 Shift Solenoid Valve Control
C RD 1228 PC Solenoid High Control
D GY/BU 1229 PC Solenoid Low Control
E PK/BU 339 Ignition 1 Voltage
F-K - - Not Used
L BK/YE 1227 TFT Sensor Signal
M BK/WH 2762 Low Reference
N BN/YE 1224 Transmission Switch Signal A
P GY 1226 Transmission Switch Signal C
R YE 1225 Transmission Switch Signal B
S GN/WH 898 Shift Solenoid Valve 3 High Control
T GY/RD 422 TCC Solenoid Valve Control
U BN 418 TCC PWM Solenoid Valve Control
V-W - - Not Used
Camshaft Position (CMP) Sensor Terminal Identification

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9735-30
  • 3-Way Female (BK)
Pin Wire Color Circuit No. Function
A BN 633 CMP Sensor Signal
B RD/WH 632 Low Reference
C WH/BK 631 12-Volt Reference

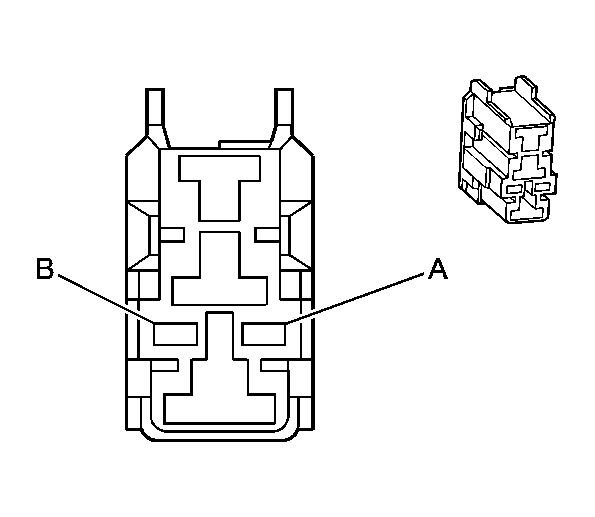

Clutch Pedal Position (CPP) Switch Terminal Identification

GM1356225Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • S42
  • 2-Way Female (WH)
Pin Wire Color Circuit No. Function
A GY/BU 275 Neutral Safety Switch Signal
B GY 434 Park Neutral Position Switch Park Signal
Crankshaft Position (CKP) Sensor Terminal Identification

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9735-30
  • 3-Way Female (BK)
Pin Wire Color Circuit No. Function
A L-BU 573 CKP Sensor Signal
B L-BU/BK 574 Low Reference
C L-BU/WH 2867 12-Volt Reference
Data Link Connector (DLC) Terminal Identification

GM1356339Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7123-9265-30
  • 16-Way Female (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 YE 1045 RFA Class 2 Serial Data
3 - - Not Used
4 BK 150 Ground
5 BK/YE 251 Ground
6-8 - - Not Used
9 RD/BK 800 UART Serial Data (Primary)
10-11 - - Not Used
12 BU/BK 799 ABS Serial Data
13-15 - - Not Used
16 OG/BK 740 Battery Positive Voltage
Engine Coolant Level Switch Terminal Identification

GM1356235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9721-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
A GN 68 Low Coolant Level Indicator Control
B BK/RD 450 Ground
Engine Coolant Temperature (ECT) Sensor Terminal Identification

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9569-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
A GY/BK 2761 Low Reference
B YE 410 ECT Sensor Signal
Engine Oil Pressure (EOP) Switch Terminal Identification

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9730-30
  • 3-Way Female (BK)
Pin Wire Color Circuit No. Function
A GN 470 Low Reference
B BU/YE 596 5-Volt Reference
C BU/WH 331 Engine Oil Pressure Signal
Evaporative Emission (EVAP) Canister Purge Solenoid Terminal Identification

GM1356356Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-4037-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B GN/YE 428 EVAP Canister Purge Solenoid Control
Evaporative Emission (EVAP) Canister Vent Solenoid Terminal Identification

GM1356356Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9922-50
  • 3-Way Female (RD)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B WH 1310 EVAP Canister Vent Solenoid Control

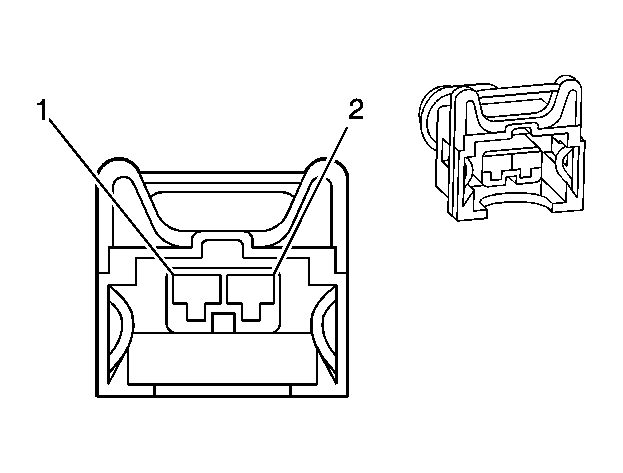

Fuel Injector 1 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 L-GN 1039 Ignition 1 Voltage
2 BU 1744 Fuel Injector #1 Control
Fuel Injector 2 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 RD 639 Ignition 1 Voltage
2 GN 1745 Fuel Injector #2 Control
Fuel Injector 3 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 L-GN 1039 Ignition 1 Voltage
2 PU 1746 Fuel Injector #3 Control
Fuel Injector 4 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 RD 639 Ignition 1 Voltage
2 BN/YE 844 Fuel Injector #4 Control
Fuel Injector 5 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 L-GN 1039 Ignition 1 Voltage
2 GY 845 Fuel Injector #5 Control
Fuel Injector 6 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 RD 639 Ignition 1 Voltage
2 YE 846 Fuel Injector #6 Control
Fuel Injector 7 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 L-GN 1039 Ignition 1 Voltage
2 PK/BU 877 Fuel Injector #7 Control
Fuel Injector 8 Terminal Identification

GM1356162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7219-5226-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
1 RD 639 Ignition 1 Voltage
2 L-GN 878 Fuel Injector #8 Control
Fuel Pump and Sender Assembly Terminal Identification

GM1356175Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-7053-10
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 PU 30 Fuel Level Sensor Signal
3 BK 2759 Low Reference
4 PU 120 Fuel Pump Supply Voltage
5 BK/BU 650 Ground
Fuel Tank Pressure (FTP) Sensor Terminal Identification

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • B54
  • 3-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 2759 Low Reference
B D-GN 890 Fuel Tank Pressure Sensor Signal
C GY 2709 5-Volt Reference Voltage
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Terminal Identification

GM474210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9723-6897-40
  • 4-Way Female (GY)
Pin Wire Color Circuit No. Function
A BU/BK 1664 HO2S Low Signal Bank 1 Sensor 1
B PU 1665 HO2S High Signal Bank 1 Sensor 1
C BK/WH 1050 HO2S Bank 1 Sensor 1 Heater Low Control
D PK 439 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Terminal Identification

GM1356101Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-9845-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A TN/WH 1669 HO2S Low Signal Bank 1 Sensor 2
B PU/WH 1668 HO2S High Signal Bank 1 Sensor 2
C L-BU 1150 HO2S Bank 1 Sensor 2 Heater Low Control
D PK 439 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Terminal Identification

GM474210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9123-6897-40
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A GY/BK 1667 HO2S Low Signal Bank 2 Sensor 1
B GY 1666 HO2S High Signal Bank 2 Sensor 1
C L-GN/RD 1250 HO2S Bank 2 Sensor 1 Heater Low Control
D PK 439 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Terminal Identification

GM1356101Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9845-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A TN 1671 HO2S Low Signal Bank 2 Sensor 2
B PU/BK 1670 HO2S High Signal Bank 2 Sensor 2
C RD/WH 1350 HO2S Bank 2 Sensor 2 Heater Low Control
D PK 439 Ignition 1 Voltage
Idle Air Control (IAC) Valve Terminal Identification

GM1356363Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-2190-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 444 IAC Coil B Low Control
B L-GN/WH 1749 IAC Coil B High Control
C L-BU/BK 1748 IAC Coil A Low Control
D L-BU 1747 IAC Coil A High Control
Ignition Coil Cylinder 1 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2129 Low Reference
C PU 2121 IC 1 Control
D PK 1039 Ignition 1 Voltage
Ignition Coil Cylinder 2 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2122 IC 2 Control
C RD 2130 Low Reference
D PK 639 Ignition 1 Voltage
Ignition Coil Cylinder 3 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2129 Low Reference
C L-BU 2123 IC 3 Control
D PK 1039 Ignition 1 Voltage
Ignition Coil Cylinder 4 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2130 Low Reference
C L-GN 2124 IC 4 Control
D PK 639 Ignition 1 Voltage
Ignition Coil Cylinder 5 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2129 Low Reference
C GN 2125 IC 5 Control
D PK 1039 Ignition 1 Voltage
Ignition Coil Cylinder 6 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2130 Low Reference
C L-BU 2126 IC 6 Control
D PK 639 Ignition 1 Voltage
Ignition Coil Cylinder 7 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2127 IC 7 Control
C RD 2129 Low Reference
D PK 1039 Ignition 1 Voltage
Ignition Coil Cylinder 8 Terminal Identification

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6673-30
  • 4-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BN 2130 Low Reference
C PU 2128 IC 8 Control
D PK 639 Ignition 1 Voltage
Intake Air Temperature (IAT) Sensor Terminal Identification

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9415-40
  • 2-Way Female (GY)
Pin Wire Color Circuit No. Function
A GN/OG 5514 Low Reference
B BN 472 IAT Sensor Signal
Manifold Absolute Pressure (MAP) Sensor Terminal Identification

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-9946-40
  • 3-Way Female (GY)
Pin Wire Color Circuit No. Function
A BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C PU/WH 2704 5-Volt Reference
Mass Air Flow (MAF) Sensor Terminal Identification

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9735-30
  • 3-Way Female (BK)
Pin Wire Color Circuit No. Function
A BN/WH 492 MAF Sensor Signal
B BK/RD 450 Sensor Ground
C PK 439 Sensor Voltage Supply
Park/Neutral Position Switch Terminal Identification

GM1356193Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9223-6722-30
  • 12-Way Female (BK)
Pin Wire Color Circuit No. Function
1 GY/BU 275 Park Neutral Position Switch Park Signal
2 - - Not Used
3 YE 1479 A/T Neutral Signal
4 YE/RD 772 Transmission Range Switch Signal B
5 BU/WH 771 Transmission Range Switch Signal A
6 GY 773 Transmission Range Switch Signal C
7 BK/RD 450 Ground
8 WH 776 Transmission Range Switch Signal P
9 - - Not Used
10 L-GN 24 Backup Lamp Supply Voltage
11 BN/BU 239 Ignition 1 Voltage
12 GY 434 Neutral Safety Switch Signal

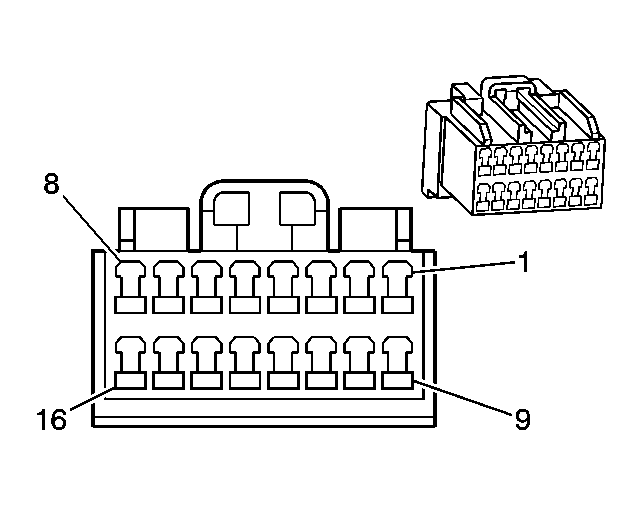

Powertrain Interface Module (PIM) Terminal Identification

GM1356055Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-7367-30
  • 16-Way Female (BK)
Pin Wire Color Circuit No. Function
1-5 - - Not Used
6 RD/BK 800 UART Serial Data (Primary)
7 YE 1045 RFA Class 2 Serial Data
8 GY/BU 275 Park Neutral Position Switch Park Signal
9-14 - - Not Used
15 OG 300 Ignition 3 Voltage
16 BK/RD 450 Ground
Reverse Lockout Solenoid Terminal Identification

GM1356361Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9129-2646
  • 2-Way Female (WH)
Pin Wire Color Circuit No. Function
A YE 1652 Reverse Lockout Solenoid Control
B PK/BU 339 Ignition 1 Voltage
Skip Shift Coil Assembly Terminal Identification

GM1356361Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9129-2646
  • 2-Way Female (YE)
Pin Wire Color Circuit No. Function
A GY 587 Skip/Shift Solenoid Control
B PK/BU 339 Ignition 1 Voltage
Throttle Position (TP) Sensor Terminal Identification

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9730-30
  • 3-Way Female (BK)
Pin Wire Color Circuit No. Function
A GY 2701 5-Volt Reference
B BK/YE 2752 Low Reference
C BU 411 Throttle Position Signal
Throttle Relaxer Terminal Identification

GM1356102Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5146-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
A RD/WH 560 Throttle Relaxer Motor - Feed
B RD/BK 561 Throttle Relaxer Motor - Return

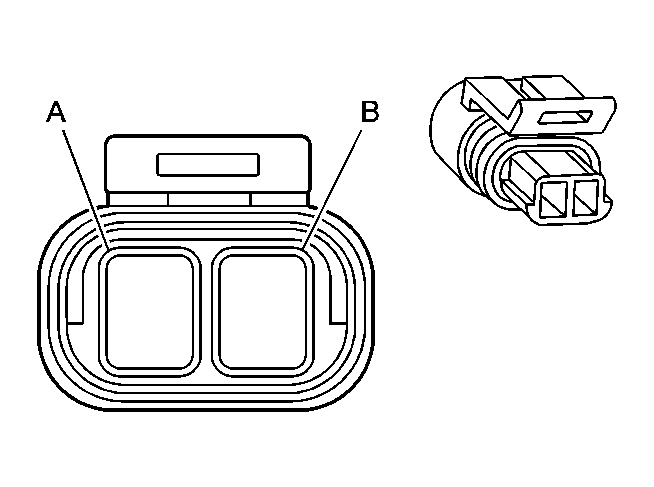

Vehicle Speed Sensor - Automatic Transmission C1 Terminal Identification

GM1356252Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7223-9569-30
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
A BU/WH 1230 AT ISS High Signal
B BN/RD 1231 AT ISS Low Signal
scientia non olet · About LEMON Manuals
