Installation Procedure

  1. Install the throttle cable (2) to the throttle body cam lever (1).

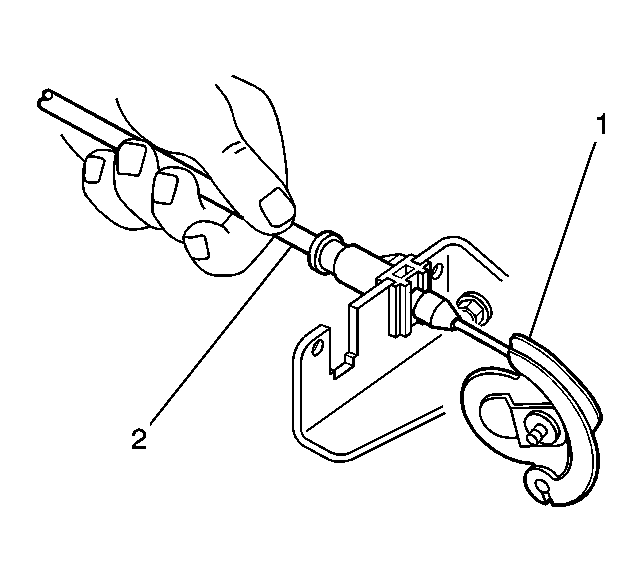

    Fig 1: View Of Throttle Body Cam Lever & Throttle Cable
    GM1358870Courtesy of GENERAL MOTORS CORP.
  2. Attach the throttle cable (2) to the throttle body mounting bracket.

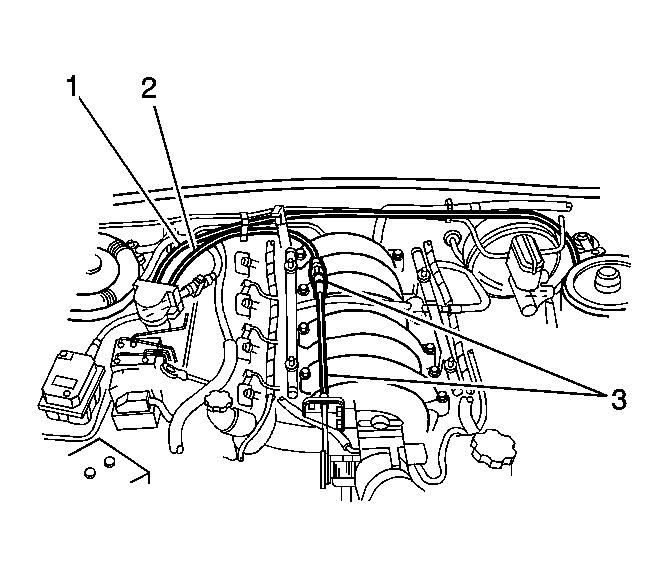

    3. Fig 2: Locating Throttle Cable
    GM1372120Courtesy of GENERAL MOTORS CORP.
  3. Attach the throttle cable (3) to the retaining clip over the intake manifold.
    4. Fig 3: Exploded View Of Throttle Relaxer
    GM1360223Courtesy of GENERAL MOTORS CORP.
  4. Attach the throttle cable to the throttle relaxer.
  5. Install the throttle relaxer cover (1).
  6. Install both engine dress covers.
