Installation Procedure

Install the CMP sensor.

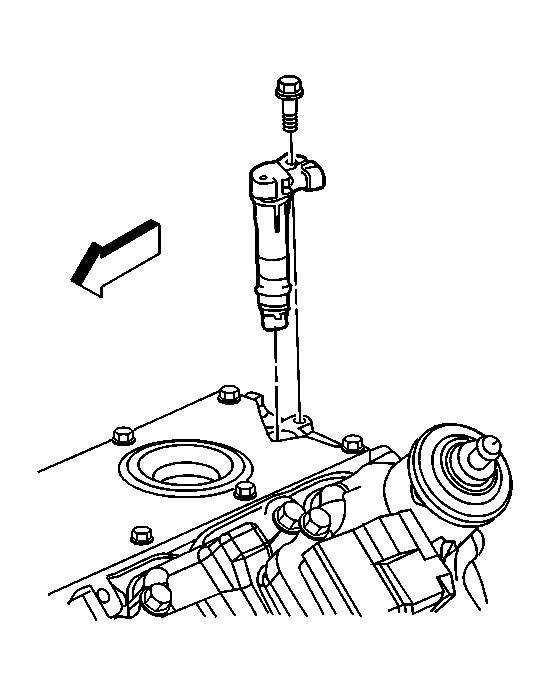

Fig 1: View Of CMP Sensor
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the CMP sensor retaining bolt.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
Connect the CMP sensor electrical connector.
Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical 5.7L.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
