Installation Procedure

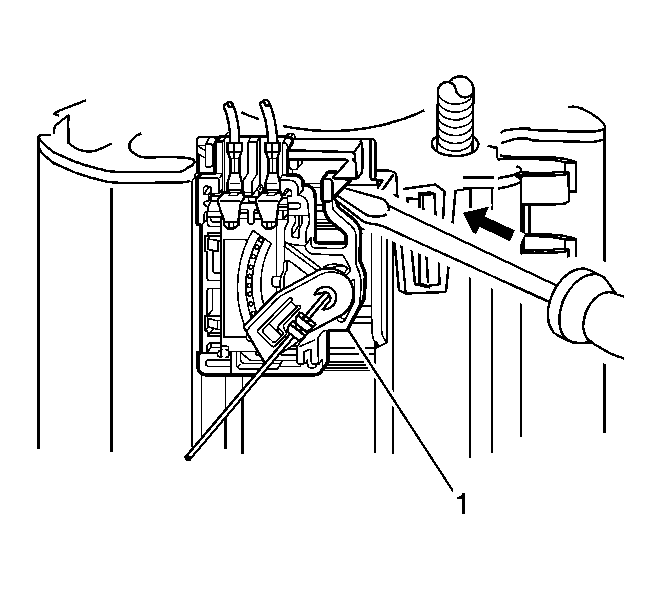

    Fig 1: View Of Fuel Sender Assembly
    GM1372258Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel sender assembly (1) to the side of the reservoir.

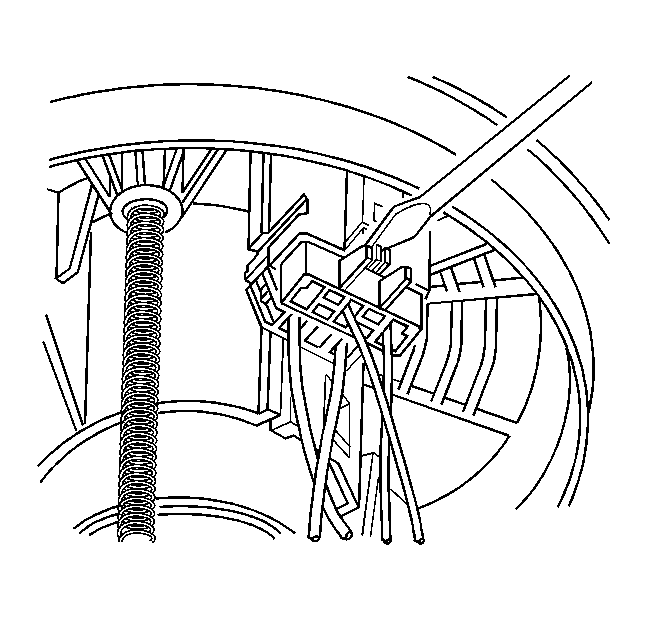

    2. Fig 2: View Of Fuel Level Sender Assembly Harness Connector
    GM1372255Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel level sender assembly harness connector to the modular fuel pump and sender assembly cover.
  3. Install the modular fuel sender assembly to the fuel tank. Refer to Fuel Sender Assembly Replacement .
