Installation Procedure

  1. Install the fuel tank pressure sensor (2) to the sender assembly cover (1).

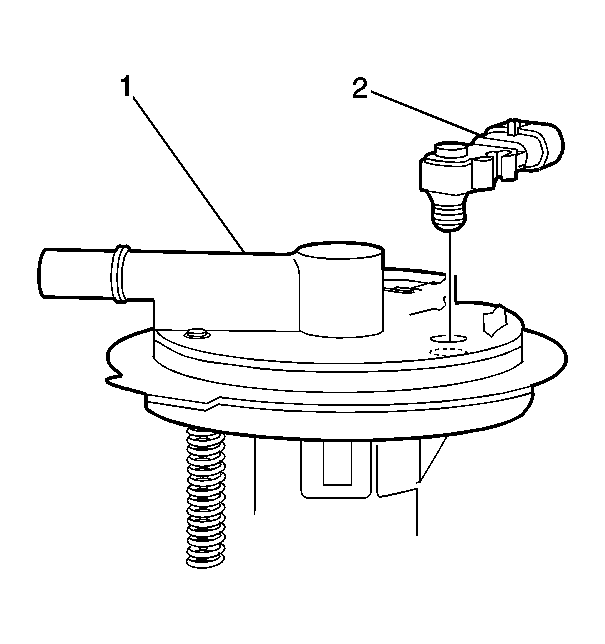

    Fig 1: View Of Fuel Tank Pressure Sensor
    GM1372263Courtesy of GENERAL MOTORS CORP.
  2. Install the modular fuel pump and sender assembly to the fuel tank. Refer to Fuel Sender Assembly Replacement .
  3. Install the fuel tank assembly. Refer to Fuel Tank Replacement .
