Installation Procedure

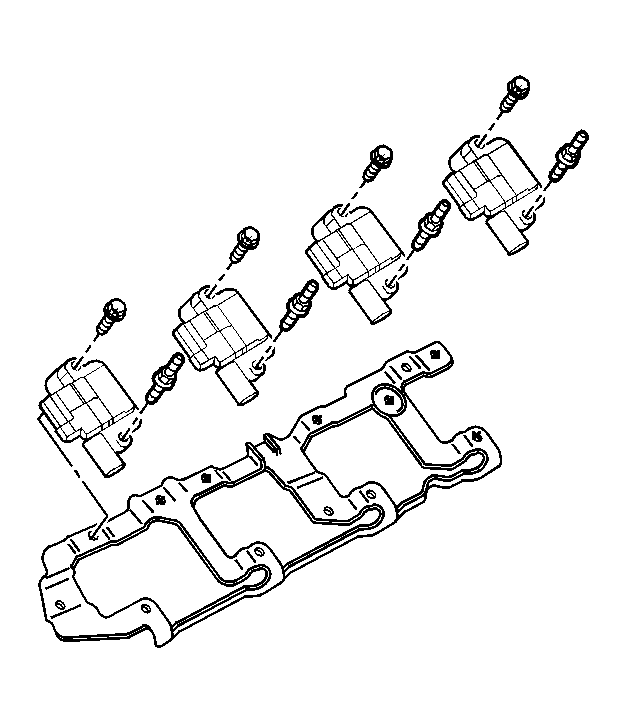

    Fig 1: View Of Ignition Coils
    GM309850Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the ignition coil.
  2. Install the ignition coil mounting bolts.

    Tighten:  Tighten the ignition coil mounting bolts to 12 N.m (106 lb in).

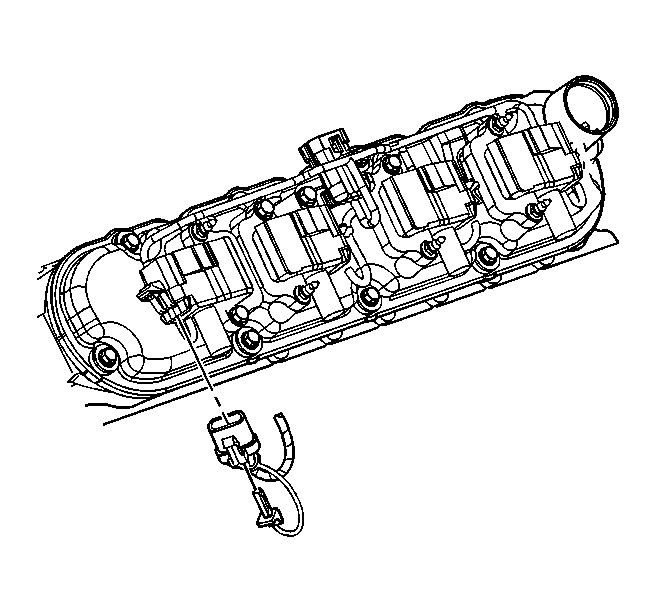

    3. Fig 2: View Of Ignition Coil Harness Connector
    GM709591Courtesy of GENERAL MOTORS CORP.
  3. Connect the spark plug wire at the ignition coil.
  4. Connect the ignition coil harness connector.
