Installation Procedure

  1. Install the TP sensor O-ring seal (7) on the TP sensor (6).

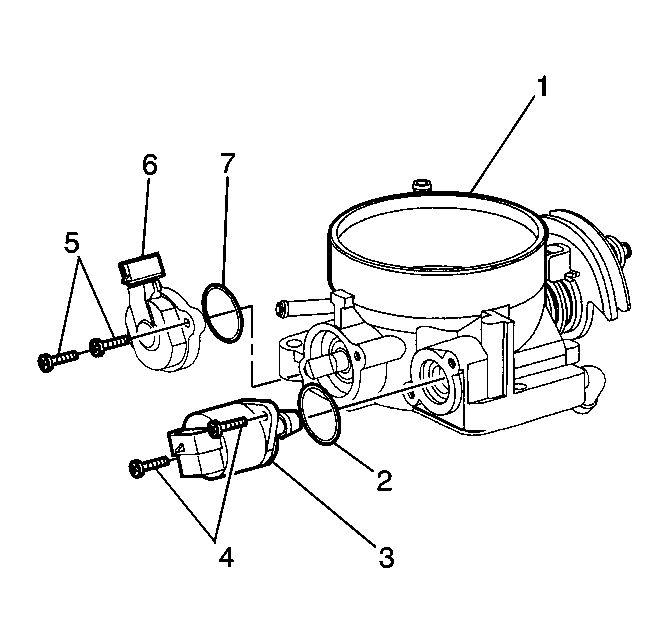

    Fig 1: View Of TP Sensor & IAC Valve
    GM216230Courtesy of GENERAL MOTORS CORP.
  2. Install the TP sensor (6) on the throttle body (1) with the throttle valve in the closed position. Ensure that the TP sensor lever lines up with the TP sensor drive lever on the throttle shaft.
    NOTE: Refer to the Fastener Notice in Cautions and Notices.
  3. Install the TP sensor attaching screws (5).

    Tighten:  Tighten the TP sensor attaching screws to 2 N.m (18 lb in).

  4. Connect the TP sensor electrical connector.
  5. Install the power steering reservoir mounting bracket. Refer to Remote PS Fluid Reservoir Bracket Replacement in Power Steering.
  6. Install the power steering reservoir to the mounting bracket.
