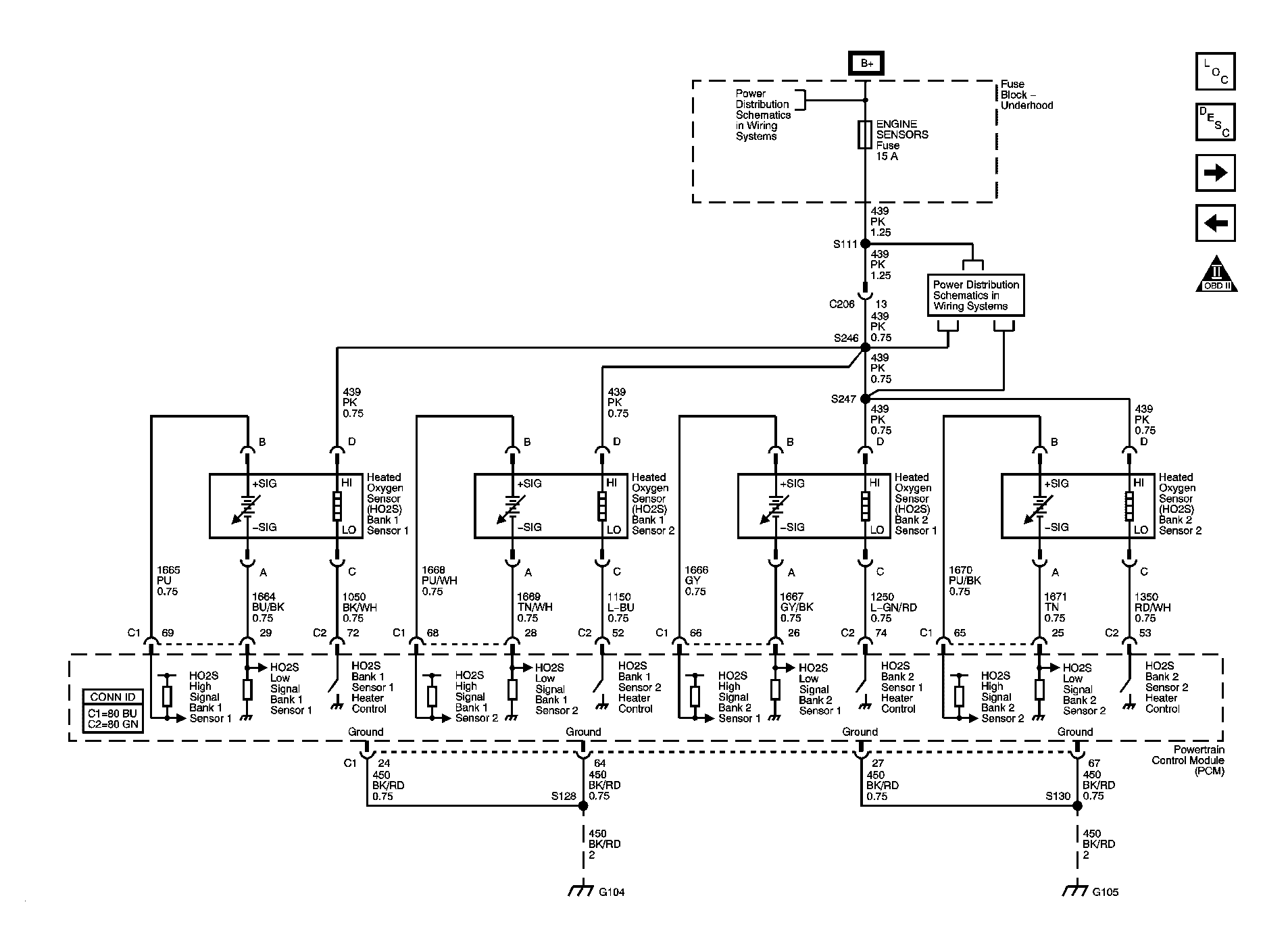

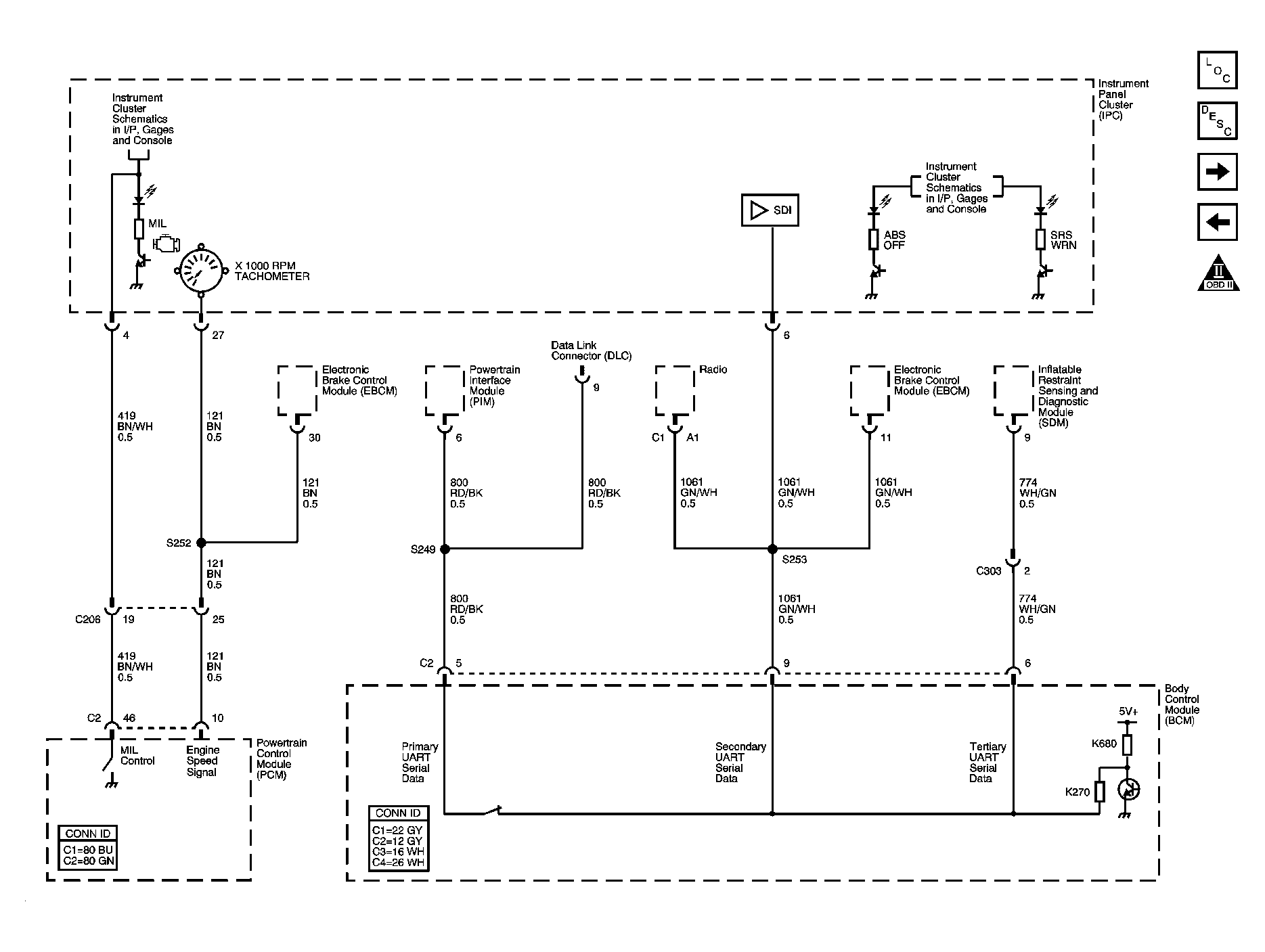

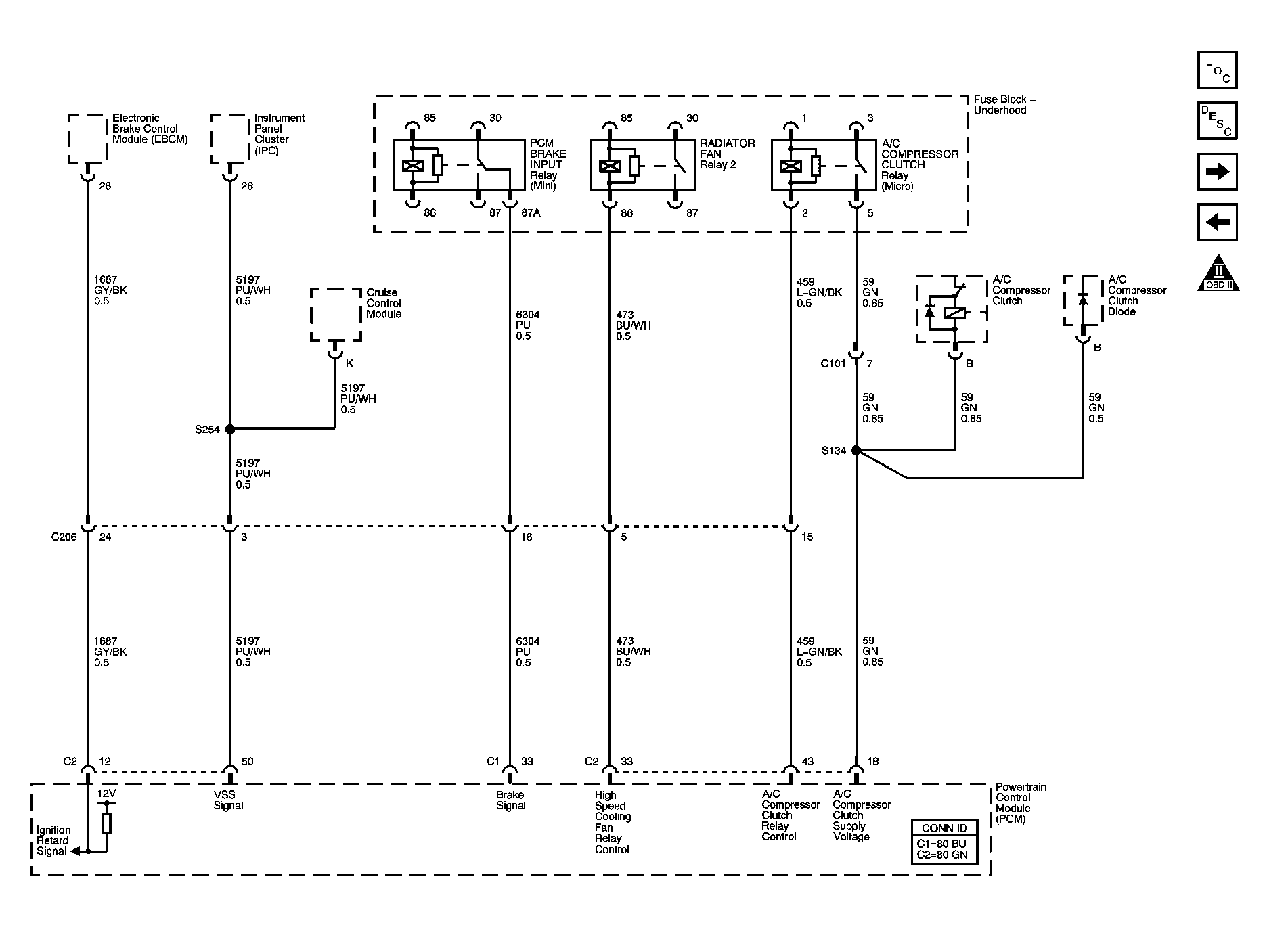

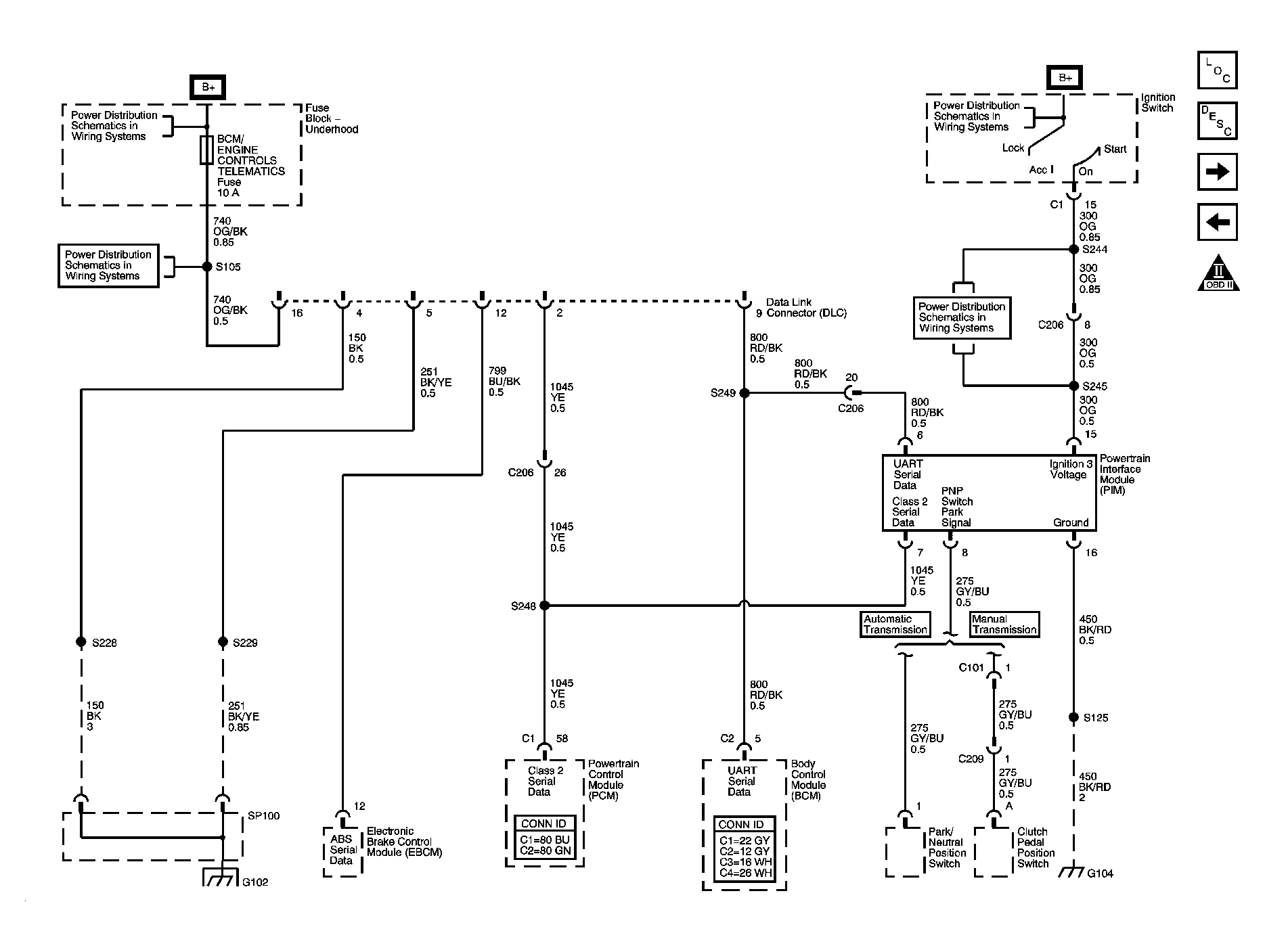

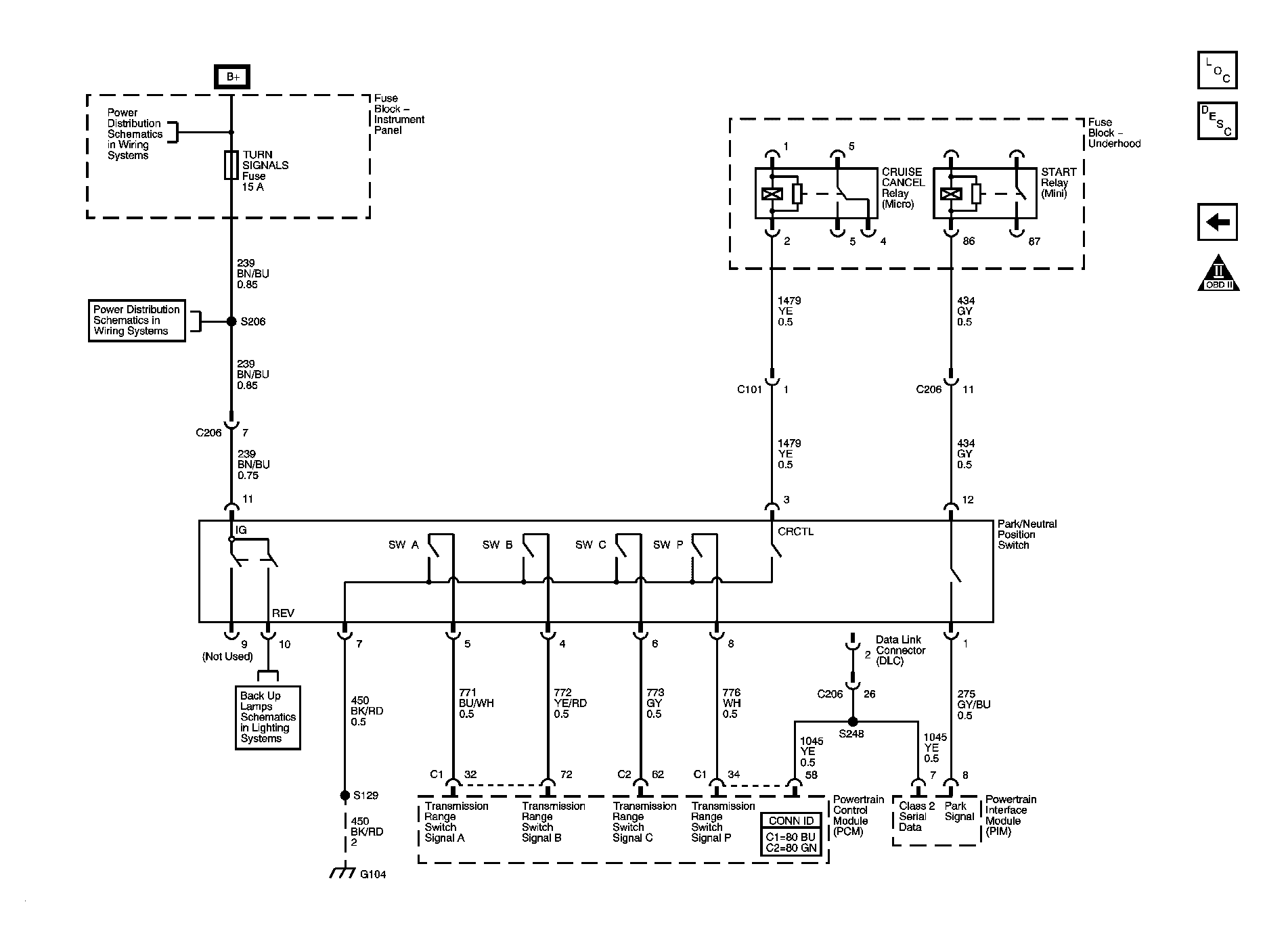

Engine Controls Schematics

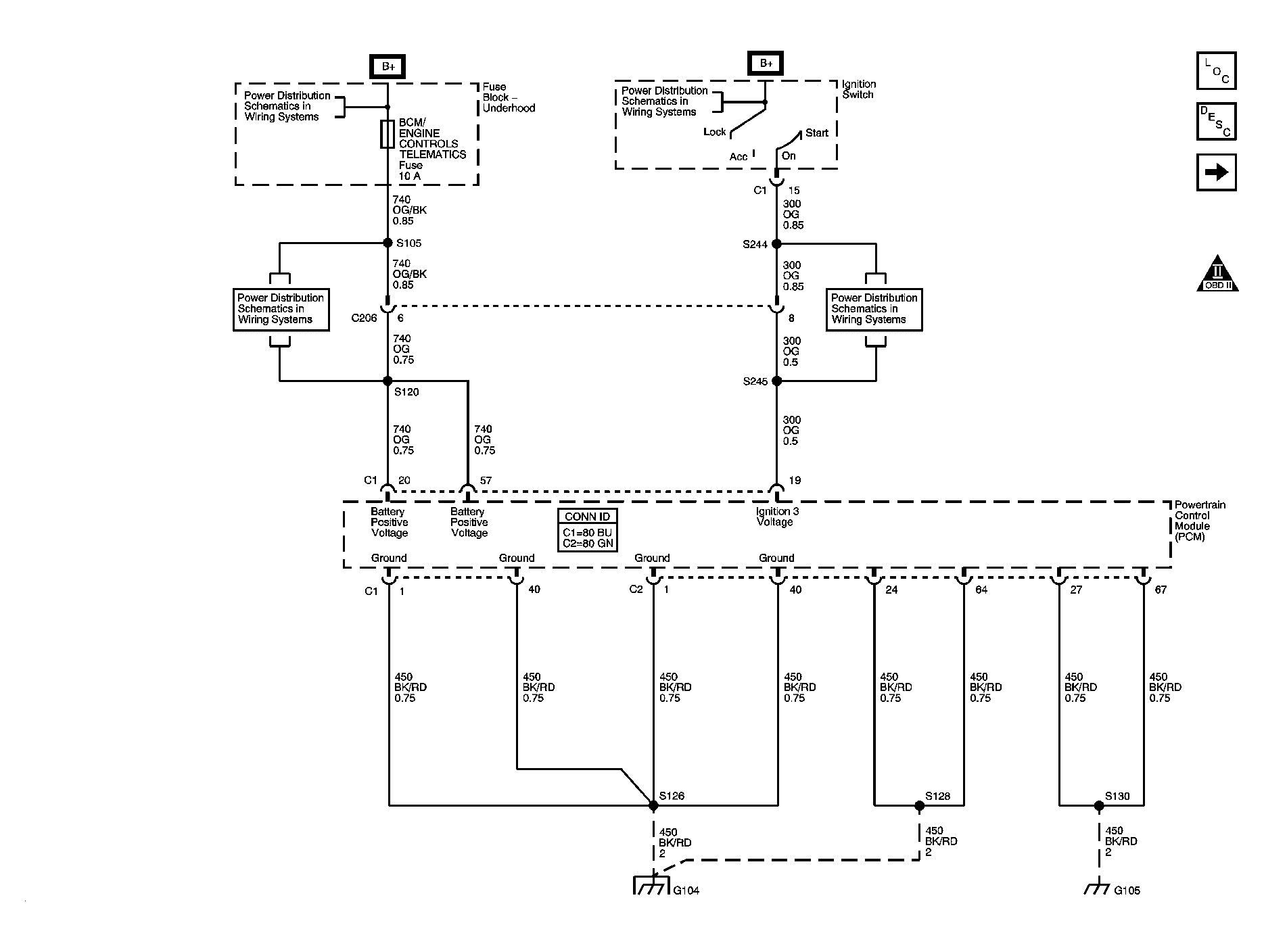

Fig 1: Powertrain Control Module (PCM) Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

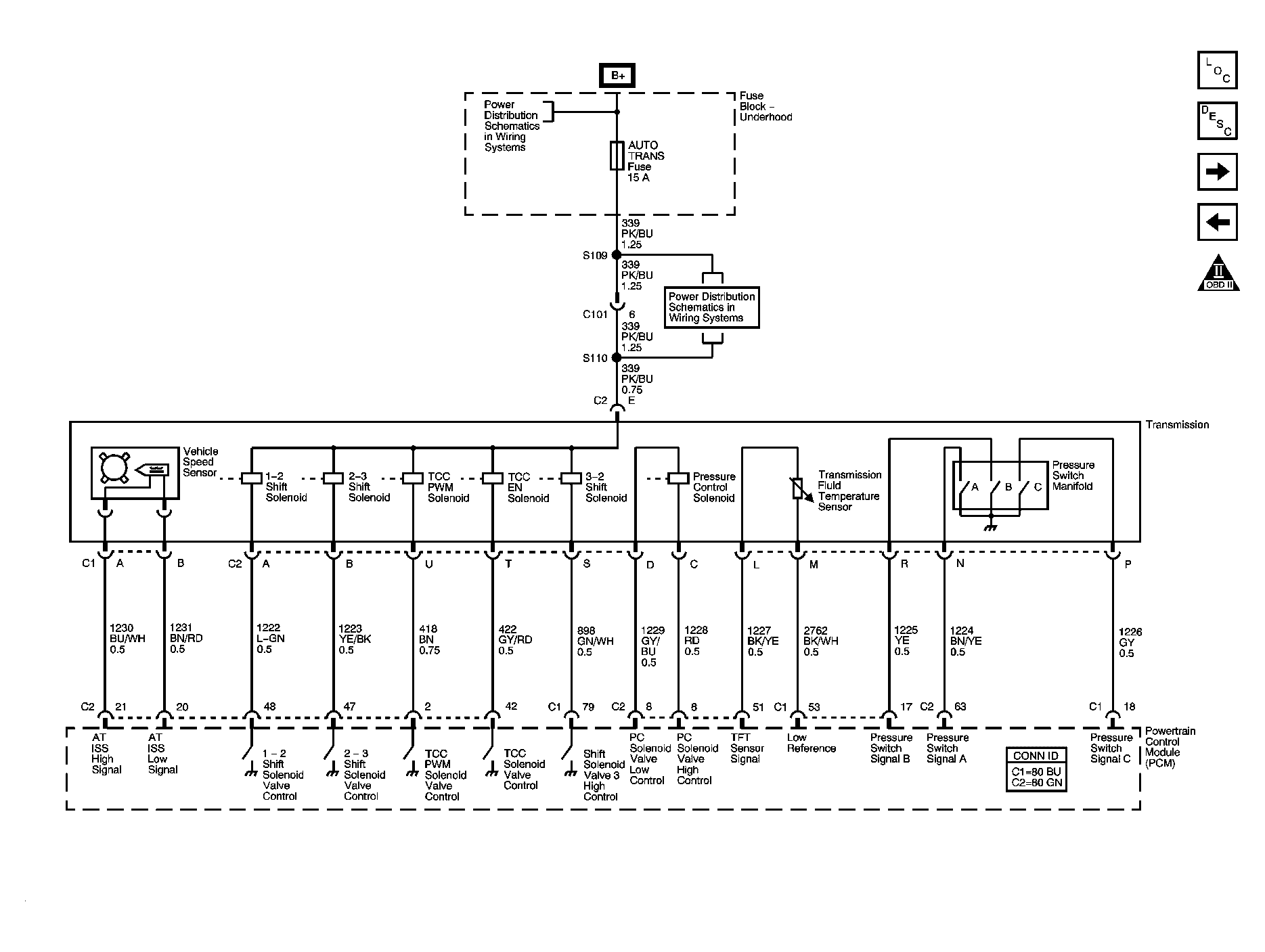

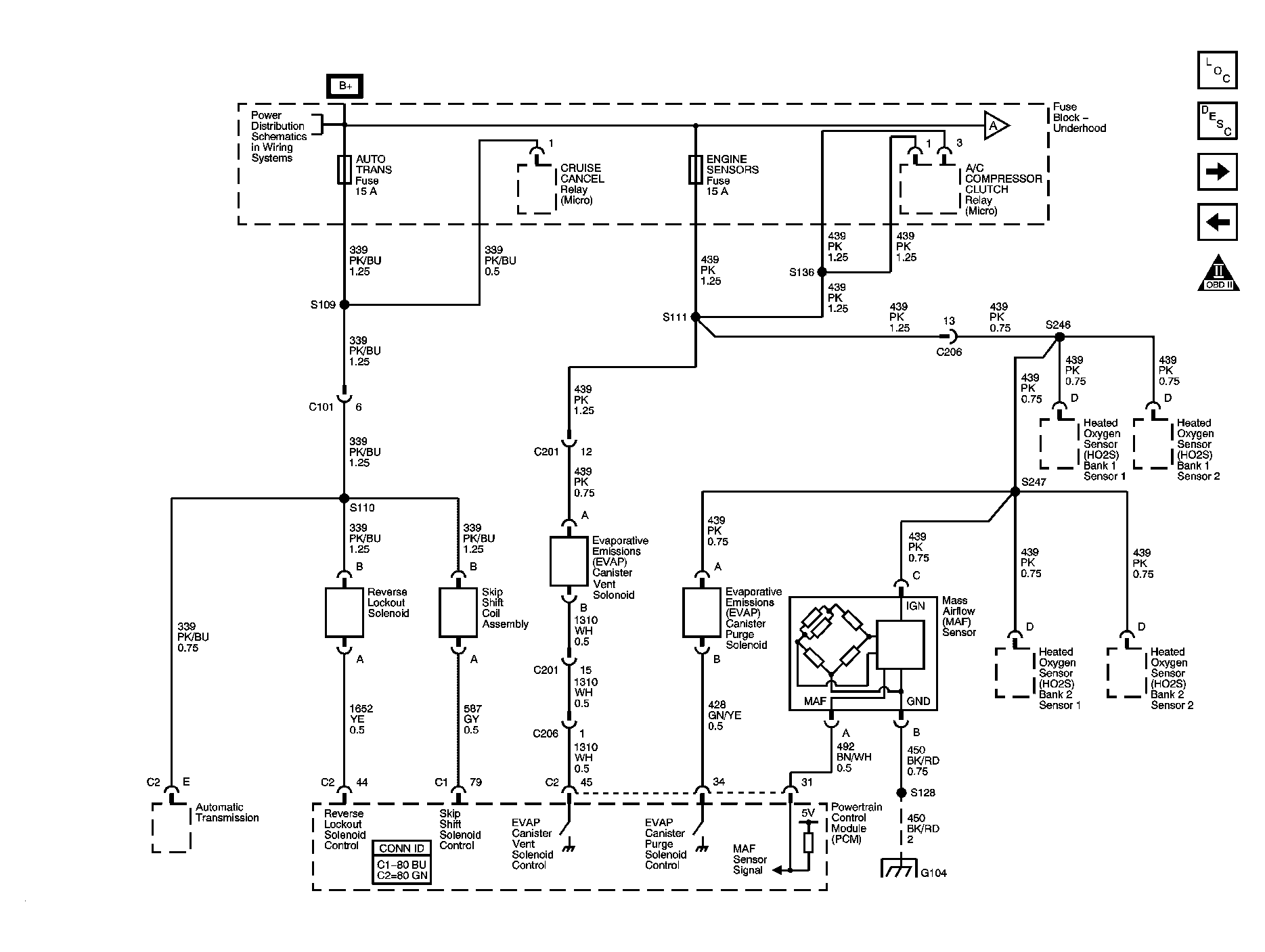

Fig 2: Manual Transmission Solenoids, EVAP Solenoids, Mass Air Flow (MAF) Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

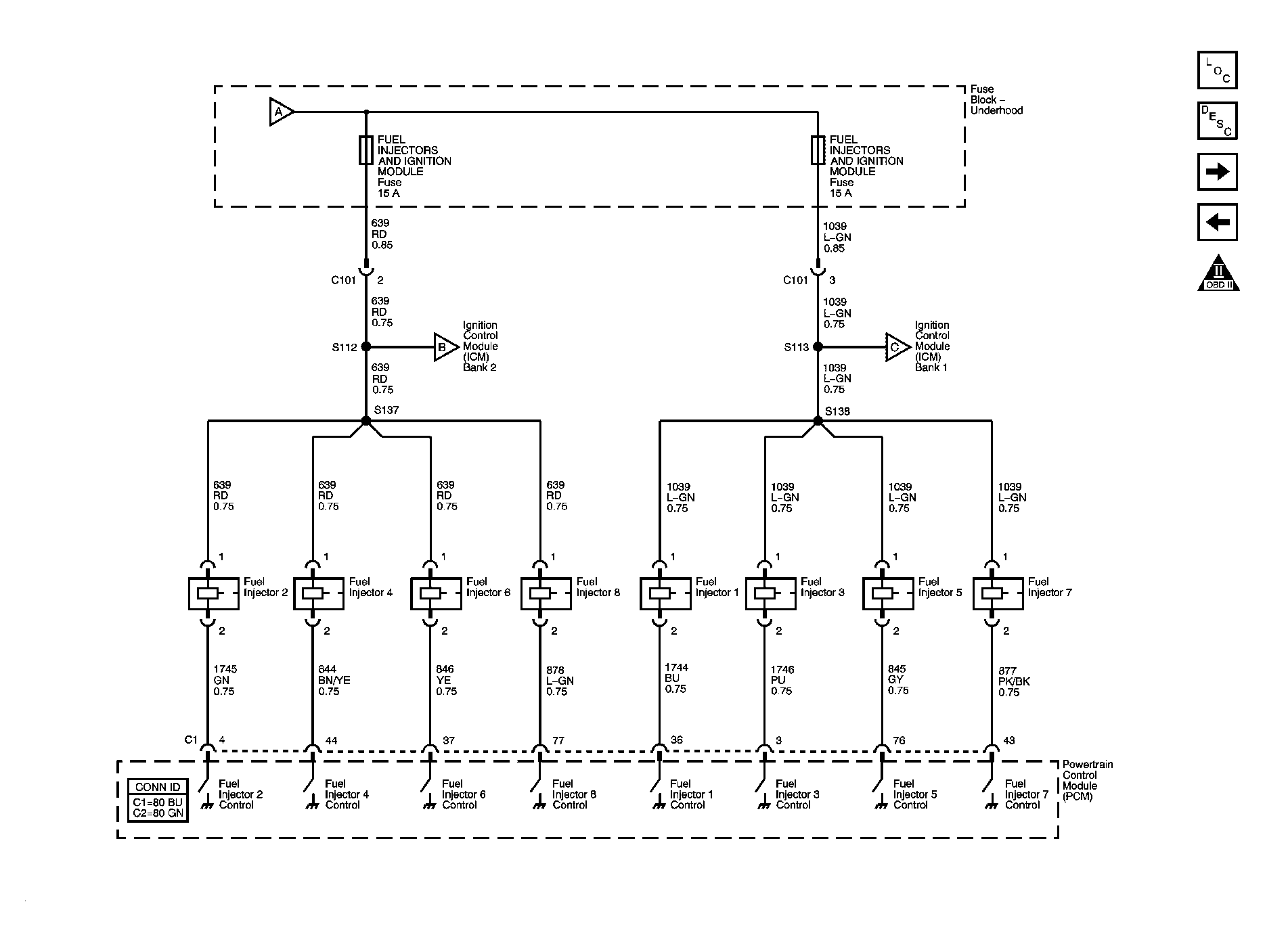

Fig 3: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

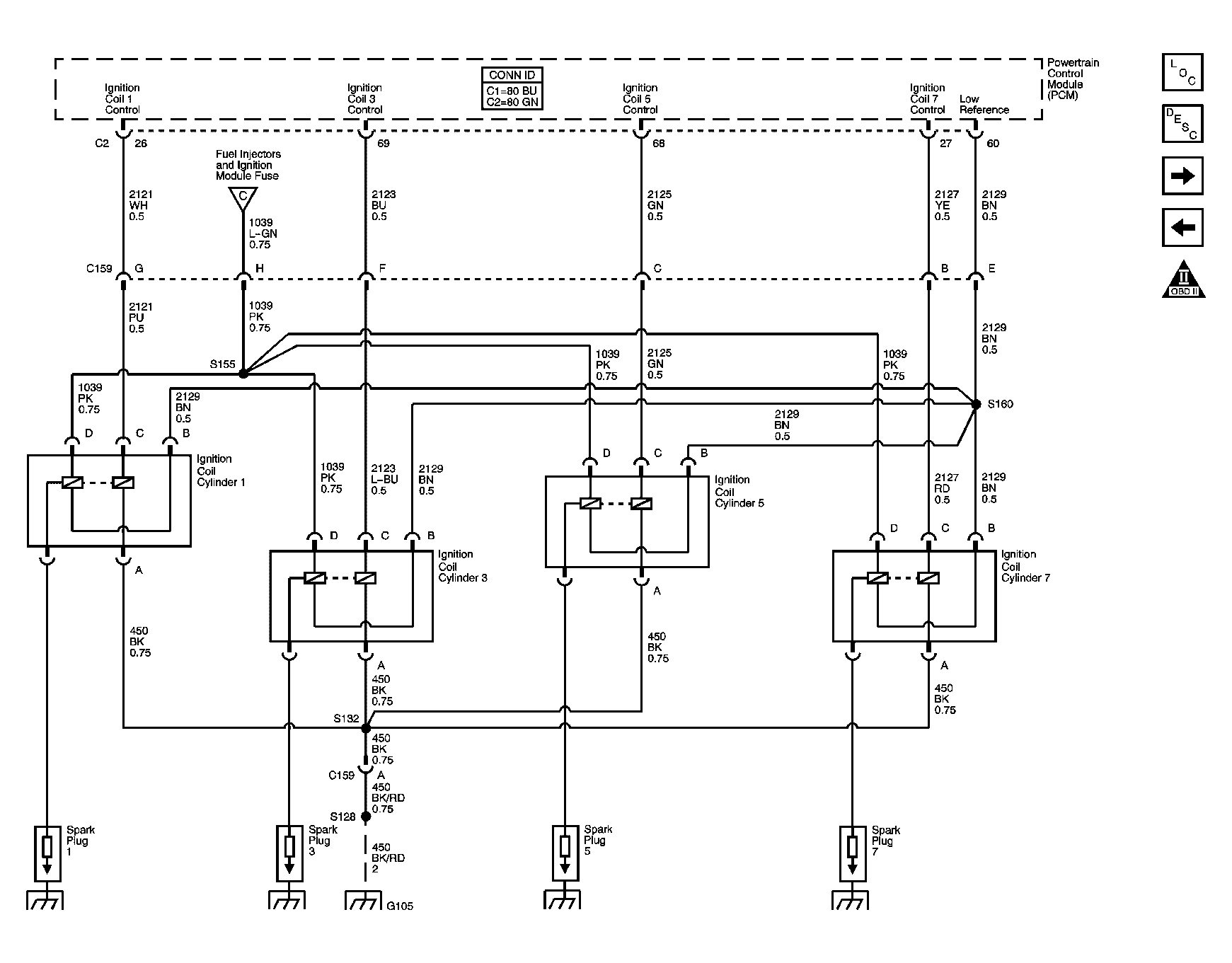

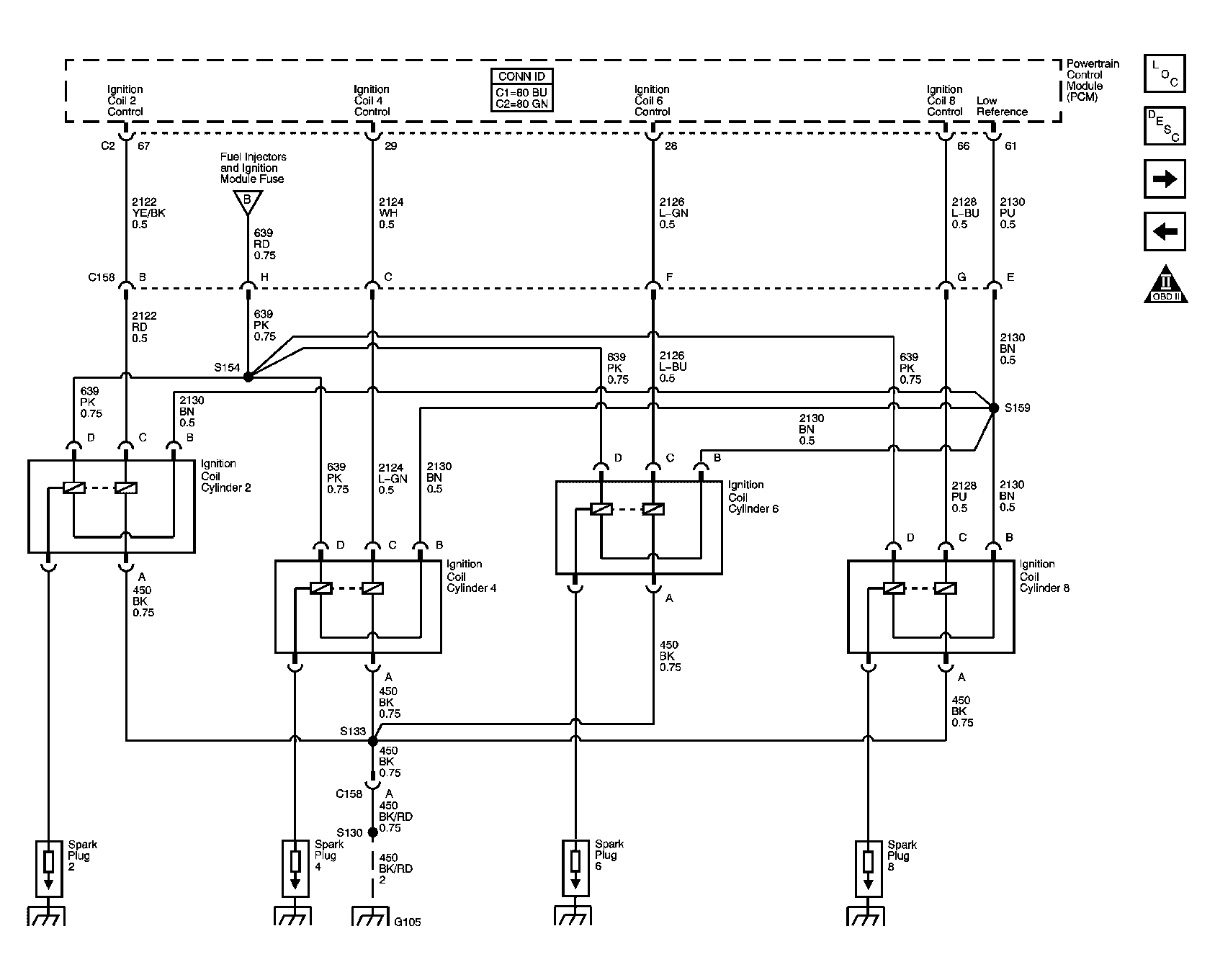

Fig 4: Ignition Coils Schematic (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition Coils Schematic (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

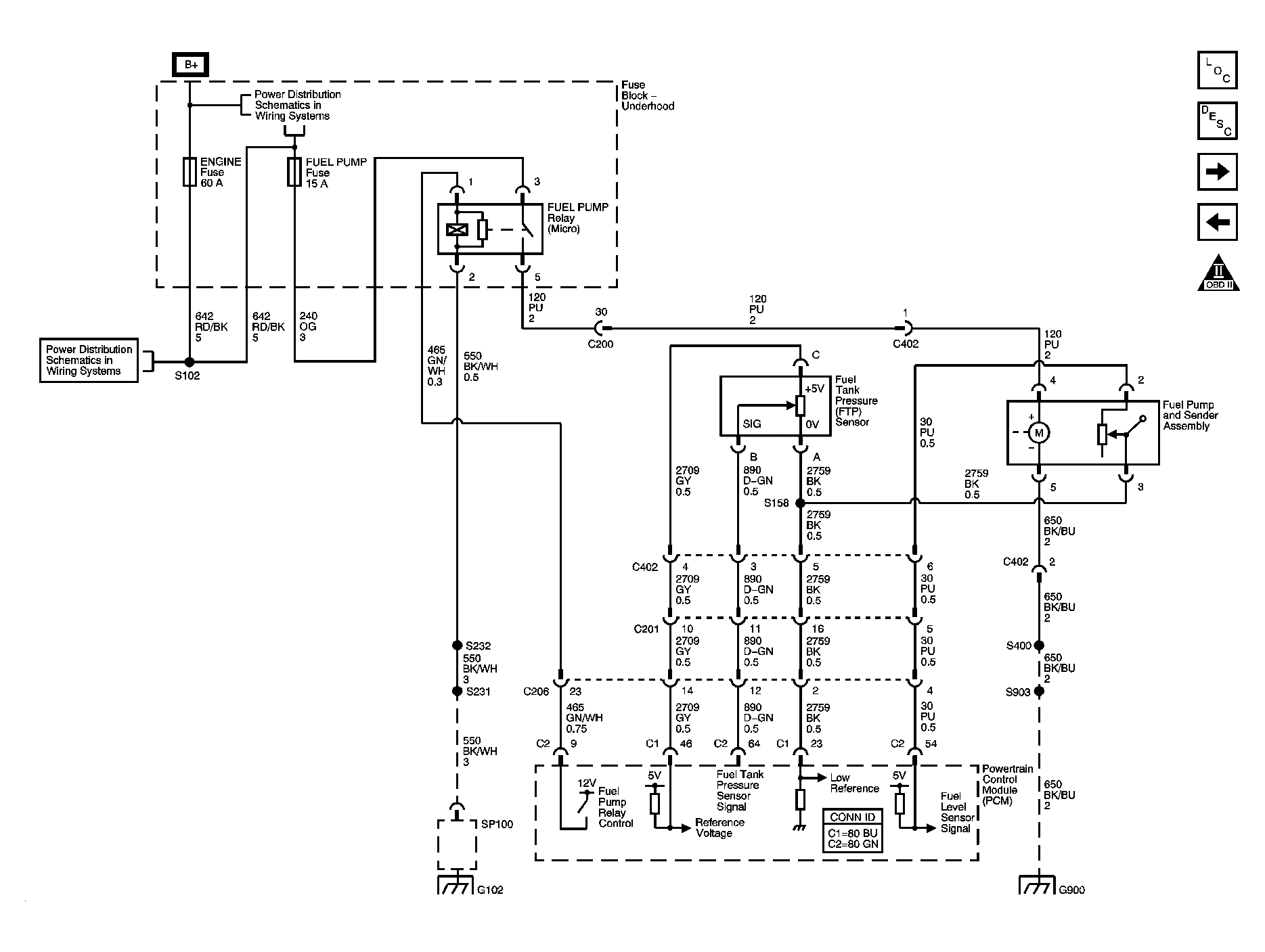

Fig 6: Fuel Pump & Sender Assembly Schematic

Courtesy of GENERAL MOTORS CORP.

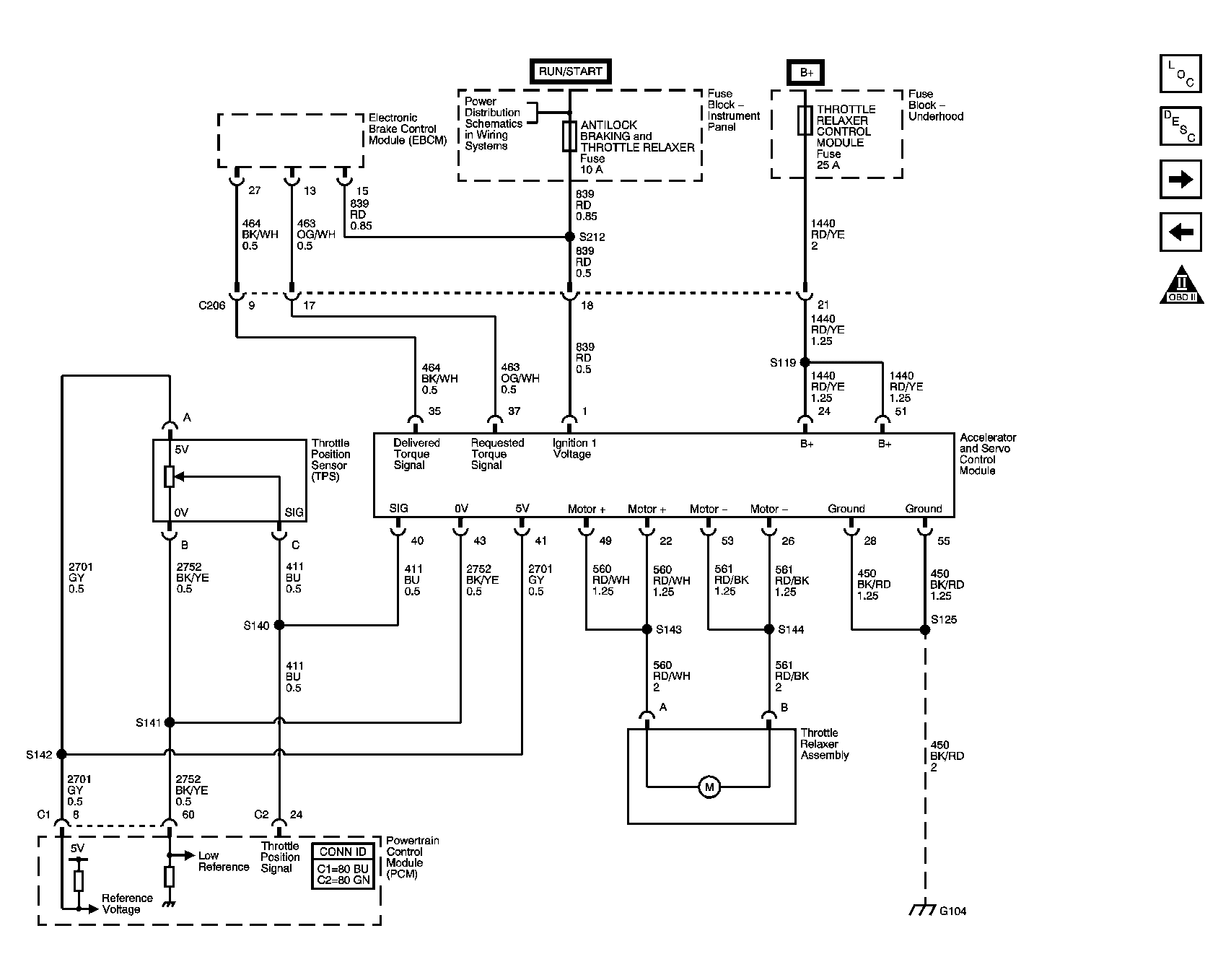

Fig 7: Throttle Relaxer System, Throttle Position Sensor (TPS) Schematic

Courtesy of GENERAL MOTORS CORP.

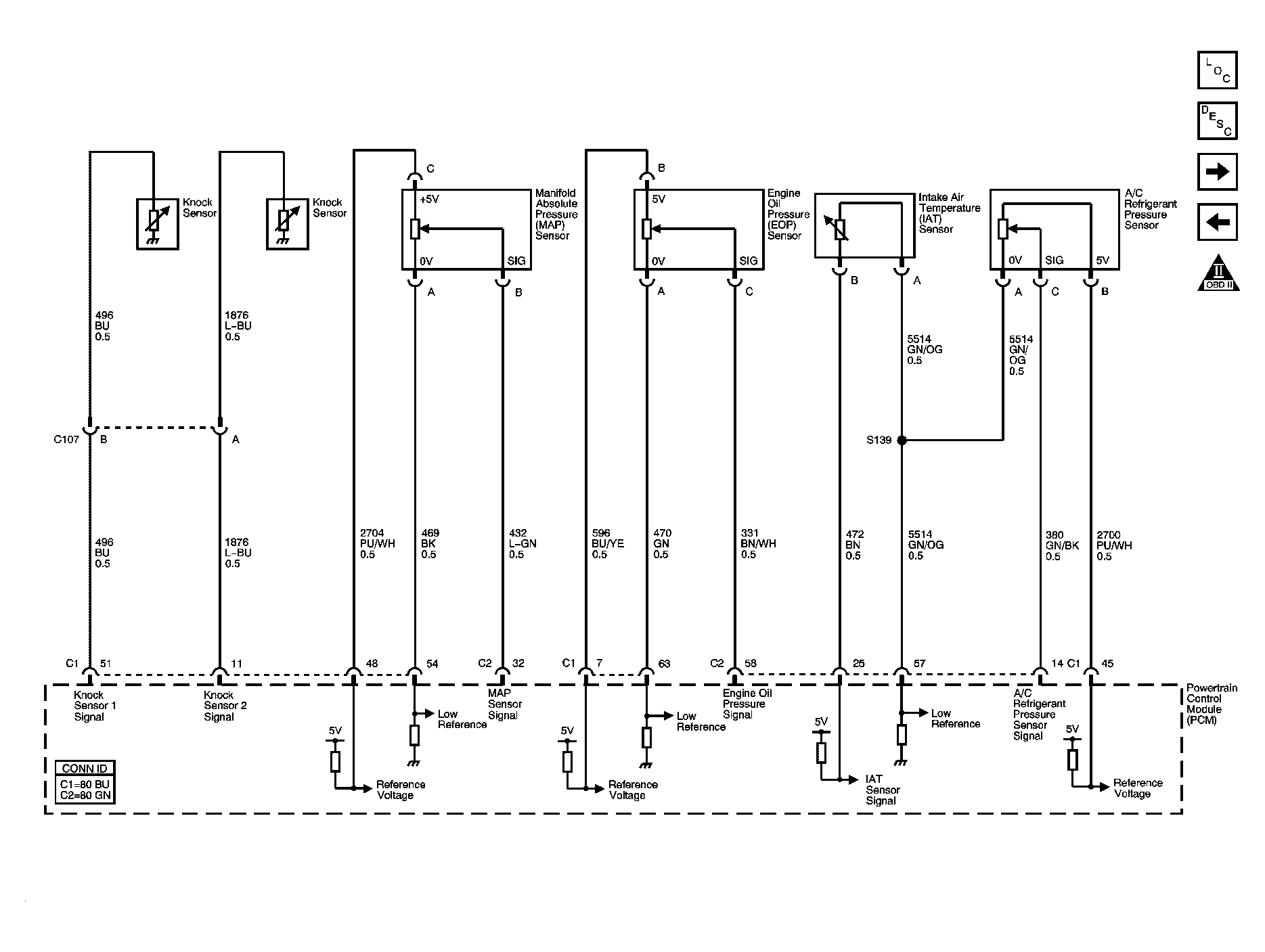

Fig 8: Knock Sensors (KS), Manifold Absolute Pressure (MAP), Engine Oil Pressure (EOP), Intake Air Temperature (IAT), A/C Refrigerant Pressure Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

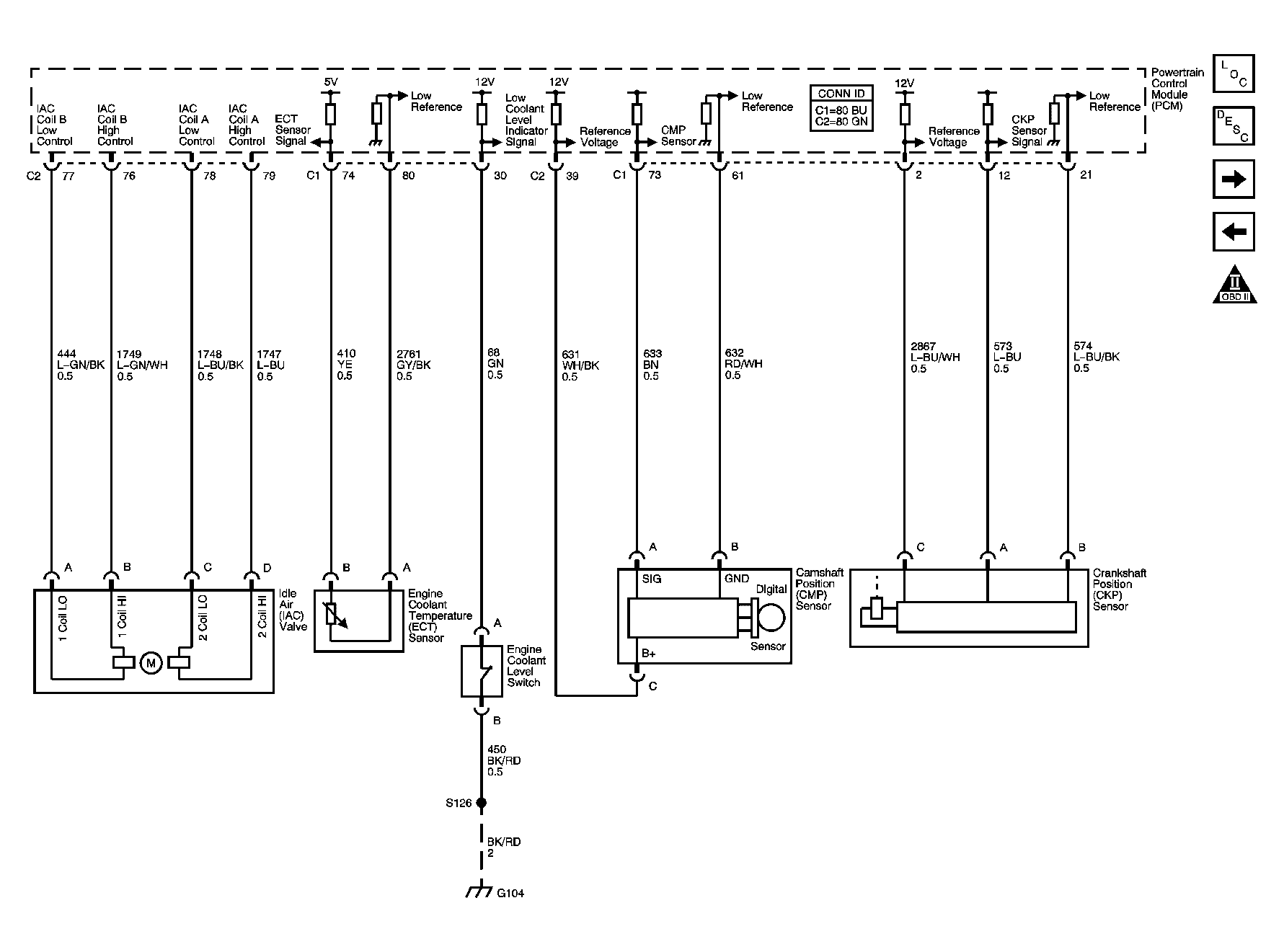

Fig 9: Idle Air Control (IAC) Valve, Engine Coolant Temperature (ECT), Camshaft Position (CMP), Crankshaft Position (CKP) Sensors, Engine Coolant Level Switch Schematic
